1. Önemli Güvenlik Talimatları
Lütfen cihazı kullanmadan önce bu talimatları dikkatlice okuyun ve ileride başvurmak üzere saklayın. Bu talimatlara uyulmaması elektrik çarpmasına, yangına veya ciddi yaralanmalara neden olabilir.
- Her zaman ses seviyesini kontrol edintagEtiket üzerinde belirtilen e değeri, şebeke voltajınızla eşleşir.tage.
- Cihazı, kablosunu veya fişini suya veya başka bir sıvıya batırmayın.
- Cihazı çocukların erişemeyeceği yerde saklayın. Cihaz çocukların yakınında kullanıldığında yakın gözetim gereklidir.
- Cihazı hasarlı bir kablo veya fişle veya cihaz arızalandıktan veya herhangi bir şekilde hasar gördükten sonra çalıştırmayın.
- Cihazı kullanmadığınız zamanlarda ve temizlemeden önce daima elektrik prizinden çıkarın. Cihazı tutmadan veya temizlemeden önce tamamen soğumasını bekleyin.
- Use the appliance only for its intended purpose, which is deep frying food.
- Cihazı sıcak gazlı veya elektrikli ocak üzerine veya yakınına ya da ısınmış fırına koymayın.
- Sıcak yağ veya diğer sıcak sıvılar içeren bir cihazı taşırken son derece dikkatli olun.
- Ensure the oil/fat level is between the MIN and MAX marks to prevent overflow or insufficient heating.
- Asla farklı yağ veya katı yağ türlerini karıştırmayın.
- Cihazda aşındırıcı temizlik maddeleri veya sert kimyasallar kullanmayın.
2. Ürün Bittiview
The Clatronic FR 3771 Deep Fryer is designed for convenient and efficient deep frying. Familiarize yourself with its components:
- ile kapak ViewPencere: Allows monitoring of the frying process without opening.
- Odor and Grease Filter: Integrated into the lid to reduce cooking odors.
- Kızartma Sepeti: Large capacity for various foods, with a removable handle.
- Oil Container (Non-stick coated): Holds the frying oil/fat.
- Kontrol Paneli: Includes thermostat dial and indicator lights.
- Soğuk Dokunuşlu Saplar: For safe and easy transport of the appliance.

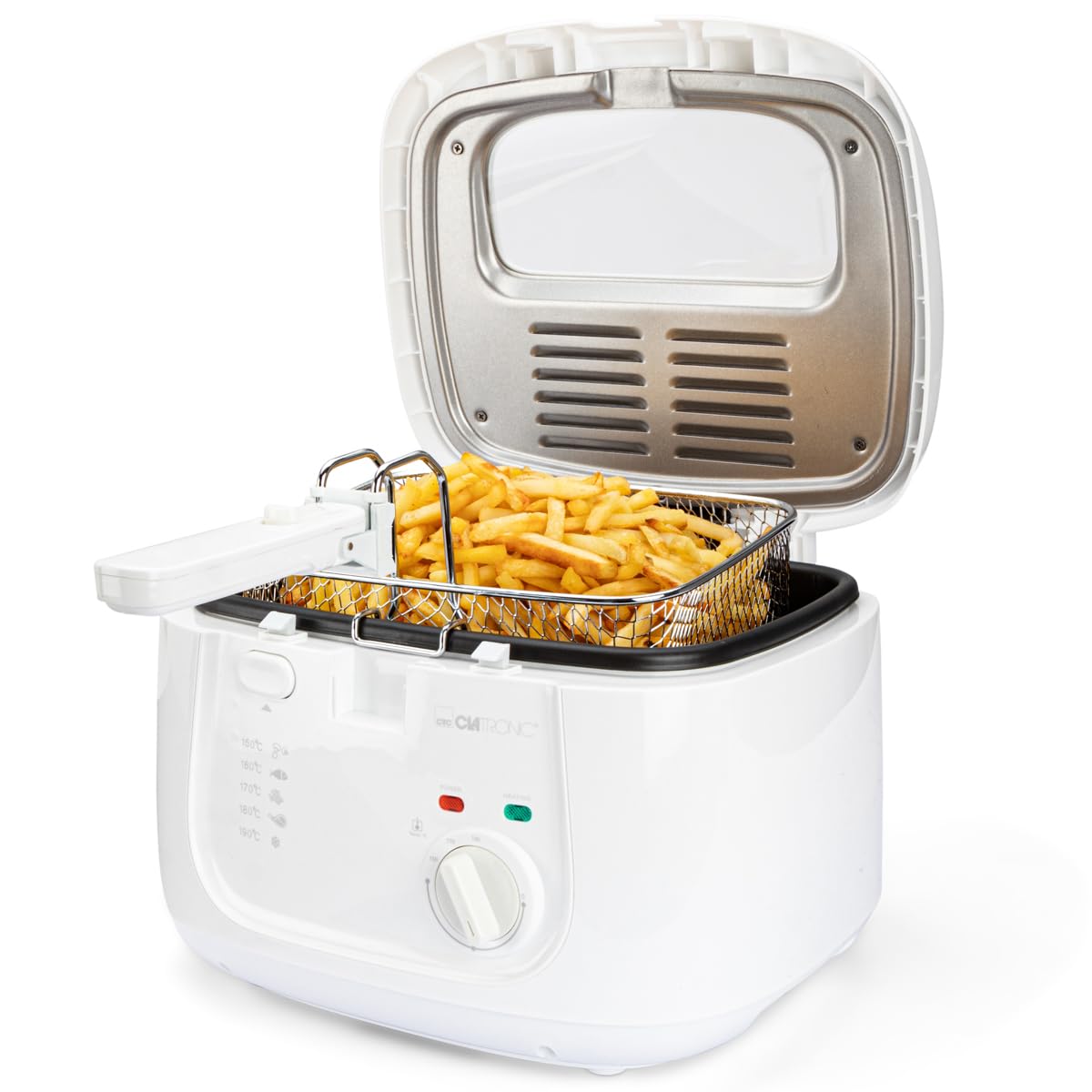

Şekil 2.1: Üzeriview of the Clatronic FR 3771 Deep Fryer, showing the main unit, frying basket filled with fries, and a plate of chicken nuggets.
Şekil 2.2: Ayrıntılı view of the deep fryer's lid, highlighting the spring mechanism, viewing window, and the non-stick coating of the oil container. It also shows the drip-off position for the basket.
Figure 2.3: Illustration of the deep fryer's built-in odor and grease filter system, showing the layers designed to minimize cooking smells.
3. Kurulum
3.1 Ambalajın Açılması ve İlk Temizlik
- Cihazın tüm ambalaj malzemelerini çıkarın.
- Cihazın dışını bir bezle silin.amp Kumaş.
- Wash the frying basket and the removable lid in warm soapy water. Rinse thoroughly and dry completely.
- Ensure all parts are dry before assembly and use.
3.2 Filling with Oil or Fat
The deep fryer has an oil capacity of approximately 2.5 liters.
Figure 3.1: The deep fryer indicating its 2.5 liter oil/fat capacity, suitable for daily meals and snacks.
- Cihazı sağlam, ısıya dayanıklı bir yüzeye yerleştirin.
- Ensure the frying basket is removed from the oil container.
- Carefully pour liquid frying oil or place solid frying fat into the oil container.
- Observe the MIN and MAX level indicators inside the container. Do not fill below MIN or above MAX.
- If using solid fat, cut it into smaller pieces to ensure even melting.
4. Kullanım Talimatları
4.1 Preheating the Oil
- Close the lid and plug the appliance into a suitable power outlet.
- Turn the thermostat dial to the desired temperature (between 130°C and 190°C). Refer to cooking charts for recommended temperatures for different foods.
- The red 'POWER' indicator light will illuminate, indicating the appliance is on. The green 'HEATING' indicator light will also illuminate, showing that the oil is heating.
- Once the oil reaches the set temperature, the green 'HEATING' indicator light will turn off. The appliance is now ready for frying.
Figure 4.1: Close-up of the deep fryer's control panel, showing the infinitely adjustable thermostat dial (130°C - 190°C) and the foldable handle for the frying basket.
4.2 Frying Food
- Carefully place the food into the frying basket. Do not overfill the basket to ensure even cooking and prevent oil overflow.
- Lower the frying basket slowly into the hot oil.
- Kapağı kapatın. viewing window allows you to monitor the cooking process without opening the lid, which helps prevent splashes.
- During frying, the green 'HEATING' indicator light may cycle on and off as the thermostat maintains the set temperature.
- Fry for the recommended time or until the food is golden brown and cooked through.
Figure 4.2: A user carefully lowering the frying basket, filled with fries, into the preheated oil of the deep fryer. Chicken nuggets are visible on a plate in the foreground.
4.3 Removing Food
- Once cooking is complete, lift the frying basket out of the oil using its handle.
- Hook the basket onto the edge of the oil container to allow excess oil to drain.
- Carefully transfer the fried food to a plate lined with paper towels to absorb any remaining oil.
- When finished frying, turn the thermostat dial to the 'OFF' position and unplug the appliance.
5. Bakım ve Temizlik
Regular cleaning ensures optimal performance and extends the life of your deep fryer. Always ensure the appliance is unplugged and completely cooled before cleaning.
5.1 Draining Oil/Fat
- Allow the oil/fat to cool completely. This may take several hours.
- Carefully pour the cooled oil into a suitable container for disposal or storage. If using solid fat, allow it to solidify and then scoop it out.
5.2 Temizlik Bileşenleri
- Oil Container: The non-stick coated oil container can be wiped clean with a soft cloth and warm soapy water. Do not use abrasive materials.
- Frying Basket and Lid: These parts are removable and can be washed in warm soapy water. Rinse thoroughly and dry completely.
- Dış: Cihazın dışını bir bezle silin.amp Bez. Ana üniteyi asla suya batırmayın.
5.3 Filtre Değişimi
The integrated odor and grease filter should be replaced periodically to maintain effectiveness. Refer to the manufacturer's guidelines for replacement frequency. Replacement filters can be purchased separately.
6. Sorun Giderme
Fritözünüzle ilgili sorunlarla karşılaşırsanız, aşağıdaki yaygın sorunlar ve çözümlere göz atın:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Cihaz açılmıyor. | Not plugged in; power outlet faulty; thermostat dial not set. | Check power connection; try a different outlet; ensure thermostat is turned to a temperature setting. |
| Yağ ısınmıyor. | Thermostat set too low; appliance faulty. | Increase temperature setting; if problem persists, contact customer support. |
| Yiyecekler çıtır çıtır değil. | Yağ sıcaklığı çok düşük; sepet aşırı dolu; yiyecekler çok nemli. | Ensure oil is preheated to correct temperature; fry in smaller batches; pat food dry before frying. |
| Excessive smoke/odor. | Oil is old/dirty; filter needs replacement; oil temperature too high. | Replace oil; replace odor/grease filter; reduce temperature. |
7. Teknik Özellikler
| Şartname | Değer |
|---|---|
| Marka | Klatronik |
| Model Numarası | 263963 |
| Model Adı | FR 3771 |
| Renk | Beyaz |
| Ürün Boyutları (U x G x Y) | 34x32x23 cm |
| Ürün Ağırlığı | 2 Kilogram |
| Yağ Kapasitesi | 2.5 Litre |
| Güç/Wattage | 1800 Watt |
| Cilttage | 220-240 Volt |
| Malzeme | Metal, Non-stick coating |
| Otomatik Kapanma | Evet |
| GTIN (Global Ticari Ürün Numarası) | 04006160639636 |
Figure 7.1: Dimensions of the Clatronic FR 3771 Deep Fryer, showing a length of 30 cm, width of 30 cm, and height of 21.5 cm.
8. Garanti ve Destek
For warranty information and customer support, please refer to the warranty card included with your product or contact your retailer. Keep your proof of purchase for any warranty claims.
