Millennium Lighting Delvona 8-Light Chandelier (Model 4388-MB) Instruction Manual

1. Giriş

Thank you for choosing the Millennium Lighting Delvona 8-Light Chandelier, Model 4388-MB. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

This chandelier features a matte black finish and is designed for indoor use in dry locations. It accommodates eight incandescent bulbs (E12 base, 60 watts maximum each, bulbs sold separately).

Image 1.1: The Millennium Lighting Delvona 8-Light Chandelier in Matte Black. This image displays the full fixture, including the ceiling canopy, chain, central rod, and eight curved arms each holding an E12 bulb socket.

2. Güvenlik Bilgileri

UYARI: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing. Consult a qualified electrician if you are unsure about electrical wiring.

• Profesyonel Kurulum Önerilen: Due to the nature of electrical work and fixture assembly, professional installation by a licensed electrician is strongly recommended.
• This fixture is UL Listed and meets CSA standards, ensuring compliance with safety regulations.
• Derecelendirildi dry locations only. Do not install in areas exposed to moisture or water.
• Tüm elektrik bağlantılarının güvenli olduğundan ve yerel yönetmelik ve yönetmeliklere uygun olduğundan emin olun.
• Maksimum su miktarını aşmayıntage of 60 watts per bulb. Use E12 base incandescent bulbs.
• Öneri 65 Uyarısı: Bu ürün, Kaliforniya Eyaleti tarafından kansere, doğum kusurlarına veya diğer üreme sorunlarına neden olduğu bilinen kimyasallar içerebilir. Daha fazla bilgi için şu adresi ziyaret edin: www.P65Uyarılar.ca.gov.

3. Paket İçeriği

Carefully unpack all components and inspect for any damage. Keep all packaging materials until you are satisfied with the product. The package should contain the following:

• Chandelier Frame (with 8 light arms)
• Tavan Kanopi
• Mounting Hardware (crossbar, screws, wire nuts)
• Zincir
• Central Rod/Stem
• Kullanım Kılavuzu

Not: Ampuller ürüne dahil değildir ve ayrıca satın alınmalıdır.

4. Özellikler

5. Kurulum ve Kurulum

ÖNEMLİ: Ensure power is disconnected at the circuit breaker before starting installation. Professional installation is highly recommended.

5.1 Gerekli Araçlar (Dahil Değildir)

• Yıldız uçlu tornavidalar
• Düz tornavida
• Tel Soyucular
• Pense
• Elektrik Bandı
• Merdiven

5.2 Kurulum Adımları

1. Gücü Kapatın: Locate the circuit breaker controlling the light fixture and turn it OFF.
2. Montaj Yerini Hazırlayın: If replacing an existing fixture, carefully remove it. Ensure the junction box is securely mounted and capable of supporting the chandelier's weight (approximately 11.48 lbs).
3. Attach Mounting Crossbar: Secure the mounting crossbar to the junction box using the provided screws.
4. Assemble Chandelier: Connect the central rod to the main body of the chandelier. Attach the desired length of chain to the central rod and the ceiling canopy loop.
5. Kablo Bağlantıları: Carefully connect the fixture's wires to the house wiring. Typically, connect the black wire from the fixture to the black (hot) wire from the junction box, the white wire from the fixture to the white (neutral) wire from the junction box, and the bare copper or green ground wire from the fixture to the ground wire from the junction box. Secure connections with wire nuts and electrical tape.
6. Canopy Dağı: Carefully lift the chandelier and tuck the wires into the junction box. Secure the ceiling canopy to the mounting crossbar using the provided screws.
7. Ampulleri yükleyin: Refer to Section 6.1 for bulb installation.
8. Gücü Geri Yükle: Kurulum tamamlandıktan ve tüm bağlantılar güvenli bir şekilde yapıldıktan sonra, devre kesiciden elektriği tekrar açın.

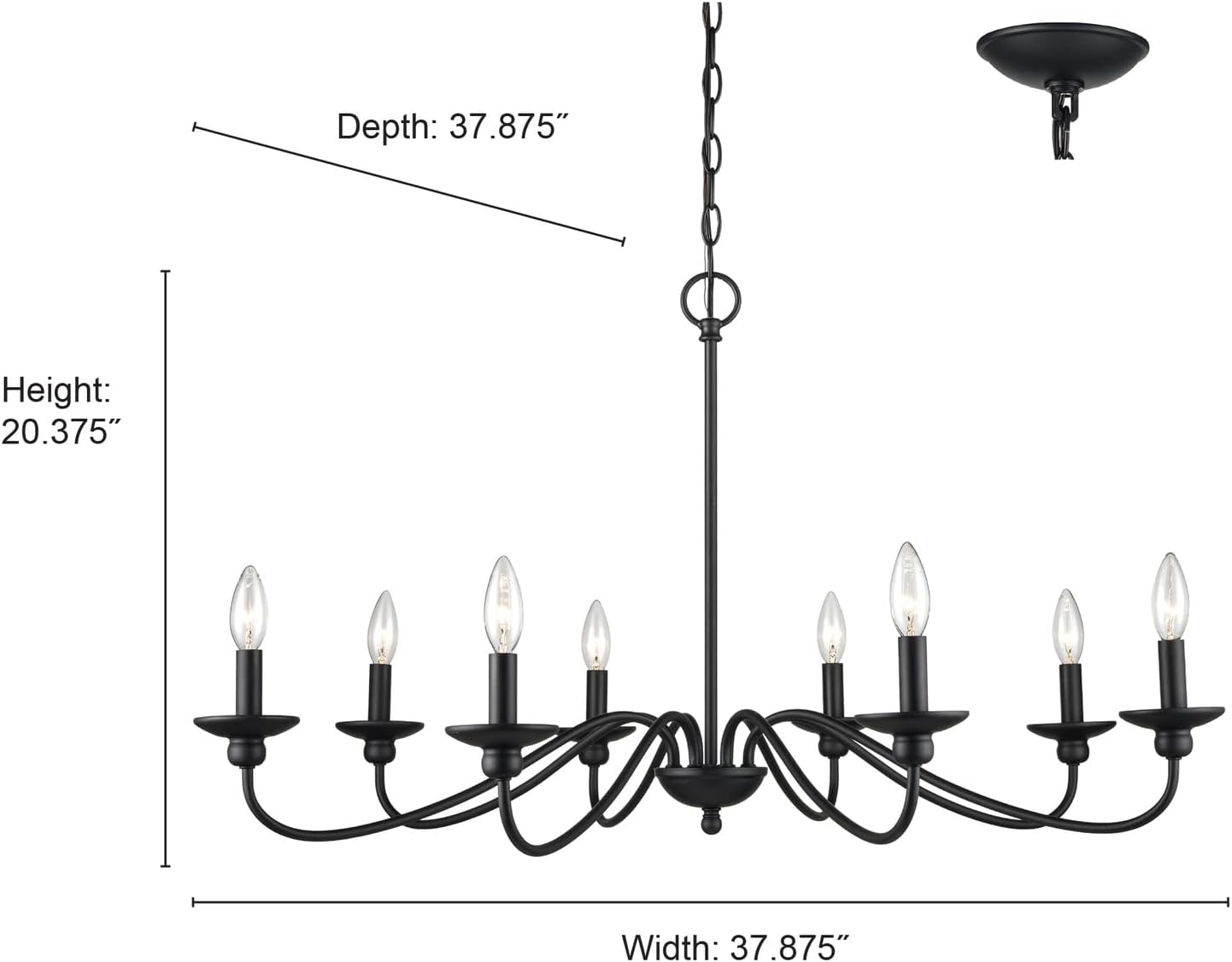

Image 5.1: Diagram showing the dimensions of the Millennium Lighting Delvona Chandelier. The width is 37.875 inches, depth is 37.875 inches, and the height of the fixture body is 20.375 inches. This image helps in planning the installation space.

6. Kullanım Talimatları

6.1 Ampul Montajı

Ensure power is OFF before installing or replacing bulbs.

1. Carefully screw eight (8) E12 (candelabra base) incandescent bulbs into the sockets.
2. Ampul başına 60 watt'ı aşmayın.
3. Sigortadan elektriği geri verin.

Resim 6.1: Yakın çekim view of one of the chandelier's light arms, showing the matte black finish and an installed E12 incandescent bulb. This illustrates the bulb type and how it sits in the fixture.

6.2 Açma/Kapatma

The chandelier is controlled by a standard wall switch (push button type) connected to the fixture's electrical circuit. Flip the wall switch to turn the lights on or off.

6.3 Dimmer Compatibility

This fixture is compatible with standard wall dimmers. Ensure that the dimmer switch is rated for incandescent loads and is installed according to its manufacturer's instructions.

7. Bakım

7.1 Temizlik

Always turn off the power and allow the fixture to cool before cleaning.

• Armatürü yumuşak, kuru bir bezle silin.
• Yüzeye zarar verebileceğinden aşındırıcı temizleyiciler, çözücüler veya cilalar kullanmayın.

7.2 Ampul Değişimi

Ensure power is OFF and bulbs are cool before replacing.

• Eski ampulü saat yönünün tersine çevirerek sökün.
• Screw in a new E12 base incandescent bulb (max 60 watts) clockwise until snug.
• Aşırı sıkmayın.

8. Sorun Giderme

9. Garanti ve Destek

This Millennium Lighting fixture comes with a 1 Yıllık Sınırlı Üretici Garantisi satın alma tarihinden itibaren. Bu garanti, normal kullanımda malzeme ve işçilikteki kusurları kapsar.

For warranty claims, technical support, or replacement parts, please contact Millennium Lighting customer service. Keep your proof of purchase for warranty validation.

İletişim Bilgileri: Please refer to the Millennium Lighting official website or your retailer for current contact details.

10. Yasal Uyarı

Millennium Lighting is not responsible for any damages or injuries resulting from improper installation, misuse, or modification of this product. It is the user's responsibility to ensure that the installation and use of this product comply with all local electrical and building codes.

Please check your local laws and regulations before purchasinve bu ürünü kurmak.
