YIPIN HEXHA DC 24V to 12V 30A 360W Waterproof Buck Power Converter Regulator Instruction Manual

1. Giriş

This manual provides essential information for the safe and effective installation, operation, and maintenance of your YIPIN HEXHA DC 24V to 12V 30A 360W Waterproof Buck Power Converter Regulator. Please read these instructions thoroughly before use and retain them for future reference.

Figure 1: YIPIN HEXHA DC 24V to 12V 30A 360W Power Converter

The YIPIN HEXHA B10-24-12C is a high-efficiency DC-DC converter designed to step down a 24V DC input voltage to a stable 12V DC output. With a maximum output current of 30A and power of 360W, this waterproof and durable module is suitable for various applications including golf carts, car trucks, LED strip lights, monitoring systems, and motors.

2. Güvenlik Bilgileri

Adherence to the following safety guidelines is crucial to prevent injury and damage to the product or connected devices.

• Elektriksel Güvenlik: Always disconnect power before making any electrical connections. Ensure all wiring is correctly polarized (positive to positive, negative to negative) to avoid damage.
• Havalandırma: While the unit is designed for durability, ensure adequate ventilation, especially under heavy load, to prevent excessive heat buildup.
• Aşırı Yük Koruması: Do not exceed the maximum rated output current (30A) or power (360W) to prevent damage to the converter and connected devices.
• Çevre Koruma: The converter features an IP68 waterproof, anti-shock, anti-humidity, and dust-proof design, making it suitable for harsh environments. However, avoid prolonged submersion or exposure to extreme conditions beyond its rating.
• Koruyucu Özellikler: This unit includes built-in protections against over-load, over-current, over-temperature, short-circuit, and over-voltage. These features enhance safety and product longevity.

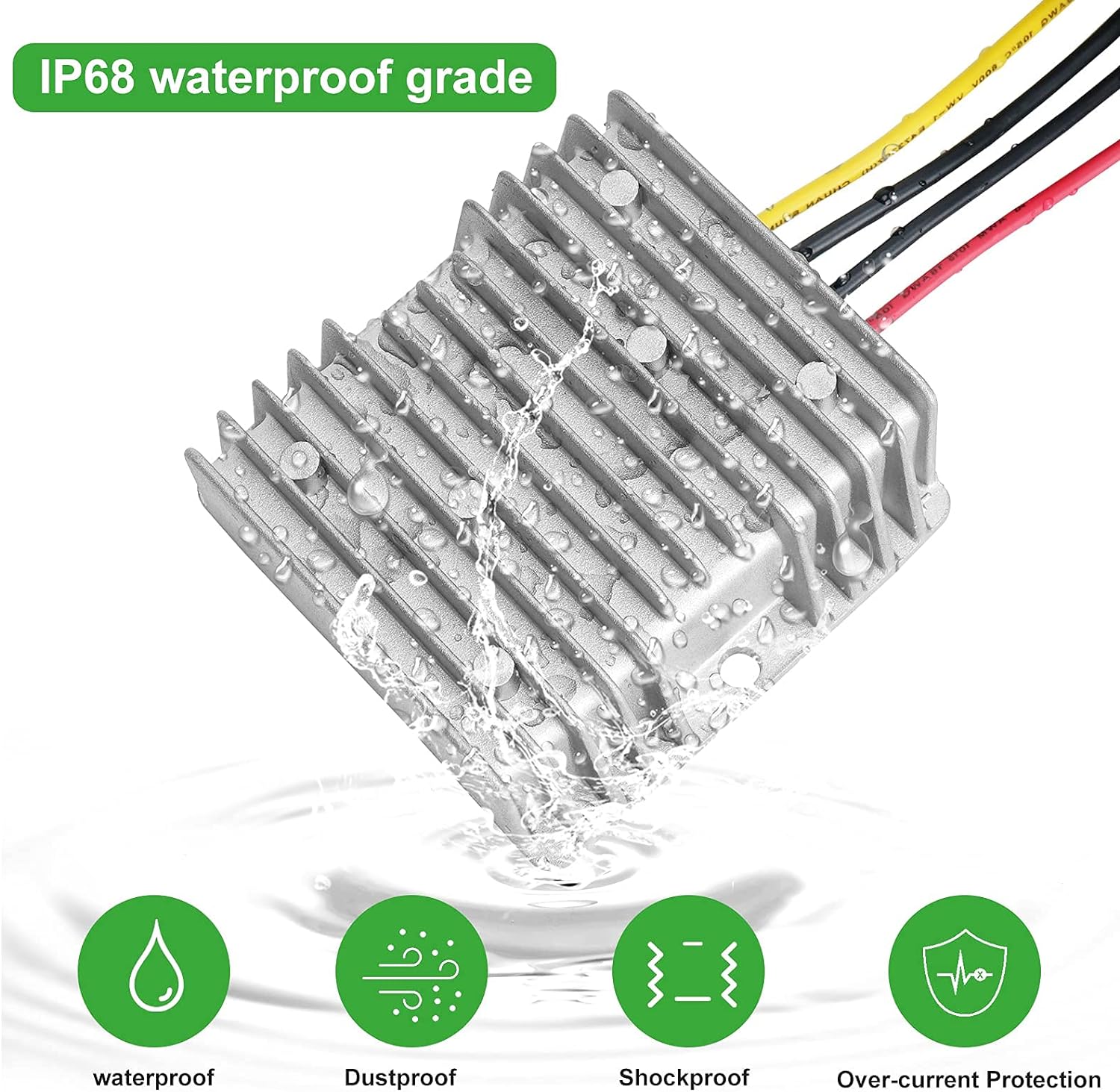

Figure 2: IP68 Waterproof Grade and Protection Features

3. Ürün Özellikleri

The YIPIN HEXHA B10-24-12C converter is engineered with advanced technology to deliver reliable performance:

• Giriş Voltage: DC 24V (range 18V-35V)
• Çıkış Hacmitage: Doğru Akım 12V
• Çıkış Akımı: 30A (maksimum)
• Çıkış Gücü: 360 W (maksimum)
• Yüksek Dönüşüm Verimliliği: Utilizes synchronization rectification technology, achieving a conversion efficiency of up to 96%.
• Güçlü Koruma: Features multiple intelligent protection functions including over-load, over-current, over-temperature, short-circuit, and over-voltage.
• Dayanıklı Yapı: Encased in an aluminum shell with a silicone-sealed design, providing waterproof, anti-shock, anti-humidity, and dust-proof properties.
• Uzun Hizmet Ömrü: 100,000 saatten fazla çalışma ömrü için tasarlanmıştır.

Şekil 3: Başlıca Ürün Özellikleri

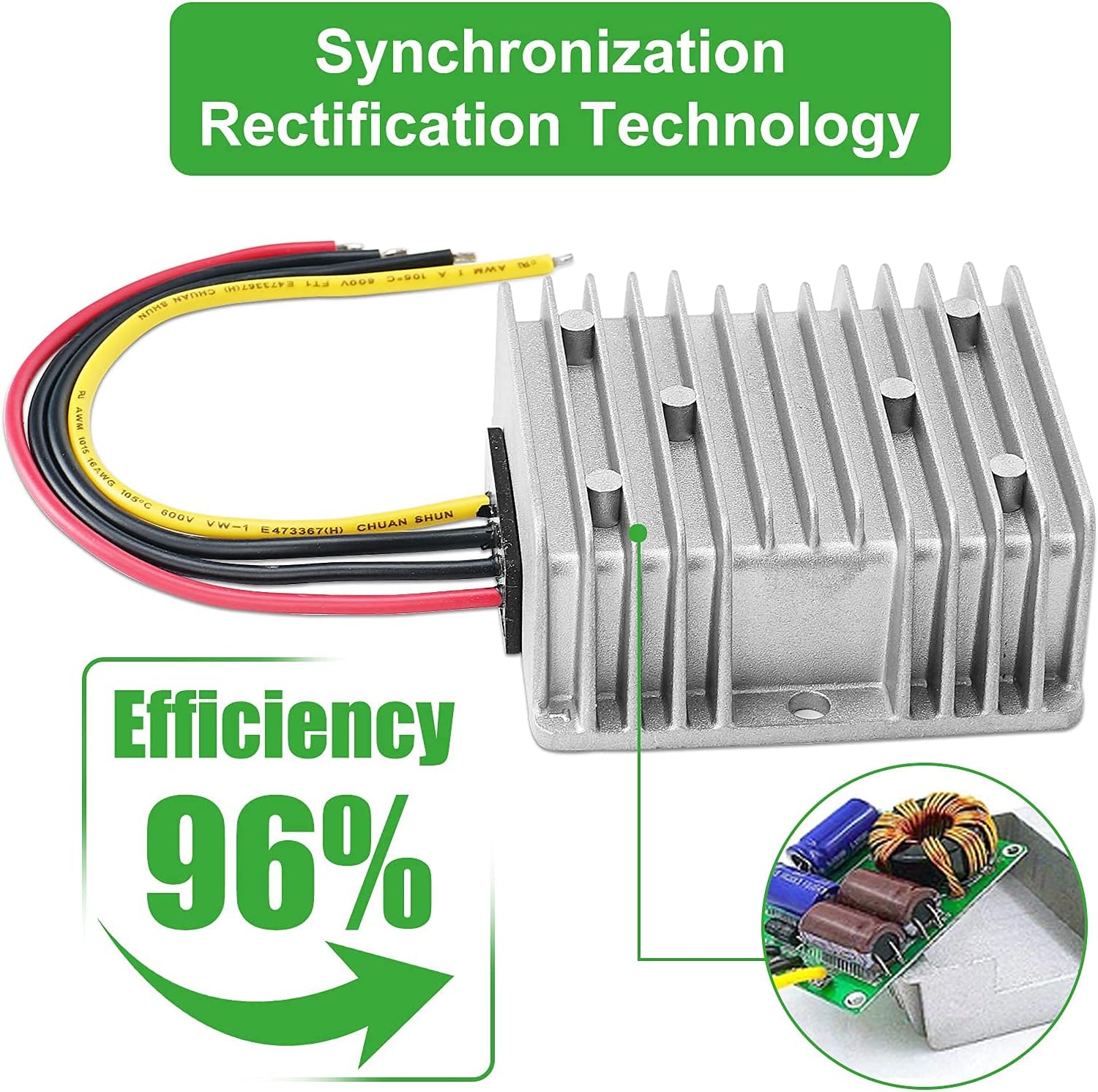

Figure 4: Synchronization Rectification Technology

4. Özellikler

Şekil 5: Ürün Boyutları

5. Kurulum ve Kablolama

Follow these steps for proper installation and wiring of the power converter.

5.1 Kablolama Şeması

Refer to the wiring diagram below for correct connections. Pay close attention to the anode (positive) and cathode (negative) wiring.

• Giriş: Connect the red wire to the 24V DC input positive (+) and the black wire to the 24V DC input negative (-).
• Çıktı: Connect the yellow wire to the 12V DC output positive (+) and the black wire to the 12V DC output negative (-).

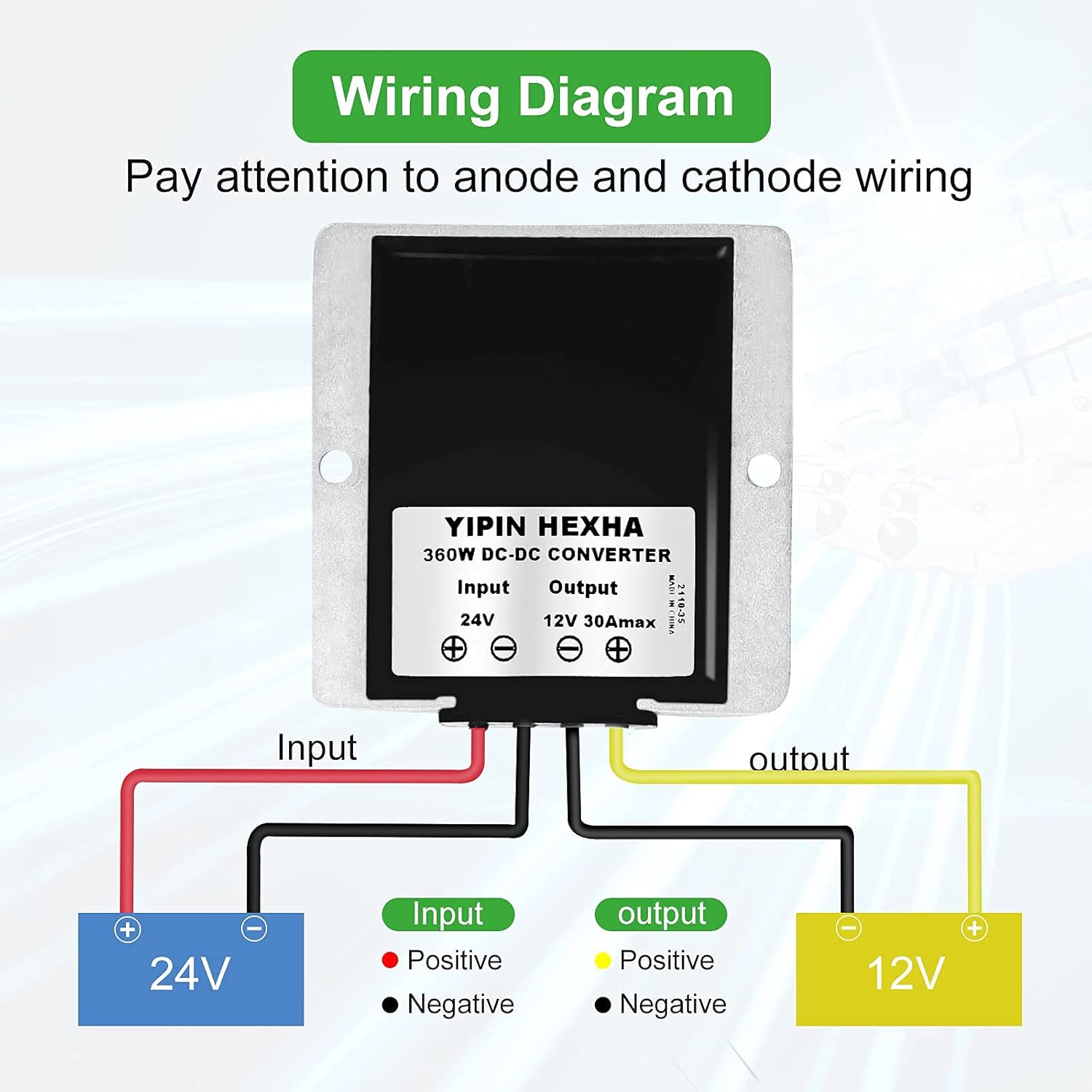

Şekil 6: Kablolama Şeması

5.2 Quick Connect Terminal Usage

If using quick connect terminals for wiring, follow these steps:

1. Adım 1: Peel the wire insulation approximately 10mm (0.4 inches).
2. Adım 2: Pull off the boost key on the terminal and insert the stripped wire.
3. Adım 3: After the wire is fully inserted, press the boost key tightly to secure the connection.

Figure 7: Quick Connect Terminal Instructions

6. Operasyon

Once properly installed and wired, the converter operates automatically. It will step down the 24V DC input to a stable 12V DC output for your connected devices. Ensure that the total current draw of your 12V devices does not exceed 30A to maintain optimal performance and prevent triggering the converter's protection mechanisms.

7. Bakım

The YIPIN HEXHA power converter is designed for minimal maintenance. However, periodic checks can help ensure its longevity and reliable operation:

• Bağlantıları Denetle: Tüm kablo bağlantılarını düzenli olarak kontrol ederek sağlam ve korozyondan arınmış olduklarından emin olun.
• Temizlik: Keep the converter free from excessive dirt and debris. While dust-proof, a clean surface aids in heat dissipation.
• Çevresel Koşullar: Çalışma ortamının belirtilen sıcaklık ve nem aralıklarında kalmasını sağlayın.

8. Sorun Giderme

If you encounter issues with your power converter, consider the following troubleshooting steps:

• Çıkış Hacmi Yoktage:
  • Giriş hacmini doğrulayıntage is present and within the 18V-35V DC range.
  • Tüm kablo bağlantılarının doğru polaritede ve güvenli temasta olduğundan emin olun.
  • Ensure the load connected to the output does not exceed 30A/360W, which could trigger over-current protection.
  • In cold temperatures, some units may require a brief period to warm up before providing full output. If operating in cold conditions, allow the unit to reach a functional temperature.
• Konvertör Aşırı Isınması:
  • Reduce the load on the converter to ensure it is not exceeding its rated capacity.
  • Ensure the converter has adequate airflow and is not enclosed in a confined space.
  • Verify ambient temperature is not excessively high.
• Intermittent Output:
  • Gevşek bağlantılar veya hasarlı kablolama olup olmadığını kontrol edin.
  • Ensure the input power source is stable and not fluctuating.

If problems persist after following these steps, contact customer support.

9. Garanti ve Destek

YIPIN HEXHA products are manufactured to high-quality standards. For warranty information or technical support, please refer to the official YIPIN HEXHA brand store or contact their customer service directly.

Ziyaret edin YIPIN HEXHA Store Ek ürün bilgileri ve destek kaynakları için.
