YIPIN HEXHA DC Voltage Regulator Buck Converter (12V/24V to 5V 30A) Instruction Manual

1. Giriş

This manual provides detailed instructions for the safe and efficient use of your YIPIN HEXHA DC Voltage Regulator Buck Converter. This device is designed to convert an unstable DC input voltage of 12V or 24V into a stable 5V DC output, capable of supplying up to 30 Amperes of current. It is suitable for various applications requiring a stable 5V power source from a higher voltage DC supply.

2. Güvenlik Bilgileri

Kurulum ve çalıştırmadan önce lütfen tüm güvenlik talimatlarını okuyun ve anlayın. Bu talimatlara uyulmaması elektrik çarpmasına, yangına veya ciddi yaralanmalara neden olabilir.

• Giriş hacmini sağlayıntage is within the specified range (9V-35V DC) to prevent damage to the converter and connected devices.
• Çıkış akımını 30A veya gücü 150W'ı aşmayacak şekilde ayarlayın.
• Kablolama bağlantıları yapmadan önce daima elektriği kesin.
• Ensure proper polarity when connecting input and output wires. Incorrect polarity can damage the device.
• Install the converter in a well-ventilated area to prevent overheating.
• This device is not waterproof. Avoid exposure to moisture or liquids.
• Çocukların erişemeyeceği yerde saklayınız.

3. Ürün Bittiview

The YIPIN HEXHA DC Buck Converter is a robust power module designed for reliable voltage regulation. It features an aluminum shell with a honeycomb design for efficient heat dissipation, ensuring stable performance and longevity.

Resim 3.1: Yukarıdan aşağıya view of the YIPIN HEXHA DC Voltage Regulator Buck Converter, showing the aluminum casing with honeycomb ventilation and terminal blocks.

Temel Özellikler:

• Giriş Voltage: DC 12V/24V (operating range 9V-35V)
• Çıkış Hacmitage: Fixed DC 5V
• Çıkış Akımı: 30A (Maksimum)
• Çıkış Gücü: 150W (Maksimum)
• Dönüşüm Verimliliği: %96
• Koruma Özellikleri: aşırı sestage, over-current, over-temperature, and short-circuit auto protection. The device can return to normal operation conditions automatically after protection is triggered.
• Yapı: Durable aluminum case with honeycomb design for enhanced heat dissipation.

Image 3.2: Icons illustrating the built-in protection features: Short-circuit Protection, Over-temperature Protection, Over-voltage Protection, and Over-current Protection.

Uygulamalar:

This converter is widely used in various fields including:

• Automotive systems (e.g., car audio, 5V car products, especially in 24V vehicles)
• Surveillance systems
• Railway signals
• Tıbbi ekipman
• Instrumentation and meters
• LED products (e.g., LED light bars, copper light strings)
• Cable TV systems
• Other low-power test systems

Image 3.3: Visual representation of various applications for the buck converter, including solar panels, industrial machinery, audio systems, and control panels.

4. Özellikler

Detailed technical specifications for the YIPIN HEXHA DC Voltage Regulator Buck Converter (12V/24V to 5V 30A).

Image 4.1: Diagram showing the key specifications of the converter, including model, input/output voltage/current, power, efficiency, temperature, and dimensions.

5. Kurulum ve Kurulum

Follow these steps for proper installation of your DC Buck Converter. Always ensure power is disconnected before wiring.

Kablolama Şeması:

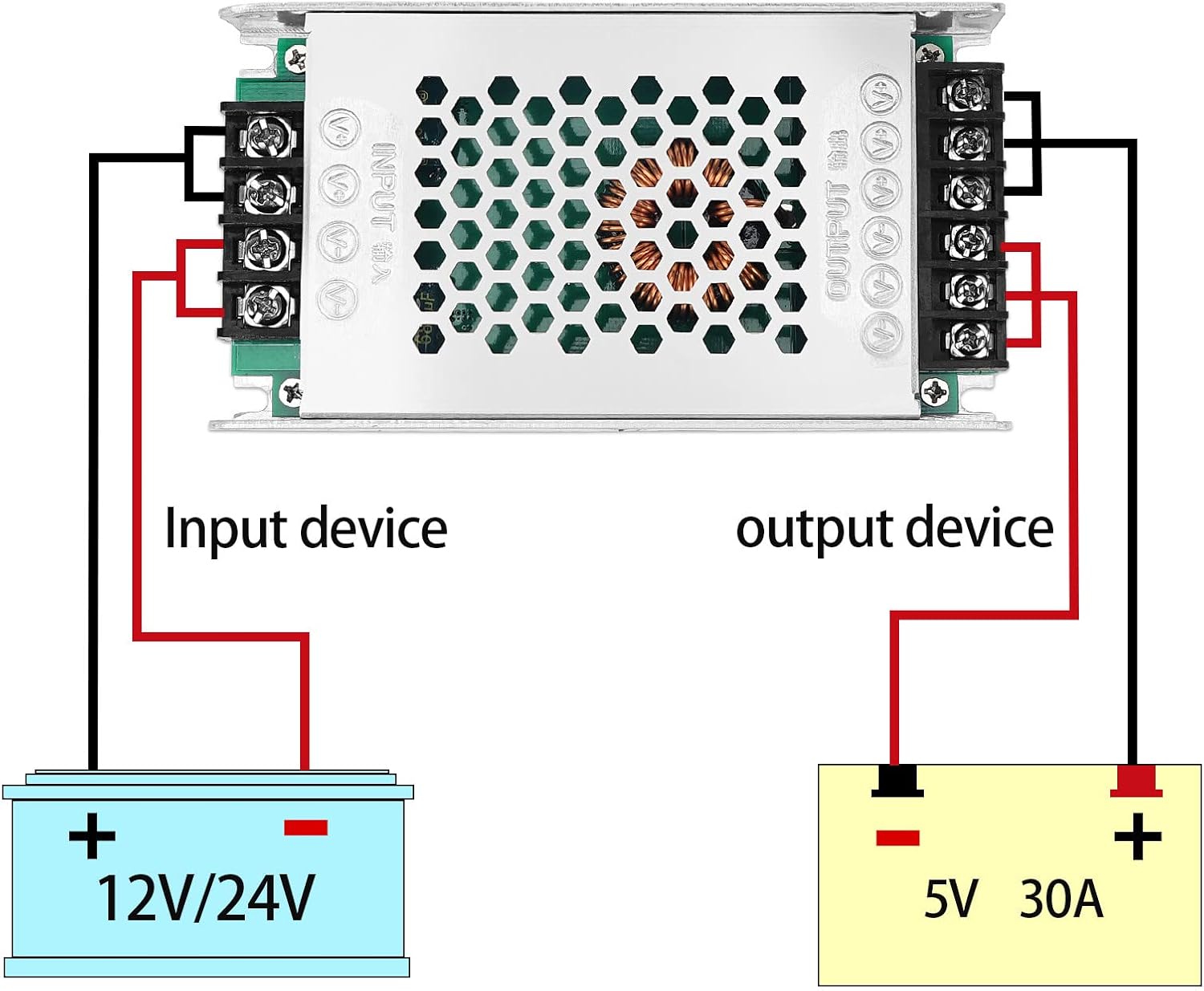

Image 5.1: Wiring diagram showing connections for input (12V/24V battery) and output (5V 30A device). Red wires are positive, black wires are negative.

Bağlantı Adımları:

1. Terminalleri Tanımlayın: The converter has two sets of screw terminals. One set is for "INPUT" and the other for "OUTPUT". Each set typically has two terminals for positive (+) and two for negative (-).
2. Giriş Bağlantısı:
   • Connect the positive (+) terminal of your 12V/24V DC power source (e.g., battery) to the "INPUT +" terminal on the converter.
   • Connect the negative (-) terminal of your 12V/24V DC power source to the "INPUT -" terminal on the converter.
   • Not: Some units may have color-coded wires. Typically, red is positive input, and black is negative input. Verify with a multimeter if unsure.
3. Çıkış Bağlantısı:
   • Connect the positive (+) terminal of your 5V device to the "OUTPUT +" terminal on the converter.
   • Connect the negative (-) terminal of your 5V device to the "OUTPUT -" terminal on the converter.
   • Not: Typically, yellow is positive output, and black is negative output. Verify with a multimeter if unsure.
4. Güvenli Bağlantılar: Ensure all wire connections are tight and secure to prevent loose contacts, which can cause overheating or intermittent operation.
5. Montaj: Mount the converter in a location that allows for adequate airflow around the aluminum casing to facilitate heat dissipation.

Important Note on Wiring Labels:

While the product is designed for clear labeling, some users have reported instances where the wiring diagram sticker on the unit might be misleading or reversed compared to standard color codes (e.g., red/black for input, yellow/black for output). It is highly recommended to use a multimeter to verify the input and output terminals and their polarities before connecting any devices. Incorrect wiring can lead to damage to the converter or the connected load.

6. Kullanım Talimatları

Once properly installed, operating the YIPIN HEXHA DC Buck Converter is straightforward:

1. Güç Açık: After all connections are securely made and verified, apply the 12V/24V DC input power to the converter.
2. Çıktı Doğrulama: The converter will automatically regulate the input voltage to a stable 5V DC output. You can use a multimeter to confirm the 5V output at the output terminals before connecting sensitive devices.
3. Yükü Bağla: Connect your 5V DC device(s) to the output terminals. Ensure the total current draw does not exceed 30A.
4. İzleme: Periodically check the converter for excessive heat during operation, especially under heavy loads. While designed for efficient heat dissipation, proper ventilation is crucial.
5. Koruma Aktivasyonu: Aşırı volüm durumundatage, over-current, over-temperature, or short-circuit conditions, the converter's built-in protection mechanisms will activate to safeguard itself and connected devices. The unit should automatically resume normal operation once the fault condition is removed.

7. Bakım

The YIPIN HEXHA DC Buck Converter is designed for minimal maintenance. However, following these guidelines can help ensure its longevity and reliable performance:

• Düzenli Muayene: Periodically inspect the converter and its wiring for any signs of damage, corrosion, or loose connections.
• Temizlik: Keep the unit clean and free from dust and debris, especially the ventilation areas on the aluminum casing, to maintain optimal heat dissipation. Use a dry, soft cloth for cleaning. Do not use liquids.
• Çevresel Koşullar: Ensure the operating environment remains within the specified temperature range (-20°C to +80°C) and free from moisture.
• Aşırı Yüklemeden Kaçının: Do not continuously operate the converter at its maximum current or power limits for extended periods without adequate cooling.

8. Sorun Giderme

If you encounter issues with your YIPIN HEXHA DC Buck Converter, refer to the following troubleshooting guide:

9. Garanti ve Destek

For warranty information or technical support regarding your YIPIN HEXHA DC Voltage Regulator Buck Converter, please refer to the purchase documentation or contact your retailer. You may also visit the official YIPIN HEXHA store on Amazon for additional product information and support resources:
