Deerma VC20 Pro Cordless Stick Handheld Vacuum Cleaner Mop User Manual

1. Giriş

Thank you for choosing the Deerma VC20 Pro Cordless Stick Handheld Vacuum Cleaner Mop. This appliance is designed for efficient cleaning of various surfaces, offering both vacuuming and mopping functionalities. Its cordless design and powerful suction make it suitable for home and car use. Please read this manual thoroughly before operation to ensure safe and optimal performance.

2. Güvenlik Talimatları

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury:

• Güç adaptörünün yerel voltaj seviyenizle uyumlu olduğundan emin olun.tag(220V).
• Cihazı açık havada veya ıslak yüzeylerde kullanmayın.
• Çocukların elektrikli süpürgeyi çalıştırmasına izin vermeyin.
• Saçınızı, bol giysilerinizi, parmaklarınızı ve vücudunuzun tüm kısımlarını açıklıklardan ve hareketli parçalardan uzak tutun.
• Benzin gibi yanıcı veya tutuşabilir maddeleri yerden almayın veya bu maddelerin bulunabileceği alanlarda kullanmayın.
• Sigara, kibrit, sıcak kül gibi yanan veya dumanı tüten hiçbir şeyi toplamayın.
• Pil takımını bağlamadan veya çıkarmadan önce ya da herhangi bir bakım işlemi yapmadan önce cihazı kapatın.
• Sadece üreticinin önerdiği aparatları kullanın.
• Cihazı kapalı alanda ve kuru bir yerde saklayın.

3. Ürün Bileşenleri

The Deerma VC20 Pro includes the following main components:

• Ev sahibi birim: Motoru, toz haznesini ve pili içerir.
• Take Over Components: Extension tube for stick mode.
• Floor Brush Assembly: Electric brush for floor cleaning.
• 2-in-1 Flat Suction Nozzle: For crevices and narrow spaces.
• Fırça Aparatı: Döşemelik kumaşlar ve hassas yüzeyler için.
• Mop Component: Attaches to the floor brush for wet mopping.
• Güç Adaptörü: Pilin şarj edilmesi için.

Resim: Üzeriview of the Deerma VC20 Pro in various configurations, demonstrating its versatility as a stick vacuum, handheld vacuum, and with an extended reach.

4. Kurulum

4.1 Montaj

1. Çubuklu Süpürge Modu için: Connect the Take Over Component (extension tube) to the Host Unit. Then, attach the Floor Brush Assembly to the other end of the extension tube. Ensure all connections click securely into place.
2. El Tipi Vakum Modu İçin: Directly attach the 2-in-1 Flat Suction Nozzle or the Brush Attachment to the Host Unit.
3. For Mopping Function: Attach the wet mopping component to the Floor Brush Assembly by pressing it down until it snaps into place.

4.2 Pilin Şarj Edilmesi

Before first use, fully charge the appliance. The battery capacity is 2500mAh, and a full charge takes approximately 3 hours.

1. Connect the power adapter to the charging port on the Host Unit.
2. Adaptörü elektrik prizine takın.
3. Şarj gösterge ışığı yanacaktır. Tamamen şarj olduğunda, modele bağlı olarak ışığın rengi değişebilir veya sönebilir.
4. Şarj işlemi tamamlandıktan sonra şarj cihazının bağlantısını kesin.

5. Kullanım Talimatları

5.1 Güç Açma/Kapatma ve Emiş Modları

Press the power button on the Host Unit to turn the vacuum cleaner on. The VC20 Pro features two suction gears:

• Standard Gear (7000Pa): Provides approximately 50 minutes of working time, suitable for general cleaning.
• Strong Gear (17000Pa): Provides approximately 20 minutes of working time, ideal for stubborn dirt and deep cleaning.

Press the mode button to switch between Standard and Strong gears. Press the power button again to turn off the appliance.

5.2 Using the Floor Brush

The electric floor brush is designed for cleaning various floor types, including carpets and hard floors. It can flexibly turn to reach under furniture like beds and tables.

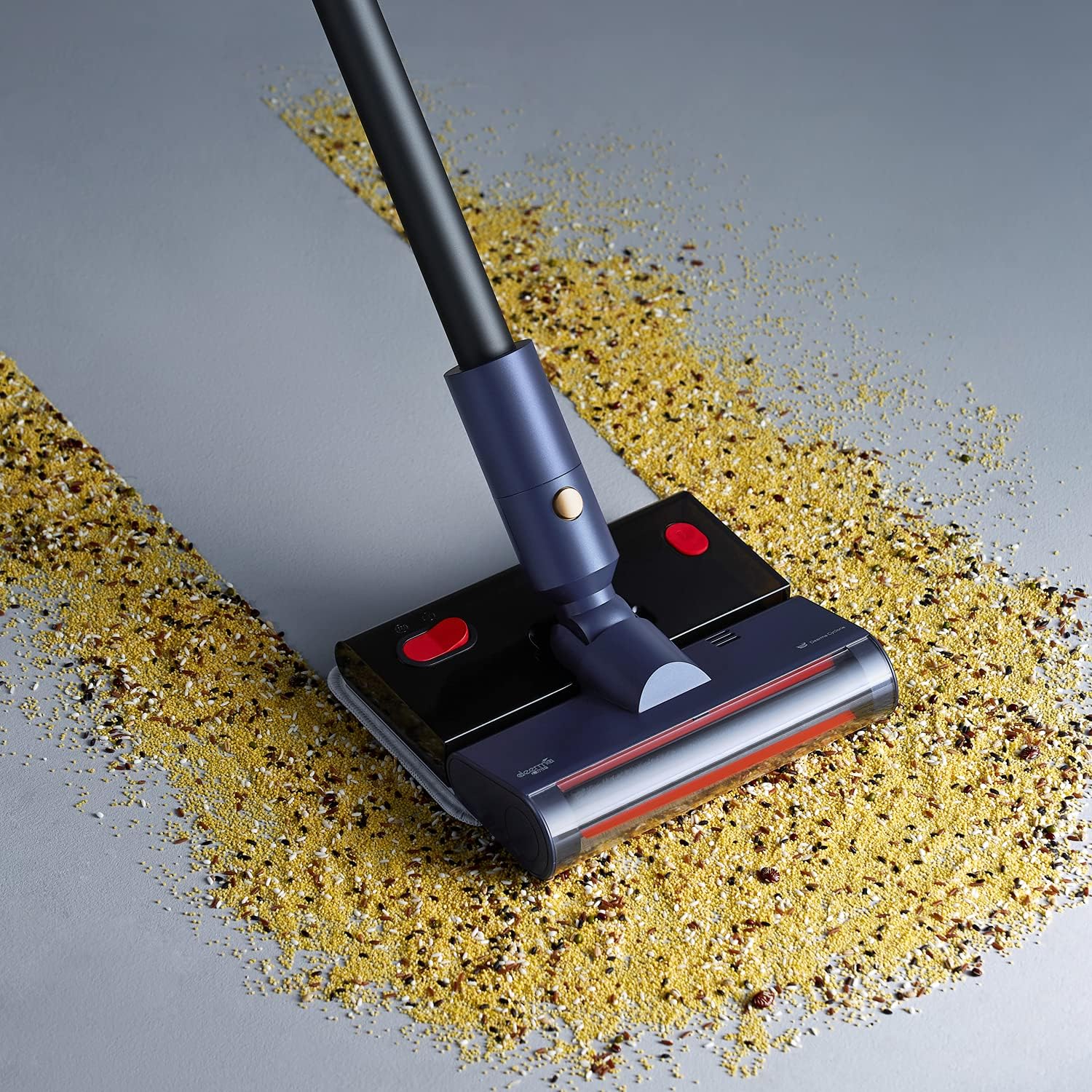

Image: The Deerma VC20 Pro in stick vacuum mode, effectively cleaning spilled grains from a hard floor surface, demonstrating its powerful suction.

Image: A user operating the Deerma VC20 Pro stick vacuum to clean scattered oats on a light-colored floor, highlighting its maneuverability and cleaning capability.

5.3 Aksesuarların Kullanımı

The 2-in-1 flat suction nozzle and brush attachment are ideal for cleaning specific areas:

• 2-in-1 Flat Suction Nozzle: Use for narrow gaps, corners, and edges, such as between sofa cushions or along baseboards.
• Fırça Aparatı: Suitable for cleaning fabric surfaces, upholstery, car interiors, and pet hair.

Image: The Deerma VC20 Pro used as a handheld vacuum, cleaning debris from a grey fabric sofa, showcasing its effectiveness on upholstery.

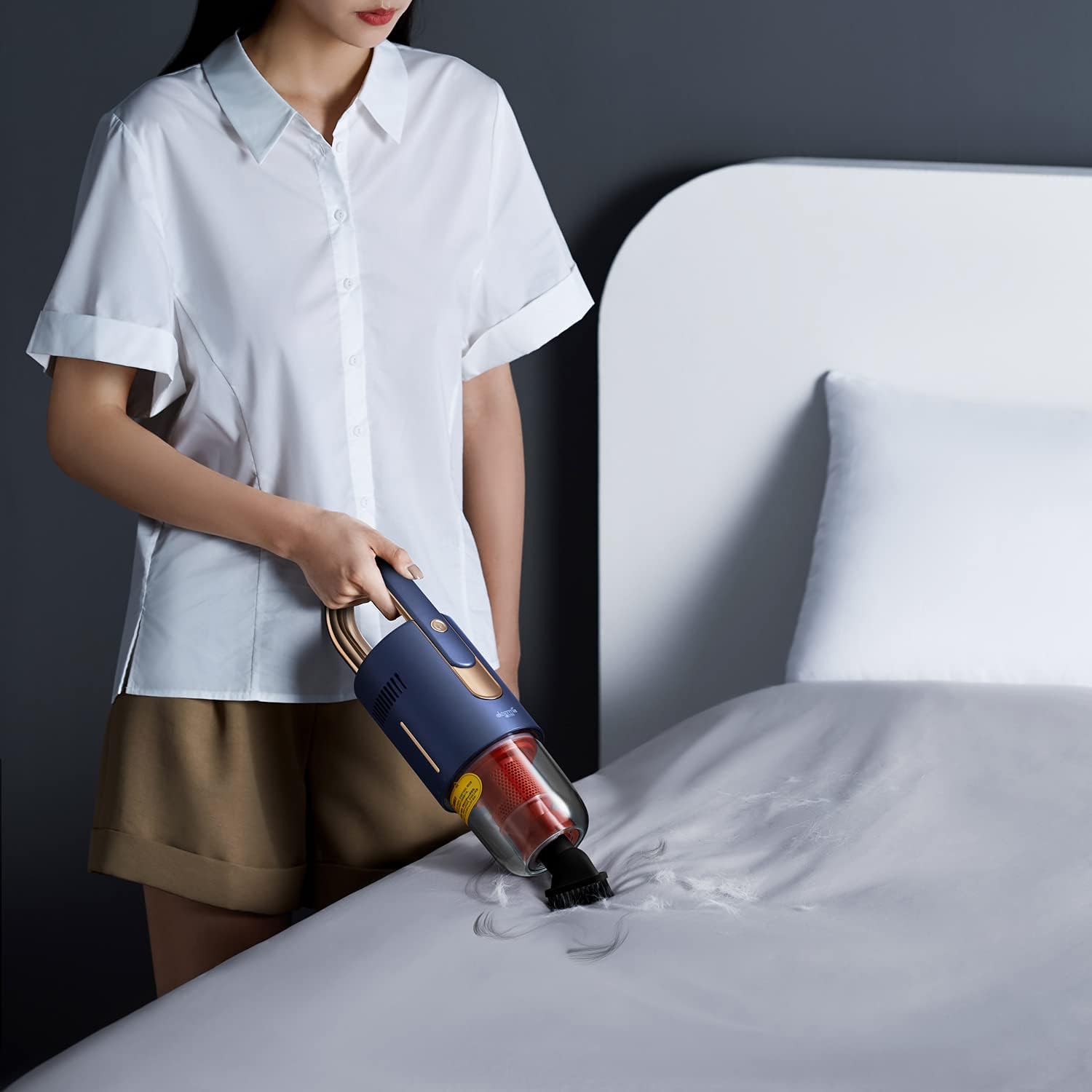

Image: A person using the Deerma VC20 Pro in handheld mode with a brush attachment to clean a white bedsheet, effectively removing dust and particles.

Image: The Deerma VC20 Pro with its crevice tool attachment, cleaning dirt from a narrow gap between a wall and a wooden floor, demonstrating precision cleaning.

5.4 Islak Paspaslama Fonksiyonu

The wet mopping component allows for simultaneous vacuuming and mopping. You can add disinfectant to the water tank for sterilization.

1. Fill the water tank of the mop component with water and, if desired, a suitable disinfectant.
2. Attach the mop component to the Floor Brush Assembly.
3. Operate the vacuum cleaner as usual. The mop pad will dampen the floor as you vacuum.
4. To remove the mop component, simply step on the designated area and lift the vacuum.

Image: The Deerma VC20 Pro in stick mode, with the mopping attachment engaged, cleaning a floor surface. A foot is visible near the mop, indicating its operation.

6. Bakım

Regular maintenance ensures the longevity and optimal performance of your Deerma VC20 Pro.

6.1 Emptying and Cleaning the Dust Cup

The dust cup has a capacity of 0.6L. Empty it regularly to maintain suction power.

1. Elektrikli süpürgenin kapalı olduğundan emin olun.
2. Detach the dust cup from the Host Unit.
3. Open the dust cup and empty its contents into a trash bin.
4. The dust cup, cyclone tower, and HEPA filter element are all washable. Rinse them with water.
5. Allow all components to air dry completely before reassembling and reattaching to the Host Unit.

Image: A hand holding the transparent dust cup of the Deerma VC20 Pro, emptying collected dust and debris into a white trash bin, illustrating the easy disposal process.

6.2 Zemin Fırçasının Temizlenmesi

Periodically check the floor brush for tangled hair or debris. Use scissors to cut away any tangled hair and remove it. The brush roller can often be detached for easier cleaning.

6.3 Pil Bakımı

The intelligent BMS battery management system helps maintain battery health. To prolong battery life, avoid fully discharging the battery frequently and store the appliance in a cool, dry place when not in use for extended periods.

7. Sorun Giderme

If you encounter issues with your Deerma VC20 Pro, refer to the following common problems and solutions:

Bu çözümleri denedikten sonra sorun devam ederse lütfen müşteri desteğiyle iletişime geçin.

8. Özellikler

9. Garanti ve Destek

For warranty information and customer support, please refer to the warranty card included with your product or contact the retailer from whom you purchased the Deerma VC20 Pro. Keep your purchase receipt as proof of purchase.
