AULA F2066 Mekanik Oyun Klavyesi Kullanım Kılavuzu

1. Giriş

Thank you for choosing the AULA F2066 Mechanical Gaming Keyboard. This manual provides detailed instructions on how to set up, operate, and maintain your keyboard to ensure optimal performance and longevity. The AULA F2066 features anti-ghosting technology, blue mechanical switches, LED backlighting, and macro programming capabilities, designed for an enhanced gaming and typing experience on PC and laptop systems.

2. Paket İçeriği

• AULA F2066 Mechanical Gaming Keyboard
• USB kablosu
• Kullanım Kılavuzu (bu belge)

3. Kurulum

3.1 Klavyenin Bağlanması

1. Bilgisayarınızda veya dizüstü bilgisayarınızda kullanılabilir bir USB bağlantı noktası bulun.
2. Connect the USB cable from the keyboard to the USB port on your computer.
3. The operating system (Windows 10 or compatible) will automatically detect and install the necessary drivers.

3.2 Yazılım Kurulumu (İsteğe bağlı)

For advanced customization, including macro programming and detailed lighting effects, you may need to install the dedicated AULA software. Please refer to the official AULA website for the latest software download.

Image: The AULA F2066 keyboard software interface, showing options for custom programmable functions, profiles, macro editor, and brightness control.

4. Kullanım Talimatları

4.1 Temel Tuş Fonksiyonları

The AULA F2066 is a full-sized mechanical keyboard with standard QWERTY layout and a numeric keypad. All keys function as standard keyboard keys unless modified by special functions or macro programming.

Resim: Bir overview of the AULA F2066 Mechanical Gaming Keyboard, showcasing its full layout and LED backlighting.

4.2 Multimedia Keys and Knob

The keyboard features dedicated multimedia keys and a multi-function knob for quick access to media controls and lighting adjustments.

• M1, M2, M3 Düğmeleri: These are typically programmable macro keys or preset function keys.
• Multimedya Kontrolleri: Dedicated buttons for Previous Piece, Play/Pause, Next Track.
• Topuz: This knob serves multiple functions depending on the active mode.

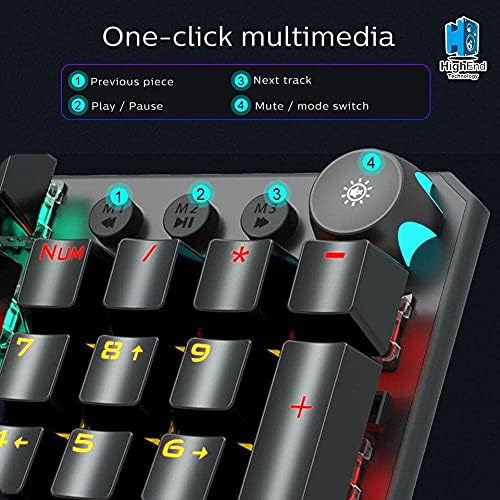

Resim: Yakın çekim view of the AULA F2066 keyboard's multimedia keys (M1, M2, M3) and the multi-function knob, with labels indicating their primary functions.

4.3 Düğme İşlevselliği

The knob has two primary modes: Game Mode and Multimedia Mode. Long press the knob button for more than 3 seconds to switch between modes.

• Oyun Modu: When in Game Mode, the knob button glows. Rotate the knob to adjust backlight brightness. Short press the knob to cycle through multiple lighting effects.
• Multimedya Modu: When in Multimedia Mode, the knob button does not shine. Rotate the knob to adjust the system volume. Short press the knob for one-key mute/unmute.

Image: A visual guide demonstrating how to switch between Game Mode and Multimedia Mode using the knob, and the respective functions of the knob in each mode (brightness/lighting effects vs. volume/mute).

4.4 Makro Programlama

The AULA F2066 supports custom programmable functions via its software. This allows users to assign complex sequences of commands or single key functions to specific keys, enhancing productivity and gaming performance. Refer to the software's help section for detailed instructions on macro creation and assignment.

5. Bakım

5.1 Temizlik

• Temizlemeden önce klavyeyi bilgisayarınızdan ayırın.
• Yumuşak bir d kullanınamp cloth to wipe the surface of the keyboard. Avoid harsh chemicals or abrasive materials.
• Tuş başlıkları arasındaki temizliği yaparken, toz ve kalıntıları gidermek için basınçlı hava kullanın.

5.2 Depolama

Store the keyboard in a dry, cool place away from direct sunlight and extreme temperatures. Avoid placing heavy objects on the keyboard.

6. Sorun Giderme

• Klavye yanıt vermiyor: USB kablosunun hem klavyeye hem de bilgisayara güvenli bir şekilde bağlı olduğundan emin olun. Farklı bir USB bağlantı noktası deneyin.
• Arka ışık çalışmıyor: Check if the backlight is turned off or set to minimum brightness using the knob or software.
• Keys not registering or double-registering: This could indicate a switch issue. Ensure the keyboard is clean and free of debris. If the problem persists, contact customer support.
• Macro functions not working: Verify that the AULA software is installed and the macros are correctly configured and saved to the keyboard's profile.

7. Özellikler

8. Garanti ve Destek

8.1 Garanti Bilgileri

The AULA F2066 Mechanical Gaming Keyboard comes with a standard manufacturer's warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

8.2 Müşteri Desteği

For technical assistance, warranty inquiries, or further information, please visit the official AULA website or contact your local retailer. Ensure you have your product model number (F2066-I) and proof of purchase ready when contacting support.
