giriiş
The BLANCO drink.soda EVOL-S Pro PVD Steel is an advanced 5-in-1 kitchen water system designed to provide filtered, chilled, still, medium, and sparkling water directly from your tap, in addition to standard hot and cold water. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new water system.
Güvenlik Bilgileri
Please read all instructions carefully before installation and use. Keep this manual for future reference. Ensure all electrical and plumbing connections are performed by qualified professionals in accordance with local regulations. Disconnect power before performing any maintenance or service. Do not attempt to modify the system.
Bileşenler Dahil
Your BLANCO drink.soda system package includes the following main components:
- SODA Faucet
- SODA Cooling and Carbonation Unit
- CO2 Silindiri
- Drink Filter
Resim: Üzeriview of the BLANCO drink.soda EVOL-S Pro system, showing the faucet, cooling and carbonation unit, CO2 cylinder, and drink filter.
Kurulum ve Yükleme
The BLANCO drink.soda system is designed for under-sink installation. While the system is relatively straightforward to connect following the instructions, professional installation is recommended due to plumbing and electrical requirements.
Kurulum Adımları:
- Kurulum Alanını Hazırlayın: Ensure sufficient space under the sink for the cooling and carbonation unit (dimensions: 60 x 40 x 68 cm).
- Musluğu Monte Edin: Install the faucet into the designated sink hole, securing it according to the provided instructions.
- Su Hatlarını Bağlayın: Connect the hot and cold water supply lines to the faucet. Connect the filtered water line from the cooling unit to the faucet's dedicated inlet.
- Install Drink Filter: Insert the drink filter into its housing within the cooling unit.
- Install CO2 Cylinder: Securely attach the CO2 cylinder to the carbonation unit.
- Elektrik Bağlantısı: Plug the cooling and carbonation unit into a grounded electrical outlet (230 Volts, 190 Watts).
- İlk Temizleme: Before first use, flush the system as per the detailed instructions in the full manual to remove any air and prepare the filter.
Image: The BLANCO drink.soda cooling and carbonation unit neatly installed within a kitchen cabinet under the sink.

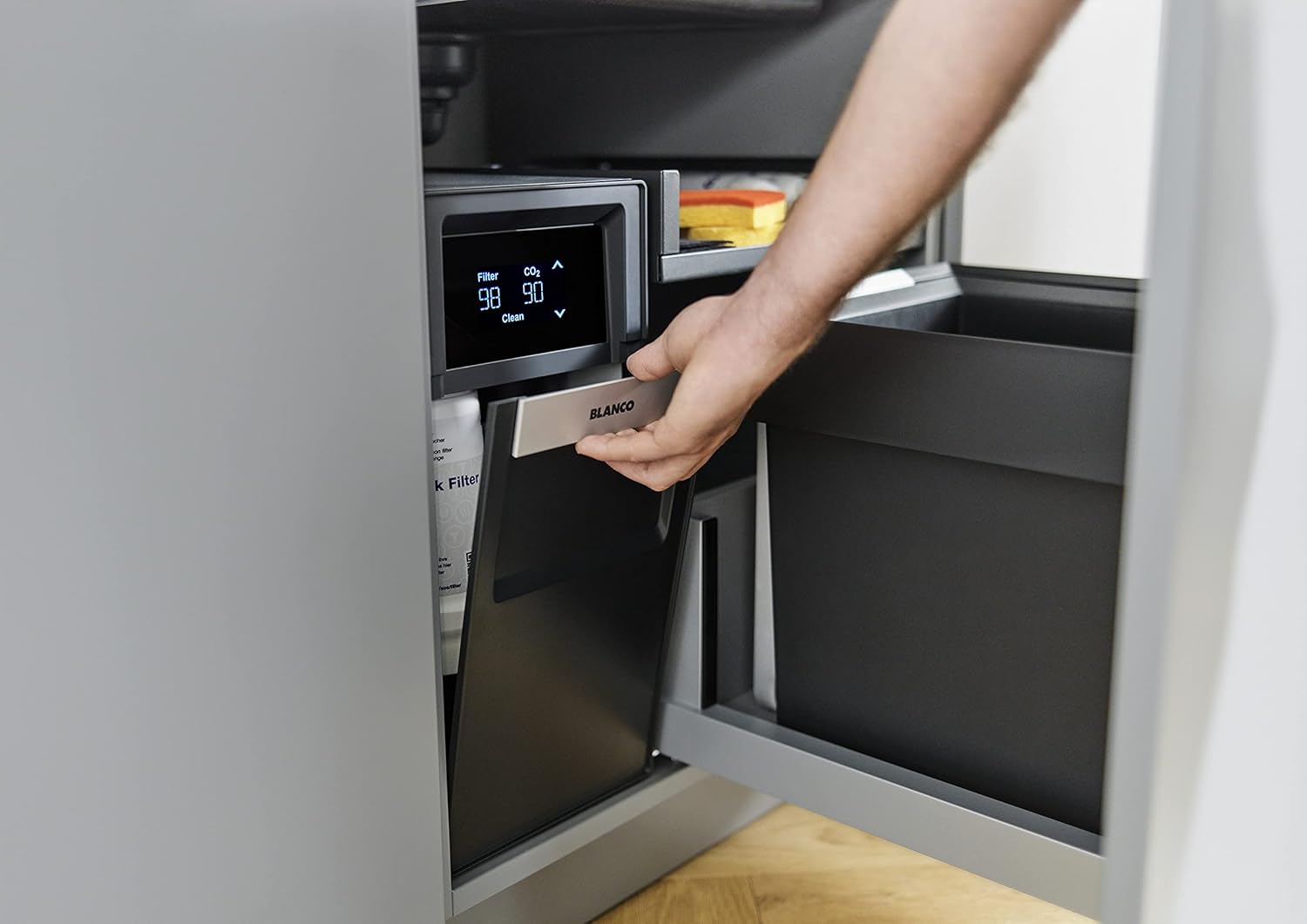

Image: A hand reaching into the cabinet to access the BLANCO drink.soda unit, demonstrating ease of access for maintenance.
Kullanım Talimatları
The BLANCO drink.soda system offers intuitive controls for various water types.
Standard Hot and Cold Water:
Use the main lever on the faucet for standard hot and cold tap water, just like a conventional kitchen faucet.

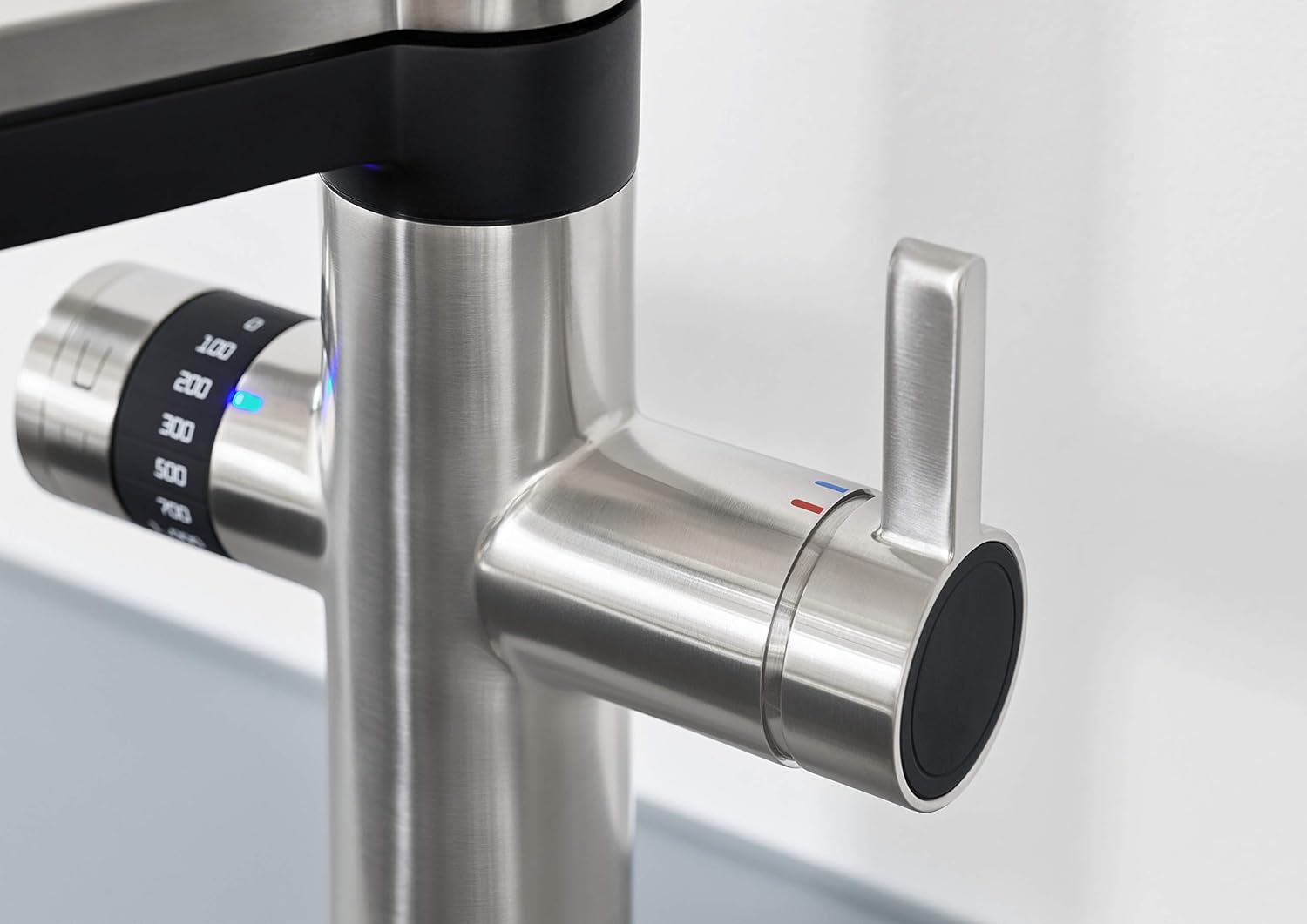

Resim: Yakın çekim view of the main lever on the BLANCO drink.soda faucet, used for controlling standard hot and cold water flow.
Filtered, Chilled, and Sparkling Water:
The separate control dial on the faucet provides access to filtered, chilled, and sparkling water options.
- Sparkling Water Adjustment: Rotate the dedicated dial to select your preferred carbonation level: still, medium, or classic sparkling.
- Click & Touch Quantity Control: For filtered water, use the precise dial and intuitive touch control to select pre-defined quantities (e.g., 100ml to 1000ml). This ensures accurate dispensing and reduces waste.
- Dedicated Spout: Refined drinking water (filtered, chilled, sparkling) is dispensed from a separate spout to prevent mixing with unfiltered tap water.
- Two-Jet Spray Head: The faucet features a convenient two-jet spray head with a practical magnetic holder for versatile use.

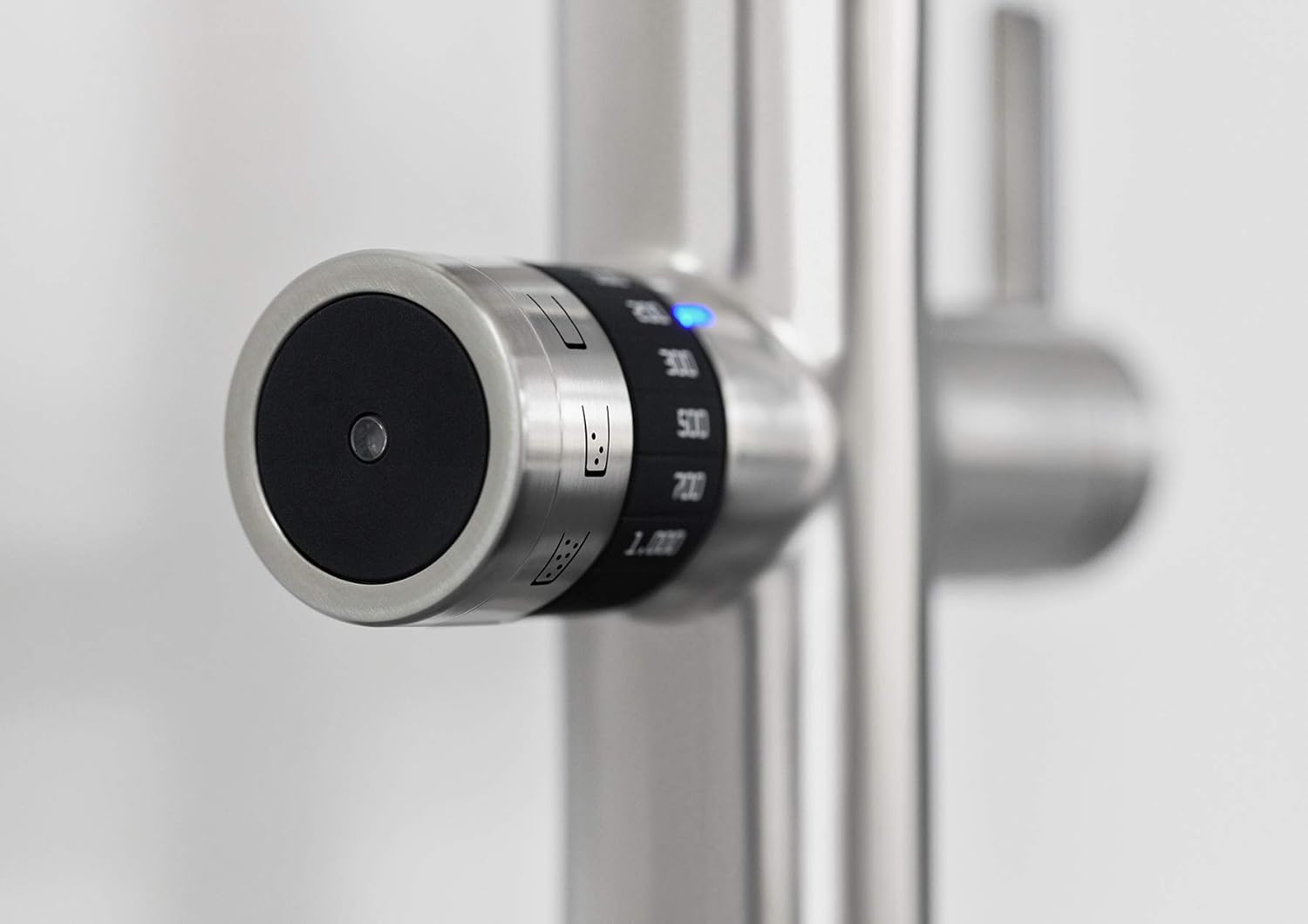

Resim: Ayrıntılı view of the control dial on the BLANCO drink.soda faucet, used for selecting water type and quantity for filtered and sparkling water.
Image: The BLANCO drink.soda faucet in a kitchen setting, dispensing water into a glass, highlighting its sleek design and functionality.
Image: A user operating the BLANCO drink.soda faucet, demonstrating the ease of use for accessing various water types.
Bakım
Regular maintenance ensures the longevity and optimal performance of your BLANCO drink.soda system.
Integrated Cleaning Program:
The system features an integrated cleaning program for enhanced hygiene and safety. Refer to the full manual for instructions on activating and running this program.
Filtre Değişimi:
The drink filter requires periodic replacement to maintain water quality. The system's display will indicate when a filter change is due. Always use genuine BLANCO replacement filters.
CO2 Tüpü Değişimi:
When the CO2 cylinder is empty, the system will indicate the need for replacement. Follow the instructions in the manual for safe removal and installation of a new CO2 cylinder.
Genel Temizlik:
Clean the exterior of the faucet and unit with a soft, damp Bez ve hafif deterjan kullanın. Yüzeye zarar verebilecek aşındırıcı temizleyicilerden veya sert kimyasallardan kaçının.
Sorun giderme
This section addresses common issues you might encounter with your BLANCO drink.soda system.
- Su Akışı Yok: Check water supply valves are fully open. Ensure the unit is powered on. Check for kinks in water lines.
- Insufficient Carbonation: Verify the CO2 cylinder is not empty and is correctly installed. Ensure the carbonation setting is selected on the control dial.
- Water Not Chilled: Confirm the cooling unit is powered and functioning. Allow sufficient time for the unit to chill water after initial setup or power cycles.
- Filter Indicator On: Replace the drink filter as indicated by the system.
- Alışılmadık Gürültü: Some operational noise from the cooling and carbonation unit is normal. If noise is excessive or unusual, ensure the unit is stable and not vibrating against cabinet walls.
For persistent issues not resolved by these steps, please contact BLANCO customer support.
Özellikler
| Özellik | Şartname |
|---|---|
| Üretici | BLANKO |
| Model Numarası | 526255 |
| Ürün Boyutları (U x G x Y) | 60x40x68 cm |
| Ağırlık | 17 Kilogram |
| Malzeme | PVD Stainless Steel Finish |
| Güç Kaynağı | Kablolu Elektrik |
| Cilttage | 230 Volt |
| Netage | 190 Watt |
| Akış Hızı | 1500 Milliliters per minute |
| Özel Özellikler | Sparkling water in three carbonation levels, integrated dosing function |
| Dahil Bileşenler | SODA Faucet, SODA Cooling and Carbonation Unit, CO2 Cylinder, Drink Filter |
Image: Technical diagram showing the dimensions of the BLANCO drink.soda cooling and carbonation unit.
Garanti ve Destek
Your BLANCO drink.soda EVOL-S Pro PVD Steel system is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, spare parts, or service inquiries, please contact BLANCO customer service through their official website veya ürün ambalajınızda yer alan iletişim bilgileri.
