MECHEER Power Meter Plug Instruction Manual

1. Giriş

The MECHEER Power Meter Plug is an advanced electricity usage monitor designed to help you track and manage the power consumption of your home appliances. This device provides detailed insights into various electrical parameters, enabling you to identify energy-intensive devices and optimize your electricity usage.

It features a large, clear LCD display with adjustable backlight, multiple display modes, and built-in overload protection, making it a versatile tool for energy monitoring.

2. Güvenlik Bilgileri

UYARI!

• DO NOT use this device in a wet environment.
• DO NOT connect the power meter to a multi-plug outlet to measure multiple electrical appliances simultaneously, as this may cause the total power to exceed the threshold of 1800W and result in a short circuit.

FARK ETME:

• Consumption and time will NOT be measured or counted when your device is in standby or not working, or if the rated power of your device is smaller than 0.5 watts. However, energy consumption is always measured once the device is plugged in.
• The device saves electricity quantity, cost, electricity price, and cumulative time. It does NOT save current, voltage, power, or power factors.
• If there is an abnormal display or no response, reset the electric meter by pressing the RESET button.
• The power of electrical appliances connected to this device must not exceed 1800W.

3. Ürün Bittiview

The MECHEER Power Meter Plug is designed for ease of use and clear data presentation. It consists of the main unit with a display and control buttons, and an integrated power plug for connecting to a wall outlet.

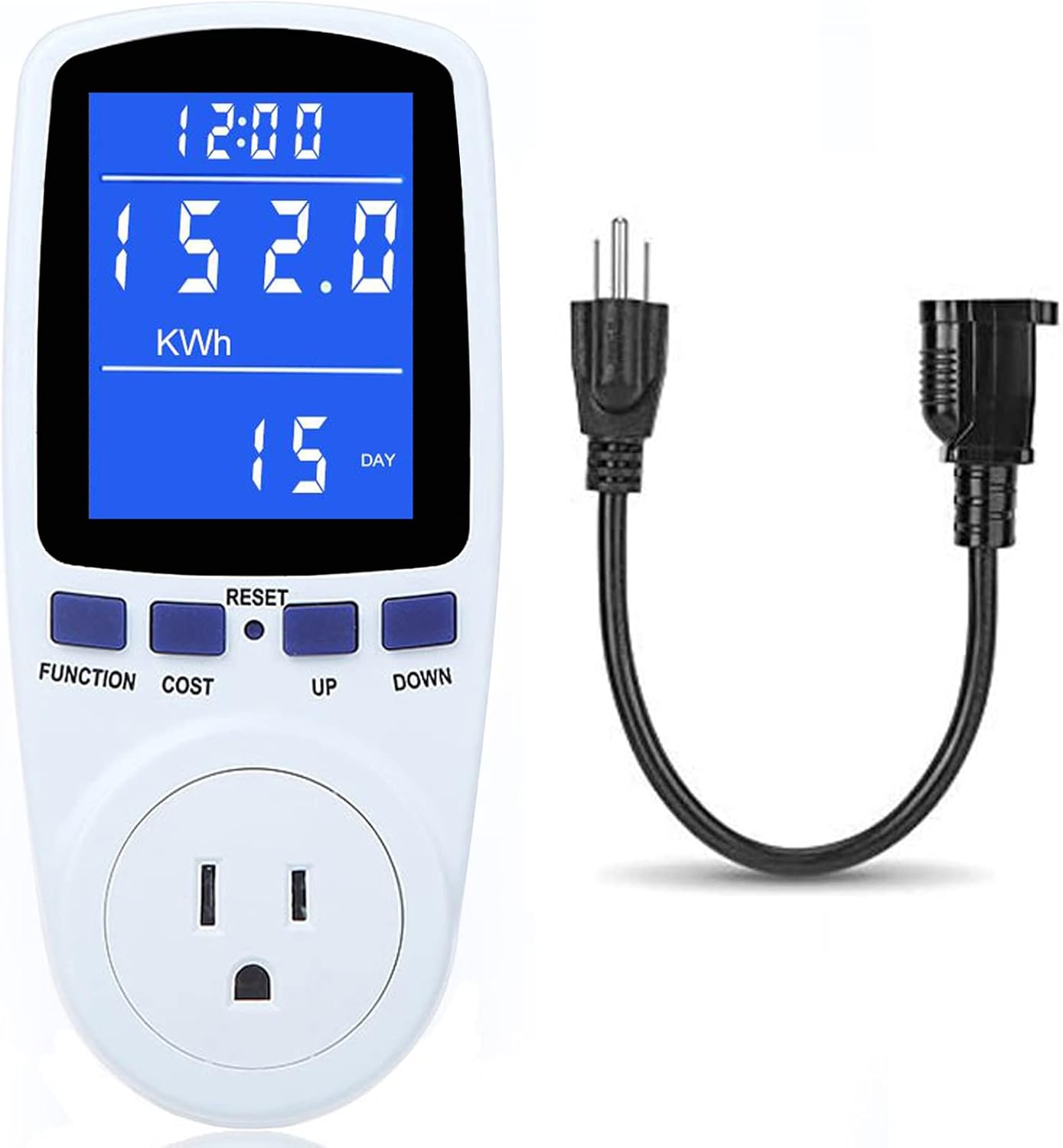

Figure 3.1: MECHEER Power Meter Plug with its integrated cord for flexible placement.

3.1. Bileşenler

• Ana Ünite: Houses the LCD display, control buttons, and internal circuitry.
• LCD Ekran: Large screen for clear viewing of various electrical parameters.
• Kontrol Düğmeleri: FUNCTION, COST, UP, DOWN, and a recessed RESET button.
• Güç Fişi: Integrated plug for connecting to a standard wall outlet.
• Appliance Socket: Standard outlet on the front for connecting the appliance to be monitored.

3.2. Ekran Özellikleri

The LCD display offers a 180° full wide viewing angle, ensuring clear and visible readings from various positions, day or night, thanks to its backlit feature.

Figure 3.2: The power meter's display offers a wide viewing angle for easy readability.

4. Kurulum

Setting up your MECHEER Power Meter Plug is straightforward. Follow these steps to begin monitoring your appliance's electricity usage.

4.1. İlk Bağlantı

1. Plug the MECHEER Power Meter Plug into a standard wall outlet.
2. The LCD display will illuminate, indicating the device is powered on.
3. Connect the appliance you wish to monitor into the socket on the front of the power meter.

Figure 4.1: The power meter can be used directly or with an extension cord for convenience, preventing blockage of adjacent sockets.

4.2. Arka Aydınlatma Aktivasyonu

The backlight automatically turns off after a set period. To wake up the backlight, press any button on the device.

Figure 4.2: The display before and after the backlight is activated, showing improved visibility.

5. Kullanım Talimatları

The MECHEER Power Meter Plug offers 7 display modes to monitor various electrical parameters. Use the FUNCTION and COST buttons to navigate through these modes and settings.

5.1. Ekran Modları

Basın İŞLEV button to cycle through the 7 display modes:

Şekil 5.1: Üzeriview of the 7 display modes available on the power meter.

1. Mod 1: Zaman/Watt/Maliyet Göstergesi - Shows cumulative time, current power consumption (Watts), and estimated cost.
2. Mod 2: Zaman/Kümülatif Elektrik Miktarı Ekranı - Shows cumulative time and total energy consumed (kWh).
3. Mod 3: Zaman/Hacimtage/Frekans Ekranı - Shows cumulative time, current voltage (Volts), and frequency (Hertz).
4. Mod 4: Zaman/Akım/Güç Faktörü Ekranı - Shows cumulative time, current ampöfke (Amps) ve güç faktörü.
5. Mod 5: Süre/Minimum Güç Göstergesi - Shows cumulative time and the minimum recorded power (Watts).
6. Mod 6: Zaman/Maksimum Güç Göstergesi - Shows cumulative time and the maximum recorded power (Watts).
7. Mod 7: Zaman/Fiyat Gösterimi - Shows cumulative time and allows setting the electricity price. You can access Mode 7 directly by pressing the MALİYET düğme.

5.2. Setting Electricity Price (Mode 7)

To calculate the cost of electricity, you need to set the price per kilowatt-hour (kWh).

1. Basın MALİYET button to enter Mode 7.
2. Kullanın UP Ve AŞAĞI buttons to adjust the electricity price per kWh.
3. Basın MALİYET Ayarı kaydetmek için tekrar tuşuna basın.

5.3. Adjustable Backlight Time

The backlight duration can be customized to suit your needs.

Figure 5.2: Backlight setting options for the power meter.

1. Basılı tutun UP Ve AŞAĞI buttons simultaneously for a few seconds to enter the backlight time setting. The display will show "bL-0" and flash.
2. Basmak UP or AŞAĞI to select the desired backlight time option:

   • bL-0 = 10 minutes (default)
   • bL-1 = 1 hour
   • bL-2 = 4 hours
   • bL-3 = 8 hours
   • bL-4 = Always on
3. Basın MALİYET button to save the backlight time setting.
4. To manually turn off the backlight, press the AŞAĞI düğme.

5.4. Aşırı Yük Koruması

The device features overload protection to prevent damage. The default overload power is 3680W, but it is recommended to set it to 1800W for typical household use.

1. To adjust the overload power, press the İŞLEV düğmesine 3 saniyeden uzun süre basın.
2. Kullanın UP Ve AŞAĞI buttons to set the desired overload threshold (0 to 3680W).
3. Basın İŞLEV Ayarı kaydetmek için tekrar tuşuna basın.

When the power of the connected appliance exceeds the set overload threshold, the LCD will display "OVERLOAD" to warn the user. All buttons will become unresponsive until the load power is reduced or removed.

5.5. Veri Hafıza Fonksiyonu

The power meter automatically saves cumulative data (electricity quantity, cumulative cost, cumulative time) even when removed from the socket or during a sudden power failure. This allows you to view the last recorded data when you use it again.

Figure 5.3: The power meter retains data even after being unplugged, thanks to its data memory function.

5.6. Kullanım Kılavuzu Videosu

For a visual guide on operating the MECHEER Power Meter Plug, please refer to the official operation video below:

6. Bakım

To ensure the longevity and accurate performance of your MECHEER Power Meter Plug, follow these simple maintenance guidelines:

• Temizlik: Cihazı yumuşak, kuru bir bezle silin. Aşındırıcı temizleyiciler, çözücüler kullanmayın ve cihazı suya batırmayın.
• Depolamak: Cihazı kullanmadığınız zamanlarda serin, kuru ve doğrudan güneş ışığından ve aşırı sıcaklıklardan uzak bir yerde saklayın.
• İşleme: Cihazı düşürmemek veya iç bileşenlerine zarar verebilecek şiddetli darbelere maruz bırakmamak için dikkatli kullanın.

7. Sorun Giderme

If you encounter issues with your MECHEER Power Meter Plug, refer to the following common problems and their solutions:

7.1. Cihazı Sıfırlama

• Clear Cumulative Data (Keep Price Setting): Basılı tutun İŞLEV Ve UP buttons simultaneously for over 3 seconds. This will clear electricity quantity, cumulative cost, and cumulative time.
• Full Reset (Clear All Settings): Use the provided reset tool (or a similar blunt object, avoid needles) to press the recessed SIFIRLAMA button. This will reset all settings to factory defaults.

8. Özellikler

9. Garanti ve Destek

For any questions regarding your MECHEER Power Meter Plug or for technical assistance, please contact MECHEER customer support. Refer to your purchase documentation for specific warranty details and contact information.

You can also visit the official MECHEER store for more information and support resources: MECHEER Store on Amazon
