N-Gear Sing Mic S20L Bluetooth Vocal Microphone with Disco Light User Manual

giriiş

This manual provides comprehensive instructions for the N-Gear Sing Mic S20L Bluetooth Vocal Microphone. It covers product features, setup, operation, maintenance, troubleshooting, and technical specifications. Please read this manual thoroughly before using the device to ensure proper function and longevity.

Güvenlik Bilgileri

Cihazı suya veya aşırı neme maruz bırakmayın.
Cihazı düşürmekten veya güçlü darbelere maruz bırakmaktan kaçının.
Çocukların erişemeyeceği yerde saklayınız.
Yalnızca belirtilen şarj kablosunu ve güç adaptörünü kullanın.
Cihazı kendiniz sökmeye veya onarmaya çalışmayın. Yetkili servis personeliyle iletişime geçin.
Pili yerel düzenlemelere göre atın.

Paket İçeriği

The N-Gear Sing Mic S20L package typically includes:

N-Gear Sing Mic S20L Microphone
USB Şarj Kablosu
Kullanım Kılavuzu (bu belge)

Ürün Bittiview

Familiarize yourself with the components and controls of your N-Gear Sing Mic S20L.

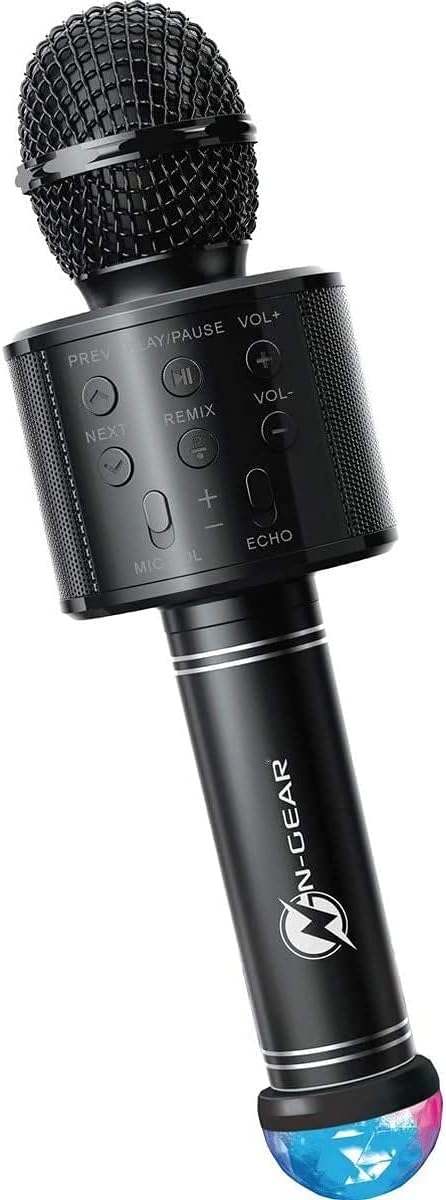

Figure 1: N-Gear Sing Mic S20L Bluetooth Microphone. This image shows the overall design of the microphone, including the mesh head, control panel, handle, and the detachable disco ball at the base.

Controls and Ports Diagram

Figure 2: Detailed diagram of the N-Gear Sing Mic S20L showing the control panel buttons, top-mounted ports (DC 5V, TF, AUX OUT, USB), and the Disco Ball USB port at the bottom.

Kontrol Paneli Fonksiyonları

ÖNCEKİ: Önceki parçaya geçmek için kısa basın.
OYNAT/DURDUR: Short press to play or pause music. Long press for power On/Off.
SONRAKİ: Short press for next track.
SES+: Müzik sesini artırın.
SES-: Müzik sesini azaltın.
REMİKS: Activates or deactivates the remix sound effect.
MİKROFON SES SEVİYESİ (+/-): Mikrofon giriş sesini ayarlayın.
EKO (+/-): Adjust the level of the echo effect on your voice.

Kullanılabilir Bağlantı Noktaları

DC 5V: Micro USB port for charging the microphone's internal battery.
TF: Slot for a Micro SD (TF) card to play MP3 audio filedoğrudan s.
AUX ÇIKIŞI: 3.5mm audio output jack to connect to external speakers or headphones.
USB BAĞLANTI: Standard USB-A port for playing MP3 audio filebir USB flash sürücüden.
DISCO BALL USB: Dedicated USB-A port at the bottom of the handle for connecting the included disco light accessory.

Kurmak

Mikrofonu Şarj Etme

Ürünle birlikte verilen USB şarj kablosunu bağlayın. Doğru Akım 5V port on the microphone.
USB kablosunun diğer ucunu standart bir 5V USB güç adaptörüne (dahil değildir) veya bilgisayarın USB portuna bağlayın.
The charging indicator (if present) will illuminate during charging and turn off when fully charged.
A full charge typically takes approximately 2-3 hours and provides up to 4 hours of playing time.

Attaching the Disco Ball

The disco ball is a separate attachment that connects via USB.

Locate the USB connector on the disco ball.
Insert the disco ball's USB connector into the DISCO BALL USB port at the bottom of the microphone handle.
The disco light will activate automatically when connected and the microphone is powered on.

Kullanım Talimatları

Güç Açık/Kapalı

To power on, press and hold the power button (usually integrated with Play/Pause or a separate button, refer to specific product markings if available).
Kapatmak için güç düğmesine tekrar basın ve basılı tutun.

Bluetooth Bağlantısı

Mikrofonun açık olduğundan emin olun. Otomatik olarak Bluetooth eşleştirme moduna girecektir.
Akıllı telefonunuzda, tabletinizde veya Bluetooth özellikli diğer cihazınızda Bluetooth'u etkinleştirin ve kullanılabilir cihazları arayın.
Select "N-Gear Sing Mic S20L" from the list of devices.
Once paired, you will hear a confirmation tone, and the microphone is ready for wireless audio streaming.

Music Playback (Bluetooth/USB/SD Card)

Bluetooth: Play music from your paired device. Use the ÖNCEKİ, OYNAT/DURDUR, Ve SONRAKİ buttons on the microphone to control playback. Adjust music volume with HACİM+ Ve cilt.
USB/SD Kart: USB belleği içeri doğru takın. USB port or a Micro SD card into the TF slot. The microphone will automatically detect and play MP3 files. Use the playback controls as described for Bluetooth.

Using the Microphone for Vocals

Once music is playing, speak or sing into the microphone.
Adjust your vocal volume using the MİKROFON SES SEVİYESİ (+/-) düğmeler.
Apply an echo effect using the ECHO (+/-) buttons to enhance your singing.
Basın REMİKS button to activate or deactivate the special remix effect.

Kayıt Fonksiyonu

The microphone supports a listen/record function. Specific instructions for activating recording may vary. Typically, this involves a dedicated record button or a long press of the Play/Pause button in certain modes. Refer to the device's on-screen prompts or additional quick start guides if available for precise recording steps.

Using AUX OUT

Connect an audio cable (not included) from the AUX ÇIKIŞI port to an external speaker or audio system to output the microphone's sound.

Bakım

Temizlik: Wipe the microphone with a soft, dry cloth. Do not use abrasive cleaners or solvents.
Depolamak: Cihazı serin, kuru ve doğrudan güneş ışığından ve aşırı sıcaklıklardan uzak bir yerde saklayın.
Pil Bakım: En iyi pil ömrü için, sık kullanılmasa bile cihazı düzenli olarak şarj edin. Pilin uzun süre tamamen boşalmasından kaçının.

Sorun giderme

Sorun	Olası Çözüm
Mikrofon açılmıyor.	Pilin şarjlı olduğundan emin olun. Bir güç kaynağına bağlayın ve tekrar deneyin.
Hoparlörden ses gelmiyor.	Check music volume (VOL+) and microphone volume (MIC VOL+). Ensure Bluetooth is connected or media is playing from USB/SD.
Bluetooth üzerinden bağlantı kurulamıyor.	Ensure Bluetooth is enabled on your device and the microphone is in pairing mode. Forget previous pairings on your device and try again. Move closer to the microphone.
Disco light is not working.	Ensure the disco ball is securely plugged into the DISCO BALL USB port and the microphone is powered on.
Kötü ses kalitesi / parazit.	Ensure there are no obstructions between the microphone and the paired device. Reduce distance. Check for interference from other electronic devices.

Özellikler

Marka: N-Dişli
Model Adı: Sing Mic S20L
Model Numarası: 9420071
Bağlantı Teknolojisi: Bluetooth
Güç Kaynağı: Pil ile çalışır
Ses Hassasiyeti: 115 Desibel
Öğe Boyutları (U x G x Y): 9.5 x 9.5 x 28 santimetre
Kanal Sayısı: 1
Önerilen Kullanımlar: Karaoke
Bağlantı Tipi: USB (for charging and media playback)
Kutup Deseni: Çok yönlü
Renk: Siyah

Garanti ve Destek

Information regarding specific warranty terms and support contact details is not available in the provided product data. Please refer to the product packaging or the manufacturer's official webEn güncel garanti bilgileri ve müşteri destek seçenekleri için bu siteyi ziyaret edin.
