ECHOGEAR EGLF324 Full Motion TV Wall Mount Instruction Manual

1. Güvenlik Bilgileri

Please read this entire manual before installation and use. If you have any questions, contact ECHOGEAR customer support. Improper installation can result in property damage or personal injury.

• Ağırlık Kapasitesi: Do not exceed the maximum weight capacity of 110 lbs (50 kg). This mount is designed for TVs between 43" and 82".
• Stud Mounting Only: This mount is designed for installation into wood studs. YAPAMAZ mount into drywall alone. Ensure studs are located accurately.
• Verify VESA Pattern: Ensure your TV's VESA pattern (mounting holes on the back) is compatible with this mount (200x100 to 600x400).
• Aletler: Use appropriate tools for installation. A ratchet is recommended for securing lag bolts.
• Yardım: Due to the size and weight of TVs, two people are recommended for safe installation.

2. Paket İçeriği

Verify all components are present before beginning installation. If any parts are missing or damaged, contact ECHOGEAR customer support.

Dahil Donanım:

• Full Motion TV Wall Mount Assembly
• Extension Brackets (for 24" stud spacing)
• Sondaj Şablonu
• Assortment of TV screws and spacers
• Lag Bolts and Washers
• Cable Management Clips (2x)
• End Caps for aesthetic finishing

3. Ürün Özellikleri

The ECHOGEAR EGLF324 Full Motion TV Wall Mount offers versatile positioning and robust support for your television.

• Evrensel Uyumluluk: Supports 43" to 82" TVs weighing up to 110 lbs. Compatible with VESA patterns from 200x100 to 600x400.

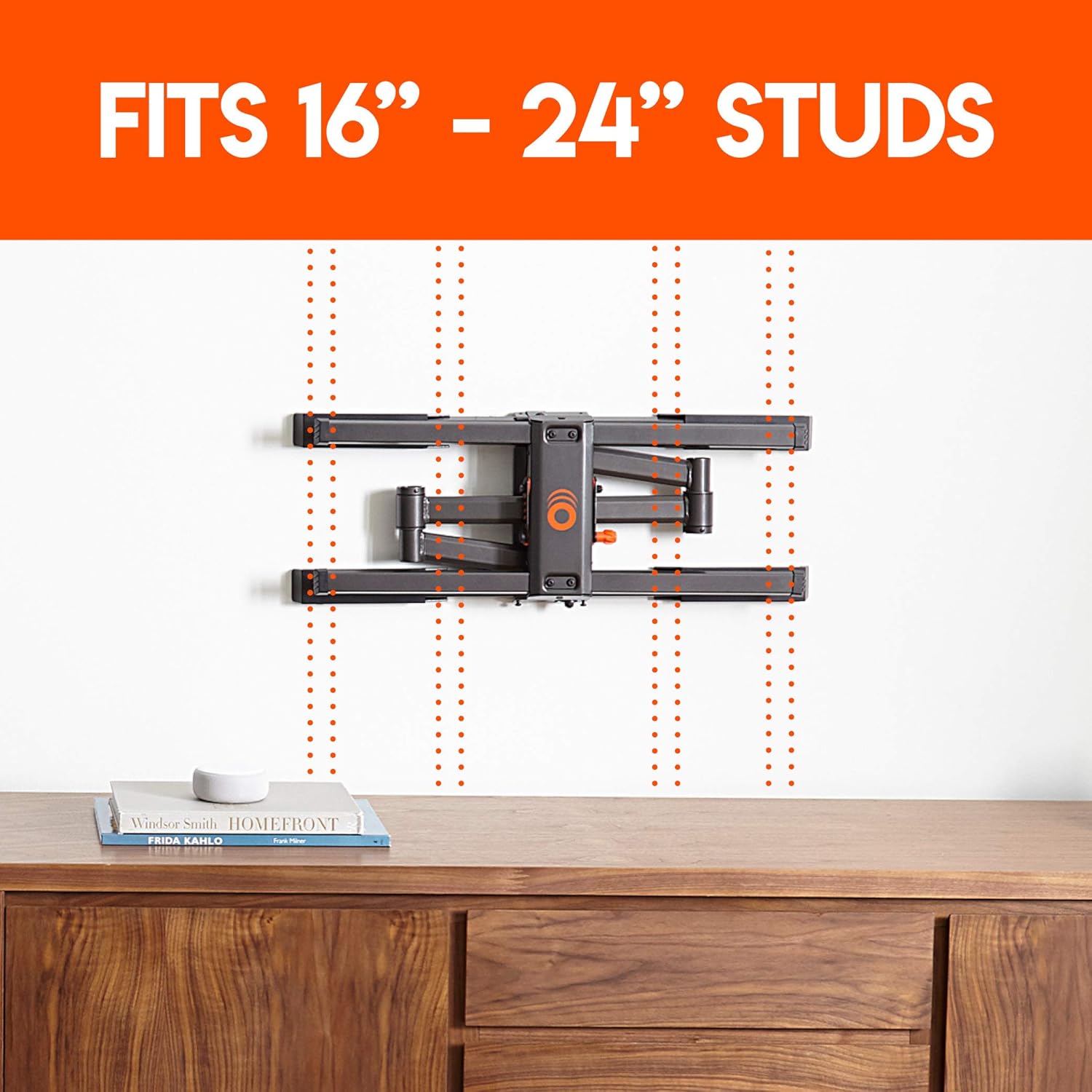

• Flexible Stud Spacing: Designed to accommodate both 16" and 24" stud spacing with included extension brackets.
• Tam Hareket Kabiliyeti: Enjoy optimal viewing angles with 19" of extension, 140° of swivel, and 15° of tilt.
• Post-Installation Adjustments: Allows for 5.4" lateral shift (left or right) and ±3° post-installation leveling for perfect screen alignment.
• Entegre Kablo Yönetimi: Features a through-arm channel and two cable clips to keep cables organized and out of sight.

4. Kurulum

Follow these steps carefully to install your ECHOGEAR EGLF324 TV Wall Mount. A detailed video guide is also available below.

Kurulum Adımları:

1. Braketleri TV'ye Takın: Secure the TV brackets to the back of your television using the appropriate screws and spacers from the hardware kit.
2. Find Studs: Use a stud finder to locate the center of your wood studs in the desired mounting location. Mark the stud centers.
3. Position Drilling Template: Tape the included drilling template to the wall, aligning it with your marked stud centers. Use a level to ensure it is perfectly horizontal.
4. Pilot Delikleri Delin: Drill pilot holes through the template at the marked locations.
5. Güvenli Duvar Plakası: Attach the wall plate of the mount to the wall using the provided lag bolts and washers. If your studs are 24" apart, attach the extension brackets to the wall plate first, then secure the entire assembly to the wall.
6. Hang TV: Carefully lift your TV and hook the TV brackets onto the wall plate.
7. Güvenli TV: Tighten the security screws on the TV brackets to lock the TV onto the mount.
8. Kabloları Yönetin: Route your TV cables through the integrated cable management channels on the mount arms and secure them with the included cable clips.
9. Ayarlama ve Seviye: Make any final adjustments to the TV's position, including lateral shift and post-installation leveling, to achieve your desired viewaçı.

Video Kurulum Kılavuzu:

5. Kullanım Talimatları

Once installed, your ECHOGEAR EGLF324 mount allows for easy adjustment of your TV's position.

• Eklenti: Gently pull the TV screen forward to extend the mount up to 19 inches from the wall.
• Döner: Carefully push or pull the sides of the TV screen to swivel it left or right, up to 140 degrees.
• Tilt: To adjust the tilt angle (up to 15 degrees), loosen the tilt adjustment knobs on the TV brackets, set the desired angle, and then re-tighten the knobs securely.

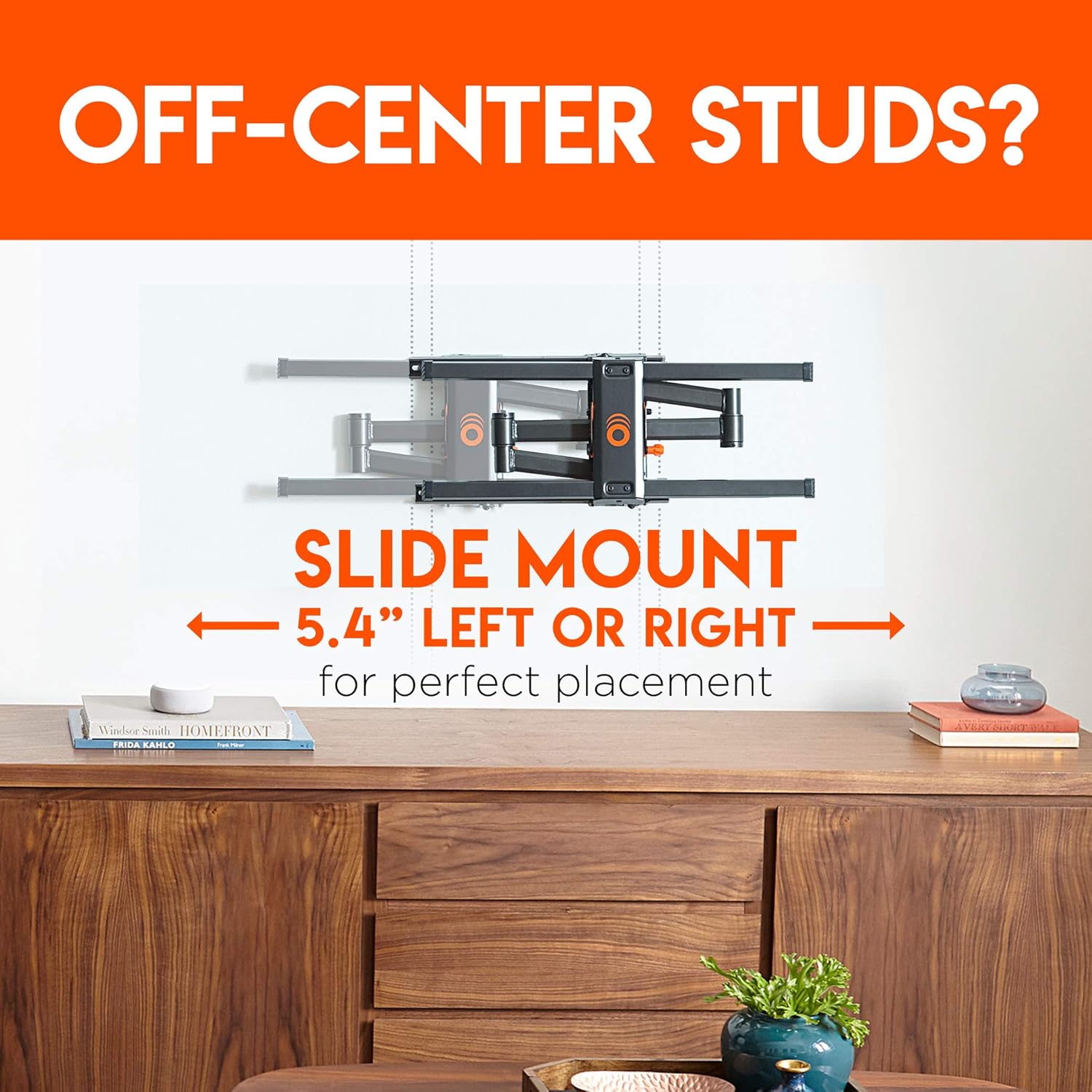

• Yanal Kayma: For minor horizontal adjustments after installation, the TV can be slid left or right by up to 5.4 inches on the wall plate.
• Seviyelendirme: The mount allows for ±3 degrees of post-installation leveling. Consult the manual for specific instructions on how to adjust this feature.

6. Bakım

Düzenli bakım, TV askı aparatınızın uzun ömürlü olmasını ve güvenli çalışmasını sağlar.

• Periyodik Kontroller: Periodically check that all screws and connections are secure. Re-tighten if necessary.
• Temizlik: Montaj parçasını yumuşak, kuru bir bezle temizleyin. Aşındırıcı temizleyicilerden veya çözücülerden kaçının.
• Yağlama: Moving parts are designed for smooth operation and generally do not require lubrication. If movement becomes stiff, contact support.

7. Sorun Giderme

Kurulum veya kullanım sırasında sorunlarla karşılaşırsanız, aşağıdaki yaygın çözümlere bakın.

• Televizyon Düz Değil: Use the post-installation leveling feature (±3 degrees) to correct the TV's horizontal alignment. Ensure the wall plate itself was installed level.
• Difficulty Moving TV: Check for any obstructions or overtightened bolts. Ensure cables are not snagged.
• Montaj gevşek gibi görünüyor: Immediately remove the TV and re-check all wall plate and TV bracket connections. Ensure lag bolts are securely fastened into the center of the wood studs.
• Kayıp parçalar: Refer to the package contents list. Contact ECHOGEAR customer support for replacement parts.

8. Özellikler

9. Garanti ve Destek

ECHOGEAR stands by its products. For warranty information, technical assistance, or to report missing/damaged parts, please contact ECHOGEAR customer support.

İletişim Bilgileri: Refer to the ECHOGEAR official webEn güncel iletişim bilgileri için lütfen web sitesini veya ürün ambalajını inceleyin.
