Rademacher Start2Smart Belt Winder Starter Kit

1. Giriş

The Rademacher Start2Smart Belt Winder Starter Kit provides an easy entry into the world of smart home automation for your roller shutters. This kit includes a RolloTron Basis DuoFern 1200-UW electric radio belt winder and a Smart Home Bridge, allowing you to control your roller shutters conveniently via a free app or voice commands. It is designed for simple installation and integration into existing smart home ecosystems.

2. Güvenlik Talimatları

• Read this instruction manual completely before installation and operation.
• Herhangi bir kurulum veya bakım çalışması yapmadan önce güç kaynağının kesildiğinden emin olun.
• This device is intended for indoor use only. Do not expose it to moisture or extreme temperatures.
• Do not open the device housing. Repairs should only be carried out by qualified personnel.
• Boğulma tehlikesini önlemek için ambalaj malzemelerini çocukların erişemeyeceği yerde saklayın.
• Ensure the roller shutter belt is in good condition and free from damage before installation.

3. Paket İçeriği

Lütfen paketinizde tüm bileşenlerin eksiksiz olarak bulunduğundan emin olun:

• 1x RolloTron Basis DuoFern 1200-UW Electric Radio Belt Winder
• 1x Smart Home Bridge
• 1x Power Supply Unit for Bridge
• 1 adet LAN Kablosu
• Montaj Aksesuarları (vidalar, dübeller)
• 1x Cover Cap
• Kullanım Kılavuzu

Resim: Üzeriview of the kit's components, including the RolloTron belt winder, the Bridge, and various accessories.

4. Ürün Bittiview

The Rademacher Start2Smart kit consists of two main components: the RolloTron Basis DuoFern 1200-UW belt winder and the Smart Home Bridge. The belt winder replaces your manual roller shutter winder, automating the opening and closing of your shutters. The Bridge acts as the central control unit, connecting the belt winder to your home network and enabling app and voice control.

Image: The Rademacher Start2Smart kit showing the belt winder, the Bridge, and the smartphone app interface for smart home control.

5. Kurulum

5.1. Installing the RolloTron Belt Winder

1. Remove the old manual belt winder: Carefully detach your existing manual belt winder from the wall.
2. Feed the belt: Guide the roller shutter belt into the new RolloTron belt winder and secure it according to the instructions.
3. Güç kablosunu bağlayın: Connect the power supply cable to the belt winder.
4. Mount the winder: Install the RolloTron belt winder into the wall opening.
5. Set upper and lower end points: Follow the on-screen or manual instructions to define the upper and lower limits for your roller shutter's movement. This typically involves pressing and holding specific buttons on the device.

5.2. Connecting the Smart Home Bridge

1. Connect to router: Use the provided LAN cable to connect the Bridge to your internet router.
2. Gücü bağlayın: Plug the power supply unit into the Bridge and then into a power outlet.
3. LED'in yanmasını bekleyin: Wait until the LED indicator on the Bridge lights up continuously, indicating a stable connection.

5.3. App Setup and Device Registration

1. Uygulamayı indirin: Download the "Smart Home HomePilot" app from the Google Play Store or Apple App Store.
2. Bir hesap oluşturun: Uygulamayı açın ve yeni bir kullanıcı hesabı oluşturmak için talimatları izleyin.
3. Add the Bridge: Within the app, add your Smart Home Bridge by following the on-screen prompts.
4. Register the belt winder: Put the RolloTron belt winder into registration mode (usually by pressing specific buttons on the device until an LED blinks). Then, use the app to search for and register the device.

Image: Detailed steps for installing the belt winder and connecting the Bridge.

Image: Instructions for app setup and voice assistant integration.

6. Kullanım Talimatları

6.1. Manuel Çalıştırma

The RolloTron belt winder features physical buttons for direct control. Use the UP button to raise the roller shutter and the DOWN button to lower it. A short press will initiate full movement to the set end point, while a longer press may allow for incremental adjustments or stop the movement.

6.2. Uygulama Kontrolü

Once the belt winder and Bridge are set up in the "Smart Home HomePilot" app, you can control your roller shutters from anywhere:

• Aç kapa: Use the virtual buttons or sliders in the app to fully open or close your roller shutters.
• Konumlandırma: Set the roller shutter to any desired intermediate position.
• Programlar: Create automated schedules for your roller shutters to open and close at specific times, e.g., sunrise/sunset.
• Durum Kontrolü: View the current status (open/closed percentage) of your roller shutters from the app.

6.3. Ses Kontrolü

The Start2Smart system is compatible with Amazon Alexa and Google Assistant. To enable voice control:

1. Beceri/Hizmeti Etkinleştir: In your Alexa or Google Home app, search for and enable the Rademacher skill or service.
2. Hesabı Bağla: Link your Rademacher Smart Home account with your voice assistant account.
3. Cihazları Keşfedin: Ask your voice assistant to discover new devices (e.g., "Alexa, discover devices" or "Hey Google, sync my devices").
4. Sesli Komutlar: You can now control your roller shutters using voice commands, such as "Alexa, open the living room shutter" or "Hey Google, set the bedroom shutter to 50%".

6.4. Expansion Possibilities

The Rademacher Start2Smart system can be expanded with other DuoFern components and integrated into broader smart home setups:

• Additional DuoFern Devices: Integrate other Rademacher DuoFern products, such as lighting controls, heating thermostats, or additional roller shutter motors.
• Üçüncü Taraf Entegrasyonu: Combine Rademacher DuoFern products with other Alexa or Google Assistant compatible devices to create comprehensive smart home routines and scenarios.

Resim: Eskiamples of how the Start2Smart system can be expanded to include heating, lighting, and other smart home components.

7. Bakım

To ensure the longevity and optimal performance of your Rademacher Start2Smart kit, follow these simple maintenance guidelines:

• Temizlik: Clean the surfaces of the belt winder and Bridge with a soft, dry, or slightly damp Bezle silin. Aşındırıcı temizleyiciler, çözücüler veya sert kimyasallar kullanmayın.
• Havalandırma: Ensure that the Bridge is placed in a location with adequate ventilation to prevent overheating.
• Bant Denetimi: Periodically inspect the roller shutter belt for any signs of wear, fraying, or damage. Replace damaged belts immediately to prevent malfunction.
• Donanım Yazılımı Güncellemeleri: Regularly check the "Smart Home HomePilot" app for available firmware updates for your Bridge and belt winder to ensure you have the latest features and security enhancements.

8. Sorun Giderme

If you encounter issues with your Rademacher Start2Smart kit, refer to the following troubleshooting tips:

• Cihaz Yanıt Vermiyor:
  • Check if the belt winder and Bridge are properly connected to their power sources.
  • Ensure the Bridge is connected to your router and its LED is lit continuously.
  • Restart the Bridge and your router.
• Uygulama Bağlantı Sorunları:
  • Akıllı telefonunuzun aktif bir internet bağlantısına sahip olduğundan emin olun.
  • Ensure the "Smart Home HomePilot" app is updated to the latest version.
  • Uygulamadan çıkış yapın ve tekrar giriş yapın.
• Voice Control (Alexa/Google Assistant) Not Working:
  • Confirm that the Rademacher skill/service is enabled in your voice assistant app.
  • Ensure your Rademacher account is correctly linked.
  • Ask your voice assistant to "discover devices" or "sync my devices" again.
  • Not: Some users have reported regional limitations or issues with Alexa connectivity. Check Rademacher's official support channels for the latest compatibility information in your region.
• Roller Shutter Not Moving or Incorrectly Positioned:
  • Check for any physical obstructions preventing the roller shutter from moving.
  • Verify that the belt is correctly installed and not slipping.
  • Recalibrate the upper and lower end points of the belt winder as described in the setup section.

9. Özellikler

Detailed technical specifications for the Rademacher Start2Smart Kit:

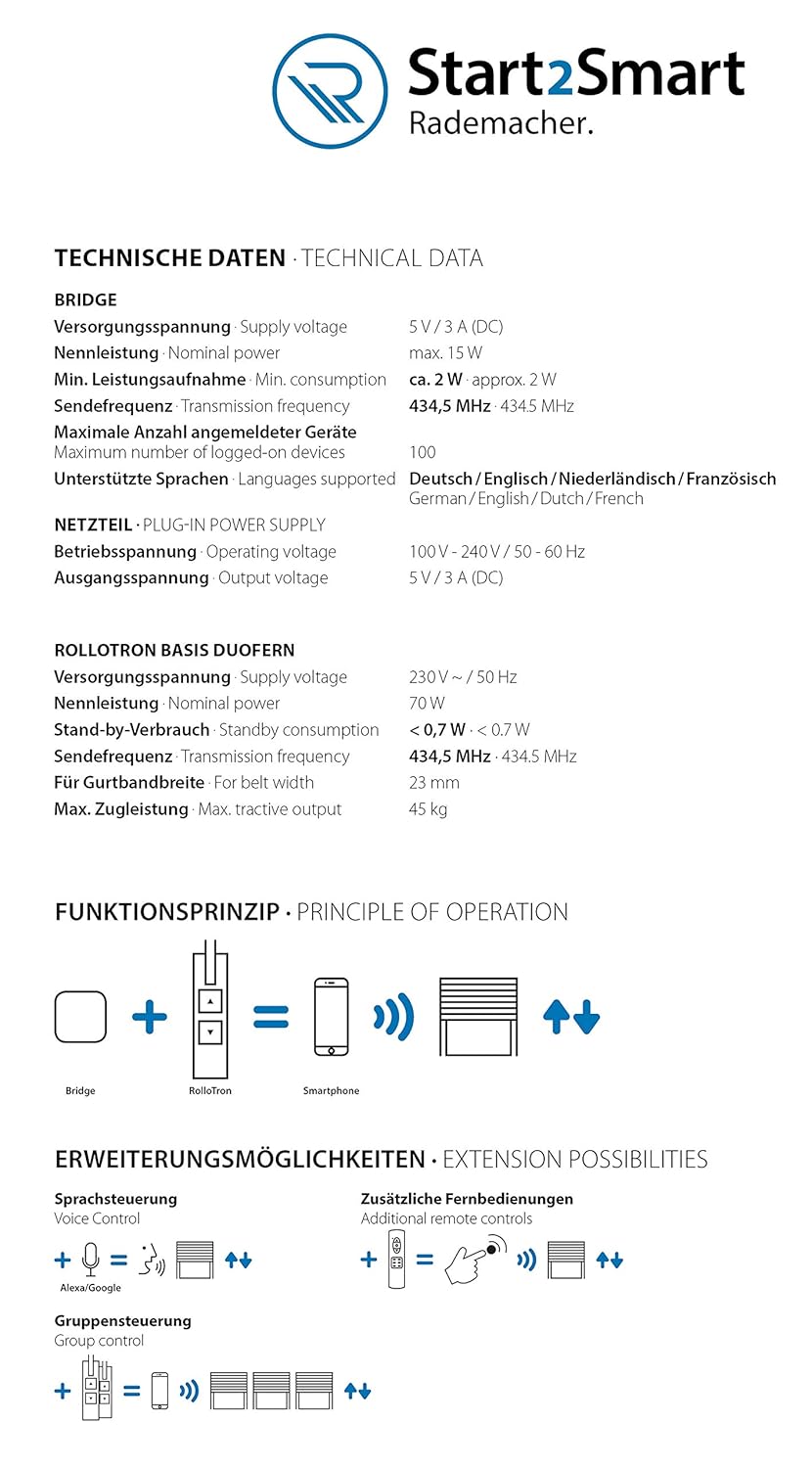

Image: Technical data and principle of operation for the Bridge and RolloTron.

Image: Dimensions of the RolloTron belt winder and a list of included components.

10. Garanti ve Destek

For information regarding warranty coverage, terms, and conditions, please refer to the official Rademacher website or the warranty card included with your product. For technical support, troubleshooting assistance beyond this manual, or spare parts, please contact Rademacher customer service directly. Contact details can typically be found on the manufacturer's webSitede veya ürün ambalajında.

Çevrimiçi Kaynaklar:

• Visit the official RADEMACHER website for FAQs, updated manuals, and support information.
• Check the "Smart Home HomePilot" app for the latest firmware updates and in-app support features.
