1. Giriş
Thank you for choosing the ROBOTIME 1:40 Scale Heavy Truck 3D Wooden Puzzle. This kit provides an engaging and rewarding experience in constructing a detailed replica of a classic 1980s heavy truck. Designed for self-assembly, this model helps to develop mechanical understanding and fine motor skills. Please read this manual carefully before beginning assembly to ensure a smooth and enjoyable building process.

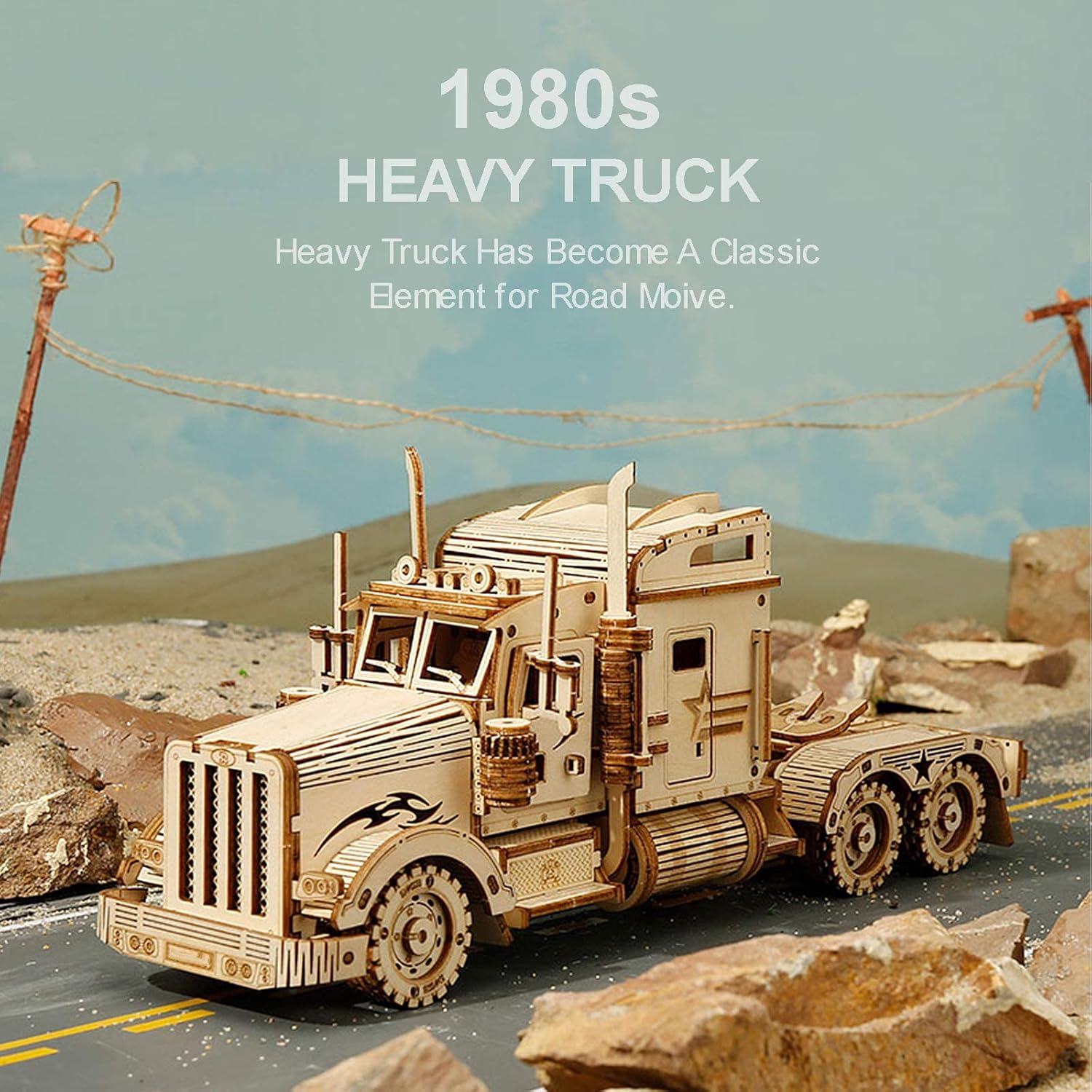

Image: The completed 1:40 scale Heavy Truck model, showcasinKarmaşık tasarımıyla dikkat çekiyor.
2. Güvenlik Bilgileri
- Küçük parçalar: This kit contains small parts which may pose a choking hazard. Keep out of reach of children under 3 years of age. Recommended age for assembly is 14 years and up.
- Keskin kenarlar: Some laser-cut wooden pieces may have sharp edges. Handle with care during removal from the sheets and assembly.
- Kırılgan Bileşenler: Wooden pieces can be delicate. Apply gentle pressure during assembly to prevent breakage. Extra pieces are provided for common breakages.
- No Glue Required: The model is designed for purely physical assembly without glue. However, for added stability or if a piece breaks, a small amount of wood glue may be used.
3. Paket İçeriği
Before starting assembly, please verify that all components are present in your kit:
- Laser-cut Wooden Sheets (containing all puzzle pieces)
- Step-by-step Assembly Instructions Manual
- Extra Wooden Pieces (for common breakages)
If any components are missing or damaged, please contact ROBOTIME customer service for assistance.
Image: The product packaging and the assembled Heavy Truck model.
4. Montaj Talimatları
Follow the included step-by-step instruction guide carefully. Patience is key for a successful build. No special tools or glue are required for standard assembly.
4.1 Hazırlık
- Clear a well-lit and spacious workspace.
- Familiarize yourself with the instruction manual and the layout of the wooden sheets.
- Gently remove pieces from the wooden sheets. If a piece is difficult to remove, use a craft knife or sandpaper to carefully loosen it.
4.2 Adım Adım Montaj
The instruction manual provides detailed diagrams for each step. Match the pieces according to the diagrams and connect them using the interlocking tabs and slots.
Image: Visual guide to the assembly process, from detaching pieces to final fit.
Image: A close-up of hands carefully removing a puzzle piece from its wooden frame.
Image: Demonstrating the interlocking mechanism of two wooden pieces during assembly.
4.3 Temel Özellikler
The completed Heavy Truck model features intricate details and some movable parts:
- Functional Driver Door: The driver's side door can be opened.
- Sleeper Cab: Detailed interior of the sleeper compartment.
- Kingpin for Trailer: Designed to connect with a compatible trailer model (trailer sold separately).
- Air Inlet Grille: Detailed front grille.
Resim: Yakın çekim views highlighting the functional door, sleeper cab, kingpin, and air inlet grille.
Video: A demonstration of the ROBOTIME 3D Wooden Puzzle Scale Car Model Kit assembly and features.
5. İşletim ve Görüntüleme
Once assembled, the Heavy Truck model is primarily a display piece. Its wheels are designed to roll, and the functional door can be opened and closed. Handle the model by its base to avoid stressing delicate parts. It is recommended to display the model on a stable, flat surface away from direct sunlight or extreme temperature changes to preserve the wood.
Resim: Bir taraf view of the completed Heavy Truck model, ready for display.
6. Bakım
To ensure the longevity and appearance of your wooden puzzle model, follow these maintenance guidelines:
- Temizlik: Dust the model regularly with a soft, dry cloth or a soft-bristled brush. Avoid using water or chemical cleaners, as these can damage the wood.
- Depolamak: Store the model in a dry environment. High humidity can cause the wood to swell, while very dry conditions can lead to cracking.
- İşleme: Always handle the model with clean hands to prevent oil and dirt transfer. Avoid dropping or applying excessive force to any part of the model.
7. Sorun Giderme
- Difficulty Fitting Pieces: If pieces are too tight, gently sand the edges of the tabs or slots with fine-grit sandpaper until they fit snugly. Do not force pieces together.
- Broken Pieces: The kit includes extra wooden pieces. Refer to the parts diagram in your instruction manual to identify and replace broken parts. If you need additional replacement pieces, contact ROBOTIME customer service.
- Gevşek Bağlantılar: For parts that feel too loose, a small amount of wood glue can be applied to secure the connection. Allow sufficient drying time.
8. Özellikler
| Özellik | Detay |
|---|---|
| Marka | ROBOZAMAN |
| Örnek | Heavy Truck (MC502) |
| Ölçek | 1:40 |
| Malzeme | Odun |
| Parça Sayısı | 286 |
| Montajlı Boyutlar (U x G x Y) | 8.82 x 2.87 x 3.94 inç |
| Ürün Ağırlığı | 7.7 ons |
| Önerilen Yaş | 14 yaş ve üzeri |
| Montaj Süresi (Yaklaşık) | 4 saat |
Image: Key specifications and features of the Heavy Truck model.
9. Garanti ve Destek
ROBOTIME is committed to providing high-quality products. While this product does not come with an explicit warranty statement in the provided information, we offer support for missing or broken pieces. If you encounter any issues or require replacement parts, please contact ROBOTIME customer service directly. We are dedicated to ensuring your satisfaction with our products.
