1. Giriş
The Topping DX7 Pro is a high-performance digital-to-analog converter (DAC) and headphone amplifier designed for exceptional audio fidelity. It features an ES9038PRO DAC chip, supports high-resolution audio up to DSD1024 and 32bit/768kHz, and includes Bluetooth 5.0 with LDAC for high-quality wireless streaming. This manual provides essential information for setting up, operating, and maintaining your DX7 Pro.
2. Paket İçeriği
Lütfen aşağıda listelenen tüm öğelerin paketinizde yer aldığından emin olun:
The package contents for the Topping DX7 Pro include the main unit, a 6.35mm to 3.5mm connector, a Bluetooth antenna, a remote control, a USB cable, an AC power cable, a user manual, and a warranty card.
- Topping DX7 Pro Unit
- 6.35mm to 3.5mm Connector
- Bluetooth Anteni
- Uzaktan kumanda
- USB kablosu
- AC Güç Kablosu
- Kullanıcı Kılavuzu
- Garanti Kartı
3. Ürün Bittiview
3.1 Ön Panel
The front panel of the Topping DX7 Pro features a 6.35mm single-ended headphone output, a 4-pin XLR balanced headphone output, an OLED screen displaying current settings, and a multi-function control knob.
- Single-end 6.35mm Output: Standart kulaklık girişi.
- 4 Pin XLR Balanced Output: Dengeli kulaklıklar için.
- OLED Ekran: Displays input source, sample rate, volume level, and menu options.
- Topuz: Multi-function control for volume adjustment, menu navigation, and input selection.
- Uzaktan Kumanda Alıcısı: For infrared remote control commands.
3.2 Arka Panel
The rear panel of the Topping DX7 Pro includes left and right channel analog XLR outputs, left and right channel analog RCA outputs, IIS input, Bluetooth antenna connector, optical input, USB input, coaxial input, AES input, power input, and a power switch with fuse.
- Left/Right Channel Analog XLR Output: Balanced audio output for external amphayat verenler veya aktif konuşmacılar.
- Left/Right Channel Analog RCA Output: Unbalanced audio output for external amphayat verenler veya aktif konuşmacılar.
- IIS Input: For connecting IIS-LVDS compatible sources.
- Bluetooth Anten Bağlantı Noktası: Kutu içeriğinde bulunan Bluetooth antenini takmak için.
- Optik Giriş: Dijital ses girişi.
- USB Girişi: For connecting to a computer or other USB audio source.
- COAX Input: Koaksiyel dijital ses girişi.
- AES Girişi: AES/EBU digital audio input.
- Güç Girişi: AC güç bağlantısı.
- Güç düğmesi: Ana güç açma/kapama düğmesi.
- Sigorta: Replaceable fuse for power protection.
4. Kurulum
4.1 Güç Bağlantısı
Before connecting the power cable, ensure the voltage selector switch on the underside of the unit is set to your local voltage (110V or 220V). Connect the supplied AC power cable to the power input on the rear panel and then to a wall outlet. Use the power switch on the rear panel to turn the unit on or off.
4.2 Giriş Bağlantıları
Connect your audio sources to the appropriate digital inputs on the rear panel (USB, Optical, Coaxial, AES, IIS). For Bluetooth connectivity, screw the provided Bluetooth antenna onto its connector on the rear panel.
4.3 Çıkış Bağlantıları
Connect your headphones to either the 6.35mm single-ended or 4-pin XLR balanced output on the front panel. For connecting to external amplifiers or active speakers, use the XLR or RCA analog outputs on the rear panel.
5. Kullanım Talimatları
5.1 Güç Açma/Kapatma
Toggle the power switch on the rear panel to turn the DX7 Pro on or off.
5.2 Giriş Seçimi
Rotate the front panel knob to cycle through available input sources (USB, Optical, Coaxial, AES, IIS, Bluetooth). The selected input will be displayed on the OLED screen.
5.3 Ses Kontrolü
Rotate the front panel knob to adjust the volume level. The current volume will be shown on the OLED screen. Press the knob to mute/unmute the output.
5.4 Menü Navigasyonu
Press and hold the front panel knob to enter the menu. Rotate the knob to navigate through menu options and press to select. Refer to the detailed user manual for specific menu settings.
5.5 Bluetooth Eşleştirme
Select Bluetooth as the input source. The DX7 Pro will automatically enter pairing mode. On your device (phone, tablet, computer), search for "Topping DX7 Pro" in the Bluetooth settings and select it to pair. The OLED screen will indicate a successful connection.
6. Temel Özellikler
6.1 High-Fidelity DAC Performance
The Topping DX7 Pro is shown connected to headphones, demonstrating its function as a high-fidelity desktop DAC. It utilizes the ESS DAC ES9038PRO chip to accurately restore audio scenes with low distortion.
The DX7 Pro incorporates the ESS ES9038PRO DAC chip, known for its high performance. Through careful design and tuning, it achieves a distortion level of less than 0.00010%, a Dynamic Range (DNR) greater than 126dB, and a Signal-to-Noise Ratio (SNR) greater than 126dB, ensuring accurate and detailed audio reproduction.
6.2 Bluetooth 5.0 with LDAC Support
This image shows the Topping DX7 Pro operating in Bluetooth mode, highlighting its Bluetooth 5.0 connectivity with LDAC support for high-definition wireless audio. It uses a CSR8675 chipset for stable and high-quality transmission.
Equipped with a CSR8675 chipset, the DX7 Pro supports Bluetooth 5.0 and various high-quality codecs including LDAC, AAC, SBC, aptX, aptX LL, and aptX HD. This enables high-definition wireless audio transmission up to 24bit/96kHz, providing a convenient and high-quality listening experience. The Bluetooth input can be disabled via the menu if not required.
6.3 Advanced Internal Design

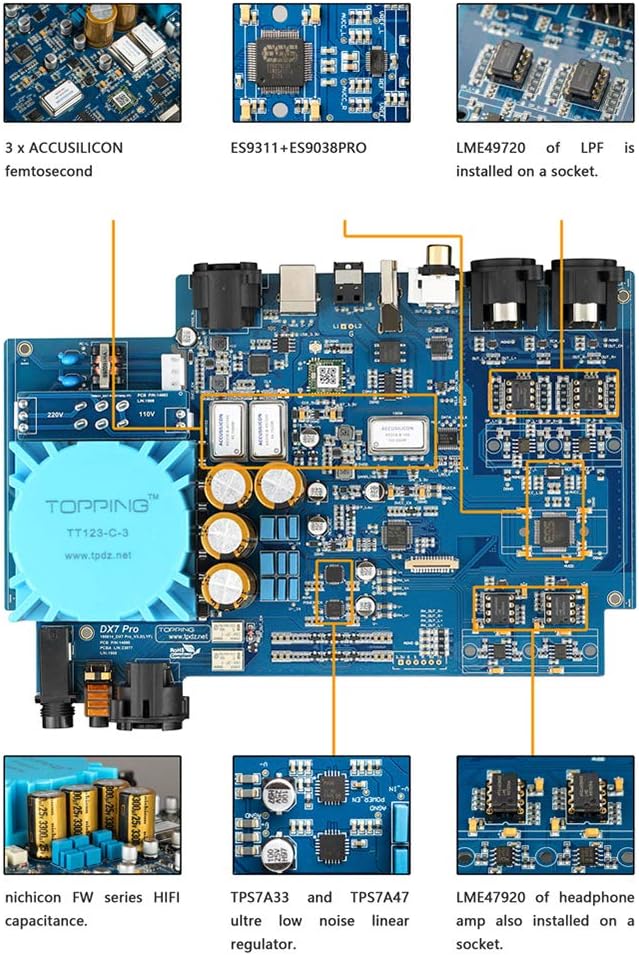

Dahili view of the Topping DX7 Pro's circuit board, showcasing components such as 3 ACCUSILICON femtosecond clocks, ES9311+ES9038PRO DAC chip, LME49720 op-amps, Nichicon FW series HiFi capacitance, and TPS7A33/TPS7A47 ultra-low noise linear regulators.
The internal architecture of the DX7 Pro features three ACCUSILICON femtosecond clocks for precise timing, an ES9311+ES9038PRO DAC chip, LME49720 op-amps for low-pass filtering and headphone amplification, Nichicon FW series HiFi capacitors, and TPS7A33/TPS7A47 ultra-low noise linear regulators, all contributing to its audio performance.
7. Özellikler
- Model Numarası: DX7 pro
- Ürün Ölçüleri: 9.45 x 3.54 x 14.57 inç
- Ürün Ağırlığı: 5.33 pound
- Üretici: SÜSLEME
- DAC Çipi: ESS ES9038PRO
- Bluetooth Sürümü: 5.0
- Bluetooth Kodekleri: LDAC, AAC, SBC, aptX, aptX LL, aptX HD
- Maksimum Sample Rate (USB): 32bit/768kHz, DSD1024
8. Sorun Giderme
- Güç Yok: Ensure the AC power cable is securely connected and the rear panel power switch is in the 'On' position. Check the voltage selector switch on the underside of the unit matches your local power supply. Verify the fuse is intact.
- Ses Yok: Check all audio cable connections. Confirm the correct input source is selected on the DX7 Pro. Ensure the volume level is not set to minimum or muted. Verify headphones or external speakers are properly connected and functioning.
- Bluetooth Bağlantı Sorunları: Ensure the Bluetooth antenna is securely attached. Confirm Bluetooth is enabled on your source device and the DX7 Pro is in pairing mode or already paired. Try unpairing and re-pairing the device. Reduce the distance between the DX7 Pro and your Bluetooth device, and remove any obstructions.
- Bozuk Ses: Check cable integrity and connections. Ensure the sample rate and bit depth settings on your source device are compatible with the DX7 Pro. Try a different audio source or cable to isolate the issue.
9. Bakım
To ensure the longevity and optimal performance of your Topping DX7 Pro, follow these maintenance guidelines:
- Temizlik: Cihazın dış yüzeyini temizlemek için yumuşak, kuru bir bez kullanın. Aşındırıcı temizleyiciler, çözücüler veya kimyasal spreyler kullanmaktan kaçının, çünkü bunlar yüzeye zarar verebilir.
- Havalandırma: Ünitenin yeterli havalandırmaya sahip olduğundan emin olun. Havalandırma açıklıklarını hiçbir şekilde kapatmayın.
- Çevre: Operate the DX7 Pro in a clean, dry environment, away from direct sunlight, excessive heat, moisture, and dust.
- Depolamak: Cihazı uzun süre saklayacaksanız, güç kaynağından ayırın ve serin, kuru bir yerde muhafaza edin.
10. Resmi Ürün Videosu
Bu video görsel bir açıklama sağlarview of the Topping DX7 Pro, showcasing its front and rear panels, highlighting the various input and output connections, and demonstrating its compact design.
11. Garanti ve Destek
For detailed warranty information and customer support, please refer to the warranty card included in your package. You may also visit the official Topping website or contact your authorized dealer for assistance.
