KOTARBAU 72mm Satin Nickel Door Handle Instruction Manual

1. Giriş

Thank you for choosing the KOTARBAU 72mm Satin Nickel Door Handle. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new door handle. Please read these instructions carefully before beginning installation and retain them for future reference.

Temel Özellikler:

• Güvenlik: Robust and high-quality construction designed to protect against theft and break-ins when combined with an appropriate cylinder.
• Çok yönlülük: Suitable for almost all types of doors and gates, compatible with BB, PZ, shield, or WC/BAD lock versions. Can be mounted indoors or outdoors and fits both left and right-hand doors.
• Dayanıklılık: Made from high-quality alloy steel with a nickel-plated finish, ensuring long-lasting performance and resistance to regular use and weather conditions.
• Ergonomik Tasarım: Features a comfortable, profiled form for convenient and easy use.

2. Güvenlik Bilgileri

• Always wear appropriate personal protective equipment (e.g., gloves, eye protection) during installation.
• Ensure the door is stable and properly supported before beginning installation.
• Küçük parçaları ve aletleri çocukların erişemeyeceği yerlerde saklayın.
• Do not overtighten screws, as this may damage the door or the handle components.
• Herhangi bir adımda emin değilseniz, uzman bir profesyonele danışın.

3. Paket İçeriği

Before installation, please verify that all components are present and undamaged:

• 1x KOTARBAU Door Handle Set (includes two lever handles with plates)
• 1x Square Spindle (8mm thick)
• Montaj Vidaları
• Allen Key (for grub screw)
• Additional mounting elements as required

4. Kurulum Kılavuzu

The KOTARBAU door handle is designed for screw-on installation and is universally applicable for various door types and lock mechanisms (BB, PZ, WC/BAD). Follow these steps for proper installation:

1. Kapıyı Hazırlayın: Ensure your door is pre-drilled with the necessary holes for the spindle and mounting screws. The handle is compatible with standard 72mm center-to-center distance for lock mechanisms.
2. Insert the Spindle: Slide the 8mm square spindle through the latch mechanism in the door.
3. Position the Handle Plates: Place one handle plate on each side of the door, aligning the spindle hole and screw holes with those on the door. Ensure the lever handles are pointing in the desired direction (e.g., downwards).
4. Kolları takın: Slide the lever handles onto the spindle from both sides. Secure each handle to its plate using the small grub screw located on the underside of the lever, tightening it with the provided Allen key.
5. Secure the Plates: Using the provided mounting screws, firmly attach both handle plates to the door. Ensure the plates are flush against the door surface and do not wobble.
6. Test İşlemi: After installation, test the door handle by pressing the lever down and ensuring the latch retracts smoothly. Also, check the locking mechanism (if applicable) for proper function.

5. Operasyon

Operating the KOTARBAU door handle is straightforward:

• To open the door, simply press the lever handle downwards. This action retracts the latch bolt, allowing the door to open.
• Release the lever handle, and it will return to its horizontal position, extending the latch bolt to secure the door.
• For doors with a locking mechanism (e.g., key or thumb-turn), use the appropriate method to lock or unlock the door before operating the handle.

6. Bakım ve Özen

To ensure the longevity and appearance of your KOTARBAU door handle, follow these maintenance guidelines:

• Temizlik: Sapı düzenli olarak yumuşak bir bezle silin.amp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the satin nickel finish.
• Yağlama: Periodically apply a small amount of silicone-based lubricant to the moving parts of the latch mechanism and the spindle to ensure smooth operation.
• Sıkma: Check all mounting screws and the grub screw on the lever periodically. Tighten them if they have become loose to prevent wobbling and ensure security.
• Denetleme: Inspect the handle for any signs of wear or damage. If any significant damage is observed, consider replacing the unit.

7. Sorun Giderme

If you encounter issues with your KOTARBAU door handle, refer to the following common problems and solutions:

8. Özellikler

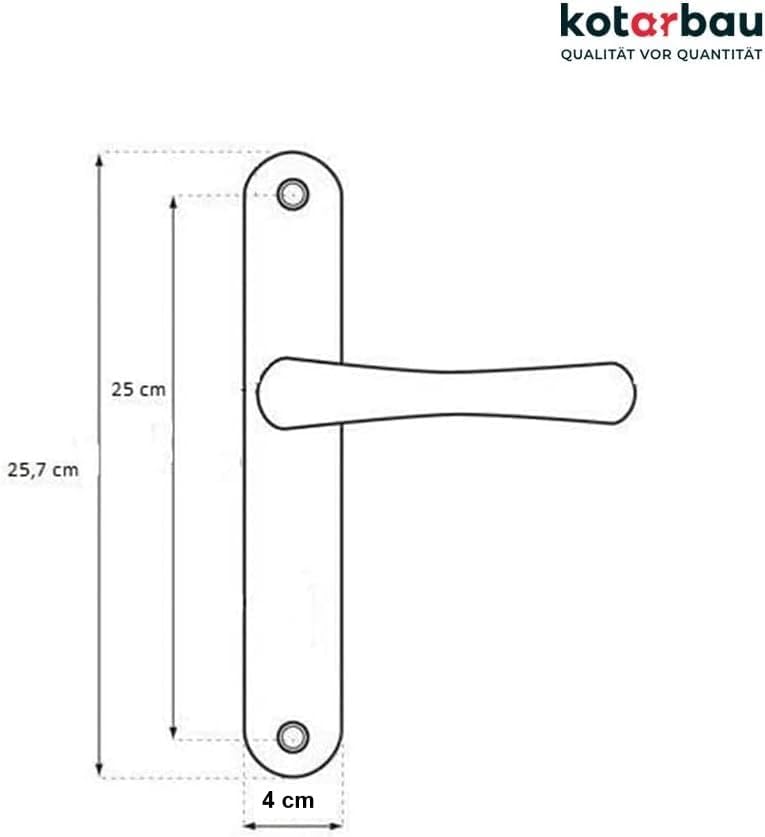

Technical details for the KOTARBAU 72mm Satin Nickel Door Handle:

9. Garanti ve Destek

KOTARBAU products are known for their quality and durability. While specific warranty details are not provided in this manual, standard consumer rights apply.

For any questions, technical assistance, or support regarding your KOTARBAU door handle, please contact the seller or KOTARBAU customer service directly. Please have your model number (M7-EE5A-SQOG) and purchase information ready when contacting support.

You can visit the KOTARBAU brand store for more information: KOTARBAU Brand Store
