KOTARBAU Universal Balcony Door Latch (White)

1. Ürün Bittiview

The KOTARBAU Universal Balcony Door Latch is designed to provide security and convenience for balcony and terrace doors. Its practical design ensures doors close securely, offering resistance against wind and humidity. This latch is suitable for various door types, including PVC and aluminum, and its discreet form integrates well without affecting the door's appearance.

Başlıca faydaları şunlardır:

• Gelişmiş Güvenlik: Ensures doors are securely closed.
• Draft Prevention: Helps eliminate drafts.
• Koku Kontrolü: Prevents the entry of smoke or other outdoor odors.
• Evrensel Uyumluluk: Works with most PVC and aluminum windows and doors.
• Dayanıklı Yapı: Made from robust PVC and metal components.

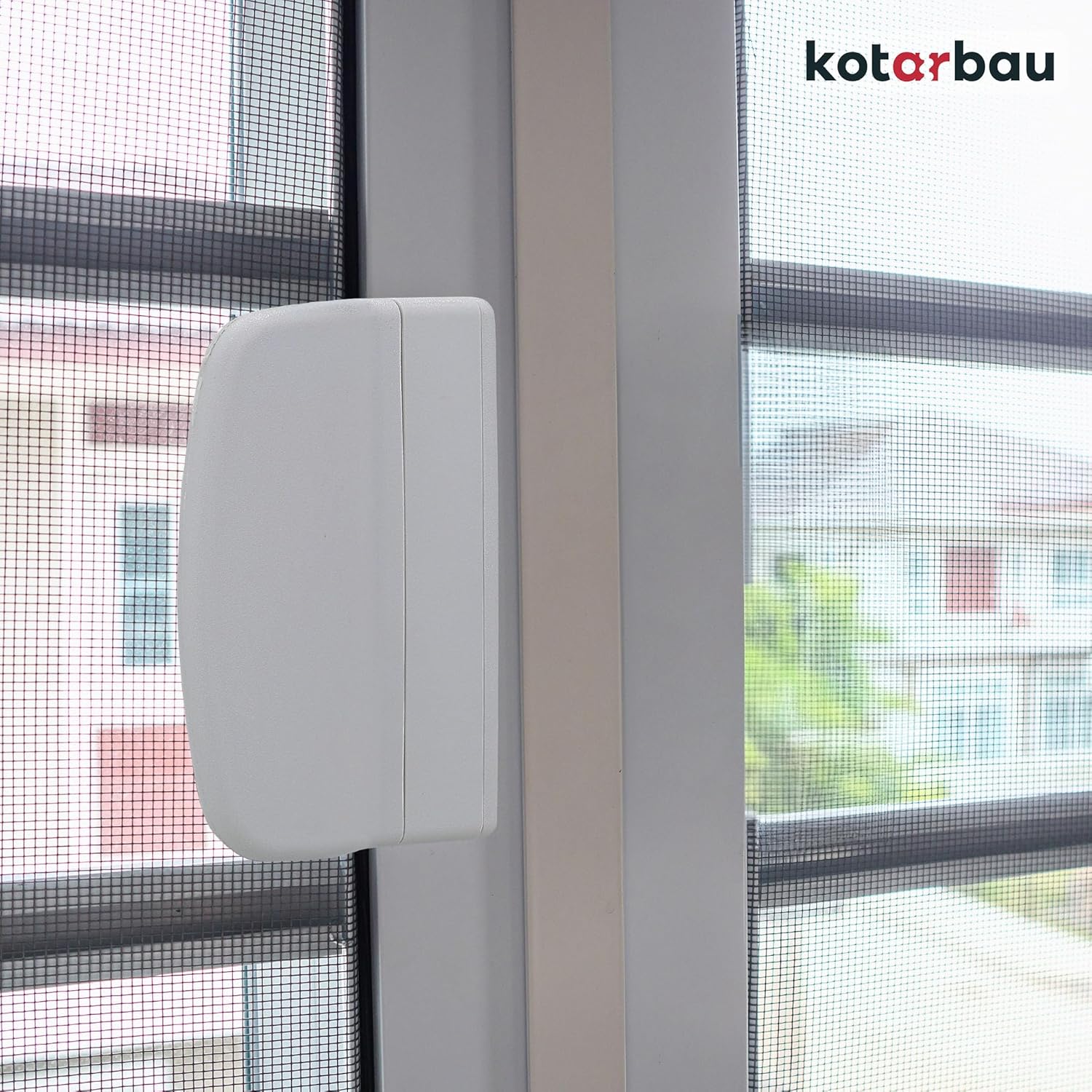

Figure 1: KOTARBAU Balcony Door Latch installed on a white balcony door, viewdışarıdan.

2. Paket İçeriği

The KOTARBAU Balcony Door Latch kit includes all necessary components for installation:

• 1 x Balcony Door Latch (PVC handle)
• 1 x Locking Roller (metal)
• Montaj Vidaları

Şekil 2: Patlatılmış view of the latch components, including the handle, locking roller, and screws.

3. Kurulum Talimatları

The KOTARBAU Balcony Door Latch is designed for easy self-assembly. Follow these steps for proper installation:

1. Prepare the Latch: Open the cover that hides the fixing screws on the latch handle. This allows access to the screw holes.
2. Mark Drilling Spots: Hold the latch handle against the outer frame of your window or door where you intend to install it. Use a pencil to mark the exact spots where the screws will be drilled. Ensure the placement aligns with the locking mechanism on the door.
3. Fix the Latch Support: Using the provided screws, securely fix the latch support (the part with the handle) to the marked spots on the window/door frame.
4. Fix the Locking Roller: Identify the metal strip on the window sash. Using the remaining screws, fix the locking roller onto this metal strip. Ensure it is positioned to align with the latch mechanism.
5. Hizala ve Güvenli Hale Getir: Carefully close the door to check the alignment. The locking roller on the sash should fall freely and smoothly into the groove of the latch on the frame. Adjust if necessary to ensure a perfect fit and smooth operation.

Figure 3: The latch handle with its removable cover.

Figure 4: Marking the installation points on the door frame.

4. Operasyon

Once installed, the KOTARBAU Balcony Door Latch allows you to easily close your balcony or terrace door from the outside. Simply push the door until the locking roller engages with the latch mechanism. To open, gently pull the door. This mechanism provides a secure, temporary closure without fully locking the door, ideal for quick access while preventing unwanted elements from entering your home.

The latch effectively prevents:

• Unwanted drafts.
• Penetration of cigarette or barbecue smoke.
• Unintended opening of the door due to wind.

Figure 5: Balcony door with the KOTARBAU latch installed, providing convenient access.

5. Bakım

To ensure the longevity and optimal performance of your KOTARBAU Balcony Door Latch, follow these simple maintenance guidelines:

• Düzenli Temizlik: Wipe the latch and its components with a soft, damp Toz ve kiri temizlemek için bir bez kullanın. Yüzeye zarar verebilecek aşındırıcı temizleyicilerden kaçının.
• Yağlama: Periodically apply a small amount of silicone-based lubricant to the moving parts of the locking roller to ensure smooth operation.
• Denetleme: Regularly check all screws and components for tightness. Tighten any loose screws to prevent wear and ensure secure attachment.
• Sert Kimyasallardan Kaçının: Do not use strong chemical solvents or cleaners, as these can degrade the PVC and metal materials.

6. Sorun Giderme

If you encounter any issues with your KOTARBAU Balcony Door Latch, consider the following common solutions:

• Kapı Güvenli Bir Şekilde Kapanmıyor:
  • Check if the latch and locking roller are properly aligned. Slight adjustments to the latch's position might be needed.
  • Tüm montaj vidalarının sıkıca takıldığından emin olun.
  • Inspect the locking roller for any obstructions or damage.
• Açma/Kapatmada Zorluk:
  • Apply lubricant to the locking roller and its mechanism.
  • Check for any debris or foreign objects obstructing the latch's movement.
• Loose Latch:
  • Tighten all visible screws on the latch and the locking roller.

If these steps do not resolve the issue, please contact KOTARBAU customer support for further assistance.

7. Özellikler

Figure 6: Technical dimensions of the latch components.

8. Mevcut Renkler

The KOTARBAU Balcony Door Latch is available in a variety of colors to match different door and window frames:

• Beyaz
• Kül
• Altın Meşe
• Kahverengi
• Antrasit
• Siyah

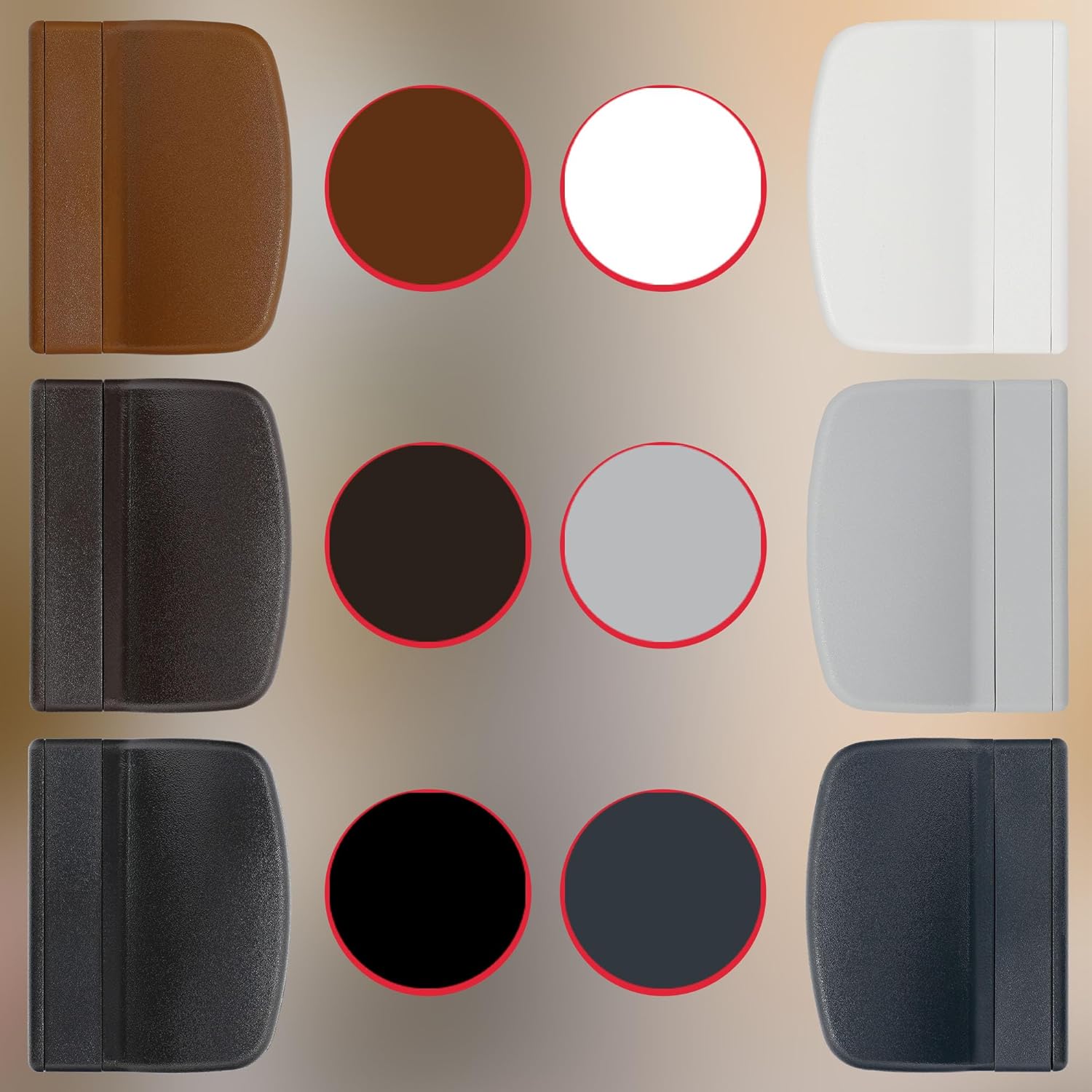

Figure 7: KOTARBAU Balcony Door Latch available in multiple colors.

9. Garanti ve Destek

KOTARBAU products are manufactured to high-quality standards. For any questions regarding installation, operation, or if you experience any issues with your product, please refer to the seller's return policy or contact KOTARBAU customer support directly. Please retain your proof of purchase for warranty claims.
