This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of your Hansgrohe Talis E Built-in Wall-Mounted Bath/Shower Mixer. Please read all instructions carefully before beginning installation or use. Retain this manual for future reference.
Güvenlik Bilgileri
- Kurulum, yerel tesisat ve bina yönetmeliklerine uygun olarak, yetkili bir profesyonel tarafından yapılmalıdır.
- Ensure the main water supply is turned off before any installation or maintenance work.
- An adjustable temperature limiter is integrated to protect against excessively hot water. This should be set during installation.
- Use only genuine Hansgrohe spare parts for repairs to ensure product integrity and safety.
- Ürünü dondan koruyun.
Paket İçeriği
Kuruluma başlamadan önce tüm bileşenlerin mevcut olduğundan emin olun:
- Single-lever bath mixer (Brushed Bronze)
- Fonksiyonel blok
- Montaj talimatları
- Sabitleme malzemesi
Not: For built-in installation, the iBox Universal basic set (Hansgrohe part #01800180) is required and must be ordered separately.
Kurulum ve Yükleme
The Hansgrohe Talis E mixer is designed for built-in wall mounting, which allows for a clean aesthetic and maximizes space around the bathtub. Follow the detailed mounting instructions provided with the product and ensure the iBox Universal basic set is correctly installed within the wall.
Şekil 1: Ön view of the Hansgrohe Talis E Built-in Wall-Mounted Bath/Shower Mixer.
Şekil 2: Açısal view of the Hansgrohe Talis E Built-in Wall-Mounted Bath/Shower Mixer, showcasing tasarımı.

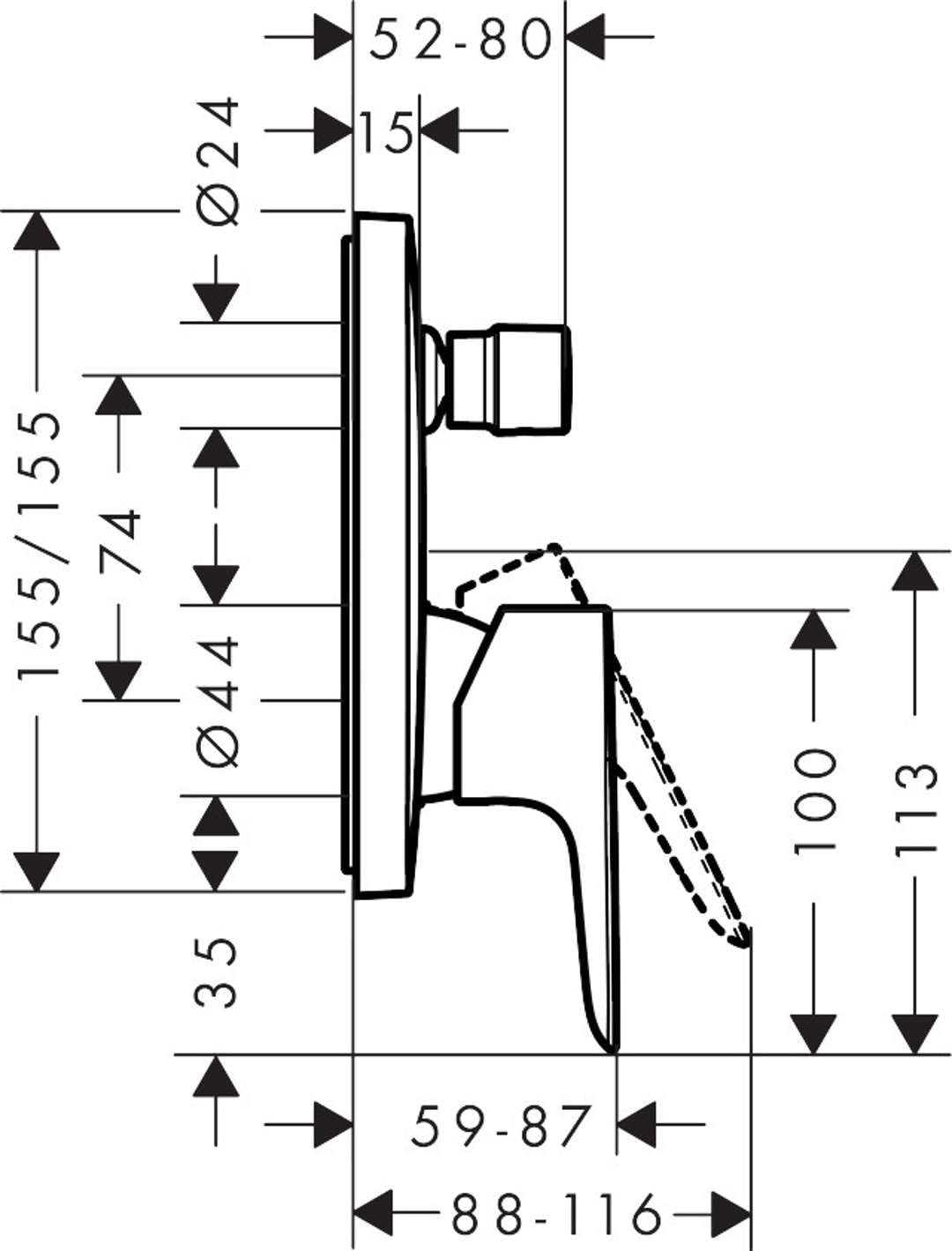

Figure 3: Technical drawing illustrating the precise dimensions for installation of the Hansgrohe Talis E mixer. All measurements are in millimeters.
Temel Kurulum Adımları:
- Install the Hansgrohe iBox Universal basic set (#01800180) into the wall according to its specific instructions.
- Connect the water supply lines to the iBox.
- Mount the functional block and the mixer trim set onto the iBox.
- Ensure all connections are watertight and secure.
- Set the adjustable temperature limiter to the desired maximum temperature during assembly to prevent scalding.
Kullanım Talimatları
The Talis E mixer features a single lever for intuitive control of water flow and temperature, and an integrated diverter for switching between bath filler and shower functions.
Su Akışı ve Sıcaklık Kontrolü:
- Akış Kontrolü: Lift the lever to increase water flow. Push down to decrease or stop flow.
- Sıcaklık Kontrolü: Move the lever left for hotter water and right for colder water.
Yön değiştirme fonksiyonu:
The mixer includes a diverter to switch water output between the bath spout and a single shower head. The diverter automatically resets to the bath function after the water is turned off.
- To activate the shower, pull the diverter knob.
- To return to the bath filler, push the diverter knob or turn off the water supply.

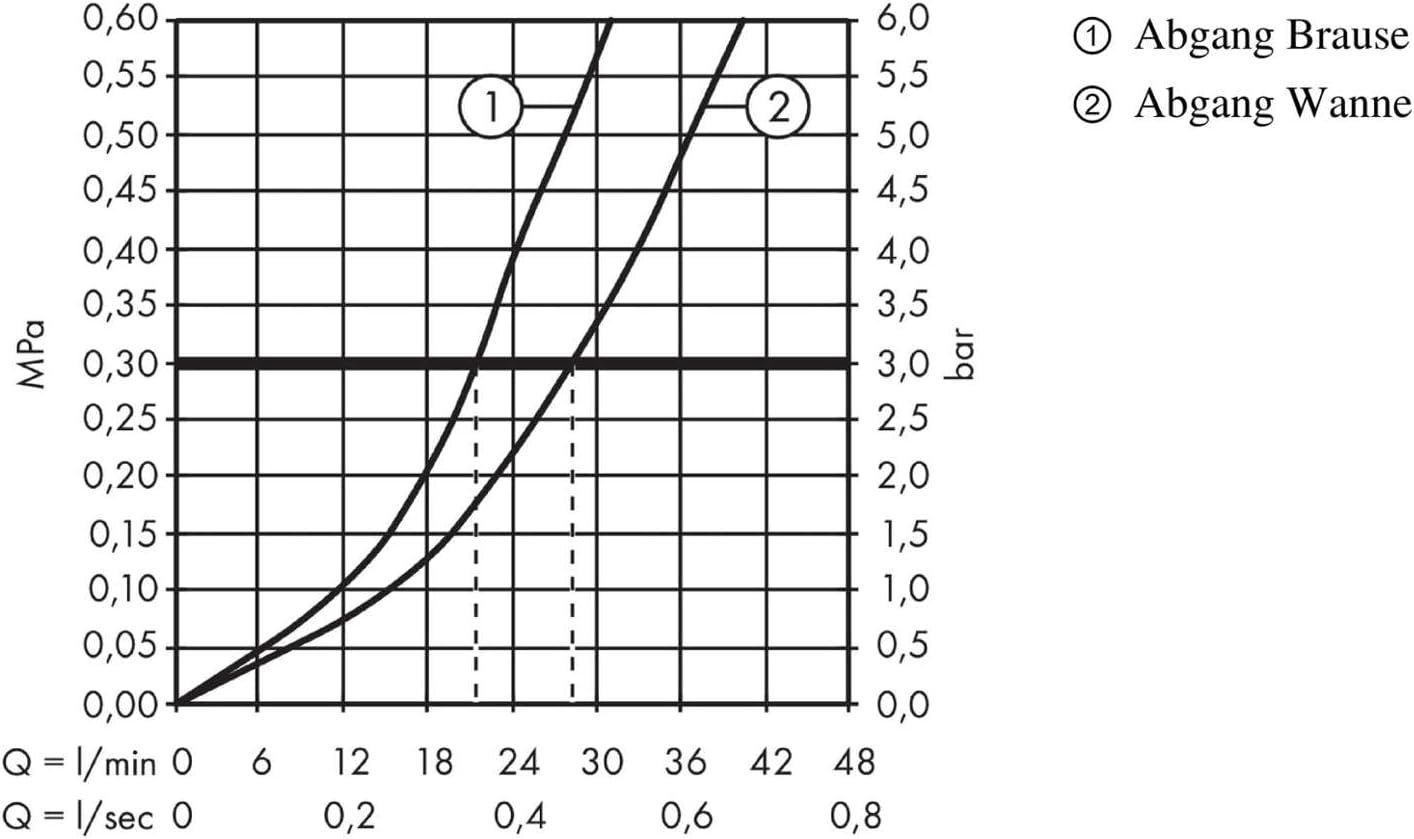

Figure 4: Flow rate diagram. Curve (1) represents the shower outlet flow, and curve (2) represents the bath outlet flow. At 3 bars pressure, the flow rate is 21 l/min for the shower and 28 l/min for the bath.
Bakım
Regular cleaning and proper care will ensure the longevity and optimal performance of your Hansgrohe Talis E mixer. The smooth ceramic mixing system is designed for reliable and durable operation.
Temizlik Talimatları:
- Clean the surface with a soft cloth and a mild, non-abrasive cleaning agent.
- Avoid using cleaners containing alcohol, hydrochloric acid, formic acid, acetic acid, or phosphoric acid, as these can damage the brushed bronze finish.
- Temizledikten sonra bol su ile durulayın ve su lekelerinin oluşmaması için yumuşak bir bezle kurulayın.
Yedek parça:
Hansgrohe ensures the availability of spare parts for up to 15 years after the product line has been discontinued. Contact an authorized Hansgrohe service partner for genuine spare parts.
Sorun giderme
If you experience issues with your Hansgrohe Talis E mixer, please refer to the following common troubleshooting tips:
- Azaltılmış Su Akışı: Check for blockages in the aerator or shower head. Ensure water supply valves are fully open.
- Sıcaklık Dalgalanmaları: Verify that the hot and cold water supplies are correctly connected. If the issue persists, consult a professional plumber.
- Sızıntı: Minor drips can sometimes be resolved by ensuring the handle is fully closed. Persistent leaks may indicate a worn-out cartridge or seal, requiring professional inspection and replacement.
- Noise during Operation: The mixer is designed with a silencer to reduce flow noise. If unusual noises occur, check water pressure or consult a professional.
For complex issues or repairs, it is recommended to contact a qualified plumber or Hansgrohe customer service.
Özellikler
| Özellik | Şartname |
|---|---|
| Üretici | Hansgrohe |
| Model Numarası | 71745140 |
| Ürün Boyutları (U x G x Y) | 5.9x15.5x19.1 cm |
| Ağırlık | 1.92 kilogram |
| Renk | Fırçalanmış Bronz |
| Stil | Küvet |
| Sona ermek | Fırçalanmış |
| Malzeme | Synthetic, Metallic (Bronze handle) |
| Kurulum Yöntemi | Built-in Wall Mounting |
| Kol Sayısı | 1 |
| Tutma Yeri | Merkez |
| Gerekli Delik Sayısı | 1 |
| Flow Rate (at 3 bar) | 28 Liters per minute (bath spout) / 21 Liters per minute (shower connection) |
| Özel Özellik | Adjustable Temperature Limiter |
| Menşei ülke | Almanya |
Garanti
Hansgrohe provides a 5 yıllık üretici garantisi for this product. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and material faults under normal use and maintenance. For full warranty terms and conditions, please refer to the official Hansgrohe website veya müşteri hizmetleriyle iletişime geçin.
Destek
For technical assistance, spare parts, or further inquiries, please contact Hansgrohe customer support or visit the official Hansgrohe website. You can find contact information on the Hansgrohe brand store page or through your local Hansgrohe dealer.
Hansgrohe Brand Store: Visit Hansgrohe Store
