LB-Link BL-WR3000 300Mbps Wireless Router User Manual

1. Giriş

The LB-Link BL-WR3000 is a 300Mbps Wireless AP/Client High Speed Router designed to provide reliable and fast wireless connectivity. Featuring three 5dBi high gain omni-directional antennas, it ensures stronger signals and extended transmission distances. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your device to ensure optimal performance and network security.

2. Ürün Bittiview

2.1 Temel Özellikler

• Supports IEEE 802.11n/b/g and IEEE 802.11.3/3u standards.
• Three 5dBi High Gain Omni-directional Antennas for enhanced coverage.
• MIMO technology for improved wireless transmissions and stability.
• Supports QoS (Quality of Service) Bandwidth Control.
• WPS button for quick and secure wireless setup.
• Supports WDS Bridge mode to easily expand wireless networks.
• Built-in firewall with IP, MAC, and URL filters for network control.
• Supports WPA2, WPA, WEP (128 / 64-bit encryption), WPA-PSK, WPA2-PSK and WPA/WPA2-PSK mixed encryptions.

2.2 Paket İçeriği

Paketinizin aşağıdaki öğeleri içerdiğini doğrulayın:

• LB-Link BL-WR3000 Wireless Router
• Güç Adaptörü
• Ethernet kablosu
• Hızlı Kurulum Kılavuzu

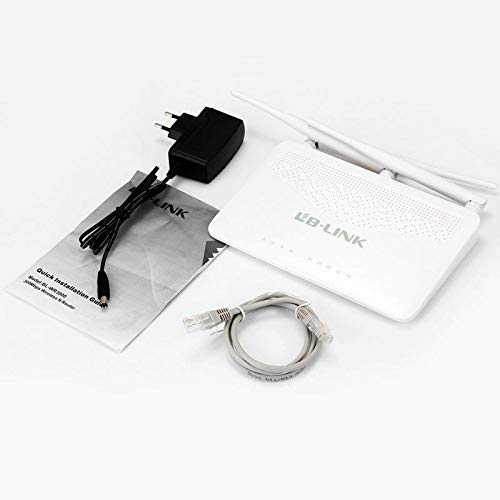

This image shows the typical contents found in the LB-Link BL-WR3000 package: the wireless router unit, a power adapter for electrical connection, an Ethernet cable for wired connections, and a Quick Installation Guide for initial setup.

3. Kurulum

3.1 Fiziksel Bağlantı

1. Yönlendiriciyi Konumlandırın: Place the router in a central location to maximize wireless coverage. Avoid obstructions like thick walls or large metal objects.
2. Antenleri bağlayın: Ensure the three external antennas are securely attached and oriented vertically for best signal.
3. Güce Bağlanın: Plug the power adapter into the router's power port and then into a wall outlet. The power indicator light should illuminate.
4. İnternete (WAN) bağlanın: Connect an Ethernet cable from your modem's LAN port to the router's WAN port (usually distinct in color, e.g., yellow).
5. Connect to Computer (Optional LAN): For initial setup or wired access, connect an Ethernet cable from your computer to one of the router's LAN ports (usually blue).

This image displays the front of the LB-Link BL-WR3000 wireless router, featuring three external omni-directional antennas for enhanced signal coverage. The front panel includes multiple LAN ports (blue), a WAN port (yellow), and a power input.

3.2 İlk Yapılandırma

1. Erişim Web Arayüz: Bir tane aç web browser on a computer connected to the router (either wired or wirelessly using the default SSID). Enter the router's default IP address (e.g., 192.168.1.1 or 192.168.0.1) ifadesini adres çubuğuna yazın ve Enter tuşuna basın.
2. Giriş yapmak: Varsayılan kullanıcı adını ve şifreyi girin (genellikle admin for both, refer to the Quick Installation Guide for specifics).
3. Kurulum Sihirbazını Çalıştırın: Follow the on-screen instructions of the setup wizard to configure your internet connection type (e.g., PPPoE, Dynamic IP, Static IP) and set up your wireless network name (SSID) and password.
4. Varsayılan Kimlik Bilgilerini Değiştir: For security, it is highly recommended to change the default login username and password for the router's web arayüz.

4. Çalışma Modları

The BL-WR3000 supports multiple operating modes to suit various networking needs.

4.1 Yönlendirici Modu

In Router Mode, the device acts as the primary connection point for your network, sharing an internet connection with multiple wired and wireless devices. It performs Network Address Translation (NAT) and acts as a DHCP server.

4.2 Erişim Noktası (AP) Modu

In AP Mode, the device connects to an existing wired network and broadcasts a wireless signal, allowing wireless devices to connect to the wired network. It essentially extends the reach of a wired network wirelessly.

4.3 İstemci Modu

In Client Mode, the device acts as a wireless adapter for a wired device. It connects wirelessly to an existing wireless network and provides internet access to a single wired device (e.g., a desktop PC or gaming console) via its Ethernet port.

4.4 WDS Bridge Mode

Wireless Distribution System (WDS) Bridge Mode allows the router to wirelessly connect to another router or access point to expand the wireless network coverage without the need for cables. This is useful for extending your Wi-Fi signal to areas with weak coverage.

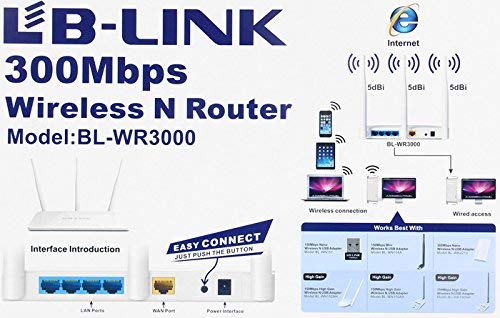

This diagram highlights the various ports and buttons on the rear panel of the LB-Link BL-WR3000 router. It shows the LAN ports, WAN port, power interface, and the WPS (Wi-Fi Protected Setup) button for quick and secure wireless connections.

5. Güvenlik Özellikleri

The BL-WR3000 offers robust security features to protect your network from unauthorized access.

• Kablosuz şifreleme: Supports WPA2, WPA, WEP (128 / 64-bit), WPA-PSK, WPA2-PSK, and WPA/WPA2-PSK mixed encryption protocols. WPA2-PSK is recommended for the strongest security.
• WPS (Wi-Fi Korumalı Kurulum): Allows for quick and secure connection of WPS-enabled devices by simply pressing the WPS button on the router and the client device, or by entering a PIN.
• SSID Broadcasting Control: You can choose to hide your wireless network name (SSID) to make it less visible to unauthorized users.
• MAC Adresi Filtreleme: Restrict network access to only specific devices based on their unique MAC addresses.
• Built-in Firewall: Provides basic network protection against external threats.
• IP, MAC, and URL Filtreleme: Allows administrators to control access to specific websites or block certain devices from accessing the internet.

6. Bakım

Düzenli bakım, yönlendiricinizin uzun ömürlü olmasını ve en iyi performansı göstermesini sağlar.

• Donanım Yazılımı Güncellemeleri: Periodically check the LB-Link official webÜrün yazılımı güncellemeleri için site. Ürün yazılımını güncellemek performansı artırabilir, yeni özellikler ekleyebilir ve güvenlik açıklarını giderebilir.
• Düzenli Yeniden Başlatma: Rebooting the router every few weeks can resolve minor performance issues and clear temporary data.
• Fiziksel Temizlik: Keep the router free from dust and debris. Ensure ventilation holes are not blocked to prevent overheating.
• Yedekleme Yapılandırması: Önemli değişiklikler veya aygıt yazılımı güncellemeleri yapmadan önce yönlendiricinizin yapılandırma ayarlarını yedeklemeniz önerilir.

7. Sorun Giderme

This section addresses common issues you might encounter with your BL-WR3000 router.

• İnternet erişimi yok:
  • Check if the WAN indicator light on the router is on.
  • Modeminizden gelen Ethernet kablosunun yönlendiricinin WAN portuna güvenli bir şekilde bağlı olduğundan emin olun.
  • Önce modeminizi, sonra da yönlendiricinizi yeniden başlatın.
  • Yönlendiricinizdeki internet bağlantı ayarlarınızı doğrulayın. web interface (e.g., PPPoE username/password).
• Weak Wireless Signal or Frequent Disconnections:
  • Relocate the router to a more central position, away from obstacles and interference sources (e.g., cordless phones, microwaves).
  • Adjust the orientation of the antennas.
  • Check for overlapping Wi-Fi channels with neighboring networks and try changing your router's wireless channel in the settings.
• Yönlendiriciye Erişilemiyor Web Arayüz:
  • Bilgisayarınızın yönlendiriciye (kablolu veya kablosuz) bağlı olduğundan emin olun.
  • Verify that your computer's IP address is set to obtain automatically (DHCP).
  • Tarayıcınızın önbelleğini temizlemeyi veya farklı bir tarayıcı kullanmayı deneyin.
  • Giriş bilgilerini unuttuysanız, fabrika ayarlarına sıfırlama işlemi yapmanız gerekebilir (aşağıya bakınız).
• Fabrika ayarları: If you encounter persistent issues or forget your login password, you can perform a factory reset. With the router powered on, press and hold the reset button (usually a small pinhole button) for about 5-10 seconds until the lights flash. This will restore the router to its default factory settings, requiring you to reconfigure it.

8. Özellikler

9. Garanti ve Destek

9.1 Garanti Bilgileri

The LB-Link BL-WR3000 router comes with a 3 Years Replacement Warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or acts of nature.

9.2 Teknik Destek

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact LB-Link customer support. Refer to the official LB-Link webEn güncel destek kanalları için lütfen web sitemizi veya ürün ambalajınızda yer alan iletişim bilgilerini kontrol edin.

• Çevrimiçi destek: Visit the official LB-Link webSSS, sürücü indirmeleri ve destek kaynakları için site.
• E-posta Desteği: Contact customer service via email for detailed inquiries.
• Telefon Desteği: Check the LB-Link webBölgesel telefon destek numaraları için site.
