1. Giriş
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Napoleon BIPRO500RBPSS-3 Built-in Prestige PRO RB Propane Gas Grill Head. This grill head is designed for outdoor use and features durable 304 stainless steel construction, multiple burners, and advanced grilling technologies.
Please read this manual thoroughly before attempting to install or operate the grill. Keep this manual for future reference.
Resim 1.1: Ön view of the Napoleon BIPRO500RBPSS-3 Built-in Prestige PRO RB Propane Gas Grill Head.
2. Güvenlik Bilgileri
UYARI: Sadece dış mekan kullanımı içindir. Yanlış kurulum, ayar, değişiklik, servis veya bakım yaralanmaya veya maddi hasara neden olabilir. Bu ekipmanı kurmadan veya bakımını yapmadan önce kurulum, çalıştırma ve bakım talimatlarını dikkatlice okuyun.
This product is a Propane Gas unit. Ensure your gas supply is propane. If you intend to use Natural Gas, a different model is required. Connecting a propane unit to a natural gas supply, or vice-versa, is hazardous.
Öneri 65 Uyarısı: Bu ürün sizi, Kaliforniya Eyaleti tarafından doğum kusurlarına veya üremeyle ilgili diğer zararlara neden olduğu bilinen karbon monoksit dahil kimyasallara maruz bırakabilir. Daha fazla bilgi için şuraya gidin: www.P65Uyarılar.ca.gov.
- Izgara çalıştırılırken her zaman yeterli havalandırma olduğundan emin olun.
- Çalışma sırasında çocukları ve evcil hayvanları ızgaradan uzak tutun.
- Benzin veya diğer yanıcı buhar ve sıvıları bu cihazın veya herhangi bir başka cihazın yakınında saklamayın veya kullanmayın.
- Never attempt to connect or disconnect the propane cylinder while the grill is operating or hot.
- It is recommended to have a licensed professional install the gas connections to ensure safety and compliance with local codes.
3. Kurulum ve Kurulum
The Napoleon BIPRO500RBPSS-3 is designed for built-in installation into an outdoor kitchen island or custom enclosure. Assembly is required.
3.1 Boyut ve Açıklıklar
Carefully measure your installation space to ensure proper fit and adequate clearances for ventilation and maintenance. The product dimensions are 25"D x 32.5"W x 24"H.
Image 3.1: Dimensional diagram of the grill head, indicating a width of 32.5 inches, height of 24 inches, and depth of 25 inches.
3.2 Gaz Bağlantısı
This grill head requires a propane gas supply. The gas hose typically comes with a 3/8-inch female connection. It is crucial to ensure you have the correct regulator and coupling fitting for your 20 lb. propane tank. These parts may not be included with the grill head and must be acquired separately to ensure a safe and proper connection.
Önemli: Napoleon discourages the installation of the propane tank directly underneath the grill head due to safety considerations. Consult a licensed professional for proper installation of gas lines and connections, especially for built-in applications.
3.3 Elektrik Bağlantısı
The grill requires a 120 Volt electrical connection for features such as the integrated LED Spectrum Night Lights and ignition system. Ensure a properly grounded electrical outlet is available near the installation site.
Resim 3.2: Örn.ample of the grill head integrated into an outdoor kitchen setup.
4. Kullanım Talimatları
4.1 Ateşleme Sistemi
The grill features a unique Flame Throwing ignition system for reliable startup. To ignite a burner:
- Propan tankı vanasının tamamen açık olduğundan emin olun.
- Push and turn the desired control knob to the HIGH position.
- The Flame Throwing ignition will generate a flame to light the burner.
- Verify the burner is lit by looking through the cooking grates.
- If the burner does not light within 5 seconds, turn the control knob to OFF, wait 5 minutes for gas to dissipate, and repeat the process.
Image 4.1: The Flame Throwing ignition system in action, showing a flame igniting the burner.
4.2 Main Grilling Burners
The grill is equipped with four main grilling burners, each rated for a 12,000 BTU maximum. These burners feature solid 304 stainless steel tube construction for durability. Stainless steel sear plates are positioned above the burners to protect them and provide even heat distribution across the 500-square-inch grilling surface, minimizing hot and cold spots.

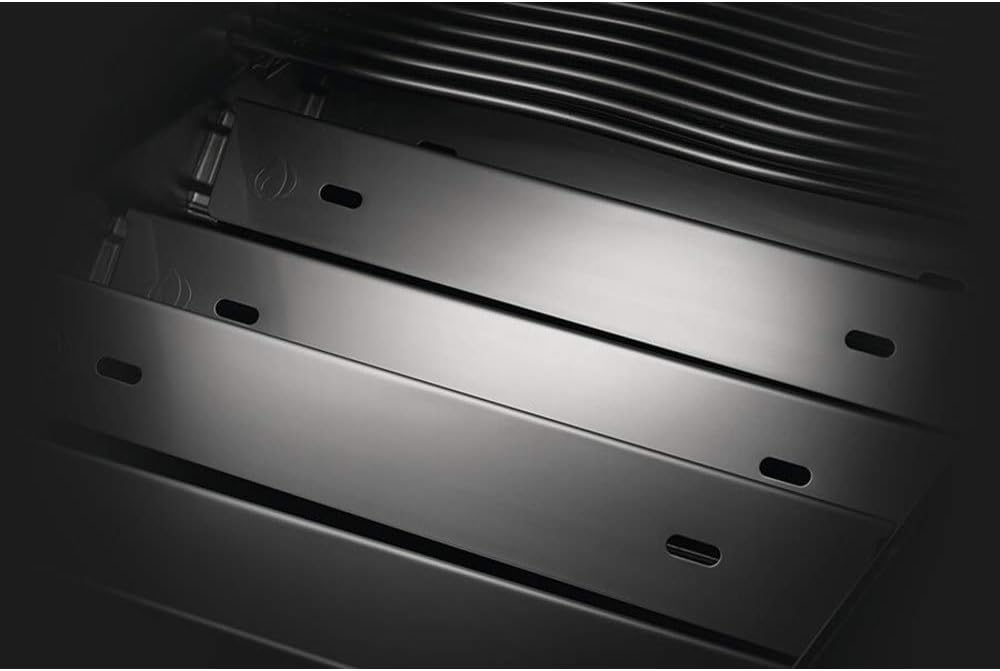

Resim 4.2: View of the stainless steel sear plates designed for even heat distribution.
4.3 Infrared Rear Burner
An 18,000 BTU infrared rear burner is included for rotisserie cooking. This burner provides intense, even heat ideal for searing and slow-roasting meats on the rotisserie kit.
Image 4.3: Rotisserie cooking in progress, utilizing the infrared rear burner.
4.4 Pişirme ızgarası
The grill features patented "S" style wave grill grates made from 9.5mm thick 304 stainless steel. These grates are designed for durability and to create distinctive grill marks.
Image 4.4: Detail of the Napoleon "S" style wave cooking grates.
4.5 Control Knobs and Lighting

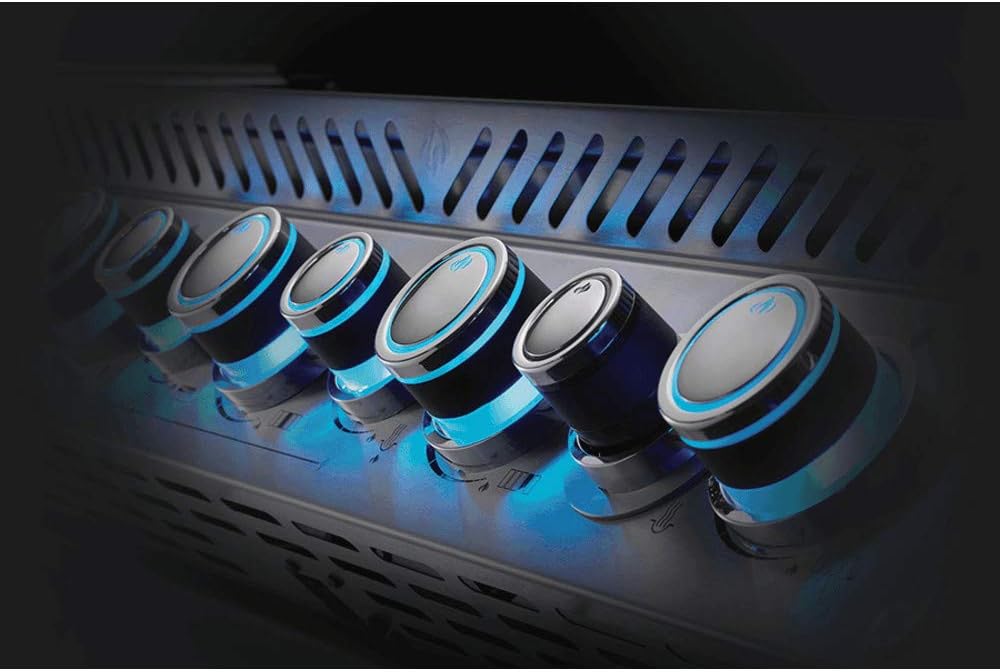

The SafetyGlow control knobs illuminate blue when off and turn red when the burners are in use, providing a visual safety indicator. Integrated LED Spectrum Night Lights offer customizable color options for enhanced visibility and ambiance during evening cooking.
Image 4.5: The SafetyGlow control knobs illuminated in blue.
4.6 Accu-Probe Temperature Gauge
The integrated Accu-Probe temperature gauge provides accurate internal grill temperature readings, assisting in precise cooking control.
Image 4.6: The Accu-Probe temperature gauge displaying temperature readings.
4.7 İç Mekan Aydınlatması
The grill features interior lighting to illuminate the cooking surface, improving visibility during nighttime use.
Image 4.7: The grill's interior light providing illumination over the cooking grates.
5. Bakım
Düzenli bakım, ızgaranızın uzun ömürlü olmasını ve en iyi performansı göstermesini sağlar.
5.1 Cleaning Stainless Steel Surfaces
- Clean stainless steel surfaces with a mild soap and water solution, then rinse thoroughly and dry with a soft cloth to prevent water spots.
- İnatçı lekeler için, aşındırıcı olmayan bir paslanmaz çelik temizleyici kullanın ve her zaman yüzeyin damar yönüne doğru ovalayın.
- Yüzeyi çizebileceği veya zarar verebileceği için aşındırıcı temizleyiciler, çelik yün veya sert kimyasallar kullanmaktan kaçının.
5.2 Cleaning Cooking Grates and Sear Plates
- After each use, while the grill is still warm, brush the cooking grates with a stiff-bristled grill brush to remove food residue.
- Periodically remove the cooking grates and sear plates for a more thorough cleaning. Wash them with warm, soapy water and rinse well.
5.3 Brülör Bakımı
- Inspect burner ports regularly for blockages (e.g., from insects or food debris). Use a wire brush or paper clip to clear any obstructions.
- Ensure burner tubes are free of spider webs or other blockages that can impede gas flow.
6. Sorun Giderme
Bu bölümde, ızgaranızla ilgili karşılaşabileceğiniz yaygın sorunlar ele alınmaktadır.
6.1 Burner Not Lighting
- Gaz Tedarikini Kontrol Edin: Propan tankı vanasının tamamen açık olduğundan ve tankta yeterli miktarda yakıt bulunduğundan emin olun.
- Ateşleme Sistemi: Verify the Flame Throwing ignition is sparking. If not, check the 1.5V AAA battery (included components) and replace if necessary.
- Brülör Portları: Inspect burner ports for blockages. Clean as described in the Maintenance section.
- Gas Hose/Regulator: Ensure the gas hose is not kinked and the regulator is properly connected and functioning.
6.2 Düzensiz Isıtma
- Sear Plates: Ensure sear plates are clean and correctly positioned over the burners.
- Brülör Portları: Check for partially blocked burner ports that could cause uneven flame.
6.3 LED Controller Issues
If the LED Spectrum Night Lights or SafetyGlow knobs are not functioning correctly, check the electrical connection. If issues persist, contact customer support.
7. Özellikler
| Özellik | Şartname |
|---|---|
| Marka | Napolyon |
| Model Adı | Built-in Prestige PRO™ 500 RB |
| Ürün Model Numarası | BIPRO500RBPSS-3 |
| Ürün Boyutları | 25"D x 32.5"G x 24"Y |
| Kurulum Türü | Dahili |
| Malzeme | Paslanmaz çelik |
| Bitiş Türü | Paslanmaz çelik |
| Ürün Ağırlığı | 135.8 pound |
| Yakıt Türü | Propan gazı |
| Ana Brülörler | 4 (her biri 12,000 BTU) |
| Kızılötesi Arka Brülör | 1 (18,000 BTU) |
| Total Heating Elements | 5 |
| Pişirme Yüzey Alanı | 493.5 İnç Kare |
| Cilttage | 120 Volt |
| Montaj Gerekli | Evet |
| Dahil Bileşenler | Grill Head, Cooking Grids (2), Side Shelf, Warming Rack, Rotisserie Kit, Manual, 1.5V AAA Battery |
8. Garanti ve Destek
The Napoleon BIPRO500RBPSS-3 Built-in Prestige PRO RB Propane Gas Grill Head is backed by Napoleon's President's Limited Lifetime Warranty. This includes a Bumper to Bumper Lifetime Warranty, covering parts for 15 years and lifetime coverage for major components.
Image 8.1: Napoleon's Lifetime Warranty Bumper to Bumper badge.
For warranty claims, technical assistance, or to inquire about replacement parts, please contact Napoleon customer service. Ensure you have your model number (BIPRO500RBPSS-3) and proof of purchase available when contacting support.
