PXBNIUYA 2 Pack Starburst Sphere Lights (Model YHD-002) Instruction Manual

1. Giriş

Thank you for choosing the PXBNIUYA 2 Pack Starburst Sphere Lights. These versatile LED lights are designed to add a decorative touch to various indoor and outdoor settings. Featuring multiple lighting modes, dimmable brightness, and a convenient remote control with a timer function, these battery-operated lights offer flexibility and ease of use. Please read this manual carefully before installation and operation to ensure safe and optimal performance.

2. Ürün Bittiview

Temel Özellikler:

• 200 LED Ampul: Each sphere light features 200 bright LED bulbs for enhanced illumination.
• 8 Aydınlatma Modu: Includes various flashing patterns and a steady-on option.
• 10 Farklı Parlaklık Seviyesi: Adjust light intensity to suit your preference.
• Uzaktan kumanda: Conveniently manage power, modes, brightness, and timer from a distance (effective range up to 10 meters).
• Zamanlayıcı Fonksiyonu: Set lights to automatically turn on for 6 hours and off for 18 hours.
• Kendin Yap Şekil Fonksiyonu: Flexible copper wires allow for easy shaping into various designs like bouquets or fireworks.
• Suya Dayanıklı Tasarım: Lights are IP67 waterproof, and the battery case is IP65 waterproof, suitable for outdoor use.
• Pil ile Çalışır: Requires 4 AA batteries (not included) for portable use without a power outlet.

Kutuda Neler Var:

• 2 x Starburst Sphere Lights
• 2 x Remote Controls (each requires 1 CR2025 battery, typically included)
• Kullanım Kılavuzu

Figure 1: Product comparison highlighting key features.

3. Kurulum Talimatları

1. Pil Montajı:
   • Locate the battery case for each sphere light.
   • Twist open the battery case cover.
   • Insert 4 AA batteries (not included) into the battery compartment, ensuring correct polarity (+/-).
   • Securely close the battery case cover to maintain its IP65 waterproof rating.
   • For the remote control, ensure the included CR2025 battery is properly installed.
2. Shaping the Lights:
   • The copper wires are flexible and can be gently bent to create your desired shape.
   • Carefully spread out the individual copper wire strands from the central hub to form a spherical, firework, or bouquet-like design. Avoid excessive force to prevent damage.
3. Placement and Hanging:
   • Each battery case is equipped with a hook for easy hanging.
   • Hang the lights in your desired location, such as patios, gardens, corridors, Christmas trees, living rooms, bedrooms, tents, or for wedding decorations.
   • Ensure the hanging location is secure and can support the weight of the light.

Figure 2: Battery box and remote control for the Starburst Sphere Lights.

4. Kullanım Talimatları

The Starburst Sphere Lights are operated using the included 13-key remote control.

Uzaktan Kumanda Fonksiyonları:

• AÇIK/KAPALI: Işıkları açmak için 'AÇIK' düğmesine, kapatmak için 'KAPALI' düğmesine basın.
• MODE (1-8): Cycle through 8 different lighting modes, including various flashing patterns and a steady-on option.
• DIM (+/-): Adjust the brightness. There are 10 adjustable brightness levels.
• ZAMANLAYICI: Activate the timer function. Once activated, the lights will stay on for 6 hours and then automatically turn off for 18 hours, repeating the cycle daily.

Kullanım İpuçları:

• Ensure the remote control is pointed towards the battery case for optimal signal reception. The effective range is approximately 10 meters.
• When adjusting brightness, the lights may blink briefly to indicate the change. They will stop blinking once the desired brightness level is set.

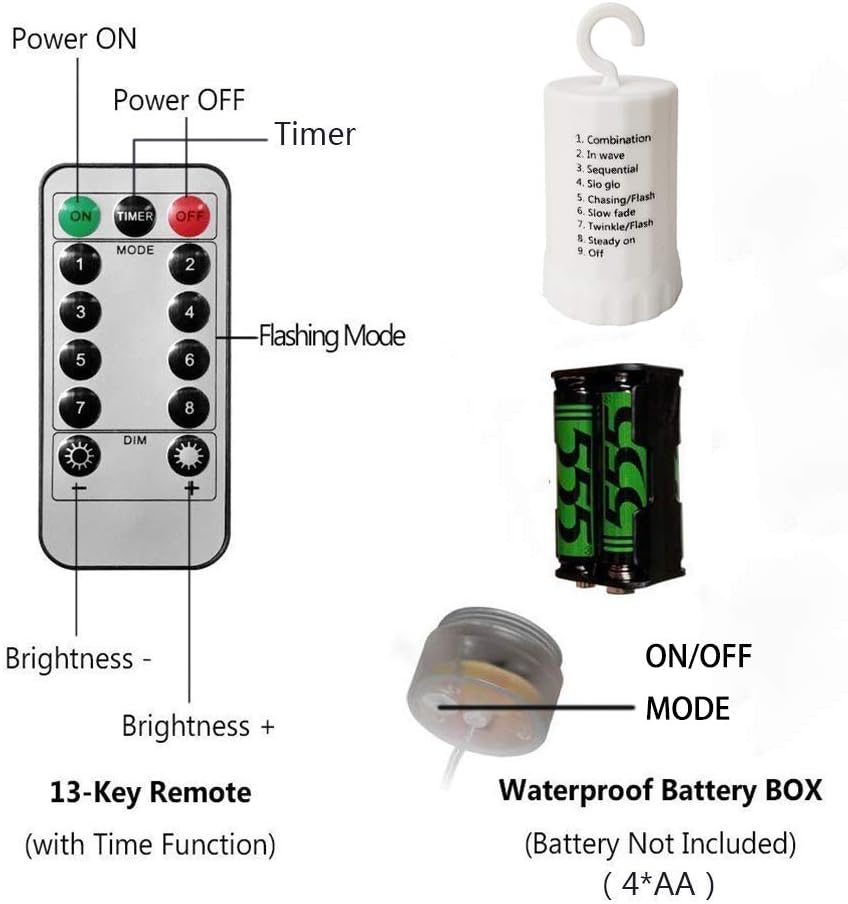

Figure 3: Remote control and battery box features.

5. Bakım

• Pil Değişimi: Replace all 4 AA batteries when the lights dim significantly or stop working. Always use new batteries of the same type.
• Temizlik: Gently wipe the copper wires and LED bulbs with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Depolamak: When not in use for extended periods, remove the batteries from the battery case to prevent leakage. Store the lights in a cool, dry place.
• Su Geçirmezlik Derecesi: The lights are IP67 waterproof, and the battery case is IP65 waterproof. While designed for outdoor use, avoid submerging the battery case in water.

6. Sorun Giderme

• Işıklar yanmıyor:
  • Pillerin doğru kutuplara takılıp takılmadığını kontrol edin.
  • Ensure the batteries are not depleted. Replace with new AA batteries if necessary.
  • Verify that the remote control battery (CR2025) is functional and correctly installed.
  • Ensure the remote control is within the effective range (10 meters) and pointed towards the battery case.
• Lights are dim or flicker:
  • This usually indicates low battery power. Replace all 4 AA batteries.
  • Check for any loose connections within the battery compartment.
• Uzaktan kumanda yanıt vermiyor:
  • Uzaktan kumandanın pilini (CR2025) değiştirin.
  • Ensure there are no obstructions between the remote and the battery case.
  • Confirm the remote is within the 10-meter operating range.
• Lights do not hold shape:
  • The copper wires are flexible but may require careful and deliberate bending to maintain a specific form. Adjust as needed.

7. Özellikler

8. Garanti ve Destek

For any product inquiries, technical support, or warranty information, please refer to your purchase documentation or contact the retailer directly. You may also visit the official PXBNIUYA brand store for additional product details and customer service options: PXBNIUYA Store.
