Blichmann Engineering Premium In-Line Oxygenation Kit Instruction Manual

1. Ürün Bittiview

The Blichmann Engineering Premium In-Line Oxygenation Kit is designed to efficiently dissolve oxygen directly into your wort. This process is crucial for promoting healthy yeast activity and ensuring vigorous fermentation in homebrewing. The kit features a high-quality oxygen regulator that connects to a commercial, welding-style oxygen tank.

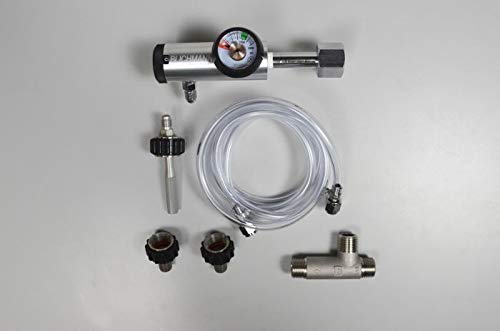

Image: The Blichmann Engineering Premium In-Line Oxygenation Kit, showing the oxygen regulator, stainless steel diffusion stone, and QuickConnectors. This image illustrates the main components of the kit.

2. Güvenlik Bilgileri

Please read and understand all safety warnings before operating this equipment. Failure to do so may result in injury or damage to the product.

• Always ensure proper ventilation when working with oxygen tanks.
• Handle oxygen tanks with care to prevent damage or leaks.
• Do not use oil or grease on oxygen regulators or fittings, as this can cause a fire hazard.
• Ensure all connections are secure and leak-free before introducing oxygen.
• Çocukların erişemeyeceği yerde saklayınız.

3. Paket İçeriği

Paketi açtığınızda tüm bileşenlerin mevcut ve hasarsız olduğundan emin olun:

• Stainless Steel 10 micron diffusion stone
• Two 1/2" QuickConnectors
• High quality O2 regulator
• Custom stainless fitting
• Kullanım Kılavuzu (bu belge)

4. Kurulum

Follow these steps to set up your Premium In-Line Oxygenation Kit:

1. Connect Regulator to Oxygen Tank: Ensure your oxygen tank is a "welding-type" tank. Carefully thread the high-quality O2 regulator onto the tank valve. Hand-tighten first, then use an appropriate wrench to secure it firmly. Do not overtighten.
2. Attach Diffusion Stone: Connect the 10 micron stainless steel diffusion stone to the custom stainless fitting. Ensure a snug fit.
3. Integrate QuickConnectors: Attach the two 1/2" QuickConnectors to your brewing system's tubing. These will allow for easy in-line integration of the oxygenation kit.
4. Assemble In-Line: Connect the diffusion stone assembly between your wort transfer line, typically between your chiller and fermenter. Ensure the wort flows through the QuickConnectors and past the diffusion stone.
5. Sızıntı Kontrolü: Before introducing oxygen, perform a leak check on all connections using a soapy water solution. Bubbles indicate a leak.

5. Kullanım Talimatları

To oxygenate your wort effectively:

1. Prepare Wort Transfer: Begin transferring your chilled wort from your chiller to your fermenter, ensuring it flows through the in-line oxygenation kit.
2. Open Oxygen Tank Valve: Slowly open the main valve on your oxygen tank.
3. Regülatörü Ayarlayın: Use the regulator knob to set the desired oxygen flow rate. A typical flow rate for wort oxygenation is around 0.5 to 1 liter per minute, but consult your recipe or yeast manufacturer's recommendations.
4. Monitor Oxygenation: Allow the oxygen to flow through the diffusion stone as the wort passes. The 10-micron stone will create fine bubbles, maximizing oxygen dissolution.
5. Vanaları Kapatın: Once all wort has been transferred and oxygenated, first close the main valve on the oxygen tank, then bleed any remaining pressure from the regulator before closing the regulator knob.

6. Bakım

Proper maintenance ensures the longevity and performance of your oxygenation kit:

• Cleaning the Diffusion Stone: After each use, immediately clean the stainless steel diffusion stone to prevent wort residue from clogging the pores. Back-flush with hot water, then sanitize. For stubborn clogs, a mild acid solution (like Star San) or boiling may be used.
• Regulator Care: Keep the oxygen regulator clean and dry. Store it in a protective case or cover to prevent dust and debris from entering.
• QuickConnectors: Disassemble and clean QuickConnectors thoroughly after each use to prevent bacterial growth and ensure proper sealing.
• Depolamak: Store the kit in a clean, dry environment away from direct sunlight and extreme temperatures.

7. Sorun Giderme

If you encounter issues with your oxygenation kit, refer to the following common problems and solutions:

• Oksijen Akışı Yok:
  • Check if the oxygen tank valve is fully open.
  • Ensure the regulator knob is turned to an open position.
  • Verify the oxygen tank has sufficient gas pressure.
  • Inspect the diffusion stone for clogs; clean if necessary.
• Poor Oxygenation (Large Bubbles):
  • The diffusion stone may be partially clogged. Clean thoroughly.
  • Ensure adequate wort flow rate through the system.
  • Increase oxygen flow rate slightly, if appropriate for your recipe.
• Bağlantılardaki Sızıntılar:
  • Tighten all connections, ensuring they are secure but not overtightened.
  • Check O-rings and gaskets for damage or improper seating; replace if necessary.

8. Özellikler

9. Garanti ve Destek

For warranty information and technical support, please refer to the official Blichmann Engineering webSite üzerinden satın alabilir veya doğrudan müşteri hizmetleriyle iletişime geçebilirsiniz. Satın alma fişinizi, garanti talepleriniz için satın alma belgesi olarak saklayın.

Webalan: www.blichmannengineering.com

Müşteri Hizmetleri: Şuna bakın: webiletişim bilgileri için site.
