Bag Boy Compact 3 Golf Trolley Instruction Manual

1. Giriş

Thank you for choosing the Bag Boy Compact 3 Golf Trolley. This 3-wheel aluminum push trolley is designed for ease of use, durability, and compact storage. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your golf trolley.

Temel Özellikler:

• Durable aluminum frame construction.
• Kolay taşıma ve saklama için kompakt katlanabilir tasarım.
• Handle-mounted parking brake for secure positioning.
• Extra-deep scorecard console for accessories.
• Integrated umbrella holder with storage clip.

2. Kurulum ve Açma

The Bag Boy Compact 3 Golf Trolley features a simple three-step folding mechanism for quick deployment and storage.

2.1 Unfolding the Trolley

1. Place the folded trolley on a flat surface.
2. Release any securing latches that hold the trolley in its folded position.
3. Gently extend the main frame until the wheels are in their operational position and the frame locks into place. Ensure all locking mechanisms are engaged before use.
4. Adjust the handle height to your preference.

Image: The Bag Boy Compact 3 Golf Trolley shown in its compact, folded state, demonstrating its portability and simple three-step fold design.

Image: The Bag Boy Compact 3 Golf Trolley fully unfolded and equipped with a golf bag, positioned on a golf course.

2.2 Securing Your Golf Bag

• Place your golf bag onto the trolley's supports.
• Utilize the integrated straps or Velcro pads to securely fasten your golf bag to the trolley frame. Ensure the bag is snug to prevent rotation or movement during transport.

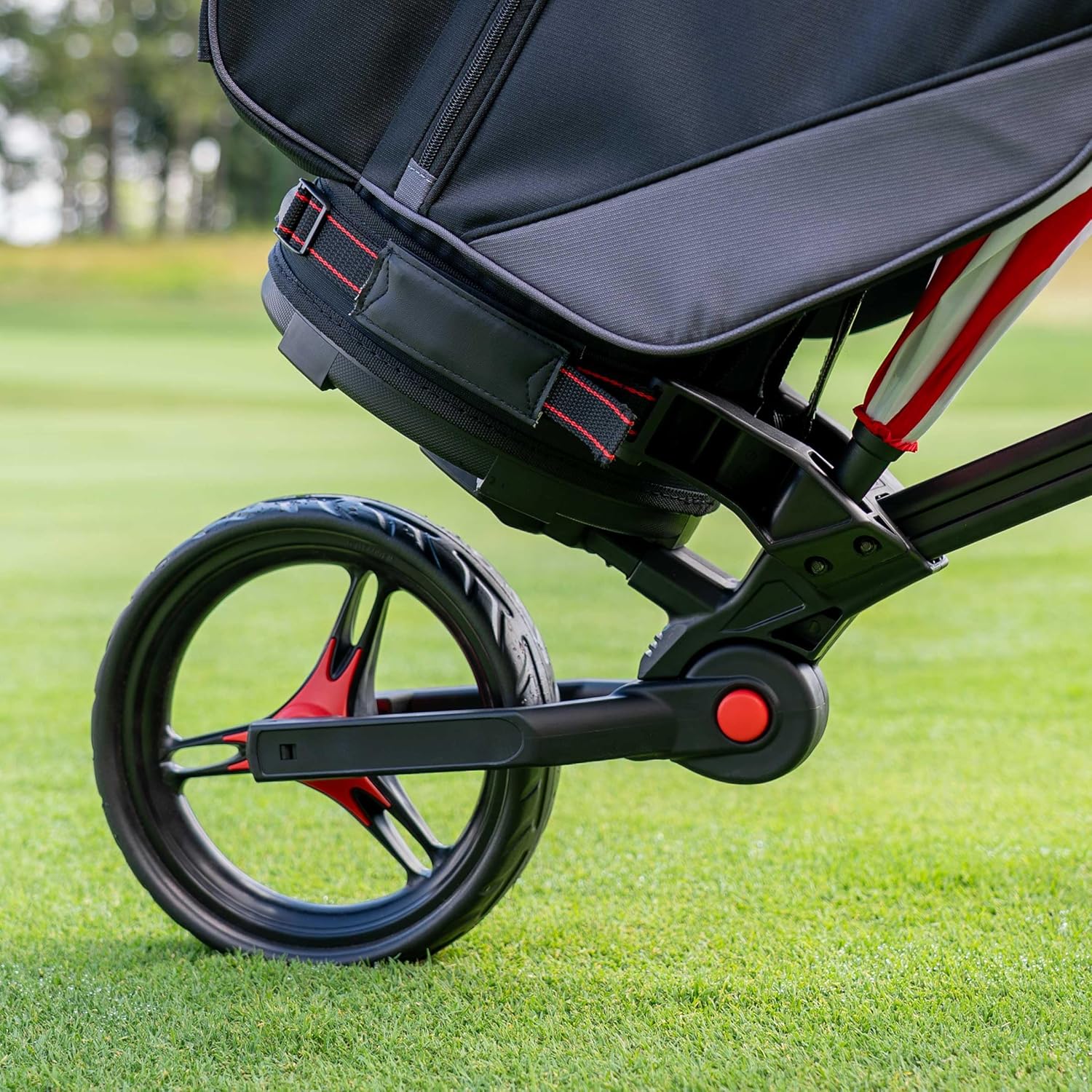

Resim: Ayrıntılı view of the lower bag support and wheel of the Bag Boy Compact 3 Golf Trolley, showing how the golf bag rests on the trolley.

3. Kullanım Talimatları

Familiarize yourself with the trolley's features for optimal use on the golf course.

3.1 Handle-Mounted Parking Brake

• The trolley is equipped with a handle-mounted parking brake for easy access.
• To engage the brake, push the lever or button located on the handle.
• To release, activate the lever or button again. Always engage the parking brake when the trolley is stationary, especially on inclines.

3.2 Scorecard Console and Accessories

• The extra-deep scorecard console provides storage for your scorecard, golf balls, tees, and other small accessories.
• An integrated umbrella holder with a storage clip is included for convenience during inclement weather.

Image: A close-up of the Bag Boy Compact 3 Golf Trolley's handle area, detailing the extra-deep scorecard console, umbrella holder with storage clip, and the handle-mounted parking brake.

3.3 Saklama için Katlanabilir

To fold the trolley for storage or transport, reverse the unfolding steps. Ensure all components are securely latched in the folded position.

Image: A person carrying the Bag Boy Compact 3 Golf Trolley, demonstrating its compact size when folded for transport.

4. Bakım

Regular maintenance will ensure the longevity and optimal performance of your Bag Boy Compact 3 Golf Trolley.

• Temizlik: After each use, wipe down the trolley frame and wheels with a damp cloth to remove dirt, grass, and debris. Avoid using harsh chemicals that may damage the aluminum finish.
• Tekerlek Muayenesi: Periodically check the wheels for any signs of wear or damage. Ensure they rotate freely and are securely attached.
• Hareketli parçalar: Inspect all moving parts, joints, and locking mechanisms for smooth operation. If any part feels stiff, a light lubricant can be applied sparingly.
• Depolamak: Store the trolley in a dry, cool place away from direct sunlight and extreme temperatures to prevent material degradation.

Image: A hand demonstrating how to adjust or inspect the wheel of the Bag Boy Compact 3 Golf Trolley.

5. Sorun Giderme

This section addresses common issues you might encounter with your golf trolley.

• Golf Bag Rotation: If your golf bag tends to rotate or shift on the trolley, ensure that the securing straps or Velcro pads are tightened sufficiently. Adjust the bag's position on the supports for a more stable fit.
• Trolley Instability When Folded: When folded, the trolley is designed for compact storage. If it tends to tip, ensure it is placed on a flat surface or secured to prevent movement, especially in a vehicle.
• Stiff Folding Mechanism: If the trolley is difficult to fold or unfold, check for any obstructions in the joints. A small amount of silicone-based lubricant can be applied to pivot points if necessary.
• Umbrella Holder/Console Issues: The umbrella holder is designed for standard golf umbrellas. If it feels shallow or accessories in the console are not secure, ensure items are placed correctly and consider using additional securing methods if needed.

6. Özellikler

Detailed specifications for the Bag Boy Compact 3 Golf Trolley.

Resim: Yakın çekim view of the 'COMPACT 3' branding on the trolley's frame, indicating the model.

7. Garanti ve Destek

For warranty information, product support, or to purchase replacement parts, please contact Bag Boy customer service directly. Refer to the product packaging or the official Bag Boy webEn güncel iletişim bilgileri ve garanti koşulları için siteyi ziyaret edin.

Üretici: BAGBH|#Bag Boy
