Estes 652 Citation Patriot Model Rocket Kit Instruction Manual

giriiş

The Estes Citation Patriot is a classic model rocket kit designed for intermediate builders. This kit allows for launches using B and C engines, reaching altitudes of approximately 600 feet (183 meters). The kit features high-quality waterslide decals, laser-cut balsa fins, laser-cut card stock centering rings, and a pre-assembled 18-inch parachute for recovery. It is suitable for beginners and experienced hobbyists alike, offering an engaging building and launching experience.

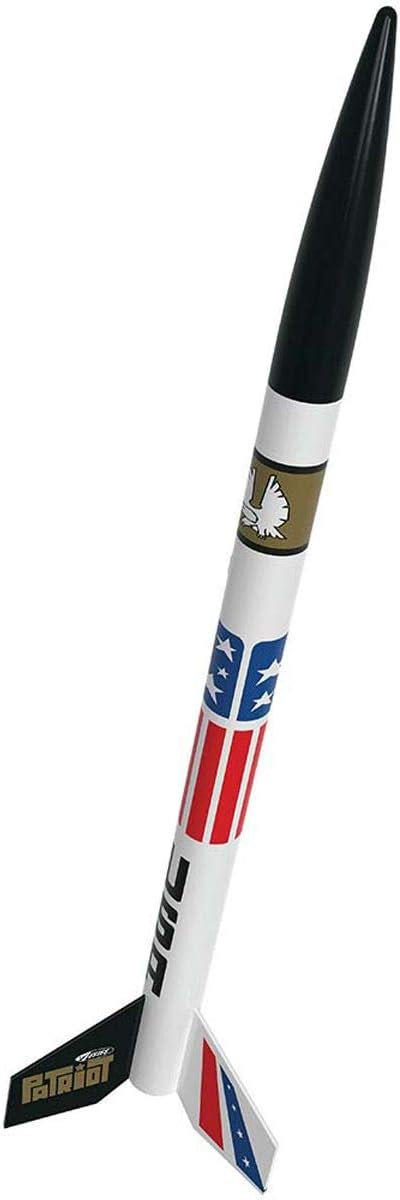

Image: The Estes 652 Citation Patriot model rocket, featuring a black nose cone, white body tube with red, white, and blue patriotic decals, and black fins with 'Patriot' text.

Kit İçeriği

The Estes 652 Citation Patriot kit includes the following components:

• Model Rocket Kit components (body tube, nose cone, laser-cut balsa fins, laser-cut card stock centering rings)
• High-quality waterslide decals
• Pre-assembled 18-inch parachute

Items Required for Assembly (Not Included):

• Makas
• Kalem
• Cetvel
• İnce zımpara kağıdı
• Carpenter's glue
• Hobi bıçağı
• Maskeleme bandı
• Primer (white)
• Paint (black, white)
• Clear coat (optional)

Items Required for Launch (Sold Separately):

• Estes Porta-Pad II Launch Pad with a 1/8 inch launch rod
• Estes model rocket engines (recommended: B4-2, B6-2, B6-4, C6-5)
• Başlangıçlar
• Estes recovery wadding
• Elektron Işını Fırlatma Kontrol Cihazı
• Four 1.5V high quality AA alkaline batteries (for launch controller)

Montaj Talimatları

The Estes Citation Patriot is an Intermediate skill level kit. Estimated assembly time is approximately 1 hour. Follow the detailed instructions provided in your kit packaging for precise assembly. General steps include:

1. Yüzgeçleri hazırlayın: Carefully cut and sand the laser-cut balsa fins.
2. Assemble Centering Rings: Attach the laser-cut card stock centering rings to the motor mount tube.
3. Yüzgeçleri takın: Securely glue the fins to the body tube, ensuring proper alignment.
4. Attach Nose Cone: Permanently attach the nose cone to the body tube.
5. Çıkartmaları Uygulayın: Apply the waterslide decals according to the kit instructions for the desired aesthetic.
6. Sonlandırma (İsteğe bağlı): For a polished look, apply primer, paint (black and white are suggested for the Patriot design), and an optional clear coat.

Image: Close-up of Estes model rocket components, including body tube, fins, and nose cone, ready for assembly.

Launch Preparation

Before launching your Estes Citation Patriot, ensure all necessary components are ready and assembled correctly.

Engine Selection

The Estes Citation Patriot is compatible with B and C class engines. Recommended engines include B4-2, B6-2, B6-4, and C6-5. These engines can propel the rocket up to 600 feet (183 meters). Always refer to the specific engine instructions for proper use and safety.

Kurtarma Vatka

Insert Estes recovery wadding into the body tube above the engine. This protects the pre-assembled 18-inch parachute from the hot ejection charge, ensuring proper deployment and safe recovery.

Sistem Kurulumunu Başlat

Utilize an Estes Porta-Pad II Launch Pad with a 1/8 inch launch rod and an Electron Beam Launch Controller. Ensure the launch controller is powered by four 1.5V high-quality AA alkaline batteries (not included).

Kullanım Talimatları

Follow these steps for a safe and successful launch:

1. Set Up Launch Pad: Place the Porta-Pad II Launch Pad on a flat, open area, ensuring the launch rod is securely inserted.
2. Install Engine: Insert the selected Estes model rocket engine into the motor mount of the rocket.
3. Insert Wadding and Parachute: Place recovery wadding above the engine, then carefully fold and insert the parachute into the body tube.
4. Place Rocket on Rod: Slide the rocket onto the launch rod, ensuring it moves freely.
5. Connect Igniter: Insert the igniter into the engine nozzle and secure it with the igniter plug. Connect the igniter clips from the launch controller to the igniter wires.
6. Fırlatma Alanını Temizleyin: Ensure all spectators are at a safe distance (at least 15 feet away).
7. Geri sayımı başlat: Sözlü bir geri sayım başlatın (örneğin, "5, 4, 3, 2, 1, Fırlat!").
8. Öğle yemeği: Press and hold the launch button on the Electron Beam Launch Controller until the rocket ignites and lifts off.
9. İyileşmek: Observe the parachute deployment and retrieve your rocket after it lands.

Güvenlik Yönergeleri

Model rocketry is an enjoyable hobby, but safety must always be the top priority. Adhere to the following guidelines:

• Yaş Önerisi: Estes model rocketry is recommended for individuals aged 10 and above. Adult supervision is required for those under 12 years of age.
• Fırlatma Alanı: Always launch rockets in a large, open field free from dry grass, trees, power lines, and buildings.
• Hava Koşulları: Şiddetli rüzgarlarda, fırtınalı havalarda veya yangın tehlikesinin bulunduğu aşırı kuru koşullarda denize indirmeyin.
• Güvenli mesafe: Geri sayım ve fırlatma sırasında fırlatma rampasından güvenli bir mesafede durun.
• Talimatları izleyin: Always follow the assembly and launch instructions provided with your kit and engines.
• Never Modify Engines: Do not attempt to modify model rocket engines or use homemade propellants.
• Inspect Rocket: Before each launch, inspect your rocket for any damage to fins, body tube, or nose cone. Ensure the recovery system is properly packed.
