This manual provides detailed instructions for the safe installation, operation, and maintenance of your Kichler 4D Series Cabinet Puck, Model 4D12V30WHT. This compact, low-voltage LED light is designed to create accent lighting within glass-faced cabinets or above small niche spaces. Please read these instructions thoroughly before beginning installation or use.
Önemli Güvenlik Bilgileri
- Kurulum veya bakım işlemlerinden önce daima sigorta veya devre kesiciden elektriği kesin.
- Kurulum sürecinden emin değilseniz, kalifiye bir elektrikçiye danışın.
- This product is designed for 12V DC systems only. Do not connect to 120V AC.
- Tüm elektrik bağlantılarının yerel yönetmelik ve kanunlara uygun olarak yapıldığından emin olun.
- Aydınlatma armatürünü veya bileşenlerini değiştirmeyin.
- Bu fikstür Damp Rated, suitable for use in locations subject to moderate degrees of moisture, such as bathrooms or covered outdoor areas. However, it is not suitable for direct water exposure.
Neler Dahil?
Kuruluma başlamadan önce tüm bileşenlerin mevcut olduğundan emin olun.
- Kichler 4D Series Cabinet Puck (Model 4D12V30WHT)
- Montaj Donanımı
- Kullanım Kılavuzu (bu belge)

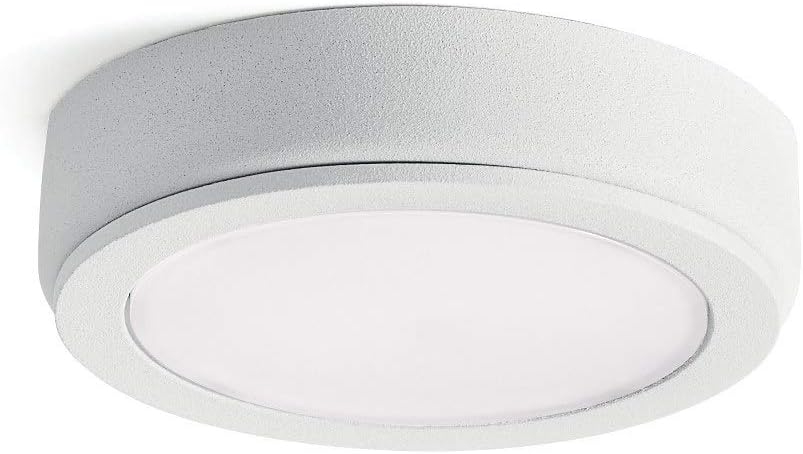

Image: The Kichler 4D Series Cabinet Puck in Textured White finish. This image shows the compact, circular design of the LED light fixture.
Kurulum ve Yükleme
The Kichler 4D Series Cabinet Puck can be installed as either a recessed or surface-mounted fixture. It requires a Kichler 12V power supply (sold separately) for operation.
Gerekli Araçlar (Dahil Değildir):
- Tornavida
- Drill (for recessed mounting or pilot holes)
- Tel Soyucular
- Ölçüm Bandı
Kurulum Adımları:
- Gücü Kapatın: İşe başlamadan önce, kurulum yapılacak alana giden elektriğin devre kesiciden veya sigorta kutusundan kapatıldığından emin olun.
- Montaj Yöntemini Seçin:
- Yüzey Montajı: Position the fixture in the desired location. Mark the screw holes. Drill pilot holes if necessary. Secure the fixture using the provided mounting screws.
- Gömme Montaj: For recessed installation, a cutout of appropriate diameter (refer to specifications for exact dimensions) is required. Ensure there is sufficient clearance behind the mounting surface. Insert the fixture into the cutout and secure it according to the specific recessed mounting mechanism (e.g., spring clips, if included).
- Kablo Bağlantıları: Connect the fixture's low-voltage wires to your Kichler 12V power supply. Ensure polarity is correct (positive to positive, negative to negative). Use appropriate wire connectors.
- Güvenli Kablolama: Kabloların sıkışmasını veya hasar görmesini önlemek için tüm kabloları düzgün bir şekilde yönlendirin ve sabitleyin.
- Gücü Geri Yükle: Kurulum tamamlandıktan ve tüm bağlantılar güvenli hale getirildikten sonra devre kesicideki gücü geri yükleyin.

Resim: Eski bir sevgiliample of the Kichler 4D Series Cabinet Puck installed under a cabinet, demonstrating its low-profile design and integrated lighting.
Kullanım Talimatları
The Kichler 4D Series Cabinet Puck operates as part of a 12V lighting system. Its operation is controlled by the connected Kichler 12V power supply and any associated switches or dimmers.
- Güç Açma/Kapatma: Use the switch connected to your 12V power supply to turn the puck light on or off.
- Karartma: This fixture is dimmable. If connected to a compatible Kichler 12V dimming power supply or dimmer switch, you can adjust the light intensity. Refer to your dimmer's instructions for specific operation.
Bakım ve Onarım
The Kichler 4D Series Cabinet Puck requires minimal maintenance.
- Temizlik: Armatürü temizlemek için, elektriğin kapalı olduğundan emin olun. Yumuşak, kuru veya hafif nemli bir bezle silin.amp Bez kullanın. Aşındırıcı temizleyiciler, çözücüler veya cilalar kullanmayın, çünkü bunlar yüzeye veya elektrikli bileşenlere zarar verebilir.
- LED'ler: Entegre LED ışık kaynağı uzun ömürlü olacak şekilde tasarlanmıştır ve kullanıcı tarafından değiştirilemez.
- Denetleme: Periodically inspect the fixture and wiring for any signs of damage or wear. If damage is observed, disconnect power and consult a qualified electrician.
Sorun giderme
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Işık açılmıyor. |
|
|
| Işık titriyor veya sönük. |
|
|
| Armatür dokunulduğunda sıcaktır. |
|
|
If troubleshooting steps do not resolve the issue, contact Kichler customer support or a qualified electrician.
Ürün Özellikleri
| Model Numarası | 4D12V30WHT |
| Marka | Çocuklar |
| Bitiş Rengi | Dokulu Beyaz |
| Malzeme | Aluminum (Fixture Body), Polycarbonate (Lens) |
| Boyutlar (U x G x Y) | 2.75" x 2.75" x 0.5" |
| Lamping Tipi | Entegre LED |
| Netage | 4 Watt |
| Cilttage | 12 Volt Doğru Akım |
| Lümen | 150 Lümen |
| Renk Sıcaklığı | 2700 Kelvin |
| CRI (Renk Geriverim İndeksi) | 90 |
| Kısılabilir | Evet |
| Nem Derecesi | Damp Derecelendirildi |
| Kurulum Türü | Flush Mount, Surface Mount |
| UPC | 783927539166 |
Garanti Bilgileri
This Kichler product comes with a limited warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the official Kichler website or contact Kichler customer support. Keep your proof of purchase for warranty claims.
Müşteri Desteği
For technical assistance, replacement parts, or further information, please contact Kichler customer support:
- Webalan: www.kichler.com (Lütfen resmi siteyi ziyaret edin) website for contact information and support resources.)
- Telefon: Refer to the Kichler webGüncel müşteri hizmetleri telefon numaraları için site.
When contacting support, please have your product model number (4D12V30WHT) and purchase date available.
