ATEN VE8950T 4K HDMI Over IP Transmitter

1. Giriş

The ATEN VE8950T is a 4K HDMI Over IP Transmitter designed for extending 4K audio/video signals over a standard Gigabit Ethernet network. This device delivers visually lossless 4K AV signals with low latency, making it suitable for long-distance transmission in various professional environments. Its design focuses on ease of setup and operation, providing a scalable and flexible solution for multi-display 4K signal distribution.

The VE8950T offers an economical digital signage solution, addressing common challenges in AV over IP system implementation. Key benefits include limitless scalability, flexible deployment, simplified IP setup without the need for additional server PCs or software, and support for daisy-chaining to extend reach efficiently.

2. Temel Özellikler

• 4K HDMI Over IP Extender: Functions as a transmitter for extending HDMI signals over an IP network.
• Yüksek Kaliteli Video Aktarımı: Supports visually lossless video up to 4K at 60 Hz (4:2:0) and 4K at 30 Hz (4:4:4).
• Gelişmiş Video Sıkıştırma: Utilizes ATEN's advanced video lossless compression technology for stunning video quality.
• EDID Expert Technology: Automatically selects optimal EDID settings for smooth power-up, high-quality display, and best video resolution across various screens.
• Flexible AV Connections: Extends AV connections from simple point-to-point to complex multi-point to multi-point setups via LAN, without distance limitations.

3. Donanım Açıklaması

3.1. Ön panel

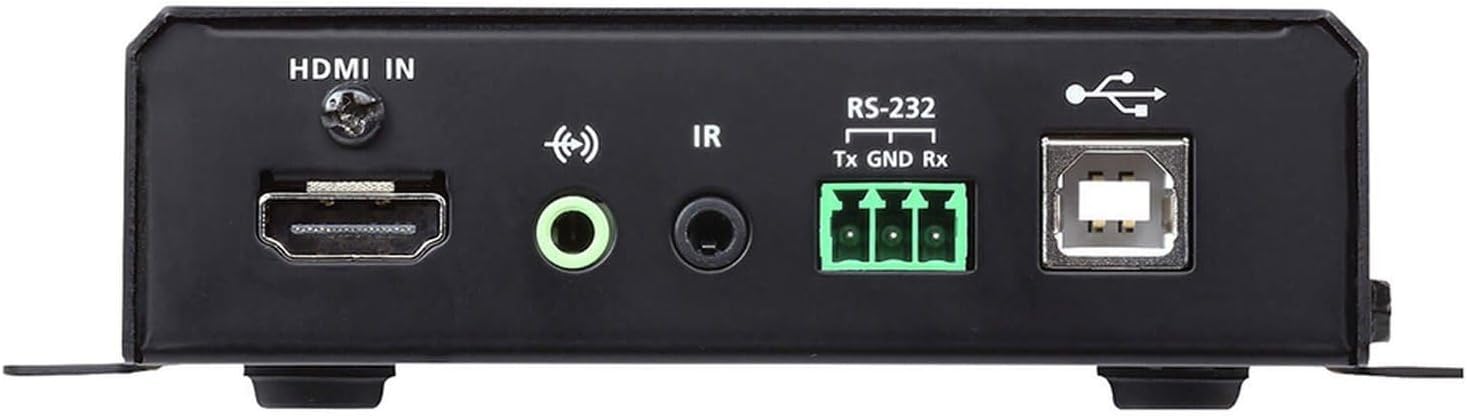

Şekil 1: Front Panel of the ATEN VE8950T Transmitter.

• HDMI GİRİŞİ: HDMI kaynak cihazına bağlanır.
• SES GİRİŞİ: Analog ses girişi için 3.5 mm jak.
• IR: 3.5mm jack for IR receiver connection.
• RS-232: Serial port for control and configuration.
• USB BAĞLANTI: USB Type B port for connecting to a computer or other USB host device.

3.2. Arka Panel

Şekil 2: Rear Panel of the ATEN VE8950T Transmitter.

• LAN: Ağ bağlantısı için RJ-45 Ethernet portu.
• DC5V: Power input jack for the 5V DC power adapter.

3.3. Üst Panel

Şekil 3: Top Panel of the ATEN VE8950T Transmitter.

• ID NUMBER Display: Three-digit LED display showing the device's ID.
• +/- Düğmeleri: Used to adjust the device ID or navigate menu options.
• BAĞLANTI LED'i: Indicates network link status.
• GÜÇ LED'i: Güç durumunu gösterir.

4. Kurulum ve Kurulum

Follow these steps to set up your ATEN VE8950T Transmitter:

1. Cihazları Kapatma: Ensure all devices, including the HDMI source, display, and the VE8950T, are powered off before making any connections.
2. HDMI Kaynağını Bağlayın: Use an HDMI cable to connect your HDMI source device (e.g., Blu-ray player, PC) to the HDMI IN port on the VE8950T Transmitter.
3. Ağ bağlantısı: Connect an Ethernet cable from your Gigabit network switch to the Yerel Ağ port on the VE8950T Transmitter. Ensure the network switch supports Gigabit speeds.
4. Güç Bağlantısı: Connect the provided 5V DC power adapter to the DC5V port on the VE8950T Transmitter, then plug the adapter into a power outlet.
5. Güç Açık: Power on the VE8950T Transmitter. The GÜÇ LED should illuminate.
6. Configure ID (Optional): If using multiple transmitters and receivers, configure the unique ID for each transmitter using the +/- buttons on the top panel. This ID must match the ID set on the corresponding receiver(s).
7. Connect Receiver (Sold Separately): For a complete system, connect a compatible ATEN VE8950R Receiver (sold separately) to your display and the same network.
8. Power On Source and Display: Power on your HDMI source device and the display.

For advanced configurations, including web GUI management and video wall setups, refer to the comprehensive user manual available on the ATEN webalan.

5. Operasyon

Once the VE8950T Transmitter and its corresponding receiver(s) are properly connected and powered on, the system will automatically begin transmitting the HDMI signal over the IP network.

• Sinyal İletimi: The HDMI video and audio from the source connected to the VE8950T will be extended to the display connected to the receiver.
• Durum Göstergeleri: Gözlemleyin BAĞLANTI Ve GÜÇ LEDs on the top panel. The POWER LED should be solid, and the LINK LED should indicate active network connection and data transmission.
• Web GUI Management: The VE8950T supports management via a web-based Graphical User Interface (GUI). Access the web GUI by entering the device's IP address into a web browser on a computer connected to the same network. The web GUI allows for advanced configuration, monitoring, and control, including video wall setup and firmware updates.
• RS-232 Kontrolü: The RS-232 port can be used for serial control from a control system. Refer to the detailed product manual for RS-232 command protocols.
• IR Kontrolü: If an IR receiver is connected, you can extend IR remote control signals from the display location back to the source device.

6. Bakım

To ensure optimal performance and longevity of your ATEN VE8950T Transmitter, follow these maintenance guidelines:

• Temizlik: Cihazı temizlemek için yumuşak, kuru bir bez kullanın. Sıvı veya aerosol temizleyiciler kullanmayın.
• Havalandırma: Ensure proper ventilation around the device to prevent overheating. Do not block any ventilation openings.
• Çevre: Operate the device within the specified temperature and humidity ranges. Avoid exposing it to direct sunlight, excessive dust, or moisture.
• Donanım Yazılımı Güncellemeleri: ATEN'i periyodik olarak kontrol edin. website for firmware updates. Keeping the firmware up-to-date can improve performance, add new features, and resolve potential issues.
• Kablo yönetimi: Ensure all cables are securely connected and properly routed to prevent accidental disconnections or damage.

7. Sorun Giderme

If you encounter issues with your ATEN VE8950T Transmitter, refer to the following troubleshooting tips:

If the problem persists, please contact ATEN technical support for further assistance.

8. Özellikler

9. Garanti ve Destek

ATEN is committed to providing high-quality products and excellent customer service. For support regarding your VE8950T Transmitter, please refer to the following:

• Teknik Destek: ATEN offers free technical support. For assistance, please contact ATEN's support team. They aim to respond to customer inquiries within 4 hours.
• Garanti Hizmeti: Information regarding standard warranty coverage and extended warranty service packages can be found on the official ATEN website veya müşteri hizmetleri ile iletişime geçerek.
• RMA Hizmeti: ATEN provides localized repair centers for Return Merchandise Authorization (RMA) services.
• Çevrimiçi Kaynaklar: Visit the official ATEN website for product documentation, FAQs, driver downloads, and firmware updates.

En güncel ve ayrıntılı garanti bilgileri için lütfen şu adresi ziyaret edin: ATEN Official Store veya kurumsal webalan.
