giriiş
The MOOER Ocean Machine TDL3 is a versatile multi-effects pedal designed for electric guitar, combining two independent delays, a high-fidelity reverb, and an audio looper. This manual provides detailed instructions for setting up, operating, and maintaining your device to ensure optimal performance and creative expression.
Şekil 1: Ön view of the MOOER Ocean Machine TDL3 multi-effects pedal, showcasinKontrolleri ve ekranı.
Kurmak
Güç Gereksinimleri
The Ocean Machine TDL3 requires a 9V DC power supply with a minimum current of 500mA. Ensure the power supply is center-negative. Using an incorrect power supply can damage the unit and void the warranty.
- Cilttage: 9 Volt Doğru Akım
- Akım: 500mA (minimum)
- Polarite: Merkez negatif
Bağlantılar
Connect your guitar and amplifier to the appropriate input and output jacks. The pedal supports both mono and stereo configurations.

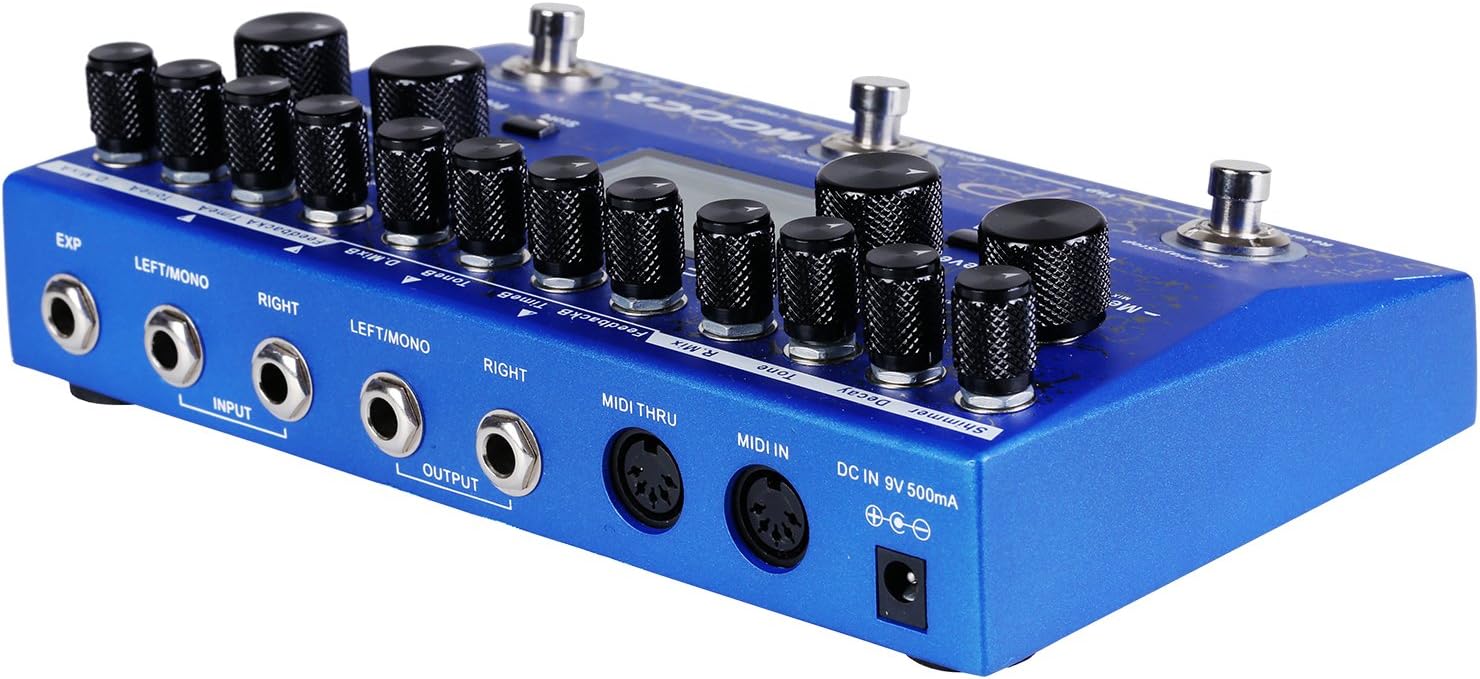

Şekil 2: Arka view of the MOOER Ocean Machine TDL3, showing input/output jacks, MIDI ports, and power input.
- Input (LEFT/MONO, RIGHT): Connect your instrument to the LEFT/MONO input for mono operation. For stereo input, connect to both LEFT/MONO and RIGHT inputs.
- Output (LEFT/MONO, RIGHT): Bağlanın amplifier or audio interface. Use LEFT/MONO for mono output. For stereo output, connect to both LEFT/MONO and RIGHT outputs.
- TECRÜBE: Connect an external expression pedal for real-time control over various parameters.
- MIDI IN/THRU: Connect to MIDI devices for external control and synchronization.
- DC IN 9V 500mA: Connect the specified 9V DC power adapter.
Kullanım Talimatları
The Ocean Machine TDL3 offers extensive control over its delay, reverb, and looper functions. Familiarize yourself with the main controls and display.
Main Controls Overview
Şekil 3: Tepe view of the MOOER Ocean Machine TDL3, highlighting the various knobs and footswitches.
- MENÜ Düğmesi: Navigates through menus and adjusts parameters on the LCD screen.
- REVERB Section: Controls for Mix, Tone, Decay, Shimmer, and Reverb Type.
- DELAY A Section: Controls for Mix, Feedback, Time, and Delay Type.
- DELAY B Section: Controls for Mix, Feedback, Time, and Delay Type.
- Footswitches (REVERB, DELAY B, DELAY A): Activate/deactivate effects, tap tempo, and looper functions.
- LCD Ekran: Shows current settings, preset information, and menu options.
Gecikme Fonksiyonları
The pedal features two independent delays (Delay A and Delay B) with 15 different delay types and a delay time range of 0-2 seconds. Each delay can be configured with optional ping-pong effects.
- Delay Types: Explore various delay algorithms including Analog, Digital, Tape, Modulated, Reverse, and more.
- Zaman: Adjusts the delay time. Can be synchronized via Tap Tempo.
- Geri bildirim: Gecikme tekrarlarının sayısını kontrol eder.
- Karışım: Adjusts the wet/dry balance of the delay effect.
Reverb Functions
A high-fidelity reverb section offers 9 different reverb types and a shimmer effect for ambient textures.
- Yankı Türleri: Includes Hall, Plate, Room, Spring, Modulated, Filter, Reverse, and Shimmer.
- Çürümek: Yankı kuyruğunun uzunluğunu kontrol eder.
- Ton: Adjusts the brightness or darkness of the reverb.
- Parıltı: Adds an octave-up effect to the reverb tail.
- Karışım: Adjusts the wet/dry balance of the reverb effect.
Lüper İşlevi
The integrated audio looper provides 32 MB of storage memory, allowing up to 44 seconds of recording time.
- Record/Play/Stop: Controlled by the dedicated footswitch (typically the REVERB footswitch in Looper mode).
- fazla kayıt: Layer additional guitar parts over your recorded loop.
- Geri al/Yinele: Correct mistakes during overdubbing.
Modes of Operation and Presets
The Ocean Machine TDL3 features multiple operational modes and the ability to save and recall presets.
Şekil 4: Close-up of the LCD screen showing various settings and parameters, including delay and reverb types.
- Canlı Mod: Allows direct control of effects via knobs and footswitches.
- Ön Ayar Modu: Recall saved combinations of delay, reverb, and looper settings. The pedal offers a multitude of programmable options via the LCD menu.
- Ön Ayarların Kaydedilmesi: To save a preset, adjust your desired settings, then navigate through the menu using the MENU knob to find the "Store" option. Confirm to save.
- Effect Chain Order: The pedal allows you to reorder the internal effect chain (Delay A, Delay B, Reverb) to customize your sound. This is accessible through the system menu.
MIDI Kontrolü
The Ocean Machine TDL3 is MIDI programmable, allowing integration with other MIDI-enabled devices for advanced control and synchronization.
- Program Change (PC) Messages: Recall specific presets.
- Control Change (CC) Messages: Control individual parameters in real-time.
- MIDI Geçişi: Passes MIDI data to other devices in a chain.
Küresel Ayarlar
Access the global settings menu to adjust overall parameters such as Global EQ, input/output levels, and other system configurations.
- Küresel EQ: Fine-tune the overall tonal response of the pedal.
- Input/Output Levels: Optimize signal levels for seamless integration with various instruments and setups.
Bakım
To ensure the longevity and optimal performance of your MOOER Ocean Machine TDL3, follow these maintenance guidelines:
- Temizlik: Pedalların yüzeyini temizlemek için yumuşak, kuru bir bez kullanın. Aşındırıcı temizleyicilerden veya çözücülerden kaçının.
- Depolamak: Pedalı serin, kuru ve doğrudan güneş ışığından ve aşırı sıcaklıklardan uzak bir yerde saklayın.
- Güç: Pedal uzun süre kullanılmadığında daima güç kaynağının bağlantısını kesin.
- Knobs and Footswitches: Handle controls gently. If any knobs feel loose, they may need to be re-secured by a qualified technician.
Sorun giderme
If you encounter issues with your Ocean Machine TDL3, refer to the following common troubleshooting steps:
- Ses Yok:
- Tüm kablo bağlantılarını kontrol edin (cihaz, amp(kaldırıcı, güç).
- Ensure the power supply meets the 9V DC, 500mA, center-negative specifications.
- Verify that the pedal is powered on and effects are engaged.
- Check input/output levels in the global settings.
- Beklenmedik Gürültü/Uğultu:
- Tüm kabloların uygun şekilde yalıtılmış ve iyi durumda olduğundan emin olun.
- Try a different power outlet or isolated power supply.
- Check for ground loops in your signal chain.
- Tap Tempo Not Working in Preset Mode:
- In Preset Mode, the tap tempo footswitch requires delay sub-divisions to be set.
- Navigate to the desired preset.
- Press REVERB + DELAY B footswitches simultaneously to enter preset edit mode.
- Press the MENU knob once.
- Rotate the MENU knob until "TempoB:" is highlighted and press the knob to enter sub-division settings.
- Press the MENU knob to turn sub-division on, select the desired sub-division, and press "back" to return.
- Press REVERB + DELAY B footswitches simultaneously to exit edit mode. Save the preset if satisfied.
- LCD Ekran Sorunları:
- Ensure the pedal is receiving adequate power.
- If the display is unresponsive, try power cycling the unit.
Özellikler
| Özellik | Şartname |
|---|---|
| Model Numarası | TDL3 |
| Boyutlar (U x G x Y) | 4.1 x 1.9 x 2.3 inç |
| Ürün Ağırlığı | 6.4 ons |
| Güç Gereksinimi | 9V DC, 500mA, Center-Negative |
| Delay Types | 15 (2 independent delays) |
| Yankı Türleri | 9 (with Shimmer effect) |
| Looper Recording Time | Up to 44 seconds (32 MB storage) |
| Bağlantı | Stereo Input/Output, Expression Pedal Input, MIDI IN/THRU |
| Donanım Arayüzü | Ethernet (Note: This specification from product data may refer to internal communication or a specific feature not typically user-facing for a guitar pedal.) |
| Sinyal Biçimi | Analog |
| İlk Mevcut Tarih | 10 Mart 2017 |
Garanti ve Destek
MOOER products are designed for reliability and performance. For warranty information and technical support, please refer to the official MOOER webWeb sitesini ziyaret edin veya yerel distribütörünüzle iletişime geçin. Garanti talepleri için satın alma belgenizi saklayın.
- Official MOOER Webalan: www.mooeraudio.com
- Müşteri Hizmetleri: Contact information can typically be found on the official website veya ürün ambalajı.
