BLANCO ANDANO 340/340-U Double Basin Paslanmaz Çelik Alt Montajlı Lavabo

1. Giriş

Thank you for choosing the BLANCO ANDANO 340/340-U double basin stainless steel sink. This manual provides essential information for the safe installation, operation, and maintenance of your new sink. Please read these instructions carefully before beginning installation or use, and keep them for future reference.

The BLANCO ANDANO series is renowned for its modern design and convincing functionality. With narrow corner and base radii, this sink offers maximum usable floor space and a large basin volume, making it a premium addition to any kitchen.

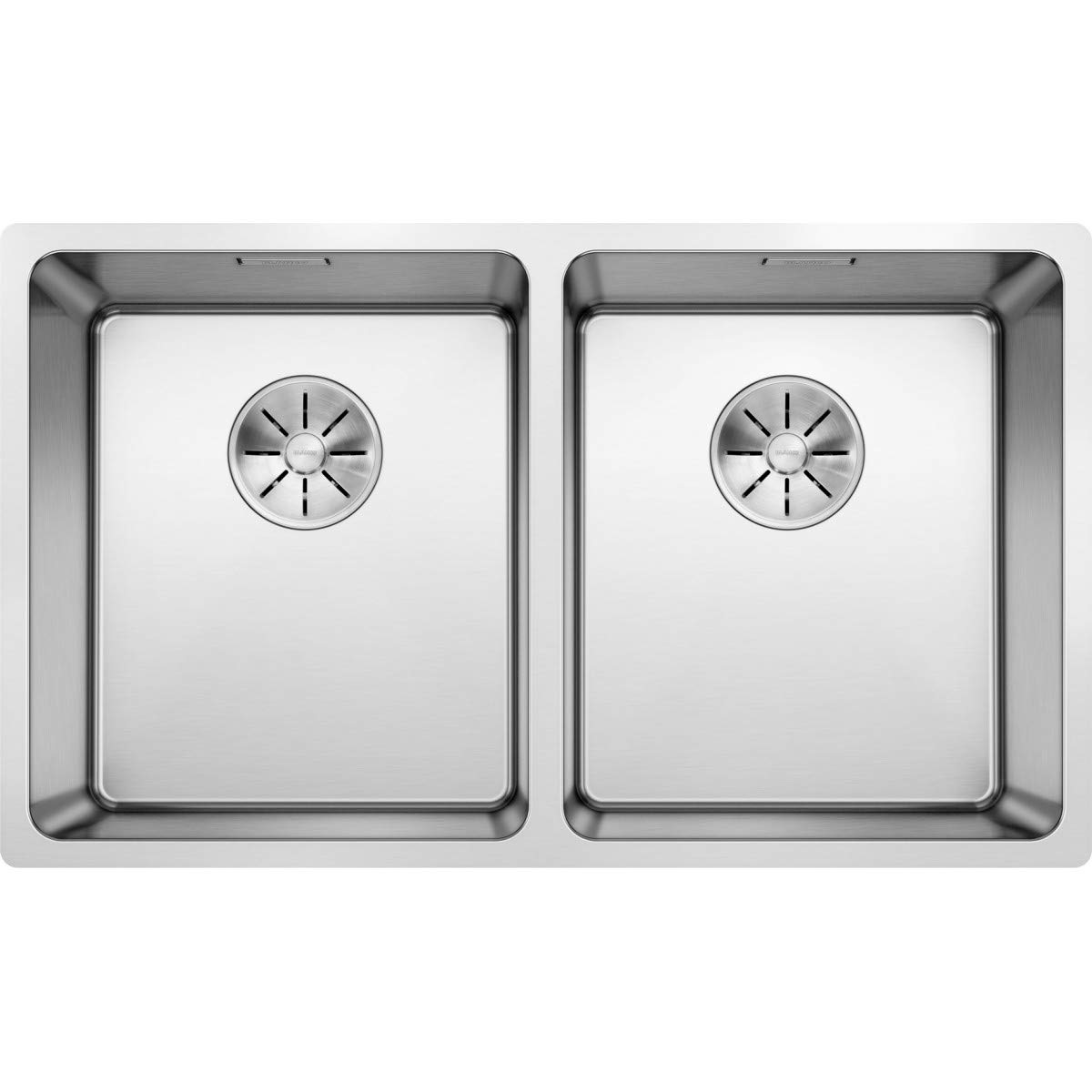

Image 1: BLANCO ANDANO 340/340-U Double Basin Stainless Steel Undermount Sink, showcasing its sleek design and dual basins.

2. Güvenlik Bilgileri

• Kurulum sırasında daima eldiven ve koruyucu gözlük gibi uygun kişisel koruyucu ekipman (KKD) kullanın.
• Ensure all water and electrical connections are handled by qualified professionals if required.
• Handle the sink with care to avoid injury, as edges can be sharp.
• Verify that the countertop material and cabinet structure can support the weight of the sink and its contents when full.
• Do not use abrasive cleaners or tools that could damage the stainless steel finish.

3. Paket İçeriği

Lütfen kurulum işlemine başlamadan önce tüm bileşenlerin eksiksiz olduğundan emin olun:

• Paslanmaz çelik basin (çift)
• InFino 3 1/2" basket strainers (x2)
• Waste and overflow fitting with space-saving pipe
• Fastening set (for installation)

Note: Remote waste control is not included with this model.

4. Kurulum ve Kurulum

The BLANCO ANDANO 340/340-U is designed for undermount installation, providing a seamless look with your countertop. Professional installation is recommended.

4.1 Kurulum Öncesi Kontroller

• Ensure your base cabinet has a minimum width of 80 cm to accommodate the sink.
• Verify that the countertop cut-out matches the sink dimensions. Detailed cut-out templates and instructions are available on the official BLANCO webalan.
• Confirm all necessary plumbing connections are accessible and correctly positioned.

4.2 Kurulum Adımları (Üzerinden)view)

1. Prepare the countertop cut-out according to the BLANCO template.
2. Apply a suitable sealant around the rim of the sink opening on the underside of the countertop.
3. Position the sink underneath the countertop opening and secure it using the provided fastening set. Ensure a tight and waterproof seal.
4. Install the InFino basket strainers and the waste and overflow fitting according to the included diagrams.
5. Connect the plumbing to the waste fitting, ensuring all connections are secure and leak-free.
6. Perform a water test to check for any leaks.

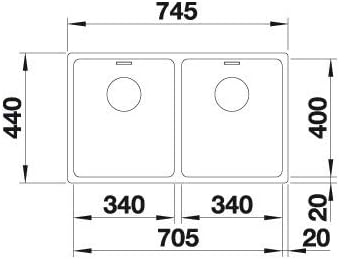

Image 2: Technical drawing illustrating the external dimensions (745 x 440 mm) and basin dimensions (340 x 340 mm) of the BLANCO ANDANO 340/340-U sink, crucial for accurate countertop cut-out.

5. Kullanım Talimatları

Your BLANCO ANDANO sink is designed for everyday kitchen tasks. The double basin configuration allows for versatile use, such as washing dishes in one basin while rinsing in the other, or preparing food.

5.1 InFino Drainage System

The integrated InFino drainage system is elegantly designed and particularly easy to clean. To operate the basket strainer:

• Açık: Press the basket strainer down gently to allow water to drain freely.
• Kapalı: Lift the basket strainer slightly and turn it to seal the drain, allowing the basin su ile doldurmak.
• Remove for Cleaning: Pull the basket strainer straight up to remove it for easy cleaning of food debris.

Resim 3: Yakın çekim view of the BLANCO InFino drainage system, highlighting its integrated design and ease of use for efficient water management.

6. Bakım ve Özen

Proper care will ensure the longevity and pristine appearance of your BLANCO stainless steel sink.

6.1 Günlük Temizlik

• After each use, rinse the sink thoroughly with clean water to remove food particles and soap residue.
• Wipe the sink dry with a soft cloth to prevent water spots, especially in hard water areas.
• Genel temizlik için hafif bir bulaşık deterjanı ve yumuşak bir sünger veya bez kullanın.

6.2 Derinlemesine Temizlik ve Leke Çıkarma

• For stubborn stains, use a specialized stainless steel cleaner. Always follow the product instructions and rinse thoroughly.
• Avoid using abrasive cleaners, steel wool, or scouring pads, as these can scratch the satin finish.
• Do not leave acidic foods (e.g., lemon juice, vinegar) or harsh chemicals on the sink surface for extended periods.

6.3 InFino Strainer Care

Regularly remove and clean the InFino basket strainers to prevent blockages and maintain hygiene. Wash with warm soapy water and a brush if necessary.

7. Sorun Giderme

İşte bazı yaygın sorunlar ve olası çözümleri:

8. Özellikler

9. Garanti ve Destek

BLANCO products are manufactured to high-quality standards. This product comes with a warranty for spare parts availability for 2 years from the date of purchase.

For warranty claims, technical support, or to purchase spare parts, please contact your local BLANCO dealer or visit the official BLANCO website. Ensure you have your proof of purchase and the model number (522983) available when contacting support.

For detailed cut-out information and further product documentation, please refer to the BLANCO webalan: www.blanco.com
