Frigidaire 807032601 Dishwasher Drain Hose Instruction Manual

giriiş

This manual provides essential instructions for the proper installation, operation, and maintenance of your Frigidaire 807032601 Dishwasher Drain Hose. Please read this document thoroughly before beginning any installation or maintenance procedures to ensure safe and correct usage.

Güvenlik Bilgileri

• Herhangi bir kurulum veya bakım işlemine başlamadan önce mutlaka bulaşık makinesinin elektrik bağlantısını kesin.
• Montaj sırasında eldiven ve göz koruması gibi uygun kişisel koruyucu ekipman kullanın.
• Ensure all connections are secure to prevent leaks and water damage.
• Do not use this drain hose for purposes other than its intended use with a dishwasher.

Parça Listesi

Kuruluma başlamadan önce tüm bileşenlerin mevcut olduğundan emin olun:

• 1 x Frigidaire 807032601 Dishwasher Drain Hose
• 1 x U-shaped Hose Guide (if included with your purchase)

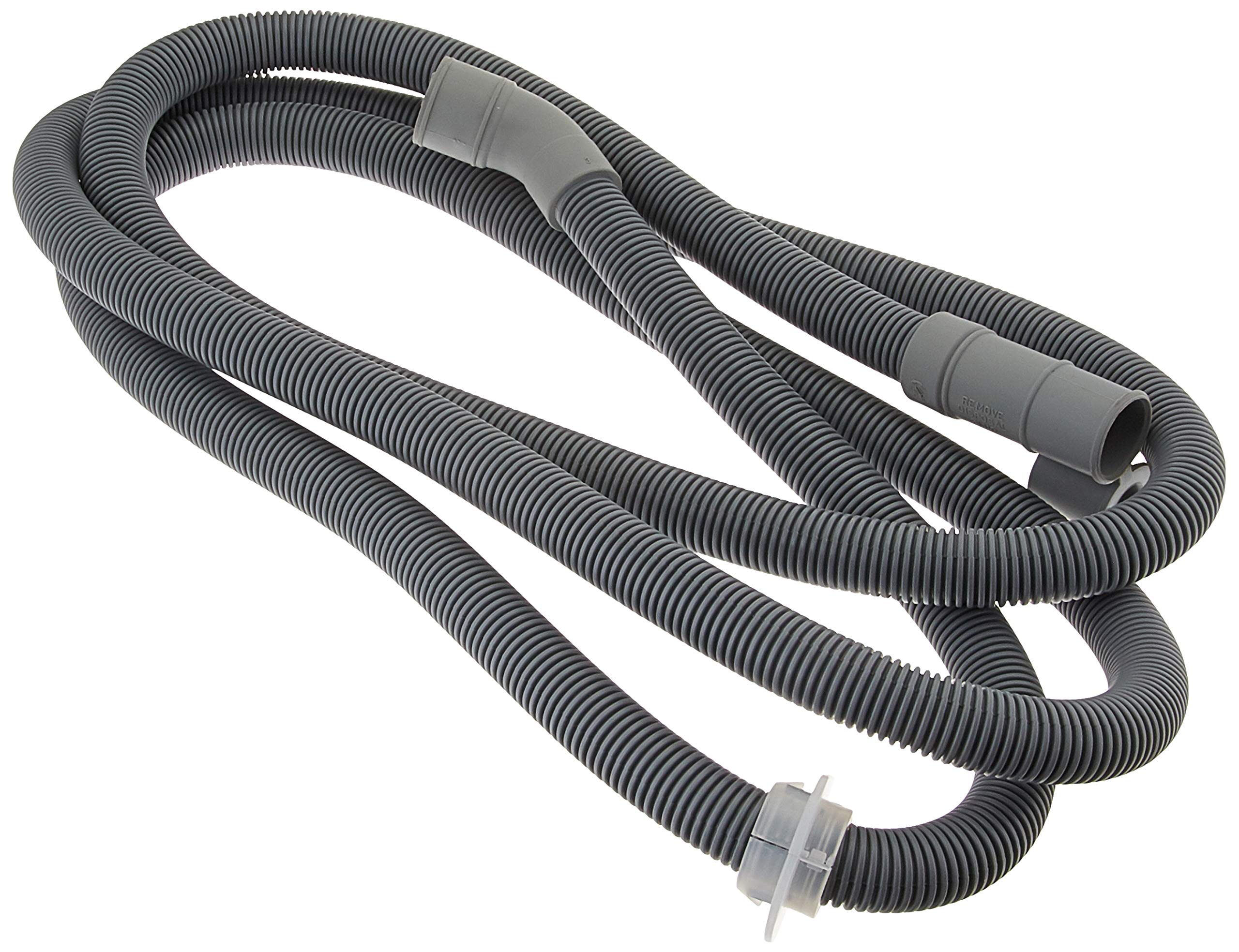

Image: A gray corrugated dishwasher drain hose, designed for efficient water drainage from your appliance.

Kurulum ve Yükleme

Follow these steps for proper installation of your dishwasher drain hose:

1. Prepare the Hose Guide: If your drain hose includes a U-shaped hose guide, attach it to the end of the drain hose that will be placed into the sink or standpipe. This guide helps maintain the hose's position and prevents it from slipping out.
2. Bulaşık Makinesine Bağlan: Securely connect the other end of the drain hose to the dishwasher's drain outlet. Ensure the connection is tight, using a hose clamp if required by your dishwasher model or local plumbing codes.
3. Hortumu Yönlendirin: Carefully route the drain hose to the sink or drain pipe. Avoid kinks, sharp bends, or obstructions that could impede water flow. The hose should have a high loop to prevent backflow into the dishwasher.
4. Secure the Hose Guide: Place the U-shaped hose guide over the edge of a utility sink or securely attach it to a standpipe. Ensure it is stable and will not dislodge during the dishwasher's drain cycle.

Installation Demonstration Video

Video: This video demonstrates the simple assembly of a U-shaped hose guide onto a corrugated drain hose and how to properly position it for drainage into a utility sink. This method is applicable for dishwasher drain hose setup.

Kullanım Talimatları

Once installed, the drain hose operates automatically with your dishwasher's wash cycles. Ensure the hose remains free of obstructions and is securely positioned to allow for proper drainage. No manual operation of the drain hose is required during normal dishwasher use.

Bakım

• Düzenli Muayene: Periodically inspect the entire length of the drain hose for any signs of wear, cracks, punctures, or leaks. Check the connections at both the dishwasher and the drain point for tightness.
• Temizlik: If you notice any blockages or residue buildup inside the hose, disconnect it and flush it with warm, soapy water. Ensure all debris is removed before reattaching.
• Hose Guide Security: Always ensure the U-shaped hose guide is properly attached and securely positioned over the sink edge or standpipe to prevent the hose from falling out during drainage.

Sorun giderme

• Bağlantı Noktalarında Sızıntı: If water is leaking from the hose connections, ensure all hose clamps are tightened correctly. Inspect the hose ends and any washers for damage and replace if necessary.
• Poor Drainage or Standing Water: Verify that the drain hose is not kinked, crushed, or obstructed along its length. Check the dishwasher's drain pump and filter for any blockages that might be preventing proper water expulsion.
• Hose Falling Out of Sink: If the drain hose repeatedly falls out of the sink or standpipe, ensure the U-shaped hose guide is properly attached and securely positioned. Consider using additional fasteners if needed to keep it stable.

Özellikler

Garanti ve Destek

This Frigidaire 807032601 Dishwasher Drain Hose is a genuine replacement part. For specific warranty information or technical support related to this part or your Frigidaire dishwasher, please refer to your dishwasher's main instruction manual or contact Frigidaire customer service directly. Contact details can typically be found on the manufacturer's official website or within your appliance documentation.
