1. Giriş
This manual provides essential information for the safe and efficient operation and maintenance of your Neato Botvac D Series Robot Vacuum, Model D75. The Neato Botvac D Series is designed for everyday cleaning, effectively removing dirt, crumbs, dust bunnies, and pet hair from various floor types and corners of your home. Its unique D-shape and LaserSmart Mapping and Navigation system ensure thorough and methodical cleaning.

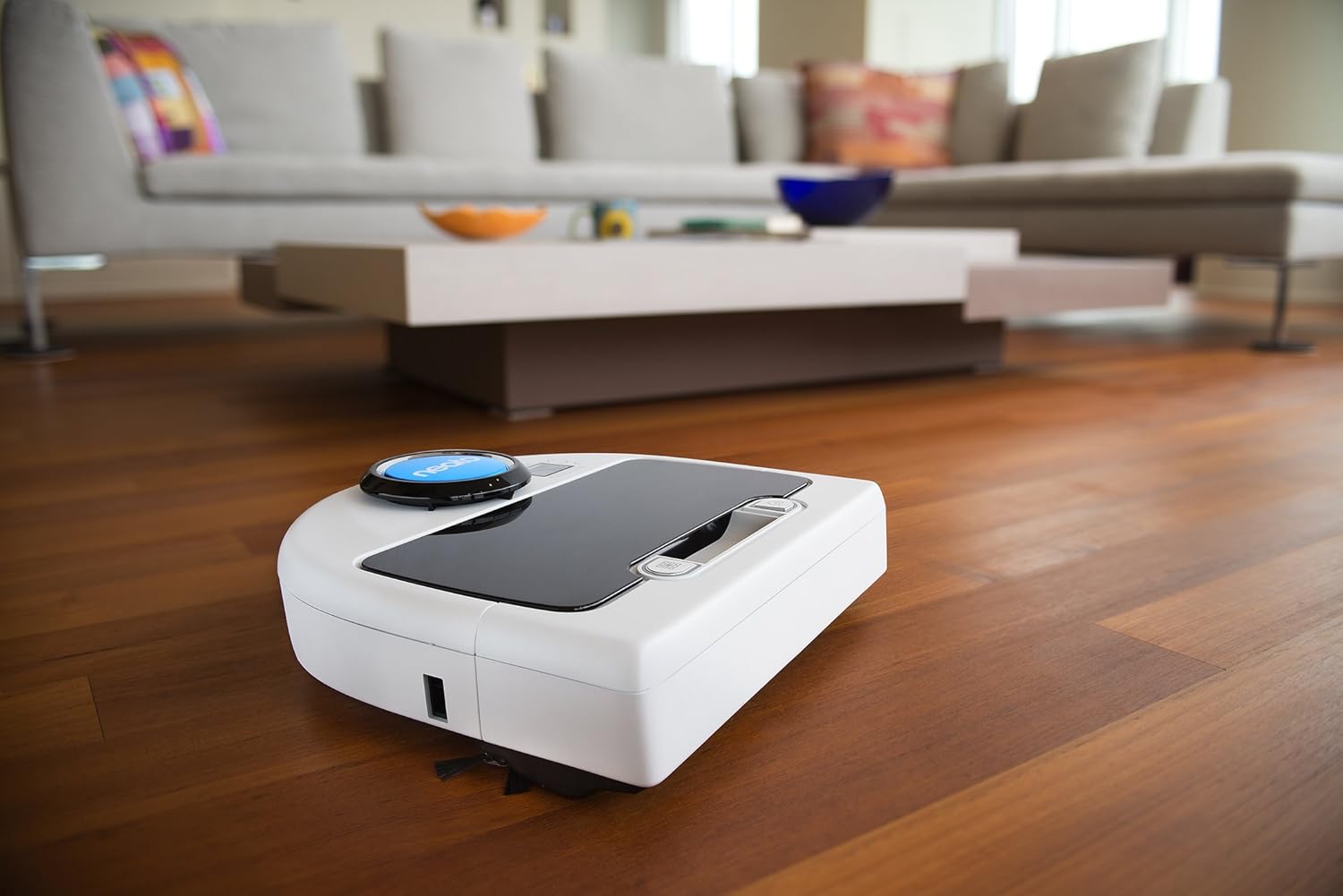

Figure 1: Neato Botvac D Series Robot Vacuum operating in a living room on a hardwood floor.
2. Önemli Güvenlik Bilgileri
Before using your Neato Botvac D Series Robot Vacuum, please read all safety instructions carefully. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Bu cihaz yalnızca ev kullanımı içindir. Dış mekanlarda veya ıslak yüzeylerde kullanmayın.
- Do not allow children to operate the vacuum. Supervise children and pets when the vacuum is in operation.
- Sigara, kibrit, sıcak kül gibi yanan veya dumanı tüten hiçbir şeyi toplamayın.
- Do not use without the dirt bin and filter in place.
- Saçınızı, bol giysilerinizi, parmaklarınızı ve vücudunuzun tüm kısımlarını açıklıklardan ve hareketli parçalardan uzak tutun.
- Sadece bu kılavuzda açıklandığı şekilde kullanın. Sadece üreticinin önerdiği aparatları kullanın.
- Always turn off the appliance before making any adjustments, changing accessories, or storing the appliance.
3. Kurulum
3.1 Paket İçeriği
Tüm bileşenlerin mevcut olduğundan emin olun:
- Neato Botvac D Series Robot Vacuum (Model D75)
- Şarj Üssü
- Güç Kablosu
- Spiral Blade Brush
- Yan fırça
- High-Performance Filter (Disk Type)
- Sınır İşaretleri
- Lithium Ion Battery (pre-installed)
3.2 Şarj Üssü Yerleşimi
Place the charging base against a wall in an open area, ensuring at least 3 feet (1 meter) of clear space on either side and in front of the base. Plug the power cord into the charging base and then into a wall outlet. The robot will automatically return to this base to recharge.
Figure 2: The Neato Botvac D Series Robot Vacuum docked at its charging base.
3.3 İlk Ücretlendirme
Place the robot onto the charging base. Ensure the metal charging contacts on the robot align with those on the base. The battery indicator will illuminate to show charging status. Allow the robot to charge completely before its first use, which may take several hours. A full charge provides approximately 1.5 hours of cleaning time.
4. Kullanım Talimatları
4.1 Temizleme Döngüsünü Başlatma
Press the Start button on the robot. The Neato Botvac D75 uses LaserSmart Mapping and Navigation to scan the room, plan an efficient cleaning path, and methodically clean. It cleans in straight lines, covering the entire floor area without random bumping.
Figure 3: The Neato Botvac D Series Robot Vacuum cleaning a kitchen floor, demonstrating its ability to navigate various floor types.
4.2 SpinFlow Power Clean Technology
The SpinFlow Power Clean technology combines potent suction with precision brushes to ensure floors are immaculately clean. The heavy-duty spiral blade brush effectively cleans along walls, while the precise edge cleaning side brush reaches into corners, leaving no dust behind. This system is effective on hard floors, carpets, and for picking up pet hair.
4.3 AutoCharge & AutoResume
If the robot's battery runs low during a cleaning cycle, it will automatically return to its charging base. Once sufficiently recharged, it will resume cleaning exactly where it left off, ensuring complete coverage of your home.
4.4 Using Boundary Markers
Use the provided boundary markers to create "no-go" zones for your robot. These are useful for areas you do not want the robot to enter, such as pet feeding areas or delicate furniture. Simply place the magnetic strip on the floor to define the boundary.
4.5 Temizliklerin Planlanması
The Neato Botvac D75 can be scheduled to clean automatically. Use the robot's display and navigation buttons to set a cleaning schedule that fits your routine. Refer to the on-screen menu for detailed scheduling options.
Video 1: Official Neato Robotics video demonstrating the features and operation of the Botvac D Series D75 Robot Vacuum Cleaner, including its navigation, cleaning capabilities, and scheduling functions.
5. Bakım
Regular maintenance ensures optimal performance of your Neato Botvac D75.
5.1 Kir Haznesinin Boşaltılması
The Neato Botvac D75 features an extra-large bagless dirt bin. Empty the dirt bin after each cleaning cycle or when the indicator light signals it is full. To empty, lift the top cover, remove the dirt bin, and discard contents into a trash receptacle.
Figure 4: A user removing the dirt bin from the Neato Botvac D Series Robot Vacuum for emptying.
5.2 Filtrenin Temizlenmesi
The jumbo filter captures allergens and dust. Clean the filter regularly by tapping it against a trash can to dislodge debris. Replace the filter every 1 to 2 months, depending on usage.
5.3 Temizleme Fırçası
Periodically check and clean the main spiral blade brush and the side brush. Remove any tangled hair or debris to maintain effective cleaning performance.
5.4 Sensörlerin ve Şarj Kontaklarının Temizlenmesi
Wipe the robot's sensors and charging contacts on both the robot and the charging base with a dry, soft cloth to ensure proper function and charging.
6. Sorun Giderme
This section addresses common issues you might encounter with your Neato Botvac D75.
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Robot şarj olmuyor | Charging contacts are dirty or not aligned. | Clean charging contacts on both robot and base. Ensure robot is properly docked. |
| Robot sık sık takılıyor | Obstacles on the floor, or robot is navigating into tight spaces. | Clear floor of small objects. Use boundary markers for problematic areas. |
| Kötü temizleme performansı | Full dirt bin, dirty filter, or tangled brushes. | Empty dirt bin, clean or replace filter, clean brushes. |
| Hata Kodu 3000 | Lidar sensor issue. | Turn the robot off and on again. If the issue persists, contact customer support. |
7. Özellikler
- Marka: Neato Robotics
- Modeli: D75
- Form Faktörü: Robotik
- Renk: Beyaz
- Özellik: Auto Charge and Auto Resume
- Filtre Türü: Disk
- Pil Tipi: 1 Lityum İyon (dahil)
- Pil Ömrü: Yaklaşık 1.5 Saat
- Ürün Ölçüleri: 12.7 x 13.2 x 3.9 inç
- Ürün Ağırlığı: 9 pound
- Yüzey Önerisi: Sert Zemin, Halı
8. Garanti ve Destek
8.1 Garanti Bilgileri
Your Neato Botvac D Series Robot Vacuum comes with the following limited warranties:
- Robot: 1 yıllık sınırlı garanti
- Pil: 6 aylık sınırlı garanti
- Consumables (filters, brushes): Garanti kapsamında değildir
Garanti talepleri için lütfen satın alma belgenizi saklayın.
8.2 Müşteri Desteği
For further assistance, troubleshooting, or to inquire about replacement parts, please contact Neato Robotics customer support. Contact information can typically be found on the official Neato Robotics websitede veya ürün ambalajında yer almamaktadır.
