Hidizs AP100 High-Resolution Audio Player User Manual

1. Giriş

This manual provides detailed instructions for the proper use and maintenance of your Hidizs AP100 High-Resolution Audio Player. Please read this manual thoroughly before operating the device to ensure optimal performance and longevity. The Hidizs AP100 is designed to deliver exceptional audio quality for a superior listening experience.

2. Ürün Bittiview

Familiarize yourself with the physical components and controls of your AP100 player.

Şekil 2.1: Ön view of the Hidizs AP100 High-Resolution Audio Player in white, displaying a music playback screen with track information and playback controls.

Şekil 2.2: Yan yana view of the Hidizs AP100 in white and black, illustrating the available color options for the device.

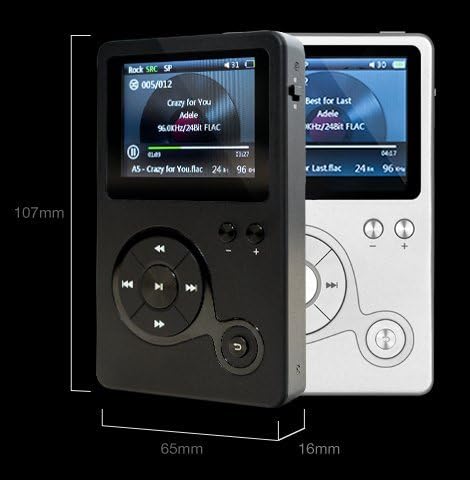

Şekil 2.3: Physical dimensions of the Hidizs AP100 player, indicating a height of 107mm, width of 65mm, and thickness of 16mm.

Şekil 2.4: Close-up of the bottom edge of the AP100, highlighting the Micro USB port for charging and data transfer, MicroSD card slot for expandable storage, Coaxial Input (COAX IN), and Coaxial Output (COAX OUT).

Şekil 2.5: Close-up of the top edge of the AP100, showing the power switch, 3.5mm headphone output, 3.5mm line output, SRC (Sample Rate Converter) button, and EQ (Equalizer) button.

3. Kurulum

3.1 Cihazı Şarj Etme

Before first use, fully charge the AP100. Connect the included Micro USB cable to the Micro USB port on the bottom of the player and the other end to a USB power adapter (not included) or a computer's USB port. The charging indicator will illuminate during charging and turn off when complete.

3.2 MicroSD Kart Takma

The AP100 has 8GB of internal storage. To expand storage, insert a MicroSD card (up to 128GB, not included) into the MicroSD card slot on the bottom of the device. Ensure the card is inserted correctly until it clicks into place. To remove, gently push the card in until it springs out.

3.3 Müzik Aktarımı Files

Connect the AP100 to your computer using the Micro USB cable. The device will appear as a removable disk drive. You can then drag and drop your audio files (e.g., FLAC, WAV, MP3) into the internal storage or the MicroSD card folder. Disconnect safely after transfer.

3.4 Kulaklık Bağlama

Plug your headphones into the 3.5mm headphone output jack located on the top of the device. For connecting to an external amplifier or speaker system, use the 3.5mm line output jack.

4. Kullanım Talimatları

4.1 Güç Açma/Kapatma

To power on the device, slide the power switch located on the top edge to the 'On' position. To power off, slide it back to the 'Off' position.

4.2 Temel Gezinme

The AP100 features a circular navigation pad and dedicated buttons:

• Orta Düğme: Play/Pause, Select.
• Yukarı/Aşağı/Sol/Sağ Oklar: Navigate menus, skip tracks, fast forward/rewind.
• Ses Düğmeleri (+/-): Oynatma ses düzeyini ayarlayın.
• SRC Button: Cycles through Sample Rate Converter settings.
• EQ Düğmesi: Accesses equalizer presets and custom settings.

4.3 Müzik Çalma

1. Navigate to the 'Music' or 'Browser' option from the main menu.
2. Select your desired storage (internal or MicroSD card).
3. Browse through folders, artists, albums, or tracks.
4. Press the center button to select and play a track.

4.4 Ses Kontrolü

Use the dedicated '+' and '-' buttons on the front panel to increase or decrease the playback volume. Adjust to a comfortable listening level to prevent hearing damage.

4.5 Supported Audio Formats

The Hidizs AP100 supports a wide range of audio formats, including but not limited to: FLAC, WAV, MP3, APE, WMA, ALAC, and AAC.

5. Bakım

5.1 Temizlik

Cihazı yumuşak, kuru ve tüy bırakmayan bir bezle silin. Ekranı veya diğer bileşenleri hasar verebileceğinden sıvı temizleyiciler veya aşındırıcı malzemeler kullanmayın.asing.

5.2 Pil Bakımı

To prolong battery life, avoid fully discharging the battery frequently. If storing the device for an extended period, charge it to approximately 50% and store in a cool, dry place.

5.3 Yazılım Güncellemeleri

Periodically check the official Hidizs website for firmware updates. Updates can improve performance, add features, or fix bugs. Follow the instructions provided with the update package carefully.

6. Sorun Giderme

• Cihaz açılmıyor: Ensure the battery is charged. Connect to a power source and try again. Check the power switch position.
• Ses yok: Check headphone connection. Ensure volume is not set to zero. Test with different headphones. Verify the audio file bozuk değil.
• Cannot read MicroSD card: Ensure the card is inserted correctly. Try reinserting the card. Format the card on a computer (backing up data first) and try again. Ensure the card capacity is supported (up to 128GB).
• Cihaz donuyor veya yanıt vermez hale geliyor: Press and hold the power button for 10-15 seconds to force a restart. If the issue persists, perform a factory reset (refer to device settings, note this will erase all data).
• Files not appearing after transfer: Emin olmak files are in a supported format. Disconnect and reconnect the device to the computer. Refresh the music library on the player if an option is available.

7. Özellikler

8. Garanti ve Destek

For warranty information and technical support, please refer to the warranty card included with your product or visit the official Hidizs webSite. Satın alma fişinizi, garanti talepleriniz için satın alma belgeniz olarak saklayın.
