1. Ürün Bittiview
The Fenix E20 2015 is a convenient and practical flashlight designed for ease of use. It operates on two AA batteries, providing a maximum output of 265 lumens and a beam distance of 210 meters. The flashlight features a reverse tail switch for single-hand operation and offers four brightness levels. It is an excellent choice for outdoor lighting and general home use.
Temel Özellikler:
- 265 Lumens Max Output: Utilizes a Cree XP-E2 LED with a lifespan of 50,000 hours.
- Çok Yönlü Güç Kaynağı: Powered by two readily available AA (Ni-MH/Alkaline) batteries.
- Kompakt Tasarım: Measures 154mm (Length) x 21mm (Diameter) x 25.4mm (Head) and weighs 90 grams (excluding batteries).
- Tutarlı Parlaklık: Digitally regulated output maintains constant brightness levels.
- Pil Koruması: Features reverse polarity protection to prevent damage from improper battery installation.
- Tek Elle Kullanım: Equipped with a reverse tail switch for easy control.
- Dayanıklı Yapı: Made of durable aircraft-grade aluminum with a premium Type III hard-anodized anti-abrasive finish.
- Optik Berraklık: Yansıma önleyici kaplamalı, güçlendirilmiş ultra şeffaf cam lens.

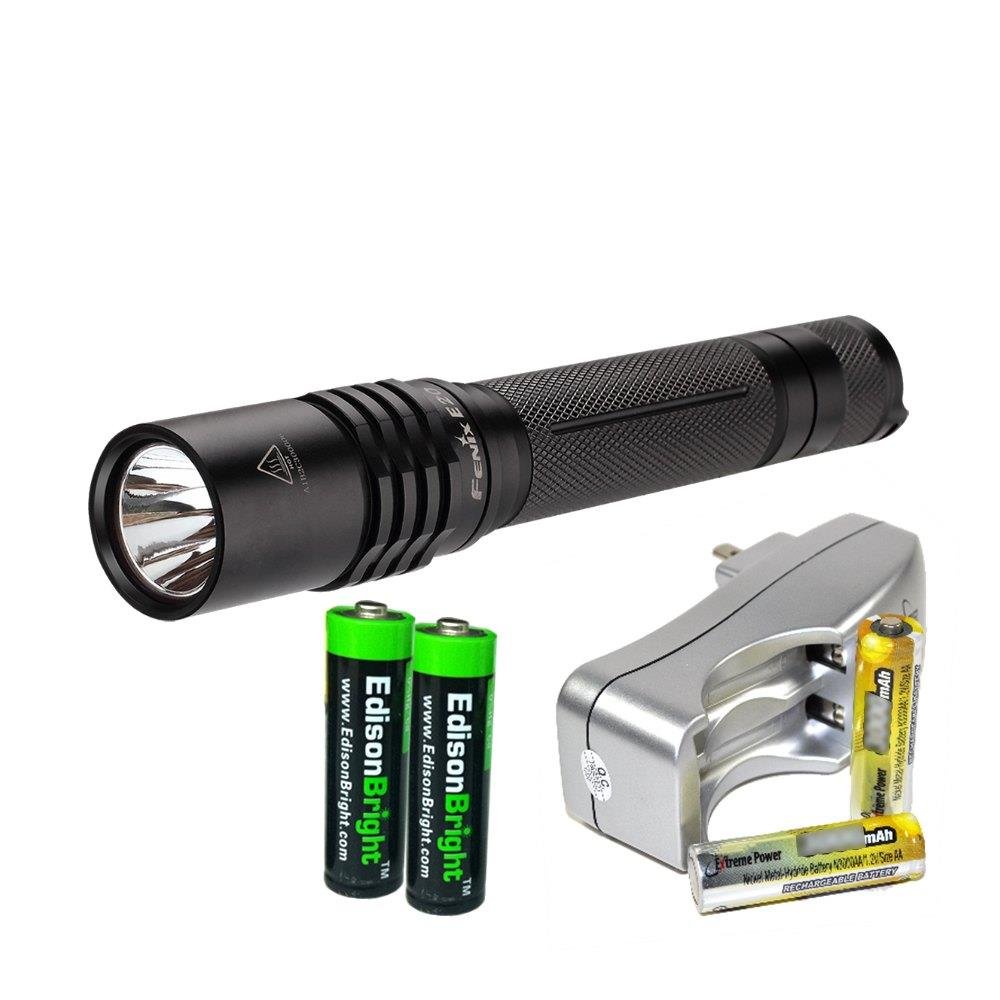

Image 1: The Fenix E20 2015 265 Lumen XP-E2 LED Tactical Flashlight.
2. Kutuda Neler Var?
- Fenix E20 265 Lumen Flashlight
- 2x NiMH Rechargeable AA Batteries
- 1x Pil Şarj Cihazı
- 2x EdisonBright 'AA' Alkaline Batteries
Image 2: EdisonBright AA Alkaline Batteries, included in the bundle.
3. Kurulum
Pil Montajı:
- El fenerinin kuyruk kapağını çevirerek çıkarın.
- Insert two AA batteries with the positive (+) end facing towards the flashlight head.
- Kuyruk kapağını güvenli bir şekilde tekrar vidalayın.
Ensure batteries are inserted correctly to prevent damage due to reverse polarity.
4. Kullanım Talimatları
Güç Açma/Kapatma:
- Açmak için: Fully press the reverse tail switch until it clicks.
- Kapatmak: Fully press the reverse tail switch again until it clicks.
Brightness Level Selection:
- With the flashlight turned on, half-press the reverse tail switch to cycle through the four available brightness levels.
- The flashlight features a memory circuit mode, meaning it will turn on in the last used brightness setting if turned off and on within a short period.
Image 3: The Fenix E20 2015 Edition features an innovative heat dissipation design and a slightly recessed tail switch for stability.
Image 4: The Fenix E20 2015 Edition offers a maximum of 265 lumens, a far-reaching 210-meter beam, four brightness levels, and tail switch for one-hand operation.
5. Bakım
- Temizlik: Periodically clean the flashlight body and threads with a soft cloth.
- O-halka Bakımı: Lubricate the O-rings regularly with silicone grease to maintain water resistance. Replace worn O-rings as needed.
- Pil Bakım: Remove batteries if the flashlight will not be used for an extended period to prevent leakage and damage.
6. Sorun Giderme
- El Feneri Açılmıyor:
- Pil yönünü kontrol edin.
- Ensure batteries are fully charged or replace with new ones.
- Pil temas noktalarını ve dişlerini temizleyin.
- Aralıklı operasyon:
- Tighten the tail cap and head to ensure proper contact.
- Check for loose or damaged O-rings.
7. Özellikler
| Özellik | Detay |
|---|---|
| LED Tipi | Cree XP-E2 LED |
| Maksimum Çıktı | 265 Lümen |
| Maksimum Işın Mesafesi | 210 Metre |
| Güç Kaynağı | 2x AA (Ni-MH/Alkaline) Batteries |
| Dimensions (Length x Diameter x Head) | 154 mm x 21 mm x 25.4 mm (6.1 inç x 0.8 inç x 1.0 inç) |
| Ağırlık (piller hariç) | 90 gram (3.2 oz.) |
| Malzeme | Aircraft-grade Aluminum, Glass |
| Sona ermek | Premium Type III Hard-anodized Anti-abrasive |
| Özel Özellikler | Digitally Regulated Output, Reverse Polarity Protection, Reverse Tail Switch, Tilt/Shake brightness control feature |
| Model Numarası | E20-AA-niMH |
| UPC | 616641596736 |
Image 5: Detailed features of the Fenix E20 2015 Edition, including LED type, battery, dimensions, and protective features.
Image 6: The Fenix E20 2015 Edition is handy and exquisite, with a length of 15.4 cm (6.1 in.) and a weight of 90 grams (3.2 oz.) excluding batteries.
8. Garanti ve Destek
For detailed warranty information and support, please refer to the official Fenix website or the documentation included with your product. Extended protection plans may also be available for purchase from authorized retailers.
