Philips Norelco Shaver 6400 (Model 1150BT/48) Instruction Manual

giriiş

This manual provides essential instructions for the safe and effective use of your Philips Norelco Shaver 6400 (Model 1150BT/48). This electric shaver is designed for both wet and dry shaving, featuring Gyroflex 2D contouring technology and DualPrecision shaving heads for a comfortable and close shave. It also includes a click-on beard styler for versatile grooming. Please read this manual thoroughly before first use and keep it for future reference.

Önemli Güvenlik Bilgileri

Elektrik çarpması, yaralanma veya cihazda hasar riskini azaltmak için her zaman aşağıdaki güvenlik önlemlerine uyun:

• Use caution to avoid cuts or skin irritation.
• Clean and dry the shaver properly to prevent bacterial growth.
• Do not use near water or while charging the device.
• Ensure the appliance is completely dry before connecting it to power.
• Cihazı ve şarj aletini ısıya dayanıklı yüzeylerden uzak tutun.
• Cihaz hasarlıysa kullanmayın.
• Bu cihaz, güvenliklerinden sorumlu bir kişi tarafından cihazın kullanımıyla ilgili olarak gözetim veya talimat sağlanmadığı sürece, fiziksel, duyusal veya zihinsel yetenekleri kısıtlı olan veya deneyim ve bilgi eksikliği bulunan kişiler tarafından kullanılmak üzere tasarlanmamıştır.

Ürün Bittiview

The Philips Norelco Shaver 6400 (Model 1150BT/48) consists of the following main components:

• Shaver handle
• Shaving unit with DualPrecision heads
• Takılıp çıkarılabilen sakal şekillendirici aparatı
• Koruyucu kapak
• Şarj standı
• Güç kablosu
• Temizleme fırçası

Resim: Ön view of the Philips Norelco Shaver 6400, highlighting the three rotary DualPrecision shaving heads.

Resim: Arka view of the Philips Norelco Shaver 6400, displaying product specifications and model number.

Image: All included accessories for the Philips Norelco Shaver 6400, laid out. These include the charging stand, power cord, click-on beard styler, protective cap, and cleaning brush.

Kurmak

Tıraş Makinesini Şarj Etme

1. Insert the small plug of the power cord into the charging stand.
2. Tıraş makinesini şarj standına yerleştirin.
3. Plug the adapter into a wall outlet. The battery indicator will show charging status.
4. A full charge takes approximately 1 hour and provides up to 40 minutes of cordless shaving. A 3-minute quick charge provides enough power for one shave.

Attaching/Detaching Shaving Heads and Styler

• To attach a head (shaving unit or beard styler), align it with the top of the shaver handle and press it down until it clicks into place.
• To detach a head, pull it upwards from the shaver handle.

Kullanım Talimatları

Shaving (Wet or Dry)

1. Tıraş makinenizin şarjlı olduğundan emin olun.
2. Tıraş makinesini açmak için açma/kapama düğmesine basın.
3. For dry shaving, ensure your face is clean and dry.
4. For wet shaving, apply shaving foam or gel to your skin. The shaver is waterproof and can be used in the shower.
5. Move the shaving heads in small circular motions over your skin. Apply gentle pressure.
6. The Gyroflex 2D system will adjust to the contours of your face for optimal skin contact.
7. After shaving, press the on/off button to switch off the shaver.

Using the Click-On Beard Styler

1. Detach the shaving unit and attach the beard styler.
2. Select your desired length setting on the styler.
3. Turn on the shaver and move the styler against the direction of hair growth for an even trim.
4. For precise edging, remove the comb attachment and use the bare trimmer blade.

Bakım

Tıraş Makinesinin Temizlenmesi

Düzenli temizlik, optimum performans ve hijyen sağlar.

1. After each use, switch off the shaver and detach the shaving unit.
2. Tıraş aletini ılık akan su altında iyice durulayın.
3. You can also open the shaving unit by pressing the release button and rinsing the inside.
4. Shake off excess water and allow the shaving unit to air dry completely before reattaching or storing.
5. Use the provided cleaning brush to remove any stubborn hair particles from the shaving heads or styler. Do not use the brush on the actual cutting blades as this can damage them.

Tıraş Başlıklarının Değiştirilmesi

For best results, replace the shaving heads (model RQ11) every 12 months. Worn shaving heads can reduce shaving performance and cause irritation.

1. Switch off the shaver and detach the shaving unit.
2. Serbest bırakma düğmesine basarak tıraş ünitesini açın.
3. Tutucu halkayı saat yönünün tersine çevirerek çıkarın.
4. Eski tıraş başlıklarını çıkarın.
5. Insert the new RQ11 shaving heads into the shaving unit.
6. Sabitleme halkasını yerine yerleştirin ve kilitlenene kadar saat yönünde çevirin.
7. Close the shaving unit and reattach it to the shaver handle.

Sorun giderme

Özellikler

• Model Numarası: 1150BT/48
• Güç Kaynağı: Pil ile Çalışır (Lityum-iyon)
• Pil Ömrü: 40 dakikaya kadar kablosuz tıraş
• Şarj Süresi: Tam şarj için 1 saat, hızlı şarj için 3 dakika.
• Kafa Tipi: Rotary, Gyroflex 2D, DualPrecision
• Bıçak Sayısı: 3
• Bıçak Malzemesi: Paslanmaz çelik
• Özellikler: Wet & Dry Shave, Click-on Precision Trimmer Attachment
• Yedek Başlıklar: RQ11
• Ürün Ölçüleri: 6.2 x 1.2 x 1.2 inç
• Ağırlık: 1.1 Pound

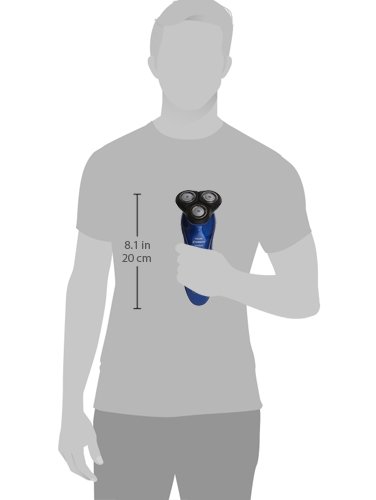

Image: The Philips Norelco Shaver 6400 held in a hand, illustrating its ergonomic design and compact size for easy handling.

Garanti ve Destek

This Philips Norelco Shaver 6400 (Model 1150BT/48) comes with a full two-year warranty from the date of purchase. This warranty covers defects in materials or workmanship under normal use.

For warranty claims, technical support, or further assistance, please refer to the contact information provided in your product packaging or visit the official Philips Norelco website. You may also call the customer service number typically found on the product or its packaging.

For replacement parts, such as shaving heads (RQ11), please ensure you purchase genuine Philips Norelco parts to maintain product performance and warranty validity.
