Leica M (Typ 240) Digital Rangefinder Camera Model 10770 User Manual

1. Giriş

This manual provides essential information for the safe and effective use of your Leica M (Typ 240) Digital Rangefinder Camera, model 10770. The Leica M is engineered for superior image quality, precise focusing, and robust performance, featuring a 24-megapixel CMOS sensor and the Leica Maestro image processor.

Temel özellikler şunlardır:

• High-resolution 24-megapixel CMOS sensor for exceptional detail.
• Fast Leica Maestro image processor for rapid image handling.
• Canlı View with 10x magnification and Focus Peaking for precise focusing.
• Splash-proof camera body for enhanced durability.
• 3-inch TFT LCD screen with 920,000 pixels and Corning Gorilla glass protection.
• Full 1080p HD video recording capabilities.

2. Kurulum

2.1 Paketin Açılması ve İçeriğin Kontrol Edilmesi

Carefully unpack your camera and verify that all components are present. The standard package for model 10770 includes the camera body only. Inspect the camera for any signs of damage before proceeding.

2.2 Pil Kurulumu

The Leica M (Typ 240) uses one Lithium Metal battery (included). To install the battery:

1. Locate the battery compartment cover, typically on the bottom of the camera.
2. Open the cover by turning the locking mechanism.
3. Pili bölmenin içindeki kutup göstergelerine göre yerleştirin.
4. Pil bölmesi kapağını sıkıca kapatın.

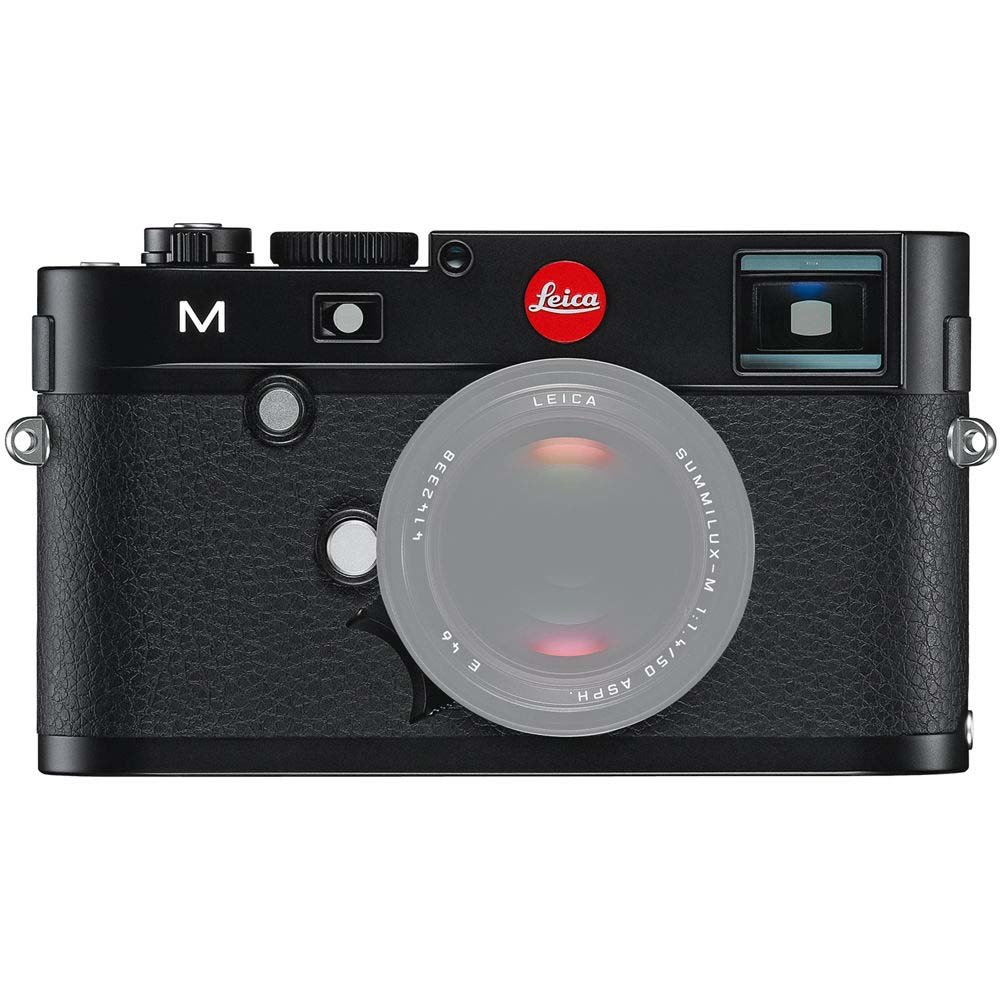

Ön view of the Leica M (Typ 240) Digital Rangefinder Camera, showing the lens mount and body design. This image illustrates the camera's exterior, which houses the battery compartment and other controls.

2.3 Hafıza Kartı Takılması

Insert a compatible SD card into the memory card slot. Ensure the card is inserted in the correct orientation until it clicks into place. Refer to the camera's display for confirmation of card recognition.

2.4 Lens Eklentisi

The Leica M (Typ 240) uses the Leica M mount. To attach a lens:

1. Gövde kapağını kameradan, arka kapağı ise lensten çıkarın.
2. Merceğin üzerindeki kırmızı noktayı, kameranın mercek yuvasındaki kırmızı noktayla hizalayın.
3. Gently insert the lens into the mount and turn it clockwise until it locks into place.

2.5 İlk Açılış ve Temel Ayarlar

After installing the battery and memory card, turn on the camera using the power switch. The first time you power on, you may be prompted to set the date, time, and language. Follow the on-screen instructions to configure these basic settings.

3. Kameranın Çalıştırılması

3.1 Kontrollerview

The Leica M (Typ 240) features a classic rangefinder design with intuitive controls. Familiarize yourself with the shutter speed dial, aperture ring (on the lens), focus ring (on the lens), and the various buttons and dials on the camera body for menu navigation and function selection.

3.2 Odaklanma

The camera offers multiple focusing methods:

• Rangefinder System: The classic method for precise manual focusing. Align the split or superimposed images in the viewbulucu.
• Canlı View Yakınlaştır: When using Live View on the LCD screen, you can magnify the image up to 10x for critical focus assessment.
• Canlı View Odak Zirvesi: This feature automatically highlights sharp contours in red on the Live View display, providing visual confirmation of focus.

3.3 Pozlama Ayarları

The Leica M (Typ 240) provides comprehensive control over exposure. You can manually set aperture (via the lens), shutter speed (via the top dial), and ISO sensitivity. The camera also offers various metering modes, including Center Weighted, to assist in achieving correct exposure.

3.4 Shooting Still Images

Durağan bir görüntü yakalamak için:

1. kullanarak çekiminizi oluşturun. viewbulucu veya Canlı View.
2. Adjust focus using one of the methods described above.
3. Set your desired exposure parameters (aperture, shutter speed, ISO).
4. Press the shutter button halfway to activate the meter, then fully to capture the image.

3.5 Videoları Kaydetme

The Leica M (Typ 240) supports 1080p full-HD video recording. To record a video:

1. Switch the camera to video mode (if applicable, refer to the camera's menu).
2. Compose your shot and adjust focus.
3. Press the dedicated video recording button or the shutter button (depending on configuration) to start and stop recording.

3.6 Görüntü Oynatma

Yırttıview Çekilen görüntüler ve videolar:

1. Oynatma düğmesine basın.
2. Use the navigation controls to scroll through your media.
3. The 3-inch TFT LCD screen provides a clear display for reviewçekimlerinizi yapıyorum.

4. Bakım

4.1 Kamerayı Temizleme

• Kamera Gövdesi: Fotoğraf makinesinin gövdesini silmek için yumuşak, kuru bir bez kullanın. İnatçı kirler için, biraz daha yumuşak bir bez yeterli olacaktır.amp Bez kullanılabilir, ancak aşırı nemden kaçının.
• Mercek: Use a lens brush or air blower to remove dust, then gently clean with a microfiber lens cloth and a specialized lens cleaning solution if necessary.
• Sensör: Sensor cleaning should be performed with extreme care. If dust spots appear on images, it is recommended to have the sensor professionally cleaned by an authorized service center.
• LCD Ekran: Use a soft, lint-free cloth. Avoid harsh chemicals.

4.2 Depolama

When not in use, store the camera in a cool, dry place away from direct sunlight, high humidity, and extreme temperatures. Use a desiccant pack if storing in humid environments. Remove the battery if the camera will not be used for an extended period.

4.3 Pil Bakımı

Charge the battery fully before first use. For optimal battery life, avoid completely discharging the battery regularly. Store batteries in a cool, dry place. If storing for extended periods, charge them to approximately 50% capacity.

5. Sorun Giderme

5.1 Kamera Açılmıyor

• Pilin doğru takıldığından ve tamamen şarj edildiğinden emin olun.
• Check that the battery contacts are clean.
• Try a different charged battery if available.

5.2 Images Are Out of Focus

• Verify that the lens is correctly attached and the focus ring is being adjusted properly.
• Ensure you are using the rangefinder or Live View focusing aids correctly.
• Check the diopter adjustment on the viewfinder if images appear blurry through it.

5.3 Image Quality Issues (e.g., Noise, Color Cast)

• Gürültü: High ISO settings can introduce noise. Try lowering the ISO or using a brighter aperture/slower shutter speed.
• Renk Tonlaması: Check the white balance settings. Adjust to match the lighting conditions. Firmware updates may also address color rendition issues.
• Dust Spots: If dark spots appear on images, especially at smaller apertures, the sensor may require cleaning.

5.4 Memory Card Errors

• Ensure the memory card is fully inserted.
• Try formatting the card in the camera (Not: Bu işlem tüm verilerinizi silecektir.).
• Farklı, uyumlu bir hafıza kartıyla test edin.

6. Özellikler

7. Garanti ve Destek

For detailed warranty information, please refer to the warranty card included with your product or visit the official Leica webSite. Satın alma belgenizi garanti talepleriniz için saklayın.

For further assistance, technical support, or service, please contact Leica customer service or visit an authorized Leica service center. You can find more information and resources on the Amazon'daki Leica Mağazası.
