Zeiss 10x25 T-Design Selection Monocular Instruction Manual

1. Introduction to Your Zeiss 10x25 T-Design Selection Monocular

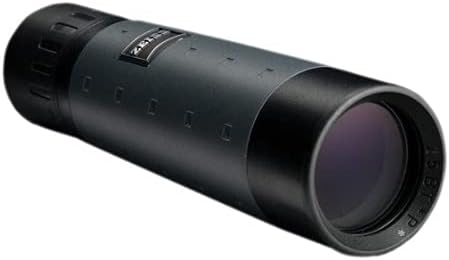

The Zeiss 10x25 T-Design Selection Monocular is engineered to provide clear, bright images with a compact and durable design. Featuring 10x magnification and a 25mm objective lens, it offers a wide field of view, making it suitable for observing distant landmarks or intricate close-up details. The monocular incorporates T* anti-reflective multi-coating for enhanced image quality and a non-slip housing for secure handling. This manual provides essential information for the proper setup, operation, and maintenance of your monocular.

2. Paket İçeriği

Lütfen aşağıda listelenen tüm öğelerin paketinizde yer aldığından emin olun:

• Zeiss 10x25 T-Design Selection Monocular
• Koruyucu Kese
• Taşıma Kayışı
• Zeiss Spray and Microfiber Lens Care Kit

3. Başlarken: Kurulum

3.1. İlk Muayene

Upon unboxing, carefully inspect your monocular and accessories for any signs of damage. If any components are missing or damaged, please contact customer support.

3.2. Taşıma Kayışının Takılması

Thread the ends of the provided carrying strap through the strap lugs located on the monocular's body. Securely fasten the strap to prevent accidental drops.

Image: Zeiss 10x25 T-Design Selection Monocular with its carrying strap attached, illustrating how the strap connects to the monocular's body for portability.

4. Operating Your Monocular

4.1. Holding the Monocular

Hold the monocular firmly in one hand. For optimal stability, brace your hand against your face or a stable surface if possible.

Image: A person's hand holding the Zeiss 10x25 T-Design Selection Monocular, demonstrating a typical grip for observation.

4.2. Odaklanma

Look through the eyepiece. Rotate the focus wheel located on the monocular until the image appears sharp and clear. The monocular is designed for easy one-handed focusing.

Resim: Yakın çekim view of the Zeiss 10x25 T-Design Selection Monocular, highlighting the textured focus wheel for adjustment.

4.3. Adjusting Eye Relief

The monocular features 15mm eye relief, allowing for comfortable viewing, especially for eyeglass wearers. Adjust the twist-up eyecup by rotating it to achieve the optimal distance between your eye and the eyepiece lens, ensuring you see the full field of view Kenar kararması olmadan.

4.4. Viewinmek

Once focused, you can use your monocular to observe distant objects with 10x magnification. Its compact size makes it ideal for quick glances and portable observation in various outdoor settings.

5. Bakım ve Onarım

5.1. Lenslerin Temizlenmesi

Use the provided Zeiss Spray and Microfiber Lens Care Kit for cleaning. First, gently brush off any loose dust or debris from the lens surfaces. Then, apply a small amount of Zeiss lens cleaning spray to the microfiber cloth and carefully wipe the lenses in a circular motion. Avoid excessive pressure.

Image: The Zeiss Lens Cleaning Kit, including a spray bottle of lens cleaner and a microfiber cloth, essential for maintaining optical clarity.

5.2. Evin Temizlenmesi

Wipe the monocular's non-slip rubber and leather housing with a soft, damp bez. Sert kimyasallar veya aşındırıcı malzemeler kullanmayın.

5.3. Depolama

When not in use, store the monocular in its protective pouch in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Sorun Giderme

6.1. Bulanık Görüntü

• Ensure the focus wheel is properly adjusted for your vision.
• Check if the lenses are clean. Refer to the cleaning instructions in Section 5.1.

6.2. Difficulty Adjusting Focus

• Verify that the eyecup is adjusted correctly for your eye relief.
• If the focus mechanism feels stiff, ensure no debris is obstructing its movement.

7. Özellikler

8. Garanti ve Destek

Zeiss products are known for their quality and reliability. For specific warranty information or technical support, please refer to the documentation included with your purchase or visit the official Zeiss website. You may also contact Zeiss customer service directly for assistance with any product-related inquiries.
