Gear Head KB7500AND Bluetooth Wireless Keyboard User Manual

1. Giriş

Thank you for choosing the Gear Head KB7500AND Bluetooth Wireless Keyboard. This keyboard is designed to provide a comfortable and efficient typing experience for your Android-compatible tablet or smartphone. Featuring Bluetooth 4.0 technology, Scissor-Click keys, and integrated hot keys, it enhances productivity and ease of use. Please read this manual carefully to ensure proper setup and operation.

2. Paket İçeriği

Lütfen paketinizde tüm öğelerin mevcut olduğundan emin olun:

• Gear Head KB7500AND Bluetooth Wireless Keyboard
• 2 adet AAA pil (önceden takılı veya ayrı olarak dahil)
• USB Cable (for potential charging or data transfer, depending on model variant)
• Kullanım Kılavuzu (bu belge)

3. Ürün Özellikleri

• Bluetooth 4.0 Certified: Ensures stable wireless connectivity up to 30 feet (approximately 9 meters) while optimizing power consumption.
• Scissor-Click Key Technology: Provides accurate and comfortable typing with precise tactile feedback.
• 10 Integrated Hot Keys: Offers one-touch access to multimedia controls, function keys, and internet functions.
• Multi-Host Keys: Allows connection to two Android devices and easy toggling between them.
• Automatic Wireless Synchronization: Designed for hassle-free pairing with compatible devices.
• LED Göstergeleri: Built-in multi-color LEDs provide visual feedback for Bluetooth connectivity and pairing status.

4. Kurulum

4.1 Pil Kurulumu

The keyboard requires 2 AAA batteries for operation. These are typically included with your purchase.

1. Klavyenin arka tarafında bulunan pil bölmesi kapağını bulun.
2. Bölmeyi açmak için kapağı kaydırın veya kaldırın.
3. Insert the 2 AAA batteries, ensuring the positive (+) and negative (-) terminals match the indicators inside the compartment.
4. Pil bölmesi kapağını güvenli bir şekilde yerine takın.

4.2 Klavyenin Açılması

Locate the power switch on the keyboard. Slide the switch to the ON position. An LED indicator will illuminate briefly, indicating the keyboard is powered on.

4.3 Pairing with an Android Device

The keyboard uses Bluetooth for wireless connection. Follow these steps to pair it with your Android tablet or smartphone:

1. Klavyenin açık olduğundan emin olun.
2. Android cihazınızda şuraya gidin: Ayarlar > Bağlı cihazlar > Bluetooth (or similar path depending on your Android version).
3. Turn on Bluetooth on your Android device. It will start scanning for nearby devices.
4. On the Gear Head KB7500AND keyboard, press the Bağlamak key (often labeled with a Bluetooth symbol or 'Pair'). The Bluetooth LED indicator on the keyboard will start blinking, indicating it is in pairing mode.
5. On your Android device, select "Gear Head KB7500AND" or a similar name from the list of available devices.
6. If prompted, enter the pairing code displayed on your Android device using the keyboard, then press Girmek.
7. Once paired, the Bluetooth LED indicator on the keyboard will stop blinking and may turn solid or turn off, and your Android device will show the keyboard as "Connected."

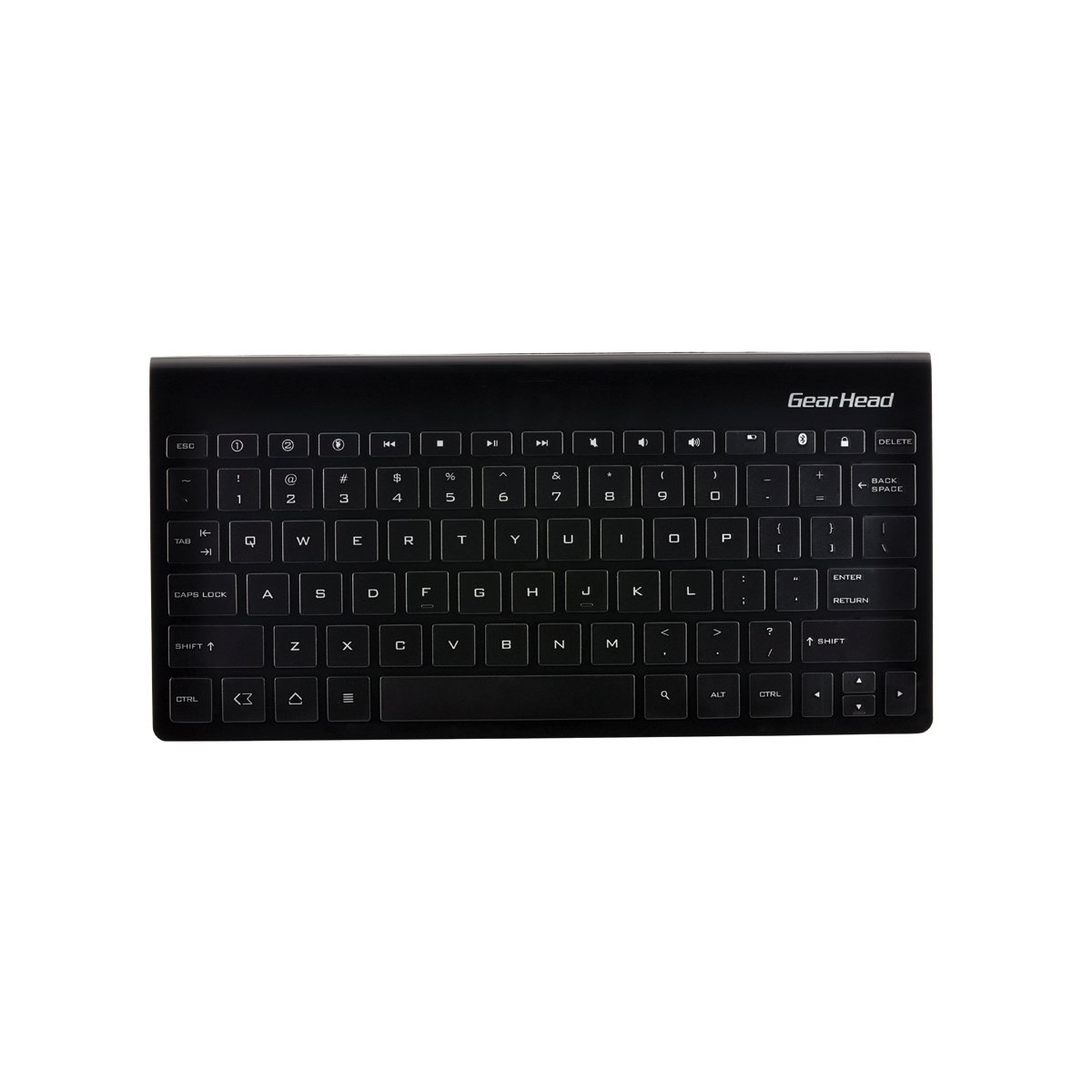

Şekil 1: Gear Head KB7500AND Bluetooth Wireless Keyboard. This image shows the overall design of the keyboard, highlighting its compact form factor and key layout, including the function keys and dedicated hot keys.

5. Kullanım Talimatları

5.1 General Typing

Once paired, the keyboard functions like a standard QWERTY keyboard. Simply open any text input application on your Android device and begin typing.

5.2 Using Integrated Hot Keys

The KB7500AND keyboard features 10 integrated hot keys for quick access to common functions. These keys are typically located along the top row of the keyboard. Refer to the key labels for their specific functions, which may include:

• Ev
• Geri
• Ara
• Sesi Aç/Azalt/Sesi Kapat
• Play/Pause, Previous/Next Track
• Tarayıcı
• E-posta

Not: The exact functionality of some hot keys may vary depending on your Android device's operating system version and specific applications.

5.3 Multi-Host Functionality

This keyboard supports connecting to two different Android devices. To switch between connected devices:

1. Pair the keyboard with your first device (Device A) as described in Section 4.3.
2. To pair with a second device (Device B), activate the pairing mode on the keyboard again (e.g., by pressing a dedicated multi-host key or the connect button).
3. Pair the keyboard with Device B following the steps in Section 4.3.
4. To switch between Device A and Device B, use the designated multi-host keys (e.g., F1/F2 or similar, check keyboard markings). Pressing the corresponding key will switch the keyboard's connection to that device.

6. Bakım

6.1 Temizlik

Klavyenizi temizlemek için yüzeyini yumuşak, kuru ve tüy bırakmayan bir bezle nazikçe silin. İnatçı kirler için hafifçe kurulayın.ampen the cloth with water or a mild, non-abrasive cleaner. Do not use harsh chemicals, solvents, or abrasive materials, as these can damage the keyboard's finish or internal components. Avoid getting moisture into the key gaps or ports.

6.2 Pil Değişimi

When the keyboard's performance degrades or the LED indicator signals low battery, replace the AAA batteries. Follow the battery installation steps in Section 4.1. Always use new, high-quality AAA batteries and dispose of old batteries responsibly according to local regulations.

6.3 Depolama

When not in use for extended periods, turn off the keyboard to conserve battery life. Store the keyboard in a cool, dry place away from direct sunlight, extreme temperatures, and excessive humidity. If storing for a very long time, consider removing the batteries to prevent leakage.

7. Sorun Giderme

If you encounter issues with your Gear Head KB7500AND keyboard, refer to the following common solutions:

• Klavye açılmıyor: Pillerin doğru şekilde takıldığından ve tamamen şarj edildiğinden emin olun. Güç anahtarının 'AÇIK' konumunda olduğundan emin olun.
• Klavye eşleştirilemiyor:
  • Android cihazınızda Bluetooth'un etkin olduğundan emin olun.
  • Make sure the keyboard is in pairing mode (blinking Bluetooth LED).
  • Move the keyboard closer to your Android device.
  • Forget the keyboard from your device's Bluetooth settings and attempt to pair again.
  • Restart both the keyboard (turn off/on) and your Android device.
• Tuşlar yanıt vermiyor veya girişlerde gecikme yaşanıyor:
  • Pil seviyesini kontrol edin ve düşükse değiştirin.
  • Ensure the keyboard is within the 30-foot operating range of your device.
  • Diğer kablosuz cihazlardan kaynaklanan paraziti en aza indirin.
  • Bluetooth bağlantısını yeniden bağlayın.
• Hot keys not working as expected:
  • Functionality may depend on your Android OS version and specific applications.
  • Ensure the keyboard is correctly paired.

Bu adımları denedikten sonra sorun devam ederse lütfen müşteri desteğiyle iletişime geçin.

8. Özellikler

9. Garanti ve Destek

Gear Head products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official Gear Head website. If you require technical assistance or have questions not covered in this manual, please contact Gear Head customer support through their official channels.
