giriiş
This manual provides essential information for the proper installation, operation, and maintenance of your Ridetech ShockWave 7000 Series HQ Shock. Designed for specific automotive applications, these shocks offer superior ride quality and durability. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.
Figure 1: Ridetech ShockWave 7000 Series HQ Shocks. These are high-quality air suspension shocks designed for automotive use, featuring a robust black air spring and silver aluminum body.
Temel Özellikler
- Single Adjustable Shock Valving: Allows for precise tuning of ride characteristics.
- Redesigned Internal Structure: Enhanced performance and reliability.
- Monotube Design: Provides superior oil control for consistent dampIng.
- Impact Forged Aluminum Construction: Ensures leak-free operation and exceptional durability.
- Geniş Uygulama Yelpazesi: Available in various stroke lengths and mounting styles to fit diverse vehicle setups.
- 24 Rebound Clicks: Offers easy and precise valve adjustment.
Kurulum ve Yükleme
Proper installation is crucial for the performance and longevity of your ShockWave units. It is highly recommended that installation be performed by a qualified automotive technician.
Kurulum Öncesi Kontroller:
- Verify that the ShockWave units are compatible with your vehicle's specific application. Recommended for solid rear axles with a rear axle weight less than 1,500 lbs. Not recommended for IFS installations due to insufficient load capacity.
- Inspect all components for any signs of shipping damage.
- Gerekli tüm alet ve güvenlik ekipmanlarına sahip olduğunuzdan emin olun.
Genel Kurulum Yönergeleri:
- Aracı güvenli bir şekilde kaldırın ve düz bir yüzeye yerleştirin.
- Remove existing suspension components as required.
- Mount the ShockWave units securely using appropriate hardware. Ensure proper alignment and clearance.
- Connect air lines to the air spring portion of the ShockWave. Use high-quality fittings and ensure all connections are leak-free.
- Route air lines away from hot or moving parts.
- Inflate the air springs to a preliminary pressure (e.g., 50-70 psi) to check for leaks and proper function.
- Lower the vehicle and adjust air pressure to achieve desired ride height and comfort.
- Perform a final check of all fasteners and connections.
Figure 2: Technical diagram illustrating the dimensions and load capacity of the ShockWave 7000 and 8000 series. The 4-inch diameter 7000 series supports 780 lbs at 100 psi, while the 5-inch diameter 8000 series supports 1200 lbs at 100 psi. Stroke lengths and corresponding measurements are also detailed.
Kullanım Talimatları
Hava Basıncı Ayarı:
The air pressure in your ShockWave units directly affects ride height and spring rate. Adjust pressure using an air compressor and a precise gauge. Always adjust both sides of the vehicle equally to maintain balance.
- For Ride Height: Increase pressure to raise the vehicle, decrease pressure to lower it.
- For Ride Firmness: Higher pressure generally results in a firmer ride; lower pressure results in a softer ride. Do not exceed maximum recommended pressure (100 psi for 7000 series).
Shock Valving Adjustment:
The HQ Series features single adjustable shock valving with 24 rebound clicks. This allows you to fine-tune the damping characteristics of your shocks.
- Locate the adjustment knob on the shock body.
- Turn the knob clockwise for a firmer rebound (more damping), and counter-clockwise for a softer rebound (less dampNS).
- Start with a mid-range setting (e.g., 12 clicks from full soft) and adjust incrementally to achieve your desired ride feel.
- Test drive the vehicle after adjustments to evaluate changes.
Bakım
Regular maintenance will help ensure the longevity and optimal performance of your Ridetech ShockWave units.
- Düzenli Muayene: Periodically inspect the air springs for any signs of wear, cracks, or punctures. Check the shock body for leaks or damage.
- Hava Yolu Bütünlüğü: Check all air lines and fittings for leaks, kinks, or abrasions. Repair or replace as necessary.
- Temizlik: Keep the shocks and air springs clean from dirt, debris, and corrosive materials. Use mild soap and water, then rinse thoroughly.
- Bağlantı Elemanı Torku: Periodically check and re-torque all mounting hardware to manufacturer specifications.

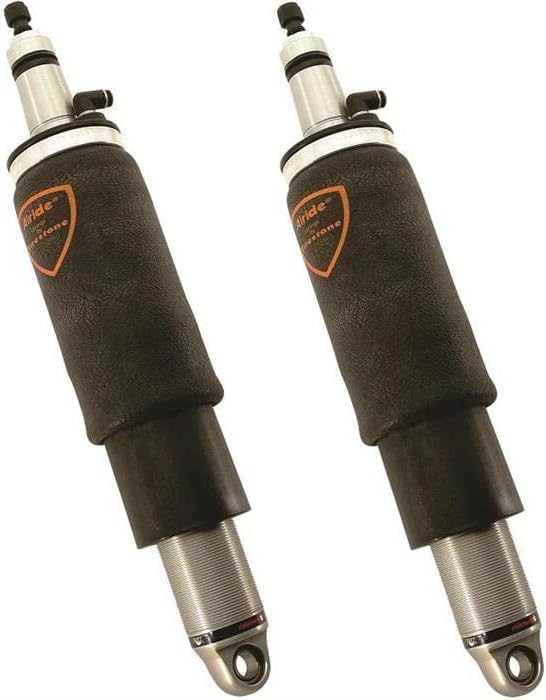

Figure 3: An alternative perspective of the Ridetech ShockWave 7000 Series HQ Shocks, highlighting their robust construction and design. Regular inspection of these components is vital for optimal performance.
Sorun giderme
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Vehicle not maintaining ride height / Air leak | Loose air line fittings, damaged air line, punctured air spring, faulty valve. | Check all air connections for leaks using soapy water. Repair or replace damaged lines/fittings. Inspect air spring for damage. Consult a professional if leak persists. |
| Poor ride quality / Excessive bounce | Incorrect air pressure, improper shock valving adjustment. | Adjust air pressure to recommended levels. Adjust shock valving (rebound clicks) to a firmer setting. |
| Dengesiz sürüş yüksekliği | Unequal air pressure in left/right shocks, component binding. | Verify and equalize air pressure in both shocks. Check for any obstructions or binding in the suspension components. |
Özellikler
| Marka | RideTech |
| Model Numarası | 21150701 |
| Seri | ShockWave 7000 Series HQ |
| Otomatik Parça Konumu | Arka |
| Araç Servis Tipi | Kamyon |
| Malzeme | Alüminyum |
| Diameter (7000 Series) | 4 inç |
| Load Capacity (7000 Series) | 780 lbs @ 100 psi |
| Shock Valving | Single Adjustable (24 Rebound Clicks) |
| Ürün Ağırlığı | 26.2 pound |
| Ürün Boyutları | 27 x 11.5 x 5.8 inç |
Garanti ve Destek
Ridetech products are manufactured to high standards. For specific warranty information and terms, please refer to the documentation included with your purchase or visit the official Ridetech website. For technical support, installation assistance, or parts inquiries, please contact Ridetech customer service directly.
Not: Yetkisiz değişiklikler veya hatalı montaj, ürün garantisini geçersiz kılabilir.
