giriiş
This manual provides detailed instructions for the installation, operation, and maintenance of your Hifonics HFi3000D Class D Mono Car AmpLütfen kurulum veya çalıştırma işlemine başlamadan önce bu kılavuzu dikkatlice okuyun. Bu sayede cihazın doğru şekilde kullanılmasını sağlayabilir ve cihaza veya aracınızın ses sistemine zarar gelmesini önleyebilirsiniz.
Güvenlik Önlemleri
- Herhangi bir elektrik işine başlamadan önce mutlaka aracın aküsünün negatif kutbunu ayırın.
- Ensure all wiring is properly routed and secured to prevent shorts or damage.
- Belirtildiği gibi, güç ve topraklama bağlantıları için uygun kalınlıkta kablo kullanın.
- monte etmekten kaçının ampDoğrudan güneş ışığına, aşırı sıcağa veya neme maruz kalan bölgelerde daha uzun süre dayanır.
- Montaj sürecinin herhangi bir aşamasından emin değilseniz, profesyonel bir araç ses sistemi montajcısına danışın.
Temel Özellikler
The Hifonics HFi3000D amplifier is designed for high-performance audio, incorporating several advanced features:
- HFi Series Single Channel Class D Car Ampkaldırıcı: Efficient power delivery for subwoofers.
- Pulse Width Modulated (PWM) MOSFET Power Supply: Ensures stable and efficient power.
- 1 Ohm Kararlı: Capable of driving low impedance loads for maximum power output.
- Blue “Military Grade” PCB: Durable and high-quality circuit board.
- Bass EQ with 45 Hz Bass Boost: Adjustable bass enhancement (0 to +10 dB).
- RCA Inputs and Outputs: For signal connection and daisy-chaining multiple ampcankurtaranlar
- Built-in System Diagnostics: İzlemek için amplifer durumu.
- Illuminated HF Logo: Aesthetic design element.
- LED Power (Blue) and Protect (Red) Indicators: Görsel durum geri bildirimi.
- Wired HFR-3 Remote Bass Level Control: Convenient adjustment of bass from the driver's seat.
- Soft Start Sound Function: Çalıştırma sırasında oluşan vuruntu seslerini önler.
- 4-Way System Protection Circuitry: Guards against thermal, overload, DC, and speaker short conditions.
- Dual 12 Gauge Speaker Terminals: Simplifies speaker wire connections.
- Heavy Duty Aluminum Alloy Vented Heatsink: Etkin ısı dağılımı sağlar.
- Silver Nickel-Plated RCA Level Inputs and Screw Terminals: For optimal signal transfer and secure connections.
Kurulum ve Kurulum
Doğru kurulum, cihazınızın performansı ve uzun ömürlülüğü için çok önemlidir. amplifier. Bu adımları dikkatlice izleyin.
1. Montaj Yeri
Choose a mounting location that is dry, well-ventilated, and away from direct heat sources. The amplifier is designed for car mount installation. Ensure there is sufficient space around the heatsink for proper airflow. Avoid mounting on carpet or in enclosed spaces without ventilation.
Resim: Ön view of the Hifonics HFi3000D amplifier, showing the Hifonics logo and model number.
2. Güç Kablolaması
- Battery Connection (BATT+12V): Run a heavy-gauge power cable (e.g., 4-gauge or larger, depending on total system power) directly from the positive terminal of the vehicle's battery to the BATT+12V terminal on the amplifier. Install an appropriate fuse holder with a fuse (not included) within 18 inches (45 cm) of the battery.
- Toprak Bağlantısı (GND): Run a heavy-gauge ground cable of the same size as the power cable from the GND terminal on the ampAracın şasisinde temiz, boyasız bir metal yüzeye yapıştırın. Sağlam ve düşük dirençli bir bağlantı sağlayın.
- Uzaktan Açma (REM): Connect a remote turn-on wire (typically 18-gauge) from your head unit's remote output to the REM terminal on the ampKaldırıcı. Bu tel, onu döndürür. ampAmplifikatörü araçtaki ana üniteyle birlikte açıp kapatabilirsiniz.
Resim: Arka view of the Hifonics HFi3000D amplifier, showing the power input (BATT+12V, GND), remote turn-on (REM), and speaker output terminals.
3. Signal Input (RCA)
Connect RCA cables from your head unit's subwoofer or full-range pre-out to the RCA input jacks on the amplifier. If daisy-chaining multiple amplifiers, use the RCA output jacks to send the signal to the next ampcankurtaran.
4. Hoparlör Çıkışı
Connect your subwoofer(s) to the dual 12 gauge speaker terminals. Ensure correct polarity (+ to + and - to -). The HFi3000D is a mono amplifier and is 1 Ohm stable. Verify your subwoofer's impedance matches the ampLifier'ın yetenekleri.
5. Remote Bass Control (HFR-3)
Connect the wired HFR-3 remote bass level control to the designated port on the amplifier. Mount the control in a convenient location for easy adjustment of bass levels from the driver's seat.

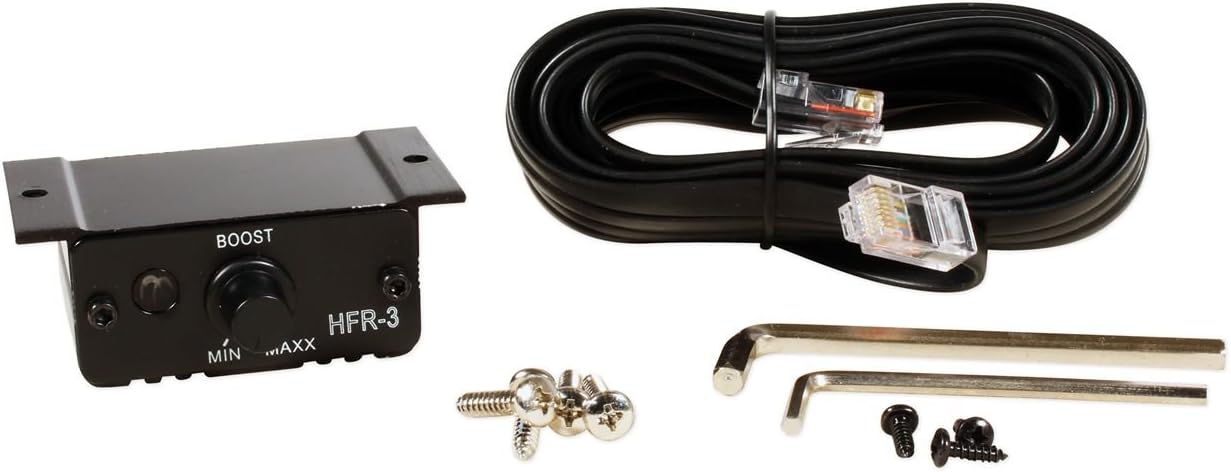

Image: The HFR-3 wired remote bass level control, connecting cable, and mounting hardware included with the ampcankurtaran.
Operasyon
Güç Açık/Kapalı
The amplifier will power on automatically when your head unit is turned on, thanks to the remote turn-on connection. The blue LED indicator will illuminate, signifying normal operation. The soft start sound function prevents abrupt audio output upon power-up.
Adjusting Bass Boost
Use the wired HFR-3 remote bass level control to adjust the bass output from 0 to +10 dB at 45 Hz. Start with the bass boost at its minimum setting and gradually increase it to achieve your desired bass level without distortion.
Sistem Koruması
The amplifier features 4-way system protection circuitry. If the red "Protect" LED illuminates, it indicates one of the following conditions:
- Termal aşırı yükleme: The amplifier has overheated. Allow it to cool down. Ensure adequate ventilation.
- Electrical Overload: The amplifier is drawing too much current. Check speaker impedance and wiring.
- DC Ofseti: DC cilttage is detected on the speaker outputs. This usually indicates an internal fault.
- Speaker Short: A short circuit is detected in the speaker wiring or the speaker itself. Inspect all speaker connections.
In case of a protection fault, the amplifier will shut down to prevent damage. Resolve the issue before attempting to power on the amptekrar lifer.
Bakım
The Hifonics HFi3000D amplifier requires minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:
- Temizlik: Periyodik olarak silin amplifier's exterior with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners. Ensure the heatsink fins are free from dust and debris to maintain efficient cooling.
- Bağlantı Kontrolleri: Annually, inspect all power, ground, remote, RCA, and speaker connections. Ensure they are secure and free from corrosion. Loose connections can lead to poor performance or damage.
- Havalandırma: Sağlamak amplifier's mounting location remains well-ventilated. Do not obstruct the heatsink or airflow around the unit.
Sorun giderme
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Güç Yok (LED'ler Yanmıyor) |
|
|
| Protect LED (Red) is On |
|
|
| Ses Çıkışı Yok |
|
|
| Bozuk ses |
|
|
Özellikler
| Özellik | Detay |
|---|---|
| Model Numarası | HFi3000D |
| Marka | Hifonik |
| Ampkaldırıcı Tipi | Class D Mono Channel |
| Çıkış Gücü | 3000 Watt RMS |
| Minimum Tedarik Hacmitage | 12 Volt (DC) |
| Maksimum Arz Hacmitage | 14.5 Volt (DC) |
| Empedans Kararlılığı | 1 Ohm Kararlı |
| Bas Kuvvetlendirme | 45 Hz'de 0 ila +10 dB |
| Boyutlar (U x G x Y) | 24.5 x 10.5 x 3.5 inç |
| Ürün Ağırlığı | 16.6 pound |
| Koruma Devresi | Thermal, Overload, DC, Speaker Short |
Garanti Bilgileri
Hifonics products are designed and manufactured to the highest quality standards. For specific warranty terms and conditions applicable to your HFi3000D amplifier, please refer to the warranty card included with your product or visit the official Hifonics webSite. Satın alma belgenizi garanti talepleriniz için saklayın.
Müşteri Desteği
If you encounter any issues or have questions regarding your Hifonics HFi3000D amplifier that are not covered in this manual, please contact Hifonics customer support. You can typically find contact information on the official Hifonics websitede veya ürün ambalajında yer almamaktadır.
Hifonics Official Webalan: www.hifonics.com (Not: Bu bir yer tutucudur URL, please verify the actual Hifonics support webalan.)
