giriiş
This manual provides essential information for the safe and correct installation, operation, and maintenance of the Frigidaire 318004900 Range Switch. This component is a genuine Original Equipment Manufacturer (OEM) replacement part designed for specific Frigidaire range models. Please read all instructions carefully before attempting any installation or repair.
Güvenlik Bilgileri
WARNING: Risk of electric shock. Disconnect power to the appliance before servicing. Failure to do so can result in serious injury or death.
- Always disconnect the appliance from its power source before beginning any repair or installation.
- Eldiven ve koruyucu gözlük gibi uygun kişisel koruyucu ekipman kullanın.
- If you are unsure about your ability to perform this repair safely, consult a qualified appliance technician.
- Ensure all connections are secure and correctly wired before restoring power.
Paket İçeriği
Paketinizin aşağıdaki öğeyi içerdiğini doğrulayın:
- One (1) Frigidaire 318004900 Range Switch

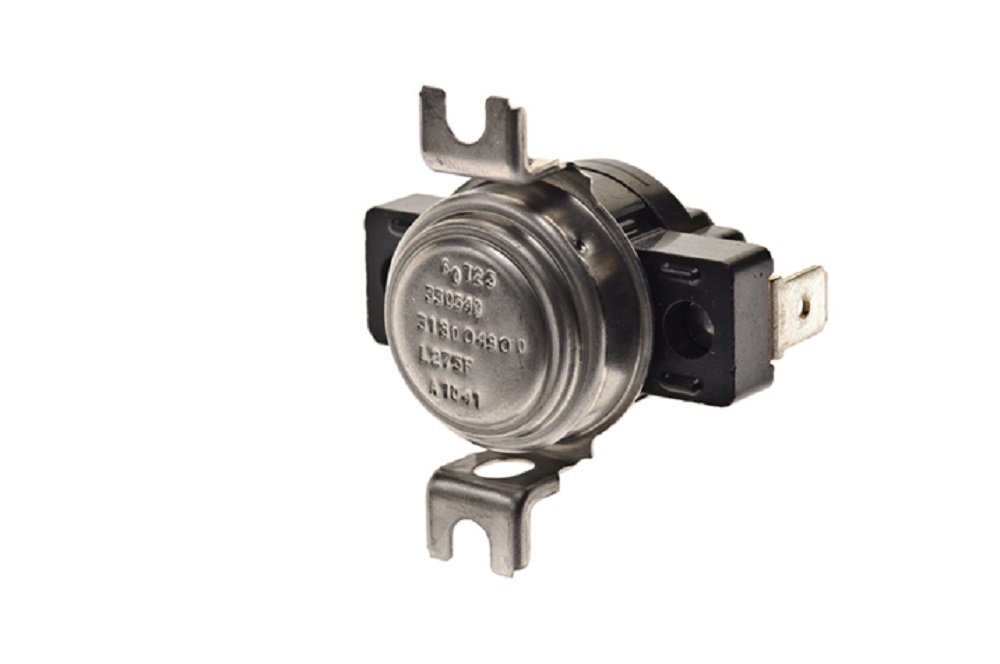

Image: The Frigidaire 318004900 Range Switch component.
Kurulum ve Yükleme
This section outlines the general steps for replacing a range switch. Specific steps may vary depending on your appliance model. Always refer to your appliance's service manual for detailed instructions.
Kurulum Öncesi Kontrol Listesi:
- Ensure the new switch, part number 318004900, matches the original part.
- Gather necessary tools (e.g., screwdrivers, nut drivers, wire strippers).
- Confirm the appliance is disconnected from all power sources.
Image: Frigidaire 318004900 Range Switch with a message to confirm part number with appliance manufacturer.
Kurulum Adımları:
- Gücü Kesin: Turn off the circuit breaker or unplug the range from the wall outlet.
- Switch'e erişin: Depending on your range model, you may need to remove the back panel, control panel, or cooktop to access the infinite switch.
- Belge Bağlantısı: Before disconnecting any wires, take a photograph or draw a diagram of the existing wiring connections to the old switch. This is crucial for correct reassembly.
- Eski Anahtarı Kaldır: Carefully disconnect all wires from the old switch. Then, unmount the old switch from its housing.
- Yeni Anahtarı Yükle: Mount the new Frigidaire 318004900 switch in the same position as the old one.
- Kablolamayı Bağlayın: Using your photograph or diagram, connect the wires to the new switch. Ensure all connections are tight and secure.
- Cihazı yeniden monte edin: Anahtara erişmek için çıkarılan tüm panelleri veya bileşenleri tekrar takın.
- Gücü Geri Yükle: Turn the circuit breaker back on or plug the range back into the wall outlet.
- Test İşlevselliği: Test the range burner controlled by the new switch to ensure it operates correctly.
Kullanım Talimatları
The Frigidaire 318004900 Range Switch is an infinite switch designed to regulate the heat output of a surface burner on your range. Once installed, its operation is integrated with your appliance's control knob. Turning the control knob will send varying levels of power to the burner, allowing you to select the desired heat setting from low to high.
- Ensure the control knob is properly seated on the switch shaft.
- Rotate the knob to the desired heat setting. The switch will then regulate power to the burner.
- Turn the knob to the 'OFF' position when cooking is complete.
Bakım
The Frigidaire 318004900 Range Switch is a sealed component and does not require routine maintenance. However, periodic inspection of the wiring connections can help ensure continued safe operation.
- Yıllık inceleme: With power disconnected, visually inspect the wiring connected to the switch for any signs of wear, fraying, or loose connections.
- Temizlik: If the area around the switch becomes dirty, ensure power is disconnected and gently clean with a dry cloth. Avoid using liquids near electrical components.
Sorun giderme
If you experience issues after replacing the range switch, consider the following:
- Brülör Isıtmıyor:
- Check if the circuit breaker for the range is tripped.
- Verify all wires are securely connected to the switch and the burner element.
- Ensure the control knob is correctly aligned and engaging the switch shaft.
- Burner Only Heats on High/Low:
- This could indicate a faulty switch or incorrect wiring. Re-check wiring against your diagram.
- Sparking or Burning Smell:
- Immediately disconnect power to the appliance. This indicates a serious electrical issue. Do not restore power until the problem is identified and corrected by a qualified technician.
Sorun giderme adımları sorunu çözmezse, yetkili bir beyaz eşya tamir teknisyenine başvurun.
Özellikler
| Bağlanmak | Değer |
|---|---|
| Parça Numarası | 318004900 |
| Marka | Buzdolabı |
| Ürün Ağırlığı | 0.8 ons |
| Ürün Boyutları | 8 x 8 x 8 inç (paketleme/kargolama boyutları) |
| Ürün Model Numarası | 318004900 |
Image: Frigidaire 318004900 Range Switch with approximate dimensions: Length 2 inches, Width 1.5 inches, Height 1.4 inches.
Uyumlu Modeller
The Frigidaire 318004900 Range Switch is compatible with the following Frigidaire range models:
- Frigidaire 30-3989-00-02
- Frigidaire 31-3437-66-01
- Frigidaire 77-4957-00-05
- Frigidaire 77-4957-00-06
- Frigidaire 77-4957-00-07
Satın almadan önce daima belirli cihaz modelinizle uyumluluğunu doğrulayınasinve herhangi bir yedek parçanın takılması.
Garanti Bilgileri
Specific warranty details for the Frigidaire 318004900 Range Switch are not provided in the product data. For information regarding warranty coverage, please contact Frigidaire customer support or refer to the documentation that came with your original appliance.
Müşteri Desteği
For further assistance, technical support, or to inquire about parts, please visit the official Frigidaire websitesine bakın veya müşteri hizmetleri departmanıyla iletişime geçin.
