giriiş
This manual provides detailed instructions for the installation, operation, and maintenance of your Moen Weymouth TS21104ORB Two-Handle Diverter Roman Tub Faucet with Hand Shower. Please read this manual thoroughly before beginning installation or use to ensure proper function and longevity of your product. Keep this manual for future reference.
Ürün Bittiview
The Moen Weymouth TS21104ORB Roman Tub Faucet features a classic design with two handles for precise control over water flow and temperature, along with a diverter for the included hand shower. The Oil Rubbed Bronze finish provides a distinctive aesthetic. This faucet is designed for deck-mount installation on a Roman tub.

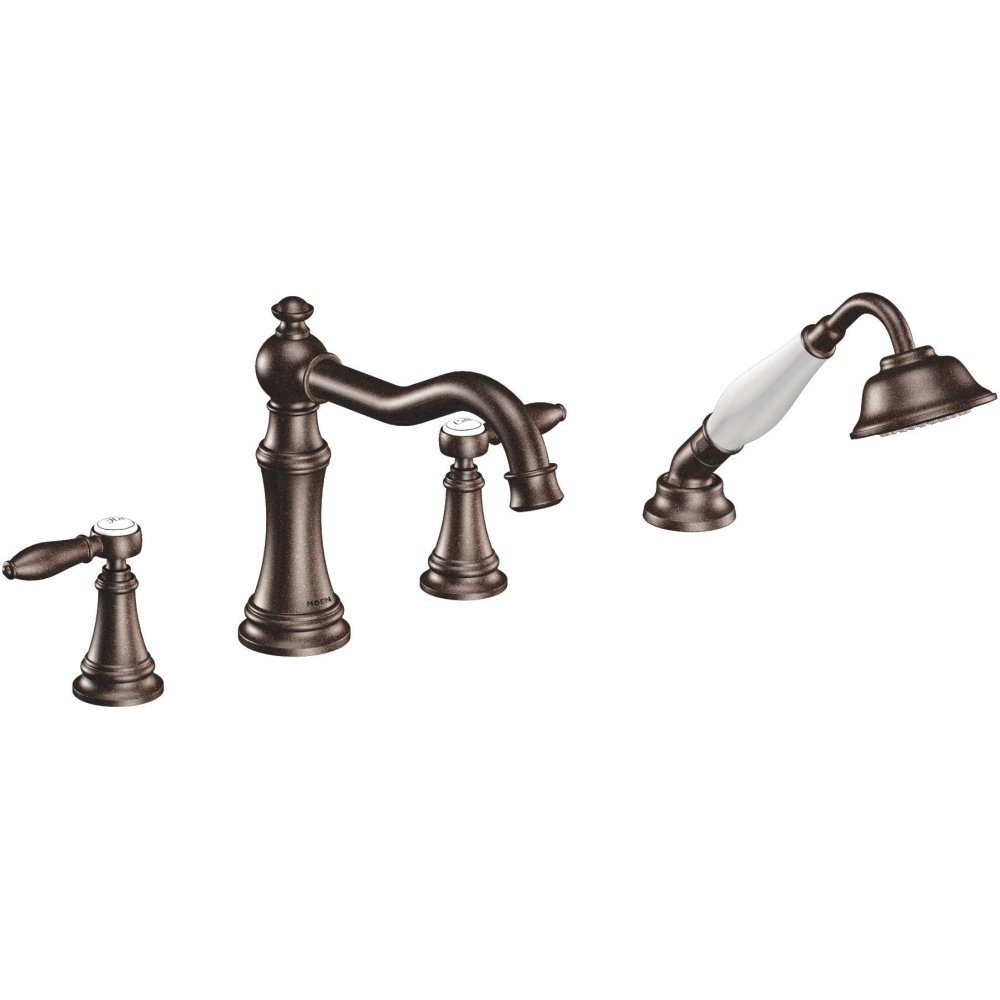

Image: The Moen Weymouth TS21104ORB Two-Handle Diverter Roman Tub Faucet in Oil Rubbed Bronze, showcasing its elegant design and integrated hand shower.
Temel Özellikler:
- Unique Finish: Oil-Rubbed Bronze finish offers a rich, dark brown, Old World appearance with striking light and dark accents.
- Integrated Hand Shower: Includes a single-function hand shower for added convenience.
- M-PACT Ortak Vana Sistemi: Built on the Moen M-PACT common valve system, allowing for future style updates without replacing plumbing.
- Two-Handle Control: Provides precise control over water temperature and flow.
Özellikler
| Özellik | Detay |
|---|---|
| Marka | Moen |
| Model Numarası | TS21104ORB |
| Renk | Yağlanmış Bronz |
| Malzeme | Porcelain, Bronze |
| Bitiş Türü | Bronz |
| Kol Sayısı | 2 |
| Sap Malzemesi | Pirinç |
| Ürün Ağırlığı | 4.87 Pound |
| Montaj Tipi | Duvara Montaj |
| Ürün Boyutları | 9.13 x 16 x 7.31 inç |
| Akış Hızı | Dakikada 1.75 Galon |
| Delik Sayısı | 4 |
| Emzik ulaşmak | 8.1 inç |
Kurulum ve Yükleme
Installation of this Roman tub faucet requires specific plumbing knowledge and tools. It is recommended that installation be performed by a qualified professional to ensure proper function and to comply with local plumbing codes.
Gerekli Vana:
This faucet trim kit requires a compatible Moen M-PACT valve. The following valve models are sold separately and are required for installation: #9792, #9793, #9796, or #9797.
Genel Kurulum Adımları (Ayrıntılı bilgi için kurulum kılavuzuna bakın):
- Kurulum Alanını Hazırlayın: Ensure the water supply is turned off at the main shut-off valve. Clear the area around the Roman tub.
- Mount the Valve Body: Install the chosen Moen M-PACT valve body according to its specific instructions.
- Install Faucet Components: Secure the spout, handles, and hand shower diverter onto the tub deck, connecting them to the valve body.
- El Duşu Bağlantısı: Attach the hand shower hose to the diverter and the hand shower head.
- Sızıntı Testi: Su vanasını yavaşça açın ve tüm bağlantı noktalarında sızıntı olup olmadığını kontrol edin.
Kullanım Talimatları
Your Moen Weymouth Roman Tub Faucet is designed for ease of use, providing comfortable control over your bathing experience.
Controlling Water Flow and Temperature:
- Sol Sap: Controls the hot water flow. Turn counter-clockwise to increase hot water.
- Sağ Kulp: Controls the cold water flow. Turn counter-clockwise to increase cold water.
- Sıcaklık Ayarı: Mix hot and cold water by adjusting both handles until the desired temperature is achieved.
- Kapatma: Turn both handles clockwise until the water flow stops completely.
Using the Hand Shower:
The hand shower provides a flexible option for rinsing or targeted cleaning.
- Activate Diverter: Once the tub faucet is running, pull up the diverter knob (typically located on the spout or between the handles) to redirect water flow to the hand shower.
- Use Hand Shower: Direct the hand shower as needed.
- Return to Faucet: Push the diverter knob back down to return water flow to the main tub spout.
Image: A hand holding a Moen hand shower, demonstrating its use for rinsing.
Bakım ve Özen
Proper care and maintenance will help preserve the finish and functionality of your Moen faucet.
Bitişin Temizlenmesi:
- Musluğu düzenli olarak yumuşak bir bezle temizleyin.amp Kumaş.
- Use only mild soap and water. Avoid abrasive cleaners, harsh chemicals, or polishes that could damage the Oil Rubbed Bronze finish.
- After cleaning, rinse thoroughly with water and dry with a soft cloth to prevent water spots.
Havalandırıcı Bakımı:
Su akışı azalırsa, havalandırıcı tıkanmış olabilir. Havalandırıcıyı musluğun ucundan sökün, biriken kalıntıları temizleyin ve tekrar takın.
Sorun giderme
If you encounter issues with your faucet, refer to the following common troubleshooting tips. For more complex problems, contact Moen customer support.
Düşük Su Akışı:
- Check Aerator: The aerator may be clogged with debris. Clean or replace it.
- Su Kaynağını Kontrol Edin: Hem sıcak hem de soğuk su vanalarının tamamen açık olduğundan emin olun.
Leaks from Spout or Handles:
- Bağlantıları Sıkın: Tüm bağlantıların sıkılığını kontrol edin. Aşırı sıkmayın.
- Inspect Cartridges: Worn or damaged cartridges can cause leaks. Replacement may be necessary.
Sıcaklık Sorunları:
- Verify Water Heater: Ensure your water heater is functioning correctly and set to an appropriate temperature.
- Check Supply Lines: Confirm that hot and cold supply lines are connected correctly.
Garanti ve Destek
Your Moen Weymouth TS21104ORB Two-Handle Diverter Roman Tub Faucet is backed by Moen’s Limited Lifetime Warranty. This warranty covers defects in material and manufacturing workmanship for the original consumer purchaser. For detailed warranty information, claims, or technical assistance, please refer to the official Moen webWeb sitesini ziyaret edin veya doğrudan Moen müşteri hizmetleriyle iletişime geçin.
For further support or to purchase replacement parts, visit the Moen Store veya müşteri hizmetleri departmanıyla iletişime geçin.
