Protech 62-24268-03 Integrated Furnace Control Board Instruction Manual

1. Giriş

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Protech 62-24268-03 Integrated Furnace Control Board. This control board is designed to manage the various functions of a furnace, ensuring proper heating system performance. Please read all instructions thoroughly before proceeding with any installation or service.

2. Önemli Güvenlik Bilgileri

UYARI: Yanlış kurulum, ayarlama, değişiklik, servis veya bakım, maddi hasara, kişisel yaralanmaya veya can kaybına neden olabilir. Kurulum ve servis yetkili bir kurulumcu, servis acentesi veya gaz tedarikçisi tarafından gerçekleştirilmelidir.

• Always disconnect electrical power to the furnace before servicing.
• Ensure gas supply is turned off before working on gas components.
• Montaj ve servis işlemleri sırasında uygun kişisel koruyucu ekipman (KKD) kullanın.
• Kablolama şemasına göre tüm kablo bağlantılarının sağlam ve doğru olduğundan emin olun.
• Herhangi bir güvenlik cihazını atlamayın.
• Keep the area around the furnace clear of combustible materials.

3. Ürün Bittiview

The Protech 62-24268-03 is an integrated furnace control board designed for specific Rheem/Ruud furnace models. It serves as the central control unit for the furnace's operational sequences, including ignition, flame sensing, and blower motor control.

3.1 Kit İçeriği

This kit typically includes the following components:

• 1 x 62-102635-01 Integrated Furnace Control Board
• 1 x 90-24314-04 Wiring Diagram
• 1 x 92-26177-555 Instruction Sheet
• 1 x AS-50208-31-CY Wire Assembly

3.2 Ürün Boyutları

The control board measures approximately 8.8 inches (L) x 2.4 inches (W) x 7.4 inches (H).

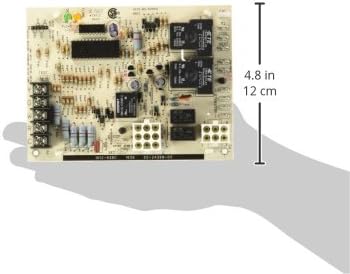

Image: The Protech 62-24268-03 Integrated Furnace Control Board, shown with approximate dimensions of 4.8 inches (12 cm) in width, indicating its compact size for furnace integration.

Resim: Ayrıntılı view of the Protech 62-24268-03 Integrated Furnace Control Board, highlighting its various electronic components, relays, and wiring terminals.

4. Kurulum Talimatları

NOT: Tüm kontrol cihazları lisanslı bir profesyonel tarafından kurulmalıdır. Bu kontrol cihazını kurmadan veya çalıştırmadan önce tüm talimatları dikkatlice okumamak ve uygulamamak kişisel yaralanmaya ve/veya maddi hasara neden olabilir.

4.1 Uyumluluk

This control board is compatible with the following Rheem/Ruud models:

• RGLK - All models
• RGLQ - Models with gas code: FJ, FO, GO
• RGPK - All models
• RGPQ - Models with gas code: FJ, FO, GO
• UGLK - All models
• UGLQ - Models with gas code: FJ, FO, GO
• UGPK - All models
• UGPQ - Models with gas code: FJ, FO, GO

The gas code refers to the first two digits of the unit's serial number.

4.2 Kurulum Öncesi Adımlar

1. Gücü Kesin: Turn off all electrical power to the furnace at the main service panel.
2. Gazı kapatın: Close the manual gas shut-off valve to the furnace.
3. Erişim Kontrol Panosu: Mevcut kontrol panosunu bulmak için fırın erişim panelini açın.
4. Belge Bağlantısı: Carefully label all wires connected to the old control board before disconnecting them. Take photos for reference if necessary.

4.3 Kartın Değiştirilmesi

1. Eski Panoyu Kaldır: Disconnect all labeled wires and mounting screws from the old control board. Carefully remove it.
2. Yeni Kartı Takın: Mount the new Protech 62-24268-03 control board in the same location as the old one, securing it with screws.
3. Kablolamayı Bağlayın: Reconnect all wires to the new board according to your labels and the provided wiring diagram (90-24314-04). Ensure all connections are firm and correct.
4. Wire Assembly: Utilize the AS-50208-31-CY wire assembly as needed for proper connections.

4.4 Kurulum Sonrası Adımlar

1. Güvenli Panel: Fırın erişim panelini kapatın ve sabitleyin.
2. Restore Gas: Open the manual gas shut-off valve.
3. Gücü Geri Yükle: Turn on electrical power to the furnace at the main service panel.
4. Test İşlemi: Initiate a heating cycle from the thermostat to verify proper furnace operation. Observe the ignition sequence and ensure the furnace operates as expected.

5. Operasyon

The Protech 62-24268-03 Integrated Furnace Control Board automatically manages the furnace's heating cycle. Once installed and powered, it will:

• Receive a call for heat from the thermostat.
• Initiate the inducer motor to purge combustion gases.
• Activate the igniter to light the main burners.
• Monitor the flame presence via the flame sensor.
• Engage the main blower motor to distribute heated air.
• Shut down the heating cycle when the thermostat's set point is reached.

The board also incorporates safety features to prevent operation under unsafe conditions, such as flame failure or overheating.

6. Bakım

The Protech 62-24268-03 Integrated Furnace Control Board is designed for reliable operation and generally requires no specific maintenance. However, regular professional furnace maintenance is crucial for the overall health of your heating system.

• Ensure the furnace area remains clean and free of dust and debris.
• Have your furnace inspected annually by a qualified HVAC technician. This includes checking electrical connections, cleaning components, and verifying proper operation of all safety devices.
• Do not attempt to clean the control board with liquids or abrasive materials.

7. Sorun Giderme

Many furnace control boards include diagnostic LED lights that flash codes to indicate specific issues. Refer to your furnace's specific diagnostic chart (often found on the furnace cover) in conjunction with the control board's instruction sheet (92-26177-555) for detailed troubleshooting.

Sık Karşılaşılan Sorunlar ve Genel Tavsiyeler:

• Isı yok: Check thermostat settings, ensure power and gas supply are on. Look for diagnostic codes on the control board.
• Aralıklı operasyon: Could indicate a loose connection, a failing sensor, or an intermittent fault on the board.
• Üfleyici Çalışmıyor: Check for thermostat fan settings, or issues with the blower motor or its relay on the board.
• Repeated Ignition Lockout: Often related to flame sensor issues, gas supply problems, or igniter malfunction.

If you are unable to resolve an issue, contact a qualified HVAC technician for assistance. Do not attempt repairs beyond your skill level, as this can lead to further damage or safety hazards.

8. Özellikler

9. Garanti ve Destek

9.1 Garanti Bilgileri

Unless otherwise noted, all items carry a one-year limited warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

9.2 Müşteri Desteği

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact your authorized ProTech dealer or a qualified HVAC professional.
