Power Acoustik PCX-5F 5-Farad Capacitor Instruction Manual

1. Giriş

The Power Acoustik PCX-5F 5-Farad Capacitor is designed to provide stable voltage to your car audio amplifier, enhancing sound quality and system performance. This manual provides essential information for the safe installation, operation, and maintenance of your capacitor.

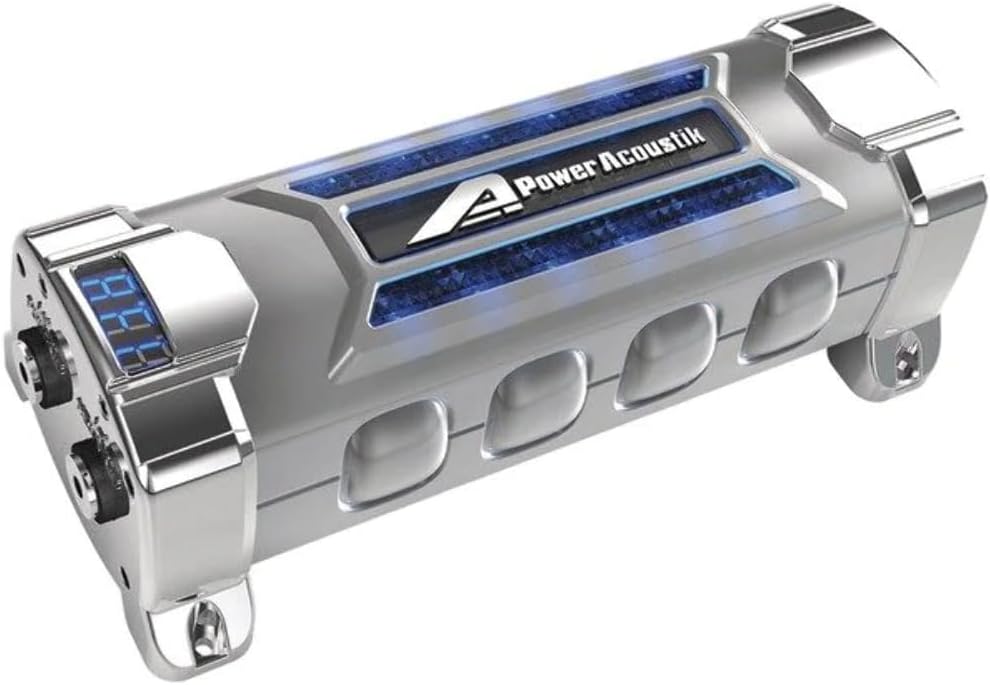

Image 1.1: The Power Acoustik PCX-5F 5-Farad Capacitor. This image displays the capacitor's cylindrical design, digital voltage meter, and terminal posts, highlighting its satin finish with chrome accents.

2. Güvenlik Bilgileri

UYARI: Bu ürün, Kaliforniya eyaleti tarafından kansere, doğum kusurlarına veya diğer üreme sistemi hasarlarına neden olduğu bilinen kimyasallar içermektedir. Dikkatli kullanın ve kullandıktan sonra ellerinizi yıkayın.

• Always disconnect the vehicle's battery before installation.
• Ensure proper polarity during connection to prevent damage to the capacitor or other components.
• Kısa devrelerden kaçının.
• Do not expose the capacitor to excessive moisture or extreme temperatures.
• Kurulum adımlarından herhangi biri konusunda emin değilseniz profesyonel bir araç ses sistemi montajcısına danışın.

3. Ürün Özellikleri

• Kapasite: 5 Farad for stable power delivery.
• Çalışma Hacmitage: Designed for 12-16 DC Volts operation.
• Dijital Sestage Sayaç: Integrated display for real-time voltage izleme.
• Terminal Posts: Equipped with terminal posts suitable for ring terminals.
• Koruma Göstergeleri: Features polarity and voltage protection alert indicators.
• Estetik Tasarım: LED accent lighting with a satin finish and chrome accents.

4. Kutuda Neler Var?

Paketleri açtığınızda tüm eşyaların mevcut olduğundan emin olun:

• Power Acoustik PCX-5F 5-Farad Capacitor
• Kullanım Kılavuzu (bu belge)

5. Kurulum ve Kurulum

Proper installation is crucial for the capacitor's performance and safety. Follow these general guidelines:

1. Pilin Bağlantısını Kes: Aracınızın aküsünün negatif terminalini sökerek, elektriksel kısa devreleri önleyin.
2. Montaj Yeri: Choose a secure, dry location close to your amplifier, ensuring good ventilation and away from heat sources. Use appropriate mounting hardware (not included) to firmly secure the capacitor.
3. Kablolama:
   • Connect the positive (+) terminal of the capacitor to the positive (+) terminal of your amplifier using a short, heavy-gauge power cable.
   • Connect the negative (-) terminal of the capacitor to a solid chassis ground point or the negative (-) terminal of your amplifier using a short, heavy-gauge ground cable.
   • Connect the main power cable from the vehicle's battery (with an inline fuse) to the positive (+) terminal of the capacitor.
4. Charging the Capacitor:

   Before connecting the capacitor directly to the power source, it must be charged to prevent a sudden current surge. Use a resistor (typically 1000 ohm, 1/2 watt) connected in series between the positive battery cable and the capacitor's positive terminal. Wait approximately 30-60 seconds until the voltage display stabilizes, then remove the resistor and make the final direct connection.

5. Pili Yeniden Bağlayın: Once all connections are secure and the capacitor is charged, reconnect the vehicle's negative battery terminal.

Not: Detailed wiring diagrams and resistor specifications may vary. Refer to your amplifier's manual and consult a professional if needed.

6. Operasyon

The PCX-5F capacitor operates automatically once installed and charged. Its primary function is to store and release electrical energy rapidly to stabilize the voltage supplied to your amplifier, especially during high-demand bass notes.

• Dijital Sestage Sayaç: The integrated digital display shows the current voltage of your car's electrical system at the capacitor. This allows for real-time monitoring of your system's stability.
• LED Accent Lighting: The LED lighting provides a visual indication of operation and adds to the aesthetic appeal of your car audio setup.
• Koruma Göstergeleri: Polarite ve hacimtage protection alert indicators will activate if an incorrect connection or an unsafe voltage level is detected, helping to prevent damage.

7. Bakım

The Power Acoustik PCX-5F capacitor requires minimal maintenance to ensure long-term performance.

• Düzenli Muayene: Tüm kablo bağlantılarının sıkı ve korozyonsuz olduğundan emin olmak için düzenli olarak kontrol edin.
• Temizlik: Keep the capacitor clean and free of dust and debris. Use a soft, dry cloth for cleaning. Do not use harsh chemicals or abrasive cleaners.
• Çevresel Koşullar: Ensure the capacitor remains in a dry environment and is not exposed to extreme temperatures, which can affect its lifespan.
• Boşaltma: If you need to remove the capacitor, it must be safely discharged first. Use the same resistor method as for charging, connecting it across the positive and negative terminals until the voltage display reads zero.

8. Sorun Giderme

If you experience issues with your PCX-5F capacitor or car audio system, consider the following troubleshooting steps:

• Headlight Dimming Persists:
  • Kablolamayı Kontrol Edin: Ensure all power and ground connections are secure and of adequate gauge for your system's power requirements. Loose or undersized wiring can impede current flow.
  • Capacitor Charge: Verify the capacitor is fully charged. The digital display should show a stable voltage.
  • System Power Demand: If your audio system's power demand significantly exceeds the capacitor's capacity or your vehicle's charging system capabilities, dimming may still occur. Consider upgrading your vehicle's alternator or battery.
• Capacitor Not Displaying Voltage:
  • Güç Bağlantılarını Kontrol Edin: Ensure the positive and negative terminals are correctly connected and receiving power.
  • Sigorta Kontrolü: Verify that any inline fuses in the power circuit are intact.
  • Kutup Koruması: The protection indicator might be active due to incorrect polarity. Recheck connections.
• Capacitor Overheating:
  • Havalandırma: Ensure the capacitor has adequate airflow around it.
  • Aşırı yük: An amplifier drawing excessive current can cause the capacitor to work harder and generate heat. Review senin amplifier's specifications and system impedance.

If problems persist after troubleshooting, contact Power Acoustik customer support or a qualified car audio technician.

9. Özellikler

10. Garanti ve Destek

Garanti: The Power Acoustik PCX-5F 5-Farad Capacitor comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modification.

Müşteri Desteği: For technical assistance, warranty claims, or further information, please contact Power Acoustik customer support. Refer to the official Power Acoustik webGüncel iletişim bilgileri için siteyi ziyaret edin.

Üretici: Güç Akustik
