DYMO LabelMANAGER 300 Elektronik Etiket Yazıcı Kullanım Kılavuzu

1. Giriş

The DYMO LabelMANAGER 300 (LM300) is an electronic labelmaker designed for various labeling applications, including industrial and professional use. It features a QWERTY keyboard and a 15-character LCD display for easy label creation and previewing. This device supports printing on multiple D1 tape widths and offers advanced features such as barcode printing and various text formatting options.

Ürün Bittiview

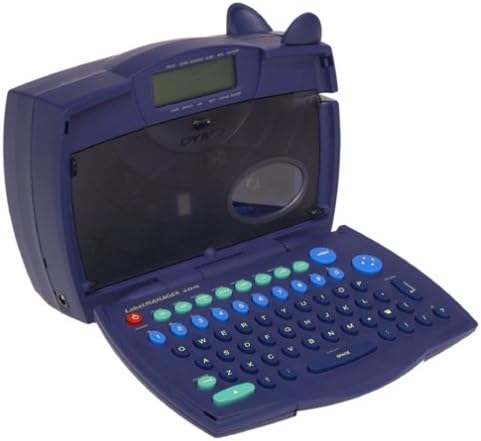

Image 1.1: The DYMO LabelMANAGER 300 in an open position, revealing its QWERTY keyboard and LCD screen. The device is dark blue with light blue and green function keys.

Key features of the LabelMANAGER 300 include:

• Designed for engineering and shop floor applications.
• 15-character LCD display for easy editing and previewIng.
• Prints on D1 tape widths: 0.25, 0.325, 0.5, and 0.75 inches.
• Features a QWERTY keyboard with profiled keys for efficient input.
• Capable of printing electrical symbols and various barcode types.

2. Kurulum

Cihazın Paketini Açma

Carefully remove all components from the packaging. Ensure all items are present before proceeding with setup.

Image 2.1: The DYMO LabelMANAGER 300 shown with its standard accessories, including a D1 tape cassette and the product documentation.

Paket şunları içermelidir:

• DYMO LabelMANAGER 300 Printer
• D1 Label Tape Cassette (starter roll)
• Kullanım Kılavuzu (bu belge)
• 2 adet AA pil (dahil)

Pil Kurulumu

1. Locate the battery compartment on the underside of the labelmaker.
2. Pil bölmesi kapağını kaydırarak açın.
3. Bölmenin içinde gösterildiği gibi kutupların (+/-) doğru olmasına dikkat ederek 2 adet AA pil takın.
4. Pil bölmesi kapağını yerine tam oturana kadar kapatın.

Bant Kaseti Kurulumu

1. Open the labelmaker cover by gently lifting it from the front.
2. Locate the tape cassette compartment.
3. Insert a DYMO D1 label tape cassette into the compartment, ensuring the tape feeds correctly into the print head mechanism.
4. Close the labelmaker cover until it latches securely.

3. Kullanım Talimatları

Açma/Kapatma

• Açmak için: tuşuna basın Güç button. The LCD display will illuminate.
• Kapatmak için: tuşuna basın ve basılı tutun Güç button until the display turns off. The device also features an automatic shut-off to conserve battery power after a period of inactivity.

Basic Label Creation

1. Cihazın açık olduğundan emin olun.
2. Use the QWERTY keyboard to type your desired text. The text will appear on the 15-character, two-line LCD display.
3. Review the text on the display for accuracy. Use the arrow keys to navigate and edit if necessary.
4. Basın Yazdır Etiketi yazdırmak için düğme.
5. Once printed, use the integrated cutter to cut the label.

Metin Biçimlendirme

The LabelMANAGER 300 offers various text formatting options:

• Print Styles: Select from normal, narrow, bold, vertical, outline, shadow, mirror, and boxed styles. Refer to the device's menu for specific style selection.
• Text Effects: Apply underline, shadow, or box effects to your text.
• Gerekçe: Labels can be printed with left, center, or right justification.
• Multi-line Printing: Print one, two, three, or four lines on a single label, depending on the tape width.

Gelişmiş Özellikler

• Incremental Numbering: Automatically print a series of labels with sequential numbers.
• Tekrarlı Yazdırma: Print multiple copies of the same label.
• Barcode Printing: The LM300 supports printing various barcode types, including UPC-A, UPC-E, EAN-8, EAN-13, Code-39, and Code-128. Access this feature through the device's menu.
• Elektrik Sembolleri: Embed common electrical symbols into your labels for specialized applications.
• Last-Label Memory: The device retains the last printed label in memory for quick reprinting.

4. Bakım

Cihazın Temizlenmesi

• Ensure the labelmaker is powered off before cleaning.
• Cihazın dış yüzeyini yumuşak bir bezle silin.amp bezle silin. Aşındırıcı temizleyiciler veya çözücüler kullanmayın.
• To clean the print head, open the cover and gently wipe the print head with a cotton swab lightly dampened with isopropyl alcohol. Allow it to dry completely before closing the cover.

Depolamak

When not in use, store the DYMO LabelMANAGER 300 in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, it is recommended to remove the batteries to prevent leakage.

5. Sorun Giderme

If you encounter issues with your LabelMANAGER 300, refer to the following common problems and solutions:

• Güç Yok:
    - Check if batteries are inserted correctly with proper polarity.
    - Replace old or depleted batteries with new AA batteries.
• Kötü Baskı Kalitesi:
    - Ensure the tape cassette is installed correctly.
    - Clean the print head as described in the Maintenance section.
    - Try a new tape cassette, as old tape may affect print quality.
• Kaset Çalma Etkinlikleri:
    - Open the cover and carefully remove any jammed tape. Ensure no adhesive residue is left in the mechanism.
    - Make sure the tape cassette is seated properly.
• Ekran Çalışmıyor:
    - Check battery power. If the display is dim or blank, replace batteries.
    - Power cycle the device (turn off, then on again).
• Cihaz Yanıt Vermiyor:
    - Remove and reinsert batteries to perform a soft reset.
    - If the issue persists, contact customer support.

6. Özellikler

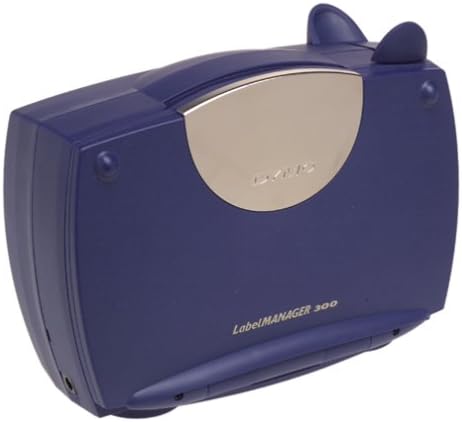

Image 6.1: The DYMO LabelMANAGER 300 in its closed position, showcasinKompakt ve taşınabilir tasarımıyla öne çıkıyor.

7. Garanti ve Destek

Garanti Bilgileri

The DYMO LabelMANAGER 300 comes with a limited warranty. Please refer to the warranty card included with your product for specific terms and conditions, or visit the official DYMO webayrıntılı garanti bilgileri için site.

Müşteri Desteği

For further assistance, technical support, or to purchase accessories and replacement tape, please visit the official DYMO website or contact their customer service department. Contact information can typically be found on the DYMO webSitede veya ürün ambalajında.
