Sperax 4-in-1 Vibrating Walking Pad P3 Max Instruction Manual

1. Giriş

Thank you for choosing the Sperax 4-in-1 Vibrating Walking Pad P3 Max. This manual provides essential information for the safe and effective use of your new walking pad. Please read it thoroughly before operation and retain it for future reference.

The Sperax P3 Max is designed for both home and office use, offering a versatile exercise experience with adjustable incline, multiple vibration modes, and smart app compatibility. Its compact design allows for easy storage under a desk or sofa.

2. Güvenlik Talimatları

To ensure your safety and prolong the life of your walking pad, please observe the following precautions:

• Yürüme pedini her zaman düz ve sağlam bir yüzeye yerleştirin.
• Ensure adequate clear space around the walking pad during use.
• Do not allow children or pets near the walking pad while it is in operation.
• Herhangi bir yeni egzersiz programına başlamadan önce bir doktora danışın.
• Baygınlık, baş dönmesi veya ağrı hissederseniz egzersizi hemen bırakın.
• Ellerinizi ve ayaklarınızı tüm hareketli parçalardan uzak tutun.
• Do not use the walking pad if it is damaged or malfunctioning.
• Unplug the power cord when not in use or before cleaning/maintenance.
• Maksimum kullanıcı ağırlığı kapasitesi 120 kg'dır.

3. Paket İçeriği

Kutuyu dikkatlice açın ve tüm eşyaların mevcut olduğundan emin olun:

• Sperax 4-in-1 Vibrating Walking Pad P3 Max (x1)
• Uzaktan Kumanda (x1)
• L şeklinde altıgen anahtar (x1)
• Lubricant Oil (x1)
• Güç Kablosu (x1)
• Kullanıcı Kılavuzu (x1)

Image: All accessories included with the Sperax Walking Pad, such as the remote control, power cable, and lubricant.

4. Ürün Bittiview

4.1 Bileşenler

• LED ekran: Shows speed, time, distance, calories, and vibration mode.
• Koşu Bandı: The main walking surface.
• Power Socket & Switch: For connecting to power and turning the unit on/off.
• Uzaktan kumanda: Controls speed, start/stop, and mode selection.
• Incline Support: Adjustable legs for setting incline levels.
• Kasnak Tekerlekleri: Kolay taşıma ve saklama için.

Resim: Yakın çekim views of the LED display, belt adjustment screw hole, incline handle, power socket, rear cover, running belt, and remote control functions.

4.2 Boyutlar ve Ağırlık

• Ürün Ölçüleri (U x G x Y): 112.5 cm x 57.3 cm x 9.5 cm
• Ürün Ağırlığı: 14 kilo
• Koşu Alanı: Yaklaşık 105 cm x 42 cm

Image: The walking pad with its dimensions labeled: 1125mm length, 573mm width, and 95mm height.

5. Kurulum

1. Paketi aç: Remove the walking pad and all accessories from the packaging.
2. Atama: Place the walking pad on a firm, level surface. Ensure there is at least 0.5 meters of clear space around the unit.
3. Güç Bağlantısı: Connect the power cable to the walking pad's power socket and then to a suitable electrical outlet.
4. İlk Kontrol: Turn on the power switch. The LED display should light up.
5. Eğim Ayarı (İsteğe Bağlı): To adjust the incline, lift the walking pad and manually adjust the support legs to either the 5% or 10% incline position. Ensure the legs are securely locked in place before use.

Image: A person adjusting the incline mechanism of the walking pad, demonstrating the 5% and 10% incline options.

Image: Visual representation of the walking pad at 0%, 5%, and 10% incline, with a person walking on it at 10% incline.

6. Kullanım Talimatları

6.1 Güç Açma/Kapatma

• To turn on, flip the main power switch located at the front of the walking pad.
• To turn off, flip the main power switch to the OFF position.

6.2 Uzaktan Kumandanın Kullanımı

The remote control allows you to manage the walking pad's functions:

• Başlat/Durdur Düğmesi: Press to start or pause the walking pad.
• Hız +/- Düğmeleri: Adjust the walking speed from 0.3 km/h to 6 km/h.
• Mod Düğmesi: Cycle through different modes (e.g., walking, vibration).

6.3 Uygulama Bağlantısı (Bluetooth)

The Sperax Walking Pad is compatible with a smart application for enhanced tracking and control:

1. Download the Sperax app from your device's app store (available on Google Play and Apple App Store).
2. Akıllı telefonunuzda veya tabletinizde Bluetooth'un etkin olduğundan emin olun.
3. Open the Sperax app and follow the on-screen instructions to pair with your walking pad.
4. The app allows you to track calories burned, speed, time, and distance, and optimize your workouts.

Image: A user interacting with the Sperax app on a smartphone while walking on the pad, demonstrating Bluetooth app interconnection and data tracking.

6.4 Titreşim Modu

The walking pad features 4 adjustable vibration modes to stimulate muscle activity and aid in calorie burning and muscle relaxation:

• Light Vibration Mode
• Strong Vibration Mode
• Light Superposition Mode
• Strong Superposition Mode

Use the remote control or app to select your desired vibration mode. Experiment with different modes to find what suits your workout and recovery needs.

Image: A person demonstrating various postures for the 4 vibration modes: Light Vibration, Strong Vibration, Light Superposition, and Strong Superposition.

6.5 Usage Scenarios (4-in-1 Functionality)

The Sperax P3 Max offers versatile usage:

• Work Mode (0.3-4 km/h): Ideal for use under a standing desk while working.
• Climbing Mode (2 Adjustable Levels): Utilize the incline feature for a more intense workout.
• Seyir Modu (4-6 km/sa): For brisk walking or light jogging.
• Vibration Mode (4 Adjustable Modes): For muscle stimulation and relaxation.

Image: Four panels illustrating the 4-in-1 functionality: Work Mode (under desk), Climbing Mode (with incline), Running Mode, and Vibration Mode.

7. Bakım

Regular maintenance ensures optimal performance and longevity of your walking pad:

• Temizlik: Yürüyüş platformunu ad ile silin.amp Her kullanımdan sonra bir bezle silin. Aşındırıcı temizleyiciler kullanmayın.
• Yağlama: Apply lubricant oil to the running belt every 3-6 months, or after approximately 100 hours of use, to reduce friction and wear. Refer to the specific instructions for lubrication in the included manual.
• Kemer Ayarı: If the running belt shifts to one side or slips, use the L-shaped hex key to adjust the tension. Turn the adjustment screws slightly (quarter turn at a time) until the belt is centered and taut.
• Depolamak: When not in use, store the walking pad in a dry, cool place. Its compact design allows it to be stored under a sofa or bed.

Image: A person demonstrating how easily the walking pad can be stored under furniture, emphasizing its compact and portable design.

8. Sorun Giderme

9. Özellikler

• Model Adı: P3 Max
• Marka: Speraks
• Renk: Gold-Black
• Malzeme: Alaşımlı Çelik
• Ürün Ölçüleri (U x G x Y): 112.5 cm x 57.3 cm x 9.5 cm
• Ürün Ağırlığı: 14 kilo
• Maksimum Hız: 6 km/saat
• Minimum Hız: 0.3 km/saat
• Özellik: Manual Incline (5% and 10% adjustable)
• Maksimum Eğim Yüzdesitage: %10
• Maksimum Güç: 400 Vat
• Güç Kaynağı: Elektrik kablosu
• Bağlantı Teknolojisi: Bluetooth
• Counter Type: Distance, Speed, Time, Calories
• Hedef Kitle: Yetişkin
• UPC: 726960448255

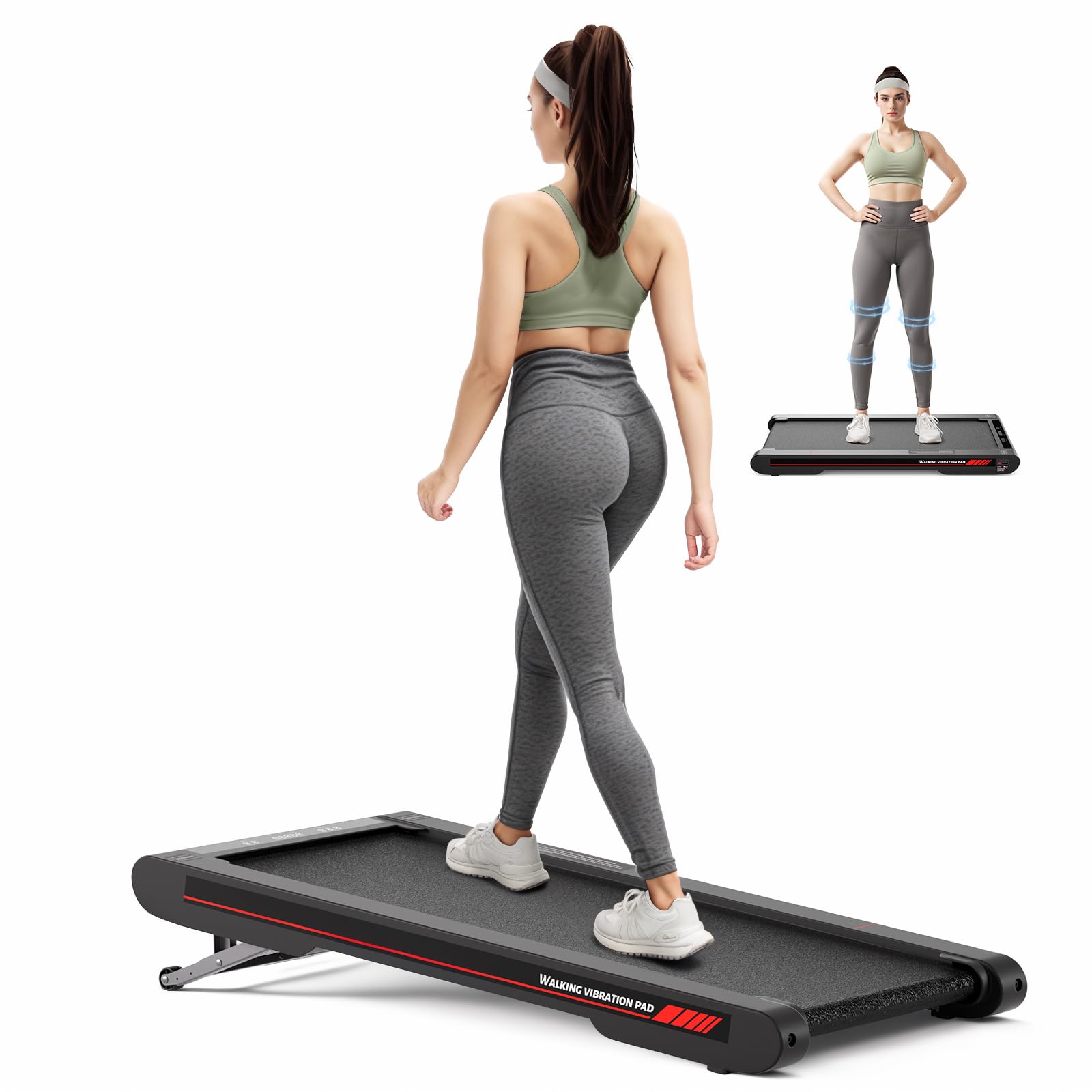

Image: The Sperax 4-in-1 Vibrating Walking Pad P3 Max, showcasing its sleek design and Gold-Black color.

Resim: Dahili view of the walking pad's motor and belt system, emphasizing the 2.5HP ultra-quiet servo motor and multi-layer shock absorption design.

10. Garanti ve Destek

Sperax products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included in your package or contact Sperax customer service through the official websitesi veya satıcınız.

Please have your model number (P3 Max) and UPC (726960448255) ready when contacting support.
