VTOMAN FlashSpeed ​​2400 Taşınabilir Güç İstasyonu

1. Güvenlik Talimatları

Please read all safety instructions carefully before operating the VTOMAN FlashSpeed 2400 Portable Power Station. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Üniteyi sökmeyin, onarmayın veya değiştirmeyin.
• Üniteyi ateşe veya yüksek sıcaklıklara maruz bırakmayın.
• Cihazı sudan, nemden ve doğrudan güneş ışığından uzak tutun.
• Yalnızca VTOMAN onaylı aksesuarları ve şarj kablolarını kullanın.
• Kullanım ve şarj sırasında uygun havalandırmayı sağlayın.
• Çocukların ve evcil hayvanların erişemeyeceği yerde saklayınız.
• In case of abnormal operation, immediately disconnect the unit and contact customer support.

2. Ürün Bittiview

The VTOMAN FlashSpeed 2400 is a portable power station designed to provide reliable power for various applications, from outdoor adventures to emergency backup. It features a high-capacity LiFePO4 battery, multiple output ports, and fast charging capabilities.

Paket İçeriği

Paketinizde tüm öğelerin bulunduğunu doğrulayın:

• 1 x VTOMAN FlashSpeed 2400 Portable Power Station
• 1 x AC Şarj Kablosu
• 1 x Araba Şarj Kablosu
• 1 x USB-A - Type-C Kablosu
• 1 x Type-C - Type-C Kablosu
• 1 x Jump Starter Cable
• 1 x Kullanım Kılavuzu

Image: VTOMAN FlashSpeed 2400 with all included cables and the user manual.

Unit Features and Ports

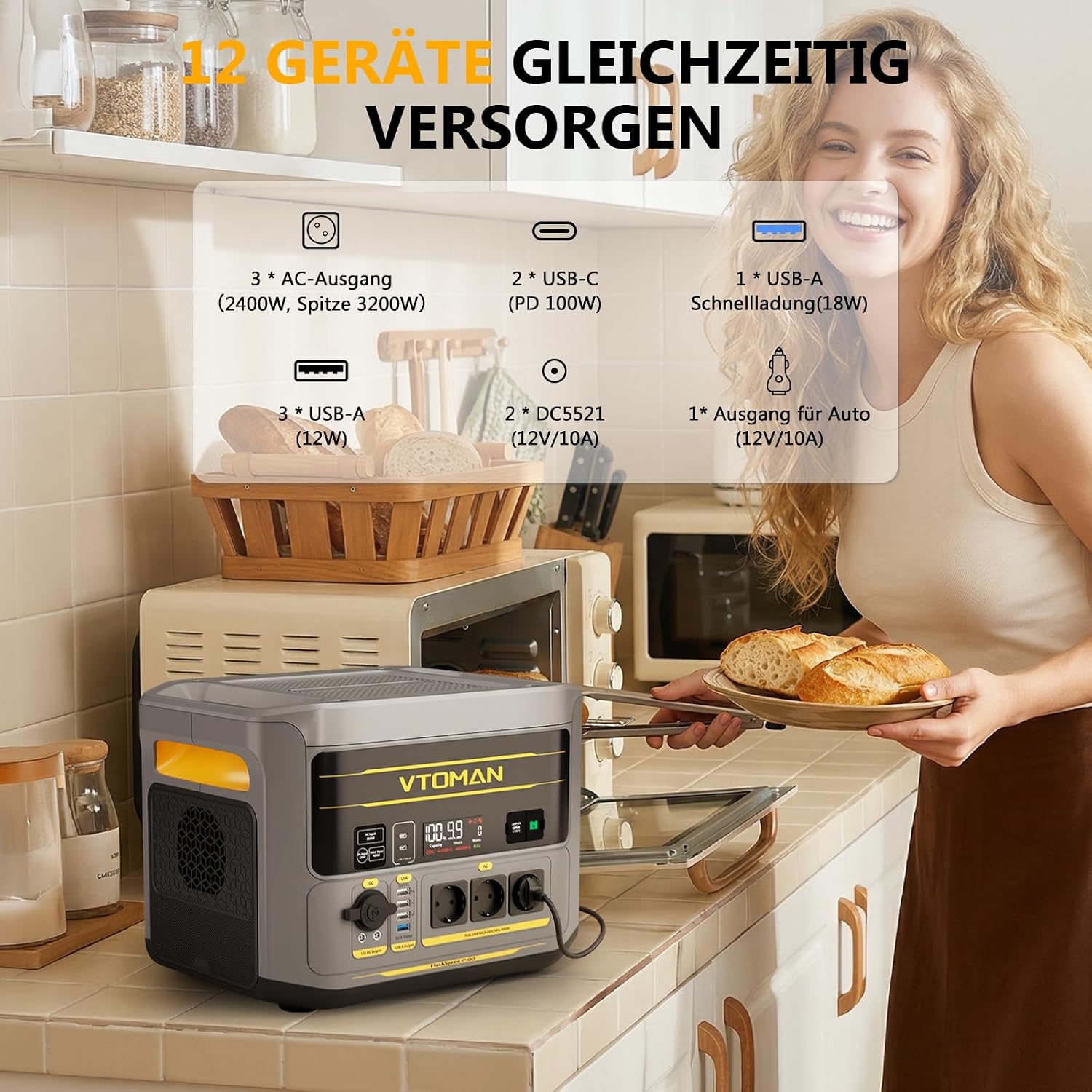

The FlashSpeed 2400 is equipped with various ports for versatile charging and powering needs.

Image: Detailed diagram showing all input and output ports on the VTOMAN FlashSpeed 2400.

• AC Çıkış: 3 x AC outlets (2400W continuous, 3200W peak)
• USB Çıkışı: 3 x USB-A (12W), 1 x USB-A QC3.0 (18W), 2 x USB-C (PD 100W)
• DC Çıkışı: 2 x DC5521 (12V/10A), 1 x Car Output (12V/10A)
• Giriş Bağlantı Noktaları: AC Input (1500W Max), Solar Input (12-60V, 600W Max), DC Input (12-20V, 200W Max)
• Özel Özellikler: Integrated LED light with 5 modes (Low/Medium/Strong/SOS/Flash), Jump Starter Port, Expandable Battery Port

3. Kurulum

İlk Şarj

Before first use, fully charge your FlashSpeed 2400. This ensures optimal battery performance and longevity.

1. Connect the provided AC charging cable to the AC input port on the power station.
2. Plug the other end of the AC cable into a wall outlet.
3. The display will show the charging status. The unit will be fully charged in approximately 1 hour using AC input.

Image: Illustration of various charging methods including AC, solar, and car charging.

Other Charging Methods

• Güneş Şarjı: Connect compatible solar panels (up to 600W max) to the solar input port. Charging time is approximately 4 hours under ideal conditions.
• Araç Şarjı: Use the car charging cable to charge the unit from your vehicle's 12V outlet.
• AC + Solar Simultaneous Charging: For the fastest charge, combine AC and solar input to fully charge the unit in approximately 0.8 hours.

4. Kullanım Talimatları

Açma/Kapatma

Press and hold the main power button for a few seconds to turn the unit on or off. The LCD display will illuminate, showing battery level, output status, and other relevant information.

Çıkış Portlarını Kullanma

Once the unit is powered on, activate the desired output sections (AC, USB, DC) by pressing their respective buttons. Connect your devices to the appropriate ports.

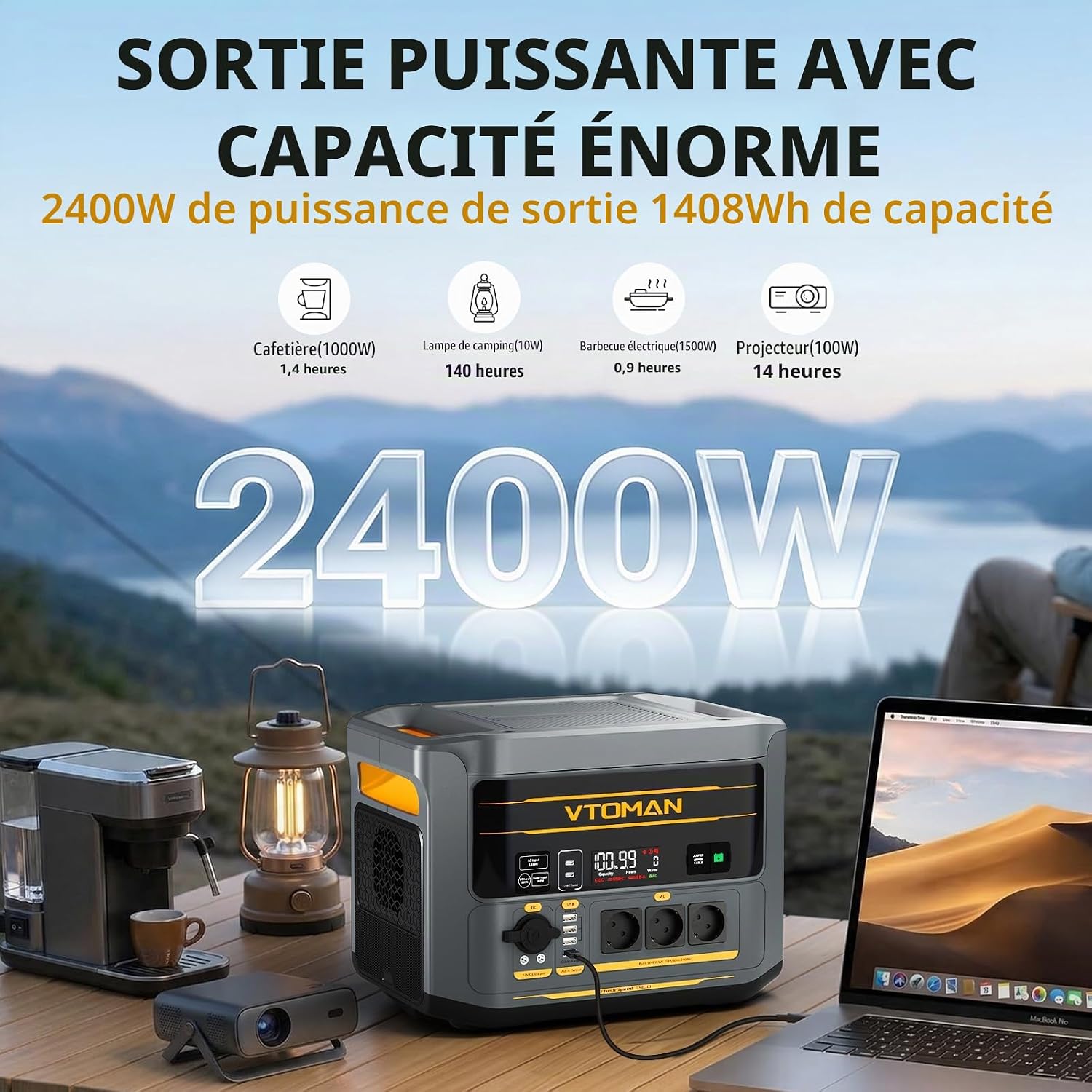

Image: The FlashSpeed 2400 connected to and powering multiple electronic devices simultaneously.

Kesintisiz Güç Kaynağı (UPS) Fonksiyonu

The FlashSpeed 2400 features an Uninterruptible Power Supply (UPS) function with a rapid 10ms switchover time. When connected to an AC wall outlet and powering devices, it will automatically switch to battery power in case of a power outage, ensuring continuous operation for critical devices.

Image: Diagram illustrating the UPS function, showing seamless power transition during an outage.

Jump Start Function

The FlashSpeed 2400 can be used to jump-start vehicles with 12V batteries (up to 8L gasoline engines and 6L diesel engines).

1. Insert the jump starter cable into the dedicated JUMPER CABLE port on the power station.
2. Kırmızı cl'yi bağlayınamp Araba aküsünün pozitif (+) terminaline ve siyah terminaleamp negatif (-) terminale.
3. Ensure the indicator on the jump starter cable shows a stable green light, indicating a correct connection.
4. Aracınızın motorunu çalıştırın.
5. Once the engine starts, immediately remove the jump starter cable from the car battery and then from the power station.

Image: The FlashSpeed 2400 connected to a car battery with jump starter cables, ready to start the engine.

LED Işık Çalışması

The integrated LED light has 5 modes: Low, Medium, Strong, SOS, and Flash. Press the LED light button to cycle through the modes. Hold the button to turn it off.

5. Bakım

Pil Bakımı

The FlashSpeed 2400 uses a durable LiFePO4 battery, designed for a long lifespan. To maximize battery life:

• Fully charge the unit at least once every 3-6 months, even if not in use.
• Avoid storing the unit in extreme temperatures (above 40°C or below -10°C).
• Do not completely drain the battery frequently.

Image: Information graphic highlighting the 10-year lifespan and 3000+ cycles of the LiFePO4 battery.

Temizlik ve Depolama

• Üniteyi kuru ve yumuşak bir bezle silin. Aşındırıcı temizleyiciler veya çözücüler kullanmayın.
• Store the unit in a cool, dry place, away from direct sunlight and corrosive materials.
• Ensure all ports are clean and free of debris.

6. Sorun Giderme

If you encounter issues with your FlashSpeed 2400, please refer to the following common solutions:

• Ünite açılmıyor: Pilin şarjlı olduğundan emin olun. Değilse, şarj etmek için bir AC prizine bağlayın.
• Bağlantı noktalarından herhangi bir çıktı alınamıyor: Verify that the specific output section (AC, USB, DC) is activated. Check if the device being charged is compatible with the output power.
• Yavaş şarj oluyor: Ensure you are using the original VTOMAN charging cables. For solar charging, ensure panels are in direct sunlight and properly connected.
• Aşırı yük koruması: If the unit shuts down due to overload, disconnect some devices and restart the unit. Ensure total power draw does not exceed 2400W.

For persistent issues, please contact VTOMAN customer support.

7. Özellikler

8. Garanti ve Destek

Garanti Bilgileri

The VTOMAN FlashSpeed 2400 Portable Power Station comes with a 24-month protection warranty. The integrated LiFePO4 battery is designed for a 10 yıllık kullanım ömrü, maintaining over 80% capacity after 3,000 charge cycles.

Müşteri Desteği

For any questions, technical assistance, or warranty claims, please contact VTOMAN customer service:

E-posta: service.eu@vtoman.com

Image: VTOMAN customer service contact details and warranty information.
