1. Giriş
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Generic Modern LED Ceiling Lamp. Please read this manual thoroughly before installation and retain it for future reference. This fixture is designed for indoor use in living rooms, dining rooms, studies, and bedrooms.
2. Güvenlik Bilgileri
- Elektriksel Güvenlik: Always disconnect the main power supply at the circuit breaker before attempting any installation, maintenance, or cleaning.
- Kalifiye Elektrikçi: Kablolama veya elektrik bağlantıları konusunda emin değilseniz, yetkili bir elektrikçiye danışın.
- Montaj: Ensure the ceiling or mounting surface is structurally sound and capable of supporting the weight of the light fixture.
- Zarar: Do not install if the product or any components are damaged. Contact the seller for replacement parts.
- Değişiklikler: Aydınlatma armatüründe hiçbir şekilde değişiklik yapmayın. Yetkisiz değişiklikler garantiyi geçersiz kılabilir ve güvenlik tehlikeleri oluşturabilir.
- Sadece İç Mekanda Kullanım: Bu ürün, kuru iç mekanlarda kullanım için tasarlanmıştır. Neme veya doğrudan suya maruz bırakmayın.
3. Paket İçeriği
Carefully unpack the box and ensure all items are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact your retailer.
- LED Tavan Lamp Fixture (1 unit)
- Montaj Braketi (1 adet)
- Mounting Hardware (screws, anchors, wire connectors)
- Kullanım Kılavuzu (bu belge)
Şekil 3.1: Üzerindeview of LED Ceiling Lamp components, including the main light body and the separate mounting plate.
4. Kurulum (Kurulum)
Follow these steps to install your LED ceiling lamp. It is recommended to have two people for installation due to the size of the fixture.
- Kurulum için Hazırlanın: Turn off the power to the junction box at the circuit breaker. Ensure the power is off by testing the existing light switch.
- Montaj Braketini Takın: Secure the mounting bracket to the ceiling junction box using the provided screws. Ensure it is firmly attached and level.
- Kablo Bağlantıları: Tavandan gelen elektrik kablolarını l'ye bağlayın.amp's wires. Typically, connect the live (black) wire from the ceiling to the live wire from the lamp, the neutral (white) wire from the ceiling to the neutral wire from the lamp, and the ground (green or bare copper) wire to the ground wire from the lamp/mounting bracket. Use the provided wire connectors and ensure all connections are secure.
- L'yi monte edinamp Vücut: l'yi dikkatlice kaldırınamp Gövdeyi yerleştirin ve montaj braketiyle hizalayın. L'yi sabitleyin.amp body to the bracket using the screws provided. Ensure the lamp is flush against the ceiling and securely fastened.
- Gücü Geri Yükle: bir kez lamp Kurulum güvenli bir şekilde tamamlandı ve tüm bağlantılar kontrol edildi, devre kesiciden gücü geri verin.

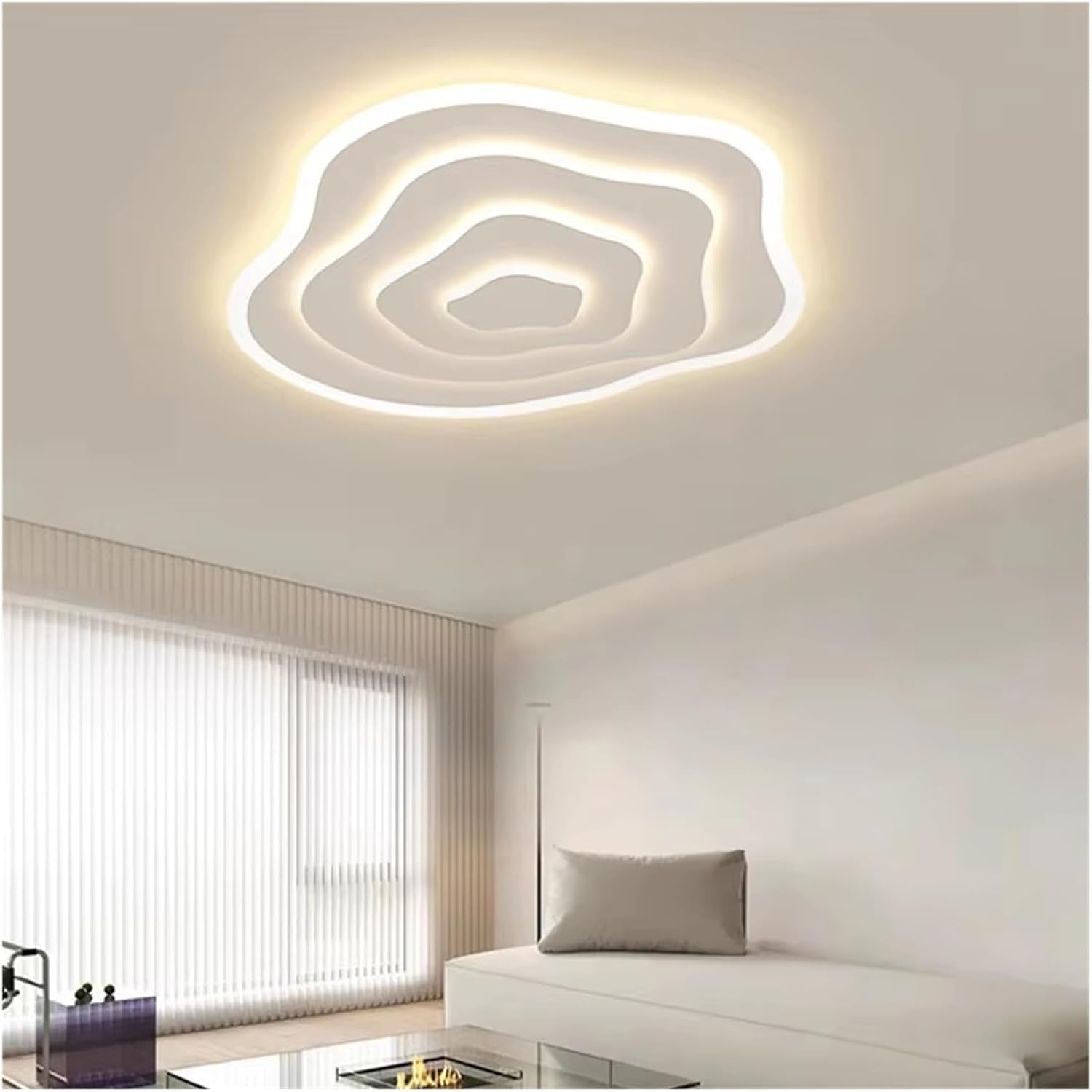

Şekil 4.1: Example of the LED Ceiling Lamp installed in a room, demonstrating its aesthetic and illumination.
5. Kullanım Talimatları
This LED ceiling lamp features a "Three-Color Light" function, allowing you to switch between different color temperatures to suit your mood or activity.
- Güç Açma/Kapatma: Use your standard wall light switch to turn the lamp açık veya kapalı.
- Işık Rengini Değiştir: To cycle through the three available light colors (Warm Light, Cool Light, and Neutral Light), simply toggle your wall light switch OFF and then ON again within a few seconds. Each toggle will switch to the next color temperature.
- Hafıza Fonksiyonu: Lamp may have a memory function that remembers the last selected color temperature when turned off for an extended period. If not, it will default to a specific color upon initial power-on.
6. Bakım
Proper maintenance will ensure the longevity and optimal performance of your LED ceiling lamp.
- Temizlik: Before cleaning, ensure the power supply to the fixture is turned off at the circuit breaker. Use a soft, dry, or slightly damp l yüzeyini silmek için bezamp.
- Kimyasallardan Kaçının: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or acrylic diffuser.
- Kullanıcı Tarafından Bakımı Yapılabilecek Parça Yok: The LED light source is integrated and not designed to be replaced by the user. Do not attempt to disassemble the LED module.
7. Sorun Giderme
If you encounter any issues with your LED ceiling lamp, aşağıdaki yaygın sorunlara ve çözümlere bakın:
| Sorun | Olası Neden | Çözüm |
|---|---|---|
| Lamp açılmıyor. |
|
|
| Işık titriyor veya sönükleşiyor. |
|
|
| Işık rengi değiştirilemez. |
|
|
8. Özellikler
Şekil 8.1: Dimensional diagram of the 60cm LED Ceiling Lamp, indicating its diameter, height, and power consumption.
| Marka: | Genel |
| Model Numarası: | LLHCCAFPM-C4064A13 |
| Boyutlar: | Diameter 60cm, Height 8cm |
| Güç: | 106W (53W * 2) |
| Cilttage: | AC 90-260V |
| Işık kaynağı: | Entegre LED |
| Açık Renk: | Three-Color Light (Warm, Cool, Neutral) |
| Malzeme: | Metal (frame), Acrylic (diffuser) |
| Oda Tipi: | Living Room, Dining Room, Study, Bedroom |
| İç/Dış Mekan Kullanımı: | Kapalı |
| Montaj Gerekli: | No (Pre-assembled fixture) |
9. Garanti ve Destek
This product comes with a manufacturer's warranty, the terms of which may vary. For specific warranty details, claims, or technical support, please contact the retailer from whom you purchased the product or the manufacturer directly. Please have your purchase receipt and product model number (LLHCCAFPM-C4064A13) available when contacting support.
