MMS 1 Ton Mini Excavator MS10C B&S Engine User Manual

1. Giriş

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MMS 1 Ton Mini Excavator, model MS10C (MS-BLT10C). Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.

The MMS MS10C Mini Excavator is equipped with a 13.5 HP EPA Briggs & Stratton gasoline engine and a 15.7-inch digging bucket, designed for various tasks in courtyards, municipal engineering, agriculture, and light construction.

2. Güvenlik Bilgileri

Operating heavy machinery requires strict adherence to safety protocols. Failure to follow these guidelines can result in serious injury or death.

• Kılavuzun tamamını okuyun: Understand all operating procedures and safety warnings before starting the machine.
• Kişisel Koruyucu Donanım (KKD): Always wear appropriate PPE, including hard hat, safety glasses, hearing protection, safety boots, and gloves.
• Operator Qualification: Only trained and authorized personnel should operate this equipment.
• Çalışma Alanı Güvenliği: Ensure the work area is clear of bystanders, obstacles, and utility lines (electrical, gas, water). Mark the work area clearly.
• Makine Muayenesi: Perform a pre-operation inspection before each use. Check for loose parts, leaks, damaged hoses, and proper fluid levels.
• Motor Güvenliği: Operate the gasoline engine in a well-ventilated area to avoid carbon monoxide poisoning. Refuel only when the engine is off and cool.
• Kararlılık: Always operate the excavator on stable, level ground. Be aware of the machine's center of gravity and avoid overloading the bucket.
• Ek Güvenliği: Çalıştırmadan önce tüm aparatların güvenli bir şekilde sabitlendiğinden emin olun.
• Acil Durum prosedürleri: Know the location of emergency shut-off controls and how to use them.
• Çocuklar ve Evcil Hayvanlar: Keep children and pets away from the operating machine at all times.

3. Ürün Bittiview

The MMS MS10C Mini Excavator is a compact and powerful machine designed for efficiency and versatility in various light-duty excavation tasks.

Şekil 3.1: Ön taraf view of the MMS 1 Ton Mini Excavator MS10C, showcasing its compact design and 13.5 HP Briggs & Stratton gasoline engine.

Temel Özellikler:

• Motor: 13.5 HP EPA Briggs & Stratton gasoline engine for low fuel consumption and high performance.
• Kompakt Tasarım: Maximum width of 35.3 inches allows access through narrow spaces.
• Rubber Tracks: Prevents surface damage and handles rough terrain effectively.
• Ek Uyumluluğu: Equipped with a 15.7-inch (400mm) digging bucket. Supports various standard excavator accessories (e.g., crusher, auger).
• Kolay Bakım: Features a double-layer filter and an accessible engine compartment for simplified upkeep.

Şekil 3.2: Yakın çekim view of the 13.5 HP Briggs & Stratton gasoline engine, which powers the MMS Mini Excavator MS10C.

Figure 3.3: A display of various attachments compatible with the MMS Mini Excavator MS10C, including different types of buckets, a ripper, and a hydraulic breaker.

4. Kurulum

4.1 Paketin Açılması ve Montaj

Upon receiving your MMS Mini Excavator, carefully inspect the packaging for any signs of damage. Remove all packing materials and ensure all components listed in the packing list are present.

• Carefully remove the excavator from its shipping crate or pallet.
• Attach any components that were removed for shipping (e.g., canopy, specific controls) according to the assembly diagrams provided in the separate assembly guide.
• Ensure all bolts and fasteners are tightened to the manufacturer's specifications.

4.2 Ameliyat Öncesi Kontroller

Motoru çalıştırmadan önce aşağıdaki kontrolleri yapın:

• Yakıt Seviyesi: Check the gasoline tank level. Use fresh, clean gasoline as specified by the engine manufacturer.
• Motor Yağı Seviyesi: Verify the engine oil level using the dipstick. Add oil if necessary, ensuring it meets the specified type and grade.
• Hidrolik Sıvı Seviyesi: Check the hydraulic fluid reservoir level. Ensure it is within the recommended range.
• Soğutma Suyu Seviyesi: If applicable, check the engine coolant level.
• Ray Gerilimi: Inspect the rubber tracks for proper tension. Adjust if too loose or too tight.
• Kontroller: Ensure all control levers and pedals move freely and return to their neutral positions.
• Güvenlik cihazları: Verify that all safety guards, lights, and emergency stop buttons are functional.
• Ek Güvenliği: Confirm that the digging bucket or any other attached implement is securely pinned.

5. Kullanım Talimatları

5.1 Motorun Çalıştırılması

1. Ensure the machine is on level ground and the parking brake (if equipped) is engaged.
2. Kontak anahtarını "AÇIK" konumuna getirin.
3. If the engine is cold, apply choke as needed.
4. Turn the ignition key to the "START" position and release once the engine starts.
5. Allow the engine to warm up for a few minutes before operating.

5.2 Temel Kontroller ve Hareket

Familiarize yourself with the control levers and pedals. The MS10C typically uses a standard excavator control pattern.

Figure 5.1: A detailed diagram illustrating the key dimensions and technical parameters of the MMS Mini Excavator MS10C, including track width, digging depth, and height.

• Travel Levers/Pedals: Control forward and backward movement of the tracks.
• Boom Control: Raises and lowers the main boom arm.
• Arm (Dipper) Control: Extends and retracts the arm.
• Bucket Control: Curls and dumps the bucket.
• Salınım Kontrolü: Rotates the upper structure of the excavator left or right.
• Bıçak Kontrolü: Raises and lowers the dozer blade.

Always operate controls smoothly and gradually to avoid sudden movements and maintain stability.

5.3 Digging Operations

• Position the excavator appropriately for the digging task, ensuring a stable base.
• Lower the dozer blade for added stability if necessary.
• Use a combination of boom, arm, and bucket movements to efficiently excavate material.
• Avoid digging directly under the machine or creating unstable slopes.
• Do not exceed the machine's lifting capacity.

Figure 5.2: The MMS Mini Excavator MS10C performing digging operations in a residential backyard, demonstrating its maneuverability.

6. Bakım

Regular maintenance is crucial for the longevity and safe operation of your MMS Mini Excavator.

6.1 Günlük Kontroller

• Check engine oil, hydraulic fluid, and fuel levels.
• Tüm hortumları ve bağlantıları sızıntı veya hasar açısından inceleyin.
• Lubricate all grease points as indicated in the lubrication chart (refer to separate service manual).
• Clean the machine, especially around the engine and hydraulic components.
• Check for loose bolts or nuts and tighten as necessary.

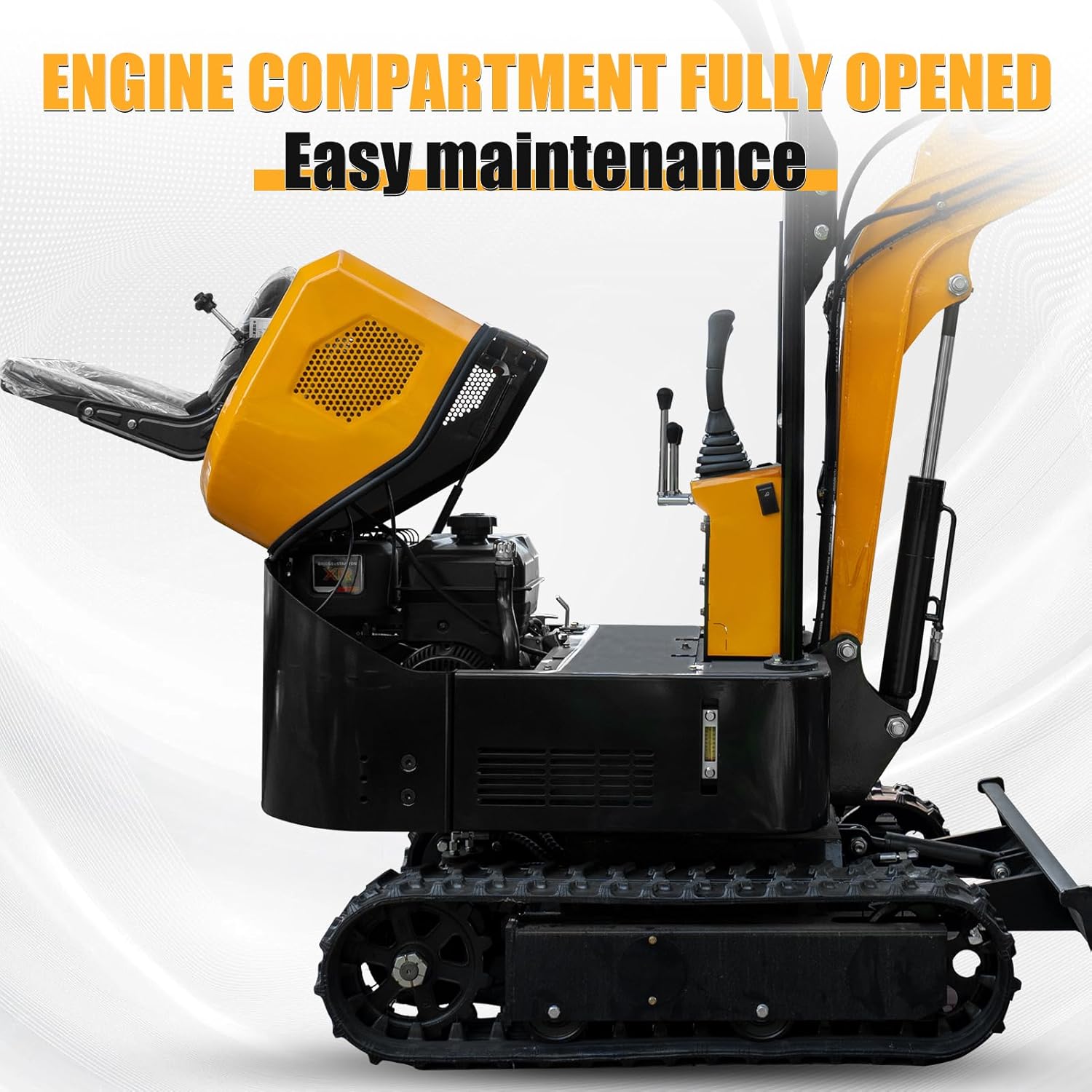

Figure 6.1: The engine compartment of the MMS Mini Excavator MS10C shown fully opened, highlighting the accessibility for routine inspections and maintenance.

6.2 Planlı Bakım

• Engine Air Filter: Clean or replace the double-layer air filter regularly, especially in dusty conditions.
• Motor Yağı Değişimi: Change engine oil and filter according to the engine manufacturer's recommendations (typically every 50-100 hours).
• Hydraulic Filter: Replace hydraulic filters as per the service schedule.
• Buji: Inspect and replace the spark plug as needed.
• Pil: Check battery terminals for corrosion and ensure proper charge.

Refer to the detailed service manual for comprehensive maintenance schedules and procedures.

7. Sorun Giderme

Bu bölümde, sık karşılaşılan sorunlar için temel sorun giderme adımları sunulmaktadır. Daha karmaşık sorunlar için yetkili servis personeliyle iletişime geçin.

8. Özellikler

Detailed technical specifications for the MMS MS10C Mini Excavator.

Figure 8.1: Detailed dimensions and parameters of the MMS MS10C Mini Excavator.

9. Garanti ve Destek

MMS is committed to providing reliable products and excellent customer service.

9.1 Satış Sonrası Garanti

The seat compartment can be opened for easy inspection of machine condition and maintenance. MMS has a professional after-sales team that provides technical support. For any faults or usage issues with the mini crawler excavator, you can contact us at any time.

9.2 Domestic Support in the United States

MMS maintains warehouses in the US to facilitate door-to-door consignment and avoid unexpected fulfillment charges. For inquiries regarding product parameters or information before placing an order, please consult our team to ensure you purchase the correct mini excavator for your needs.

For further assistance, please refer to the contact information provided with your purchase documentation or visit the official MMS webalan.
