giriiş
This manual provides detailed instructions for the Lemorele TC550 USB-C 7-in-1 Dual Display Docking Station. It covers setup, operation, and troubleshooting to help you maximize your productivity with dual 4K@60Hz displays, high-speed data transfer, and efficient power delivery.
Ürün Özellikleri
- 7'u 1 Arada Bağlantı: Features 2x 4K@60Hz display ports (HDMI and USB-C DisplayPort Alt Mode), 1x 5Gbps USB-A 3.0 port, 3x USB-A 2.0 data ports, and a 100W USB-C Power Delivery (PD) charging port.
- Dual 4K@60Hz Display Output: Supports simultaneous dual 4K@60Hz displays via the HDMI and USB-C DP ports.
macOS kullanıcıları için not: Due to operating system limitations, macOS systems support only mirrored (AAA) or extended (ABB) display modes. True extended (ABC) mode is not supported. - Yüksek Hızlı Veri Aktarımı: Includes one USB-A 3.0 port for data transfer speeds up to 5Gbps and three USB-A 2.0 ports for connecting standard peripherals at 480Mbps.
Önemli: USB-A data ports do not support charging, audio, or video output. - 100W Pass-Through Charging: The dedicated USB-C PD port allows charging your laptop at up to 85W while using the docking station.
Önemli: This USB-C PD port is for charging only and does not support data transfer, audio, or video output. - Geniş Uyumluluk: Compatible with most laptops featuring a USB-C port that supports DisplayPort Alt Mode, including models like Dell XPS, ThinkBook, ZenBook, Chromebook, and HP Elitebook 840 G6.
Paket İçeriği
The Lemorele TC550 USB-C 7-in-1 Dual Display Docking Station package includes:
- 1 x Lemorele TC550 7-in-1 USB-C Docking Station
- 1 x Kullanım Kılavuzu
- 1 x Fault Investigation Report
Image: Package Contents and Dimensions. This image displays the retail packaging of the Lemorele 7-in-1 USB-C Docking Station, along with its physical dimensions (11.3cm/4.5inch length, 5.3cm/2.1inch width, and a 26cm/10.2inch cable length) and the included user manual and troubleshooting guide.
Özellikler
| Özellik | Detay |
|---|---|
| Marka | Lemorele |
| Model Numarası | TC550 |
| Renk | Parlak Siyah |
| Donanım Arayüzü | HDMI, USB 2.0, USB 3.0, USB-C DP Alt Mode, USB-C PD |
| Özel Özellik | Dual Display 4K@60Hz (HDMI + USB-C DP Alt Mode) |
| Uyumlu Cihazlar | AR glasses, Laptops, PC, Display Screens |
| Toplam USB Bağlantı Noktaları | 4 (1x USB-A 3.0, 3x USB-A 2.0) |
| Veri Aktarım Hızı | 5 Gigabits Per Second (USB-A 3.0) |
| Port Sayısı | 7 |
| Muhafaza Malzemesi | Akrilonitril Bütadien Stiren (ABS) |
| Ürün Boyutları (U x G x Y) | 11.4U x 4.3G x 1.3Y Santimetre |
| Ürün Ağırlığı | 49 Gram |
| Menşei ülke | Çin |
Kurulum Talimatları
Follow these steps to set up your Lemorele TC550 USB-C 7-in-1 Dual Display Docking Station:
- Verify Host Device Compatibility: Ensure your laptop's USB-C port supports DisplayPort Alt Mode. Refer to your laptop's specifications or the image below for common USB-C port types.
Image: USB-C Port Compatibility Guide. This diagram illustrates which types of USB-C ports on your laptop support DisplayPort Alt Mode, which is essential for video output. Compatible ports include Thunderbolt 3/4, Data+DisplayPort Alt, and Data+PD DisplayPort Alt. Ports that only support data transfer, charging, or data+power delivery without DisplayPort Alt are not suitable for video output through this docking station.
- Yerleştirme İstasyonunu Bağlayın: Plug the USB-C cable of the docking station into a compatible USB-C port on your laptop.
Image: Lemorele 7-in-1 USB-C Docking Station. This image displays the docking station with its various ports clearly labeled, including USB-A 3.0, three USB-A 2.0 ports, an HDMI port, a USB-C DisplayPort, and a USB-C Power Delivery input. It highlights the 7-in-1 functionality.
- Harici Ekranları Bağlayın:
- For the first external display, connect an HDMI cable from your monitor to the HDMI port on the docking station.
- For the second external display, connect a USB-C to DisplayPort cable (or a compatible USB-C cable for DP Alt Mode) from your monitor to the USB-C DP port on the docking station.
Image: Dual Display Setup. This image illustrates a laptop connected to two external monitors using the docking station. One monitor is connected via HDMI, and the other via USB-C DisplayPort, demonstrating the dual display capability.
- Gücü Bağlayın (İsteğe bağlı ancak önerilir): For stable operation and to charge your laptop, connect your laptop's USB-C power adapter to the USB-C PD Input port on the docking station.
- USB çevre birimlerini bağlayın: Plug your USB devices (e.g., keyboard, mouse, external hard drive) into the available USB-A 3.0 or USB-A 2.0 data ports.
Kullanım Talimatları
Once the docking station is set up, you can begin using its various functions.
- Çift Ekran Yapılandırması:
- Windows Sistemleri: Supports various display modes including mirrored (showing the same content on all screens) and extended (allowing different content on each screen, creating a larger workspace). You can configure these settings in your display settings.
- macOS Sistemleri: Supports mirrored (AAA) mode, where all displays show the same content, or extended (ABB) mode, where the laptop screen is one display and both external monitors mirror each other. macOS does not support Multi-Stream Transport (MST) for three distinct extended displays (ABC).

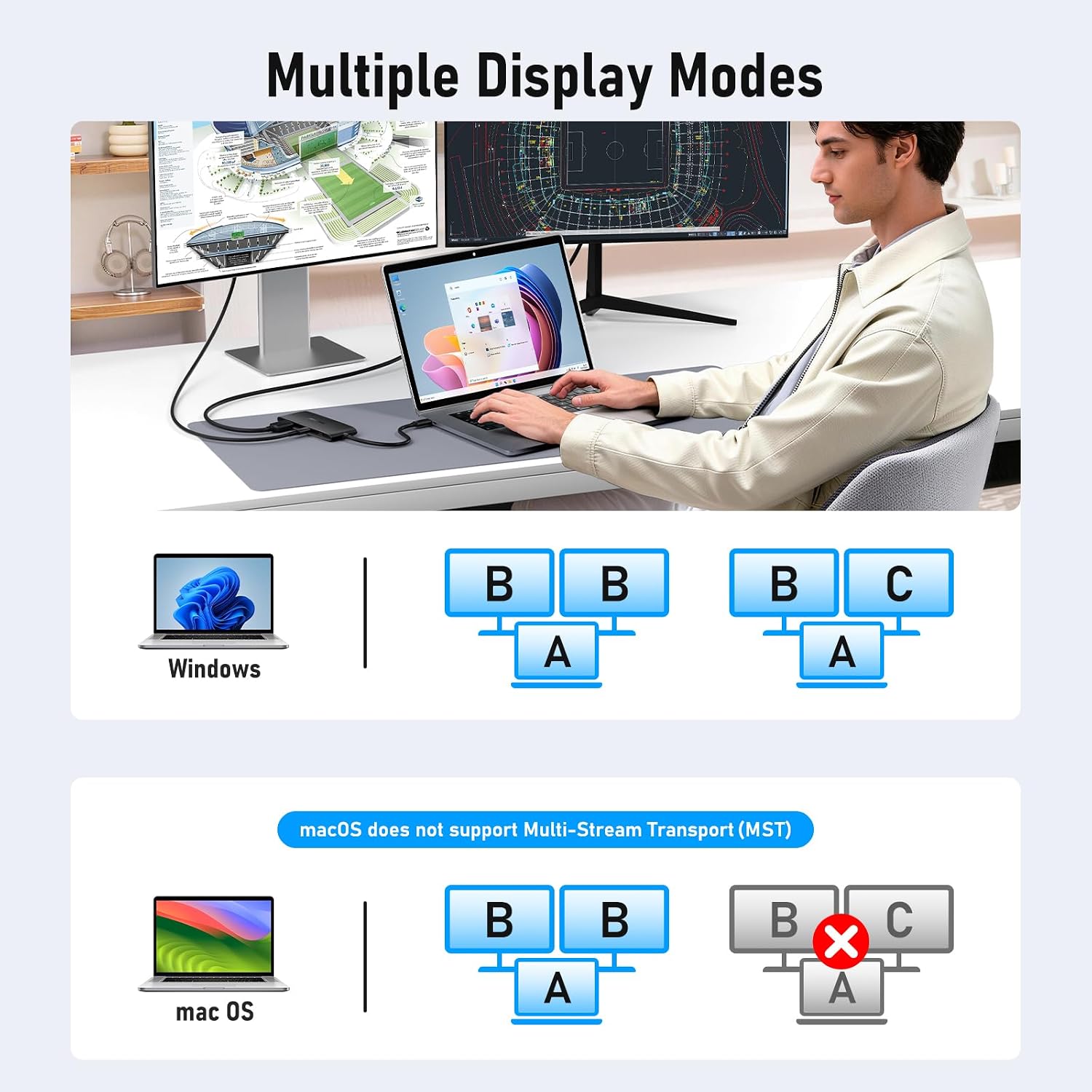

Image: Multiple Display Modes. This diagram visually explains the different display configurations available for Windows and macOS users. It shows that Windows supports mirrored (AAA), extended (ABB), and triple extended (ABC) modes, while macOS is limited to mirrored (AAA) and extended (ABB) modes, with the external displays mirroring each other.
- Veri Transferi: Use the blue USB-A 3.0 port for connecting devices requiring high-speed data transfer, such as external SSDs or flash drives, at up to 5Gbps. The three black USB-A 2.0 ports are suitable for standard peripherals like keyboards, mice, and printers.
Image: Fast Data Transfer and PD Charging. This image demonstrates the docking station's capabilities for quick data transfer via the 5Gbps USB-A 3.0 port and efficient laptop charging through the 100W USB-C Power Delivery port.
- Güç Teslimatı: If your laptop supports USB-C Power Delivery, connecting your laptop's power adapter to the docking station's USB-C PD port will charge your laptop at up to 85W. This allows you to power your laptop and use the docking station with a single connection.
Uyumluluk
The Lemorele TC550 docking station offers broad compatibility with various devices and operating systems.
- Laptops and PCs: Works with most laptops and PCs equipped with a full-featured USB-C port (supporting data, video, and power delivery), including popular models like Dell XPS, ThinkBook, ZenBook, Chromebook, and HP Elitebook 840 G6.
- Görüntü Cihazları: Compatible with projectors, TVs, monitors, Apple Pro Display XDR, portable monitors, Apple Studio Display, and AR glasses.
- Çevre Birimleri: Supports a wide range of USB peripherals such as keyboards, mice, gamepads, external hard drives, printers, and pocket cameras.
- Diğer cihazlar: Can be used with Xbox, game consoles, smartphones, Mac mini, and tablets that support USB-C video output.

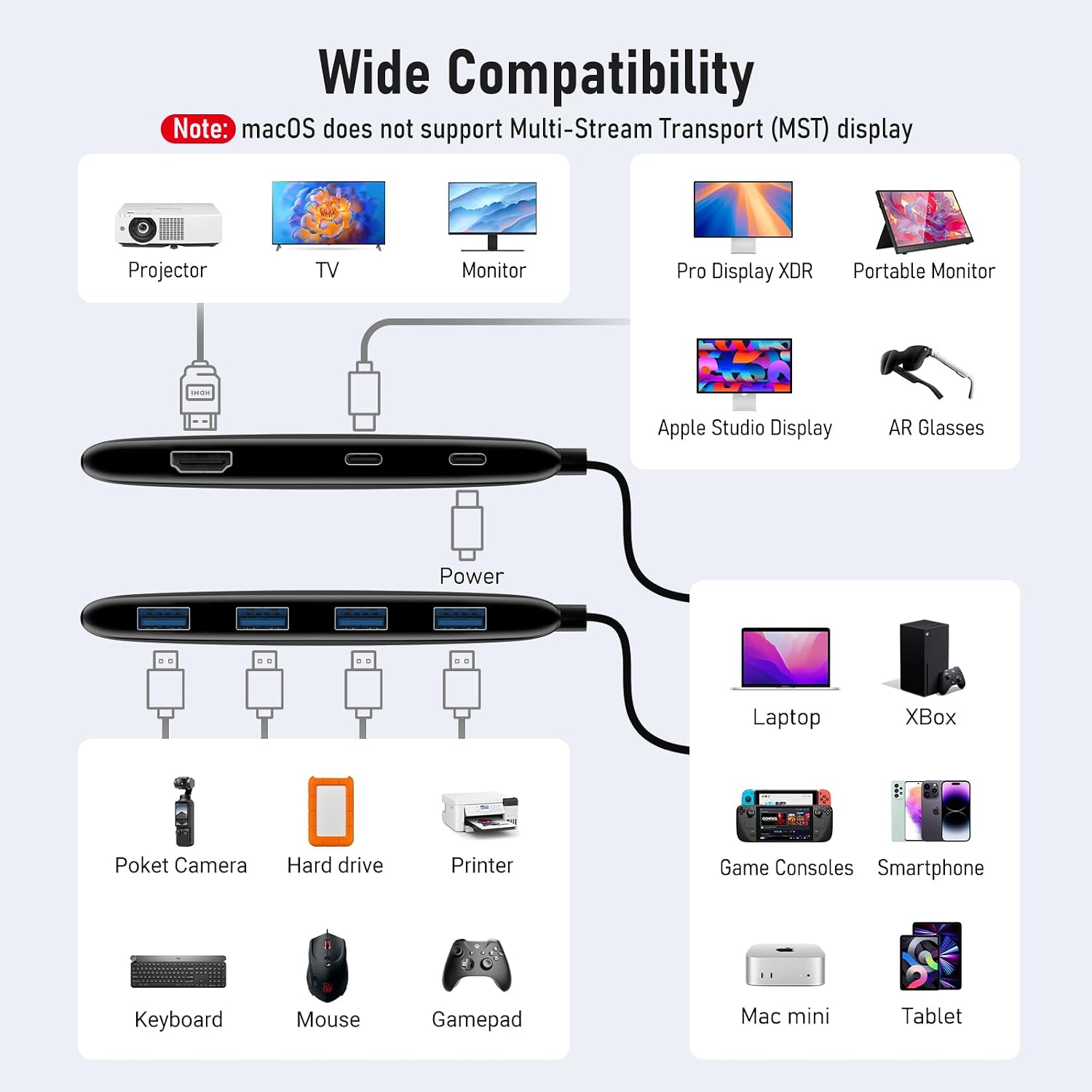

Image: Wide Compatibility Overview. This comprehensive diagram illustrates the extensive range of devices compatible with the docking station, including different types of displays (projectors, TVs, monitors), various host devices (laptops, Xbox, smartphones), and numerous USB peripherals (keyboards, mice, hard drives).
Bakım
Bağlantı istasyonunuzun uzun ömürlü ve optimum performans göstermesi için aşağıdaki bakım yönergelerini izleyin:
- Temizlik: Yerleştirme istasyonunun dışını temizlemek için yumuşak ve kuru bir bez kullanın. Sıvı temizleyiciler veya aerosoller kullanmaktan kaçının.
- Depolamak: Cihazı serin, kuru ve doğrudan güneş ışığından ve aşırı sıcaklıklardan uzak bir yerde saklayın.
- İşleme: Şarj istasyonunu dikkatli kullanın. Düşürmekten veya şiddetli darbelere maruz bırakmaktan kaçının.
- Havalandırma: Ensure proper ventilation around the device during operation to prevent overheating. Do not cover the docking station.
- Sökme: Do not attempt to disassemble or repair the device yourself. This will void the warranty and may cause damage.
Sorun giderme
If you encounter issues with your Lemorele TC550 docking station, refer to the following common problems and solutions:
| Sorun | Olası Neden / Çözüm |
|---|---|
| No display output on external monitors. |
|
| External displays disconnect intermittently or flicker. |
|
| USB-A data ports are not working or devices are slow. |
|
| Laptop is not charging via the USB-C PD port. |
|
Garanti ve Destek
Lemorele provides comprehensive support and warranty services for your product.
- Ürün Garantisi: The Lemorele TC550 USB-C 7-in-1 Dual Display Docking Station comes with a 1-year product warranty.
- İade politikasi: Enjoy a seven-day no-reason return policy.
- Satış Sonrası Destek:
- Danışma Hattı: 080-456-80400 (Landline)
- E-posta: support@lemorele.in
Image: Quality and Production. This image displays various product certifications and a view of a manufacturing facility, highlighting Lemorele's commitment to quality control and world-class production standards.
