VSDISPLAY 6.86 Inch Computer Temp LCD Monitor (Model VS0686SJ01-W) User Manual

1. Giriş

This manual provides detailed instructions for the installation, operation, and maintenance of your VSDISPLAY 6.86 Inch Computer Temp LCD Monitor. This monitor features a 1280x480 IPS display, designed for use as a secondary display within a PC case to monitor CPU, GPU, and RAM data, or as a standalone auxiliary display. It supports both horizontal and vertical display modes and includes theme editor software for customization.

2. Paketleme Listesi

Lütfen aşağıda listelenen tüm öğelerin paketinizde yer aldığından emin olun:

• 1 × 6.86 inch 1280x480 VS0686SJ01-W LCD Monitor (White Case)
• 1 × 9Pin Signal Cable
• 1 × USB Kablosu
• 1 × USB Memory Card With Software
• 1 × Kullanım Kılavuzu

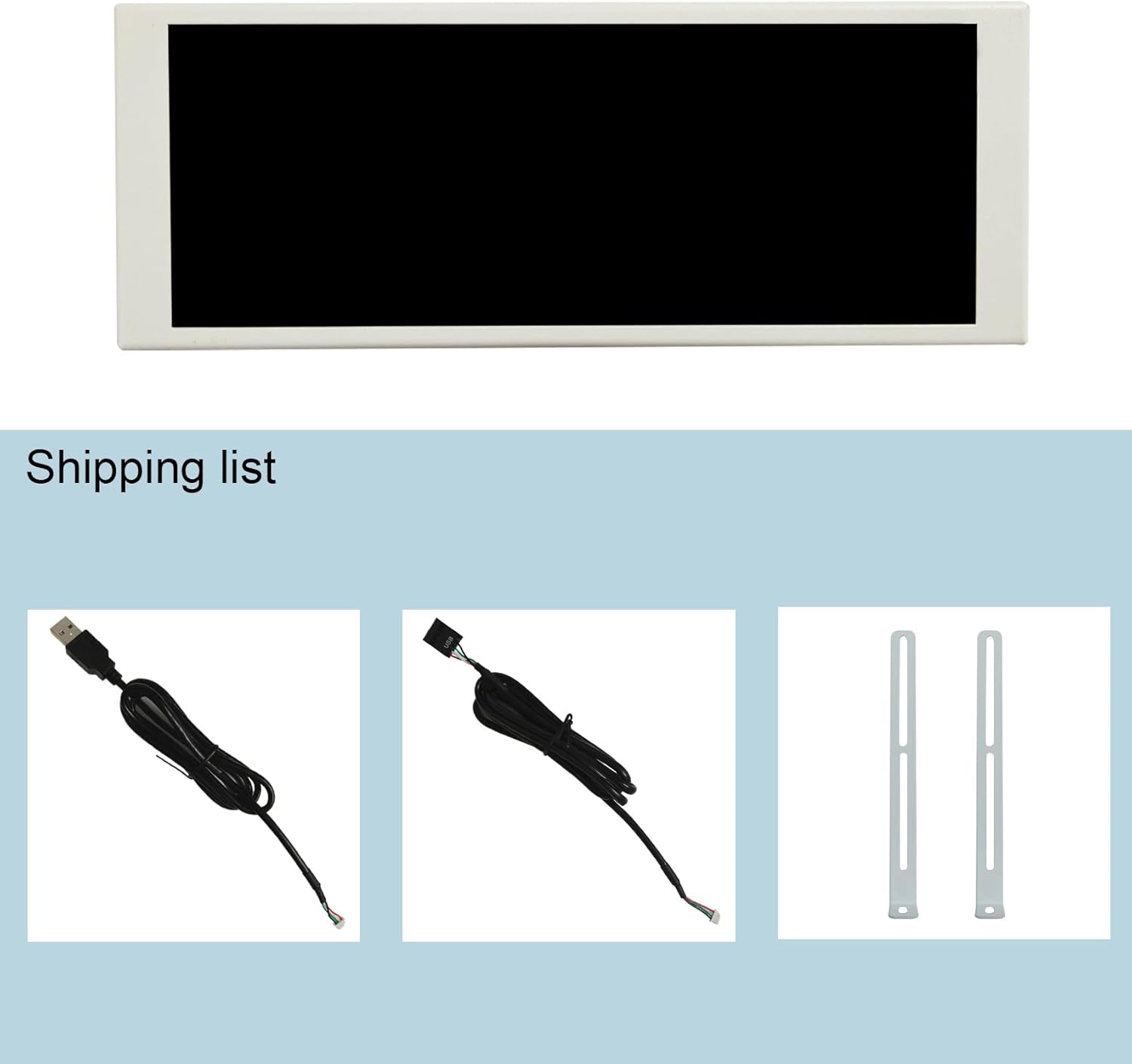

Figure 2.1: Contents of the packing list, including the monitor, cables, and brackets.

3. Kurulum

The VSDISPLAY monitor offers flexible installation options, either mounted inside a PC case or used as an auxiliary display with a stand.

3.1 Mounting with Brackets (Inside PC Case)

1. Identify the fixed hole positions on the back of the monitor and the mounting brackets.
2. Unscrew the existing screws on the monitor's back panel.
3. Align the brackets with the screw holes and secure them using appropriate screws. Caution: Ensure screws are not too long to avoid damaging internal circuits.
4. Mount the monitor with attached brackets inside your PC chassis.

Figure 3.1: Bracket installation steps for mounting the monitor inside a PC case.

Şekil 3.2: Ör.ample of the monitor integrated within a PC chassis.

3.2 Power and Signal Connection

The monitor requires a single USB connection for both power and signal. Two connection methods are available:

1. USB-C - USB-A Kablosu: Connect the USB-C port on the monitor to a standard USB-A port on your computer.
2. 9-Pin Signal Cable: Connect the 9-pin interface on the monitor to a 9-pin header on your motherboard.

Figure 3.3: USB and USB-C input ports on the monitor.

Figure 3.4: Connecting the monitor using a USB-C to USB-A cable.

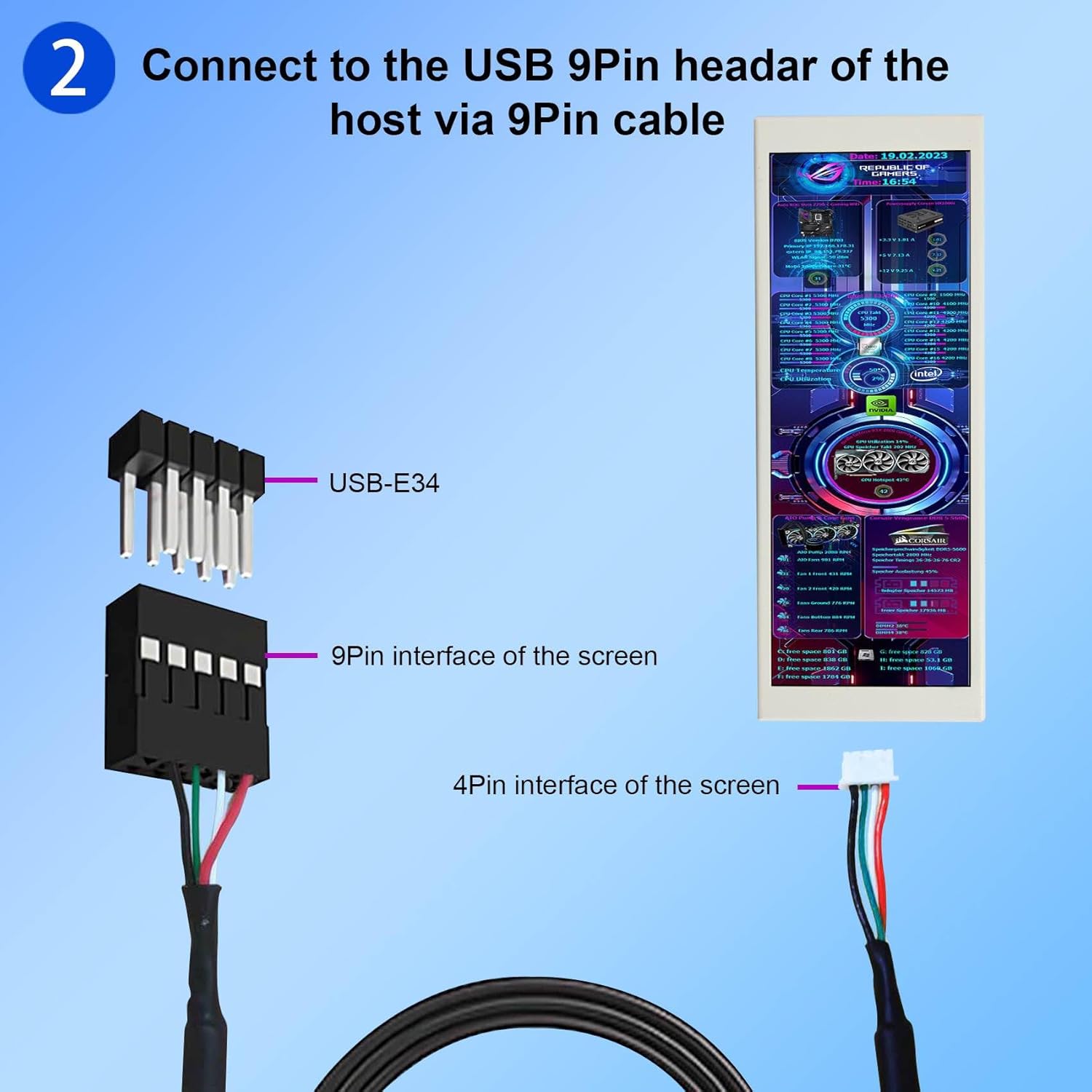

Figure 3.5: Connecting the monitor using a 9-pin signal cable to the motherboard.

4. Operasyon

Once connected, the monitor will display system information using pre-installed themes. For full customization and to display real-time CPU, GPU, and RAM data, the dedicated theme editor software is required.

4.1 Yazılım Kurulumu

The necessary software is provided on the included USB memory card. Alternatively, you can download the latest version from the official VSDISPLAY webalan: www.vslcd.com/download.html. Ensure you download the correct software version for your monitor size (e.g., "Smart Monitor Software For 7inch 8inch 10.1inch.exe" for this 6.86-inch model, as it covers similar sizes).

1. Insert the provided USB memory card into your computer or download the software from the webalan.
2. Open the USB drive or the downloaded file ve yükleyiciyi çalıştırın.
3. Follow the on-screen prompts to complete the software installation. It is recommended to install it in the default directory.
4. Launch the VSDISPLAY software after installation.

4.2 Using the Theme Editor Software

The VSDISPLAY software allows you to customize the display themes, monitor system data, and adjust the screen orientation.

1. Upon launching the software, ensure your monitor is detected (e.g., "DISPLAY_COM4" or similar).
2. Browse through the "Official Theme" or "Personal Theme" sections to select a desired display layout.
3. The software displays real-time CPU, GPU, and RAM data. You can customize elements within the themes.
4. To change the display orientation, use the "Angle" dropdown menu (0, 90, 180, 270 degrees) to match your physical monitor setup.
5. You can import custom images or videos to create personalized themes.

5. Özellikler

Detailed technical specifications for the VSDISPLAY 6.86 Inch Computer Temp LCD Monitor:

Figure 5.1: Dimensional drawing of the VSDISPLAY 6.86 inch monitor.

Figure 5.2: Comprehensive specifications table for VSDISPLAY monitors, including the 6.86-inch model.

6. Sorun Giderme

• Monitörde Görüntü Yok:
  • Ensure the USB cable is securely connected to both the monitor and the computer.
  • Verify that the correct software is installed and running.
  • For Windows 7, ensure necessary drivers are installed.
  • Check if the monitor is detected in your computer's display settings.
• Software Issues (Crashes, Incorrect Data):
  • Download the latest software version from the official VSDISPLAY webalan (www.vslcd.com/download.html).
  • Yazılımı yönetici olarak çalıştırın.
  • Ensure your operating system is Windows 8 or higher for optimal compatibility. Mac OS is not supported.
  • If issues persist, try reinstalling the software.
• Incorrect Display Orientation:
  • Adjust the "Angle" setting within the VSDISPLAY theme editor software to match your desired physical orientation (0, 90, 180, or 270 degrees).
• Physical Damage During Installation:
  • When using mounting screws, ensure they are of appropriate length to prevent damage to the internal components of the monitor.

7. Bakım

• Temizlik: Ekranı ve c'yi temizlemek için yumuşak, kuru bir bez kullanın.asing. Aşındırıcı temizleyicilerden veya çözücülerden kaçının.
• Depolamak: Monitörü serin, kuru ve doğrudan güneş ışığından ve aşırı sıcaklıklardan uzak bir yerde saklayın.
• Yazılım Güncellemeleri: Periodically check the VSDISPLAY webYazılım güncellemeleri için site, optimum performans ve yeni özelliklere erişim sağlamak amacıyla oluşturulmuştur.

8. Garanti ve Destek

For warranty information, technical support, or any inquiries regarding your VSDISPLAY monitor, please contact the manufacturer directly. Refer to the contact information provided on the official VSDISPLAY webSitenize veya ürününüzle birlikte gelen belgelere bakın.

Resmi Webalan: www.vslcd.com
