MMS15U 1.5 Ton Mini Excavator Instruction Manual

1. Giriş

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your MMS15U 1.5 Ton Mini Excavator. Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent injury or damage.

The MMS15U is a compact and powerful mini excavator designed for various tasks including backyard landscaping, garden path construction, and work in tight spaces. It features a 13.5 HP B&S gasoline engine, an extended hydraulic thumb, and a quick-change coupler for enhanced versatility.

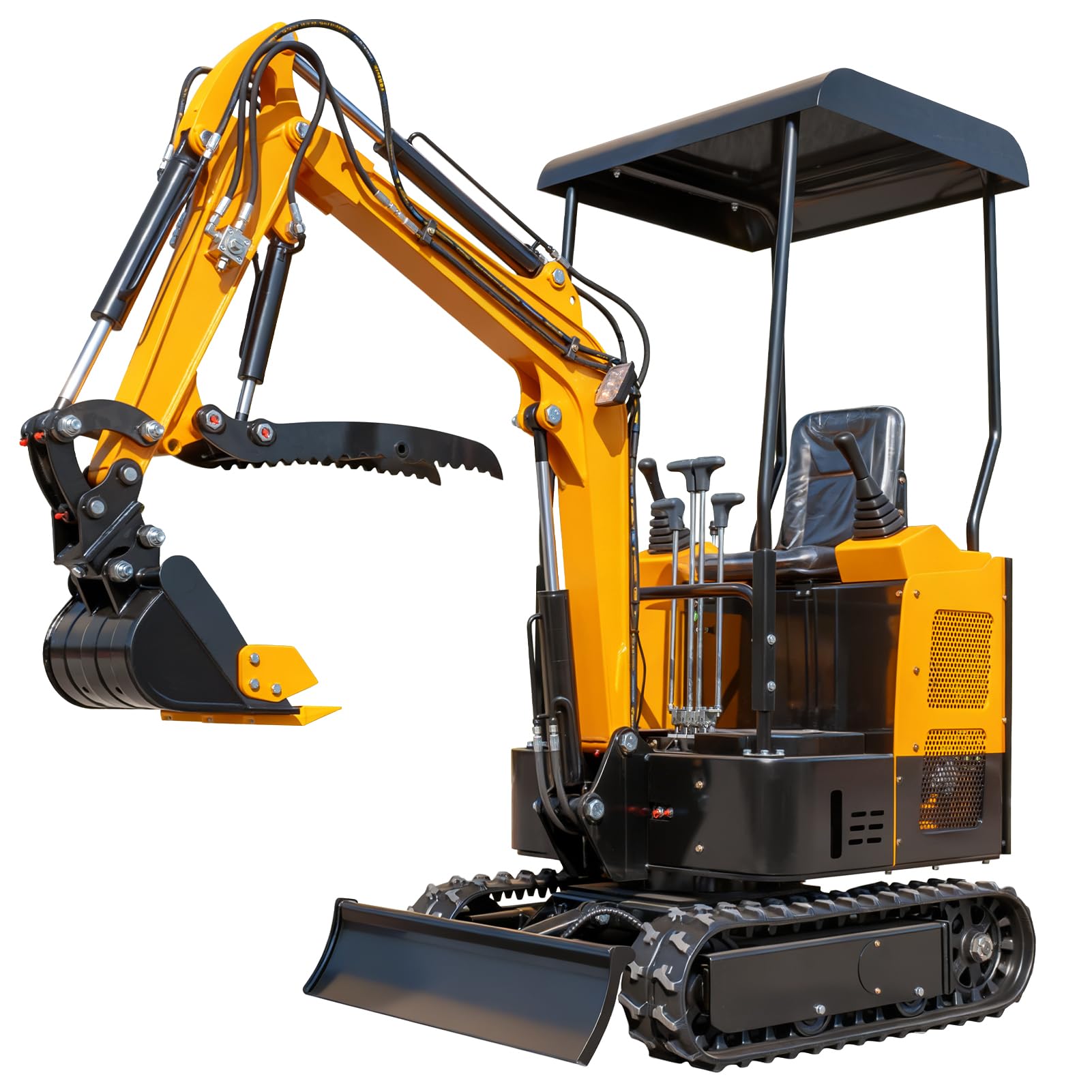

Figure 1: MMS15U 1.5 Ton Mini Excavator. This image shows the overall view of the excavator, highlighting its compact design and main components.

2. Güvenlik Bilgileri

Operating heavy machinery requires strict adherence to safety protocols. Failure to follow these guidelines can result in serious injury or death.

2.1 Genel Güvenlik Önlemleri

• Always wear appropriate personal protective equipment (PPE), including hard hat, safety glasses, hearing protection, and steel-toed boots.
• Makine üzerindeki tüm uyarı etiketlerini okuyun ve anlayın.
• Çalışma alanının, özellikle çocuklar ve evcil hayvanlar olmak üzere, etraftaki kimselerden uzak olduğundan emin olun.
• Inspect the excavator before each use for any damage, loose parts, or fluid leaks.
• Never operate the machine under the influence of alcohol or drugs.
• Maintain a safe distance from power lines, underground utilities, and unstable ground.
• Always lower the boom and bucket to the ground and engage the parking brake before leaving the operator's seat.

2.2 Engine Safety

• Operate the engine in a well-ventilated area to prevent carbon monoxide poisoning.
• Yakıt ikmalini, motor kapalı ve soğukken, iyi havalandırılan bir alanda yapın. Yakıt dökülmesini önleyin.
• Keep flammable materials away from the engine and exhaust system.

3. Bileşenler Bittiview

Familiarize yourself with the main components of the MMS15U Mini Excavator.

Figure 2: Key Components of the MMS15U Mini Excavator. This diagram illustrates the joystick, B&S engine, rubber track, thumb clamp, three-valve hydraulic valve, and 15-inch narrow bucket.

• B&S Gasoline Engine: Provides reliable power for excavation tasks.
• Hydraulic Pilot System: Delivers precise and smooth control of the excavator's movements.
• Extended Hydraulic Thumb Clamp: Aids in gripping and moving various materials.
• Mechanical Quick Coupler: Allows for fast and easy attachment changes.
• Upgraded Yellow Teeth Bucket: Designed for efficient digging and material handling.
• Rubber Tracks: Provide traction and protect surfaces during operation.
• Dozer Bıçağı: Used for backfilling, grading, and stabilizing the machine.

Figure 3: Enhanced Upgrades. This image details the extended hydraulic thumb clamp, yellow bucket with side teeth, and mechanical quick coupler.

Figure 4: B&S Gasoline Engine XR2100. This image shows the 13.5 HP Briggs & Stratton engine, known for fuel efficiency and low emissions.

4. Kurulum

Before operating your MMS15U Mini Excavator, perform the following setup procedures.

4.1 İlk Kontroller

1. Boşaltma: The excavator is delivered with unloading included. Ensure the machine is safely removed from the transport vehicle on a level, stable surface.
2. Sıvı Seviyeleri: Check engine oil, hydraulic fluid, and fuel levels. Refer to the specifications for correct fluid types and capacities. It is recommended to change the hydraulic fluid and engine oil before initial use.
3. Pil Bağlantısı: Ensure the battery terminals are clean and securely connected.
4. Yeşilasing: Lubricate all grease points on the boom, arm, and bucket linkages using a small grease gun.
5. Eklenti Kurulumu: If not pre-installed, attach the 15-inch digging bucket, extended hydraulic thumb clamp, and quick change coupler. Ensure all pins and fasteners are secure.

Figure 5: Hydraulic Oil Tank. This image shows the location of the hydraulic oil tank, which is crucial for checking fluid levels.

Figure 6: Operator Console. This image displays the ergonomic layout of the control levers and buttons for single-person operation.

5. Operasyon

This section outlines the basic steps for operating the MMS15U Mini Excavator.

5.1 Motorun Çalıştırılması

1. Ensure the parking brake is engaged and all controls are in the neutral position.
2. Kontak anahtarını "AÇIK" konumuna getirin.
3. Motor soğuksa jikleyi devreye alın.
4. Turn the ignition key to the "START" position. Release once the engine starts.
5. Allow the engine to warm up for a few minutes before operating.

5.2 İşletim Kontrolleri

The MMS15U utilizes a hydraulic pilot system for precise control. The joysticks and foot pedals control the boom, arm, bucket, swing, and track movements.

• Sol Joystick: Controls boom and swing.
• Sağ Joystick: Controls arm and bucket.
• Ayak Pedalları: Control track movement (forward/reverse) and dozer blade.
• Hydraulic Thumb Control: Typically a separate lever or button for gripping.

5.3 Digging and Excavating

1. Position the excavator on stable, level ground.
2. Lower the dozer blade for stability if needed.
3. Use the joysticks to position the bucket for digging.
4. Slowly engage the controls to begin digging. Avoid sudden movements.
5. When lifting material, ensure the load is within the machine's capacity.

Figure 7: Versatile Applications. This image shows the MMS15U mini excavator being used in various scenarios, including construction, landscaping, and material handling.

6. Bakım

Regular maintenance is crucial for the longevity and optimal performance of your MMS15U Mini Excavator.

6.1 Günlük Kontroller

• Motor yağı seviyesini kontrol edin.
• Check hydraulic fluid level using the visual sight gauge.
• Inspect tracks for damage or excessive wear.
• Check for any fluid leaks (oil, hydraulic fluid, fuel).
• Tüm ışıkların ve güvenlik cihazlarının çalışır durumda olduğundan emin olun.

Figure 8: Effortless Engine Access. This image illustrates how the operator's seat can be lifted to provide easy access to the engine compartment for maintenance.

Figure 9: Hydraulic System. This image highlights the high-quality cylinders and external hydraulic lines designed for stable working performance and ease of maintenance.

6.2 Planlı Bakım

• Motor Yağı Değişimi: Refer to the engine manufacturer's manual for recommended intervals (typically every 50-100 hours).
• Hydraulic Fluid Change: Replace hydraulic fluid and filter as per manufacturer recommendations.
• Hava Filtresi: Inspect and clean or replace the air filter regularly, especially in dusty conditions.
• Yakıt Filtresi: Replace the fuel filter at recommended intervals.
• Yeşilasing: Lubricate all pivot points and moving parts daily or every 8 hours of operation.

7. Sorun Giderme

Bu bölüm, sık karşılaşılan operasyonel sorunlara çözümler sunmaktadır.

8. Özellikler

Detailed technical specifications for the MMS15U Mini Excavator.

Figure 10: MMS15U Dimensions and Key Specifications. This image provides a visual representation of the excavator's dimensions and a table of key performance metrics.

9. Garanti ve Destek

For warranty information and customer support, please refer to the documentation provided with your purchase or contact MMS Excavator directly. The product typically includes a manufacturer's warranty covering defects in materials and workmanship.

Müşteri Desteği: For technical assistance, parts, or service inquiries, please contact MMS Excavator customer service. Keep your model number (MMS15U) and purchase date ready when contacting support.
