Aoxun 70-inch Fireplace TV Stand with LED Lights User Manual

1. Giriş

Satın aldığınız için teşekkür ederizasing the Aoxun 70-inch Fireplace TV Stand with LED Lights. This manual provides essential information for the safe assembly, operation, and maintenance of your new entertainment center. Please read these instructions thoroughly before beginning assembly or operation and retain them for future reference.

Image 1: Aoxun 70-inch Fireplace TV Stand with a television on top, showcasing the integrated electric fireplace and various storage compartments. The stand is black with metallic accents.

2. Önemli Güvenlik Bilgileri

Please read and understand all safety warnings and instructions before using this product. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.

• Always unplug the fireplace from the power outlet before cleaning or performing any maintenance.
• Do not operate the fireplace with a damaged cord or plug, or if the heater has malfunctioned, been dropped, or damaged in any manner.
• Mobilya, yastık, yatak takımı, kağıt, giysi ve perde gibi yanıcı malzemeleri ısıtıcının önünden en az 3 fit (0.9 m) uzakta, yanlarından ve arkasından ise uzak tutun.
• Elektrik çarpmasına veya yangına neden olabileceği veya ısıtıcının hasar görmesine yol açabileceği için havalandırma veya egzoz açıklıklarına yabancı cisimler sokmayın veya girmesine izin vermeyin.
• This TV stand is designed for indoor use only.
• Ensure the TV stand is placed on a level, stable surface to prevent tipping.
• Do not overload the TV stand with weight exceeding its capacity. Refer to specifications for weight limits.
• Keep children and pets away from the fireplace and electrical components.

3. Paket İçeriği

Your Aoxun Fireplace TV Stand is shipped in two separate packages. Please ensure you have received both packages and all components are present before beginning assembly. Carefully unpack all parts and hardware. If any parts are missing or damaged, do not attempt to assemble the product. Contact customer support for assistance.

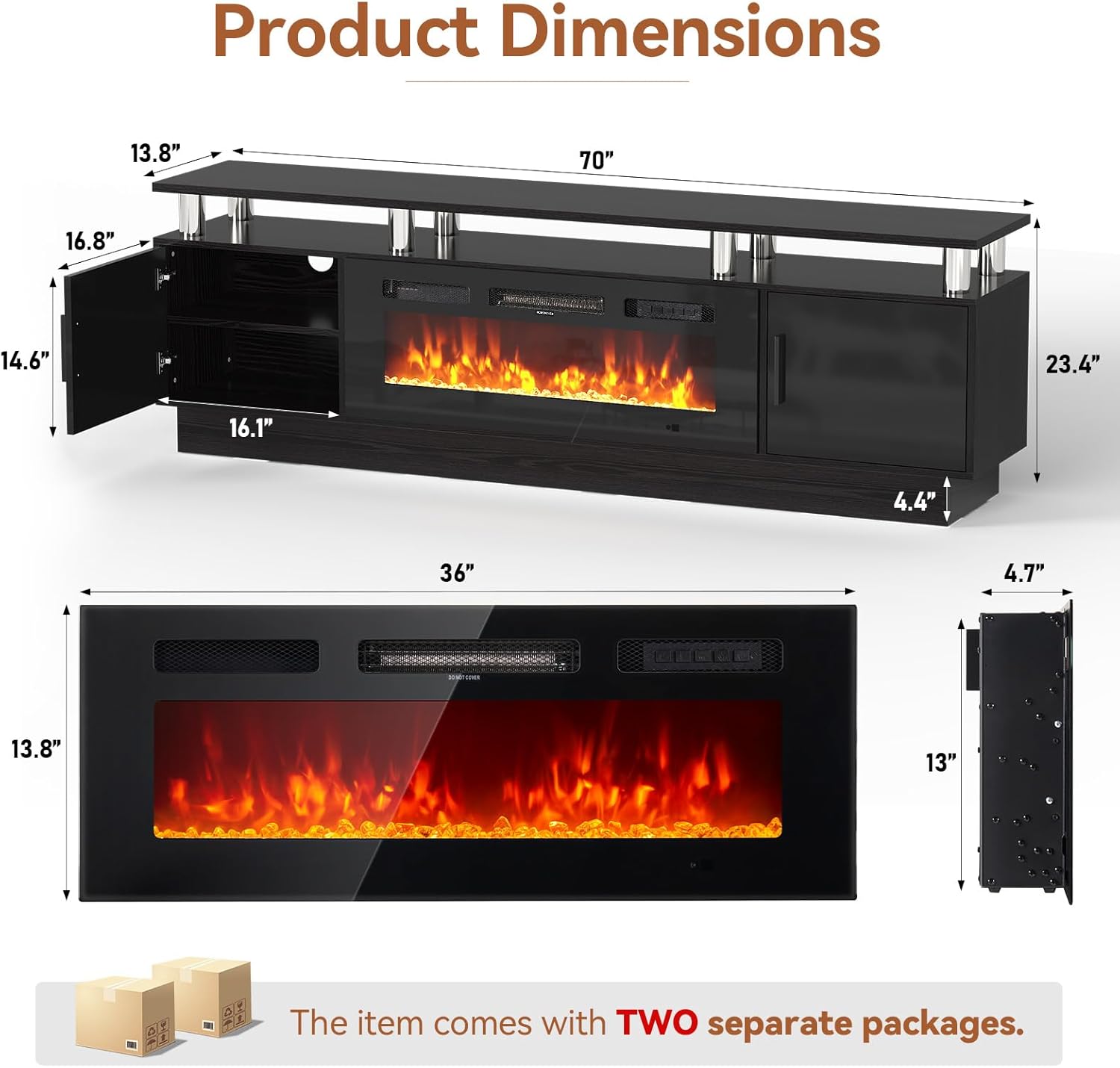

Image 2: A diagram illustrating the overall product dimensions and explicitly stating that the item comes in two separate packages.

Tipik bileşenler şunlardır:

• TV Stand Panels (top, bottom, sides, shelves)
• Elektrikli Şömine Ekleme
• LED Light Strips and Controller
• Donanım Paketi (vidalar, dübeller, kilitler vb.)
• Şömine için Uzaktan Kumanda
• Kullanım Kılavuzu

4. Ürün Boyutları

Refer to the diagram below for detailed product dimensions to ensure proper fit in your desired location.

Image 3: A detailed diagram showing the dimensions of the Aoxun TV stand and the separate fireplace insert. The TV stand measures approximately 70 inches in width, 16.8 inches in depth for the main base, and 23.4 inches in total height including the top shelf. The fireplace insert is 36 inches wide and 13.8 inches high.

• Overall TV Stand Dimensions (Approximate): 70 inç (Genişlik) x 16.8 inç (Derinlik) x 23.4 inç (Yükseklik)
• Fireplace Insert Dimensions (W x H): 36 x 13.8 inç

5. Montaj ve Kurulum

Assembly of the Aoxun Fireplace TV Stand requires two adults. Follow the step-by-step instructions provided in the separate assembly guide included in your package. Ensure all hardware is securely fastened before placing any items on the stand or operating the fireplace.

1. Çalışma Alanını Hazırlayın: Geniş bir alan açın ve çizilmeleri önlemek için tüm parçaları yumuşak, temiz bir yüzeye yerleştirin.
2. TV Sehpası Çerçevesini Birleştirin: Follow the numbered steps in the assembly guide to construct the main frame of the TV stand.
3. Install Shelves and Doors: Attach internal shelves and hinged doors as instructed. The stand features storage cabinets with shelves.
4. Integrate Fireplace Insert: Carefully slide the electric fireplace insert into its designated opening in the TV stand. Ensure it is seated correctly and secured if applicable.
5. Connect LED Lights: Attach the LED light strips to the designated areas, typically under the top shelf or within compartments. Connect them to the controller.
6. Kablo yönetimi: Utilize the integrated cable management holes to route and organize power cords and media cables, keeping them tidy and out of sight.
7. Son Yerleştirme: Position the assembled TV stand on a level surface.

Image 4: This image highlights key features for setup and use, including the remote control, a storage cabinet with internal shelves and hinged doors, a circular cable management hole for organization, and the stainless steel brackets supporting the upper shelf.

6. Kullanım Talimatları

6.1 Electric Fireplace Operation

Elektrikli şömine, ünitenin üzerindeki kontrol paneli veya birlikte verilen uzaktan kumanda kullanılarak çalıştırılabilir.

Resim 5: Ayrıntılı view of the electric fireplace insert, illustrating its various features such as remote control functionality, temperature adjustment (62°F to 82°F), timing settings (1H-8H), 12 flame color options, energy-saving modes (750W/1500W), 5 levels of flame brightness, an air outlet, crystal stone media, a tempered glass screen, and mechanical keying for manual controls.

• Güç Açma/Kapatma: Press the power button on the control panel or remote to turn the fireplace on or off.
• Sıcaklık Ayarı: Use the temperature controls to set the desired heat output between 62°F and 82°F.
• Zamanlama Ayarı: 1 ile 8 saat arasında otomatik kapanma zamanlayıcısı ayarlayın.
• Flame Color Adjustment: Choose from 12 different flame colors to match your ambiance.
• Flame Brightness Adjustment: Adjust the flame brightness through 5 levels (L1 to L5).
• Enerji Tasarrufu: Select between 750W and 1500W heating modes for energy efficiency.

Image 6: This image demonstrates the 5 distinct levels of flame brightness, ranging from dim (L1) to bright (L5), and showcases the 12 available flame colors, offering a variety of aesthetic options for the electric fireplace.

6.2 LED Işık Çalışması

The integrated LED lights enhance the ambiance of your entertainment center. They are controlled separately, often via a dedicated remote or button.

Image 7: The Aoxun TV stand illuminated with blue LED lights and matching blue electric fireplace flames, demonstrating the customizable ambient lighting feature.

• Güç Açma/Kapatma: Use the dedicated button or remote for the LED lights to turn them on or off.
• Renk Seçimi: Choose from 12 available LED colors to create your desired atmosphere.
• Parlaklık/Mod: Adjust brightness or select different lighting modes if available.

7. Bakım

Regular maintenance will help prolong the life and appearance of your Aoxun Fireplace TV Stand.

• Standın Temizlenmesi: Yüzeyleri yumuşak bir bezle silin.amp Kumaşı sert kimyasallardan veya aşındırıcı temizleyicilerden uzak tutun. Cilaya zarar verebilir.
• Şöminenin Temizlenmesi: Ensure the fireplace is unplugged and cool before cleaning. Use a soft, damp cloth to wipe the exterior. Do not spray water directly onto the unit.
• Toz alma: Regularly dust the unit to prevent buildup, especially around ventilation openings.
• Kordon Muayenesi: Güç kablosunu periyodik olarak hasar belirtileri açısından kontrol edin. Hasarlıysa, kullanmayı bırakın ve müşteri desteğiyle iletişime geçin.

8. Sorun Giderme

If you encounter issues with your Aoxun Fireplace TV Stand, refer to the following common problems and solutions:

9. Ürün Özellikleri

• Marka: Aoxun
• Modeli: B0FXF93MPY
• Renk: Siyah
• Overall Product Dimensions (Approximate L x W x H): 70 x 16.8 x 23.4 inç
• Ürün Ağırlığı: 98.1 pound
• Şömine Boyutu: 36 inç
• Isıtma Gücü: 750W / 1500W (Energy Saving Modes)
• Sıcaklık Aralığı: 62°F ila 82°F
• Zamanlayıcı Ayarları: 1H - 8H
• Alev Renkleri: 12 ayarlanabilir renk
• Alev Parlaklığı: 5 seviye
• LED Işıklar: 12 colors for choice
• Malzeme: Wood composite, tempered glass, stainless steel
• UPC: 799413421280

10. Garanti ve Müşteri Desteği

Aoxun products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Aoxun website. If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Aoxun customer support.

İletişim Bilgileri: Please refer to your purchase documentation or the Aoxun official webEn güncel müşteri desteği iletişim bilgileri için siteyi ziyaret edin.
