Gudsunal I3616-2 2-Burner Built-in Induction Cooktop User Manual

1. Önemli Güvenlik Talimatları

Please read all instructions carefully before using your new induction cooktop. Keep this manual for future reference. Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual for assistance.

• Elektriksel Güvenlik: Ocağın doğru voltajda ve uygun şekilde topraklanmış bir elektrik prizine bağlı olduğundan emin olun.tage (220-240V) and current capacity. Do not use extension cords or adapters.
• Çocuk Güvenliği: Keep children away from the cooktop during operation and when it is cooling down. Utilize the child lock feature to prevent accidental activation.
• Sıcak Yüzey Uyarısı: The cooktop surface will remain hot after use. Do not touch the surface until the residual heat indicator ('H') has turned off.
• Uygun Pişirme Gereçleri: Only use induction-compatible cookware with a flat bottom. Non-compatible cookware will not heat up.
• Havalandırma: Ensure adequate ventilation around the cooktop during installation and operation to prevent overheating.
• Temizlik: Always disconnect the power supply before cleaning. Allow the cooktop to cool completely before cleaning.

2. Kutuda Neler Var?

Verify that all components are present in your package before proceeding with installation.

This image displays the items included in your package: the Gudsunal induction cooktop, a user manual, sealing tape, and installation brackets with screws.

• Gudsunal 2-Burner Induction Cooktop
• Kullanıcı Kılavuzu
• Sızdırmazlık bandı
• Installation Kits (brackets and screws)

3. Kurulum ve Kurulum

The Gudsunal I3616-2 induction cooktop is designed for built-in installation. Professional installation is recommended.

3.1 Boyutlar ve Kesim

Ensure your countertop has the correct cutout dimensions for a proper fit.

This diagram illustrates the product dimensions (290mm x 520mm x 58mm) and the required cutout dimensions for built-in installation (270mm x 490mm).

• Ürün Ölçüleri (U x G x Y): 52 cm x 29 cm x 5.8 cm
• Cutout Dimensions (L x W): 49 cm x 27 cm

3.2 Elektrik Bağlantısı

The cooktop requires a 220-240V electrical supply. Consult a qualified electrician for proper wiring and connection to ensure safety and compliance with local regulations.

3.3 Mounting the Cooktop

1. Place the sealing tape around the edges of the cooktop opening to create a seal against moisture.
2. Carefully lower the cooktop into the cutout opening.
3. Secure the cooktop from underneath using the provided installation brackets and screws. Ensure it is firmly seated and level.

4. Kullanım Talimatları

Familiarize yourself with the touch controls for efficient and safe cooking.

4.1 Kontrol Paneli Üstüview

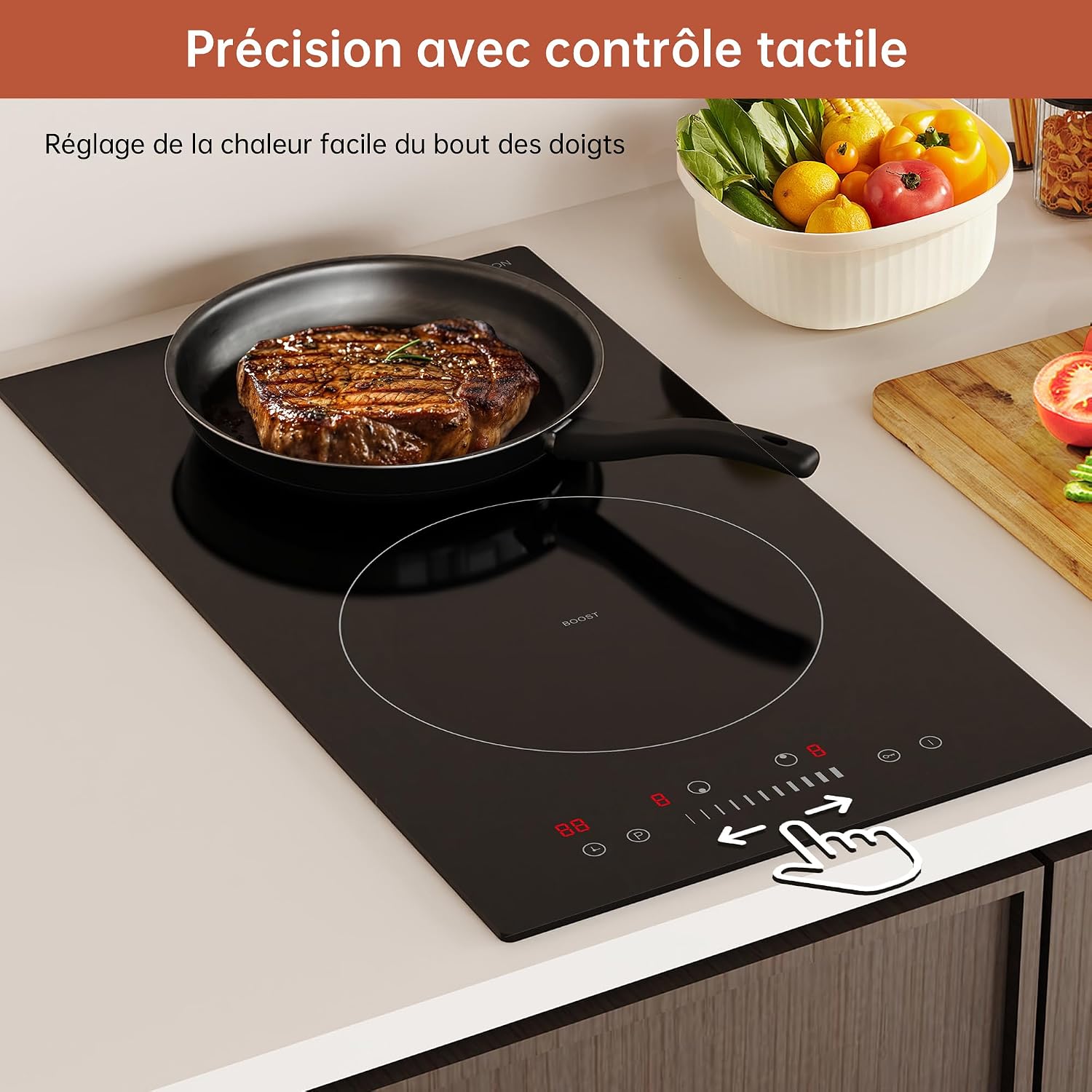

The touch control panel allows for precise temperature adjustment. Slide your finger along the control bar to set the desired power level from 1 to 9.

4.2 Açma/Kapatma

• Açmak için: Güç düğmesine basılı tutun (O) for a few seconds. The display will show '0'.
• Kapatmak için: Güç düğmesine basılı tutun (O) Tekrar.

4.3 Pişirme Bölgesi ve Güç Seviyesinin Seçilmesi

1. İstenilen pişirme bölgesine uygun pişirme kaplarını yerleştirin.
2. Press the corresponding cooking zone selection button.
3. Adjust the power level from 1 to 9 using the sliding touch control.

4.4 Güçlendirme İşlevi

Activate the Boost function for a rapid increase in heating power for up to 5 minutes, ideal for quickly boiling water or searing.

The Boost function provides maximum power for rapid heating. Press the 'Boost' button (B) after selecting a cooking zone. This function operates for up to 5 minutes and then automatically reverts to a lower power setting.

4.5 Zamanlayıcı İşlevi

The cooktop features a timer function, allowing you to set cooking durations up to 99 minutes for precise control and automatic shut-off.

To set the timer, press the Timer button (P) and use the '+' and '-' controls to adjust the desired cooking time (up to 99 minutes). The cooktop will automatically turn off the selected cooking zone when the timer expires.

5. Güvenlik Özellikleri

Your Gudsunal induction cooktop is equipped with several safety features to ensure a secure cooking environment.

This image highlights the integrated safety features of the cooktop, such as child lock, residual heat indicator, automatic safety cut-off, and pan detection.

5.1 Çocuk Kilidi

The child lock feature prevents accidental operation by locking the touch controls, ensuring safety in the kitchen.

Activate the child lock by pressing the lock button. This will disable all touch controls, preventing accidental changes to settings or activation by children.

5.2 Kalan Isı Göstergesi

After cooking, an 'H' will appear on the display if the cooking zone is still hot, warning against touching the surface.

After a cooking zone is turned off, an 'H' will appear on the display to indicate that the surface is still hot. Do not touch the surface until the 'H' disappears.

5.3 Otomatik Güvenlik Kapatma

The cooktop is equipped with an automatic safety shut-off that activates after a preset time if a cooking zone is left unattended, preventing overheating.

If a cooking zone is left operating for an extended period without any adjustments, the cooktop will automatically shut off as a safety measure.

5.4 Pan Detection System

The integrated pan detection system ensures that heating only occurs when a suitable ferromagnetic pot or pan is placed on the cooking zone, enhancing safety and energy efficiency.

The cooktop will only generate heat when an induction-compatible pot or pan is placed on the cooking zone. If no pan is detected or an unsuitable pan is used, the cooktop will not activate heating.

6. Bakım ve Temizlik

Regular cleaning and maintenance will prolong the life and appearance of your induction cooktop.

• Günlük Temizlik: Wipe the ceramic glass surface with a soft cloth and mild detergent after each use, once the cooktop has cooled down.
• İnatçı Lekeler: For burnt-on food or stubborn stains, use a ceramic hob scraper or a specialized ceramic hob cleaner. Follow the product instructions carefully.
• Aşındırıcılardan Kaçının: Aşındırıcı süngerler, ovma telleri veya sert kimyasal temizleyiciler kullanmayın; bunlar cam yüzeyini çizebilir veya zarar verebilir.
• Kontrol Paneli: Dokunmatik kontrol panelini yumuşak bir bezle silin.amp Bez. Ocağı çalıştırmadan önce kuru olduğundan emin olun.
• Havalandırma Açıklıkları: Keep the ventilation openings underneath and around the cooktop clear of obstructions to ensure proper airflow.

7. Sorun Giderme

If you encounter any issues with your cooktop, refer to the following common problems and solutions.

Bu çözümleri denedikten sonra sorun devam ederse lütfen müşteri desteğiyle iletişime geçin.

8. Özellikler

9. Garanti ve Destek

9.1 Garanti Bilgileri

This Gudsunal induction cooktop comes with a 2 yıllık üretici garantisiLütfen garanti talepleriniz için satın alma belgenizi saklayın.

9.2 Müşteri Desteği

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Gudsunal customer support through your retailer or the official Gudsunal website. Have your model number (I3616-2) and purchase date ready when contacting support.
